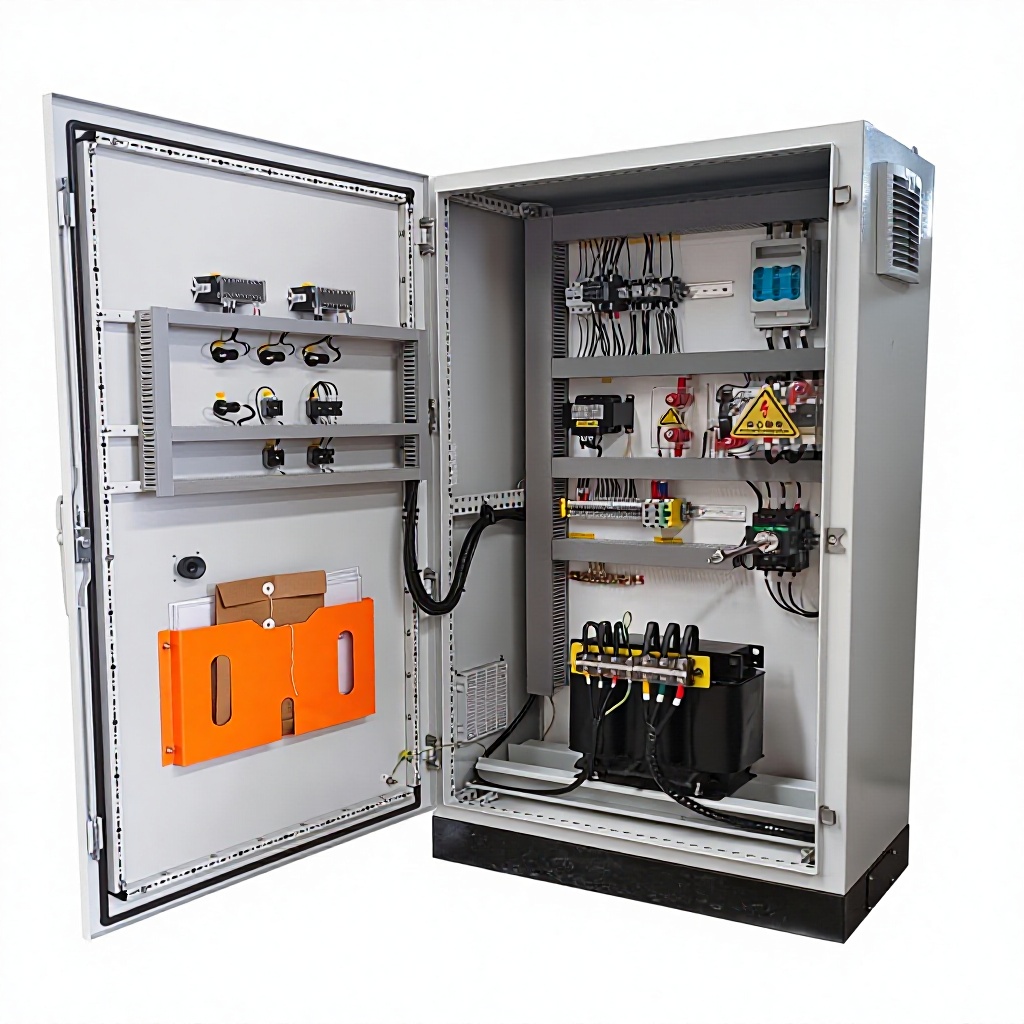

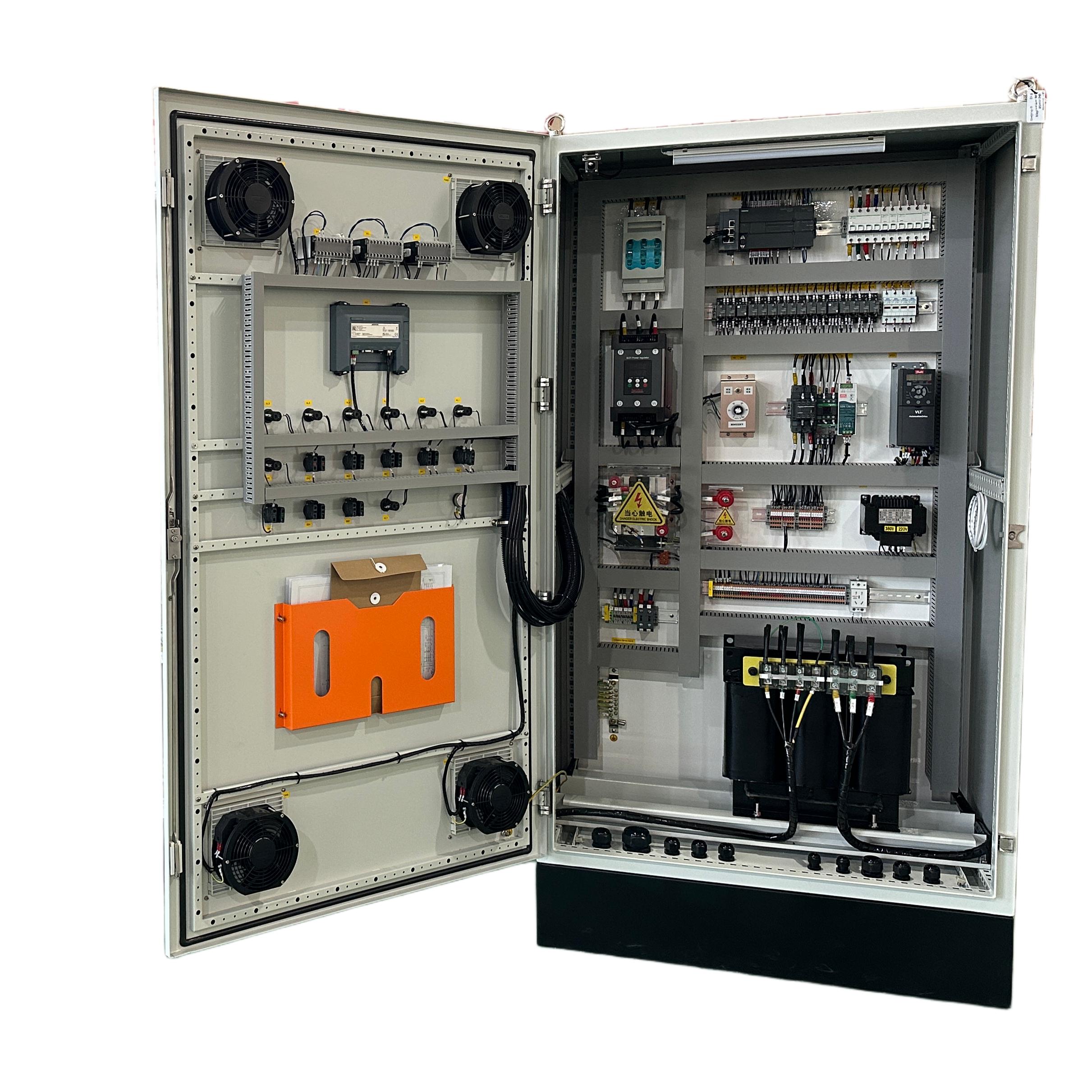

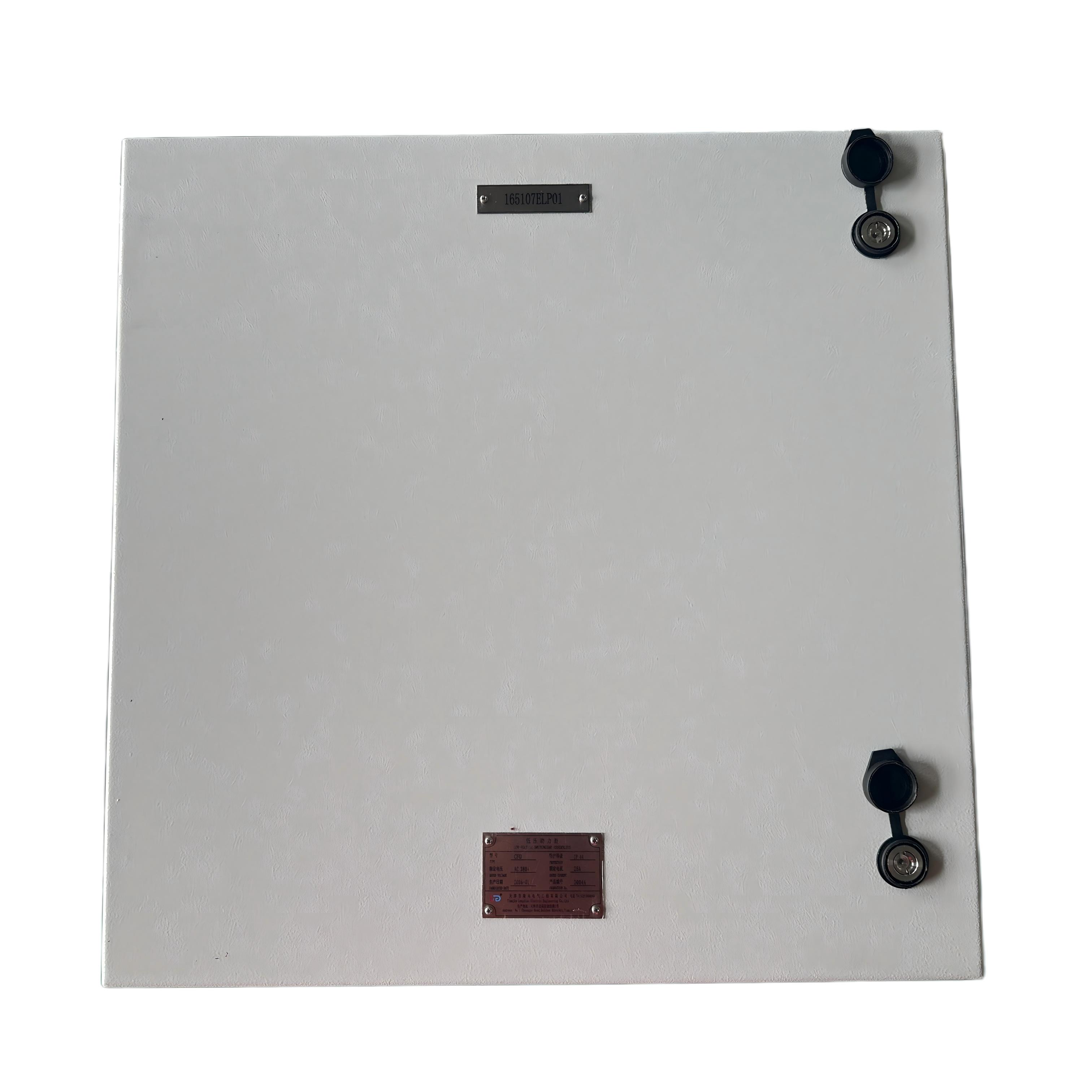

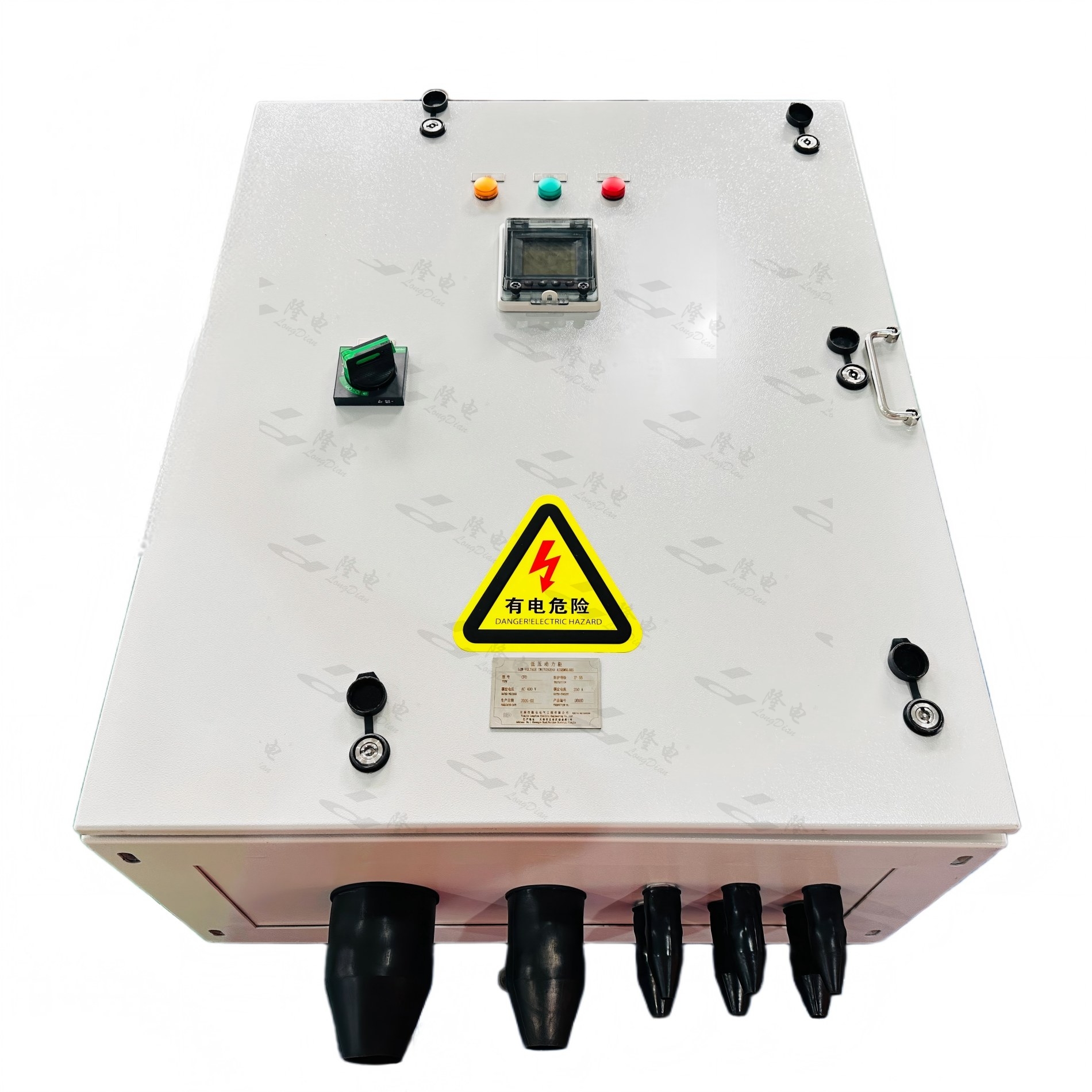

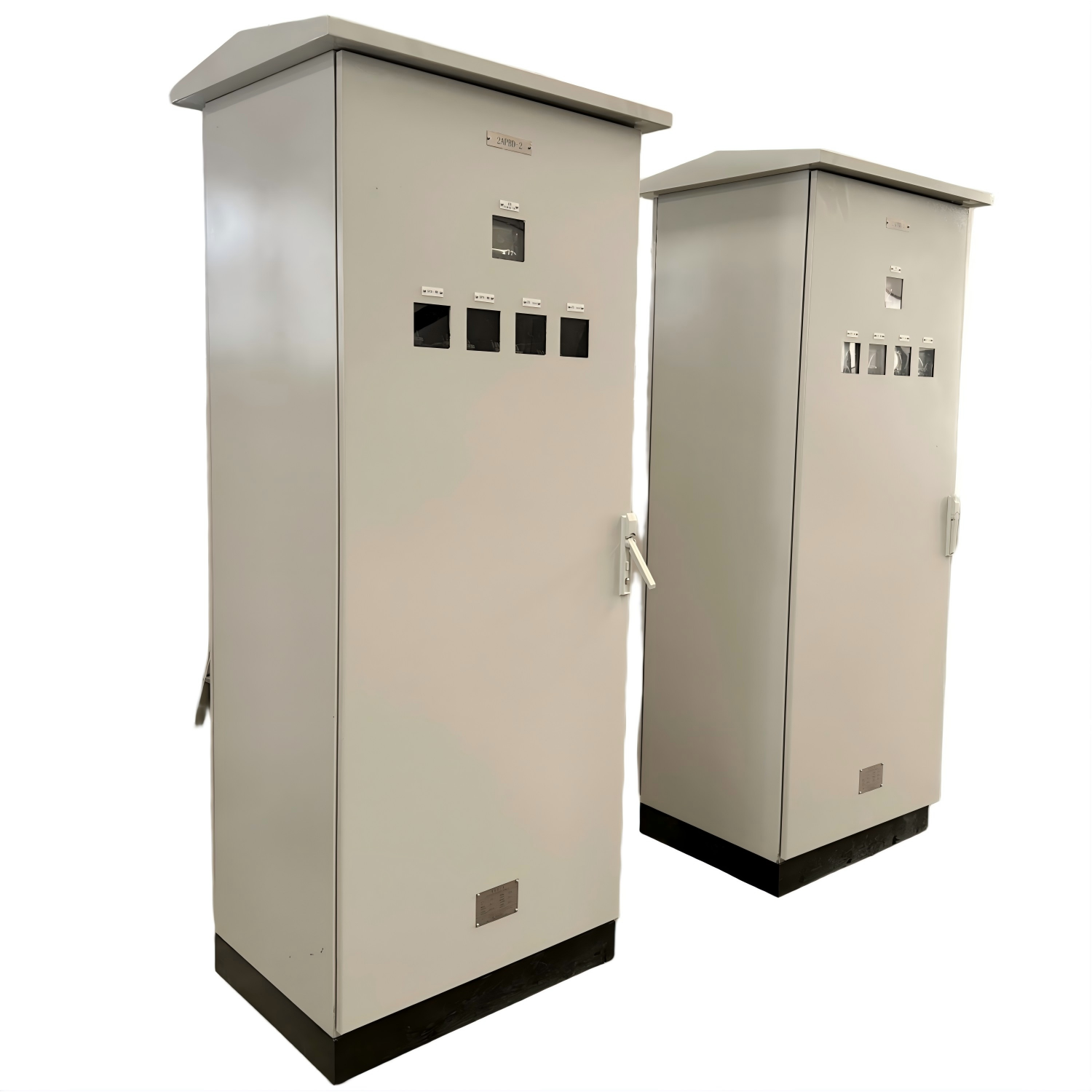

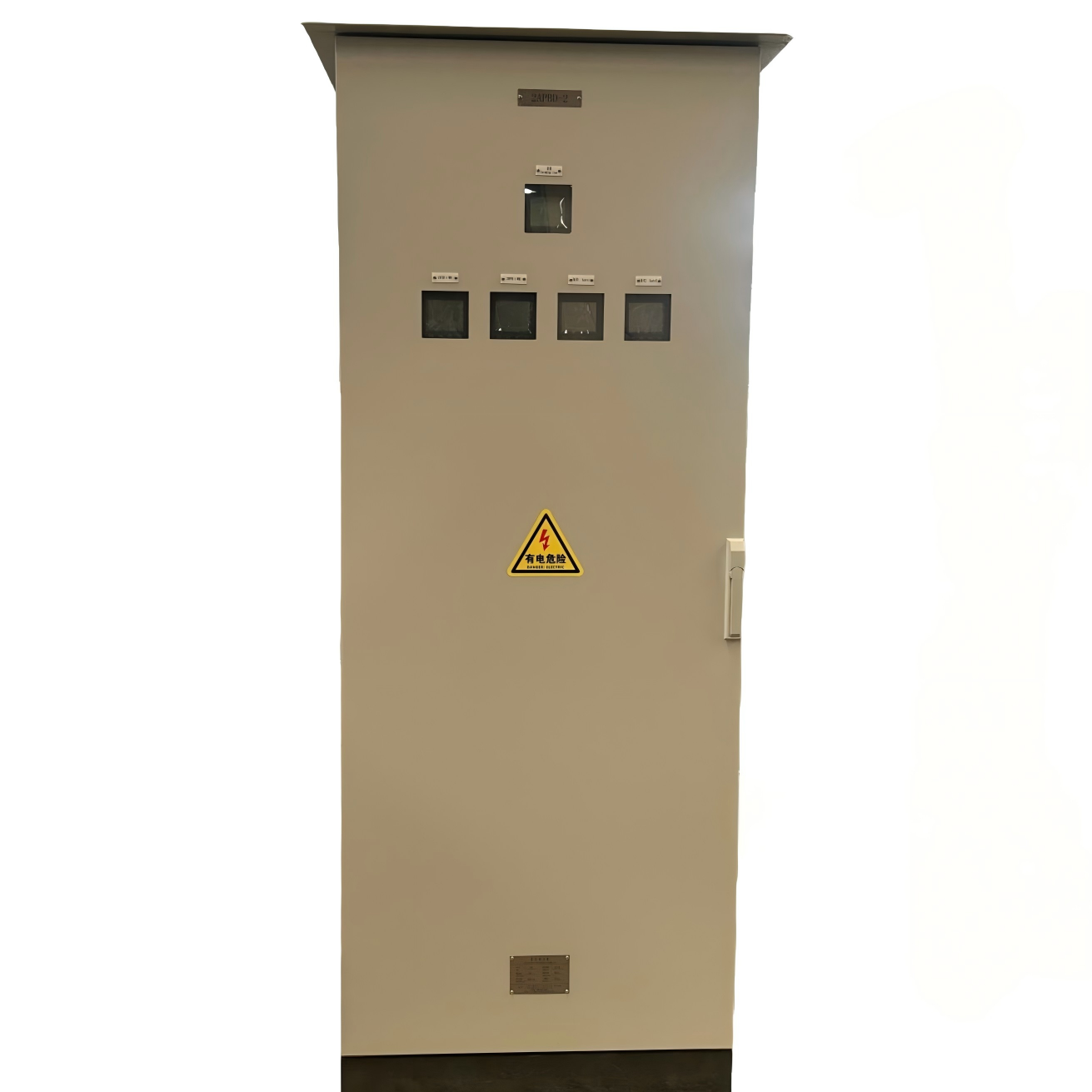

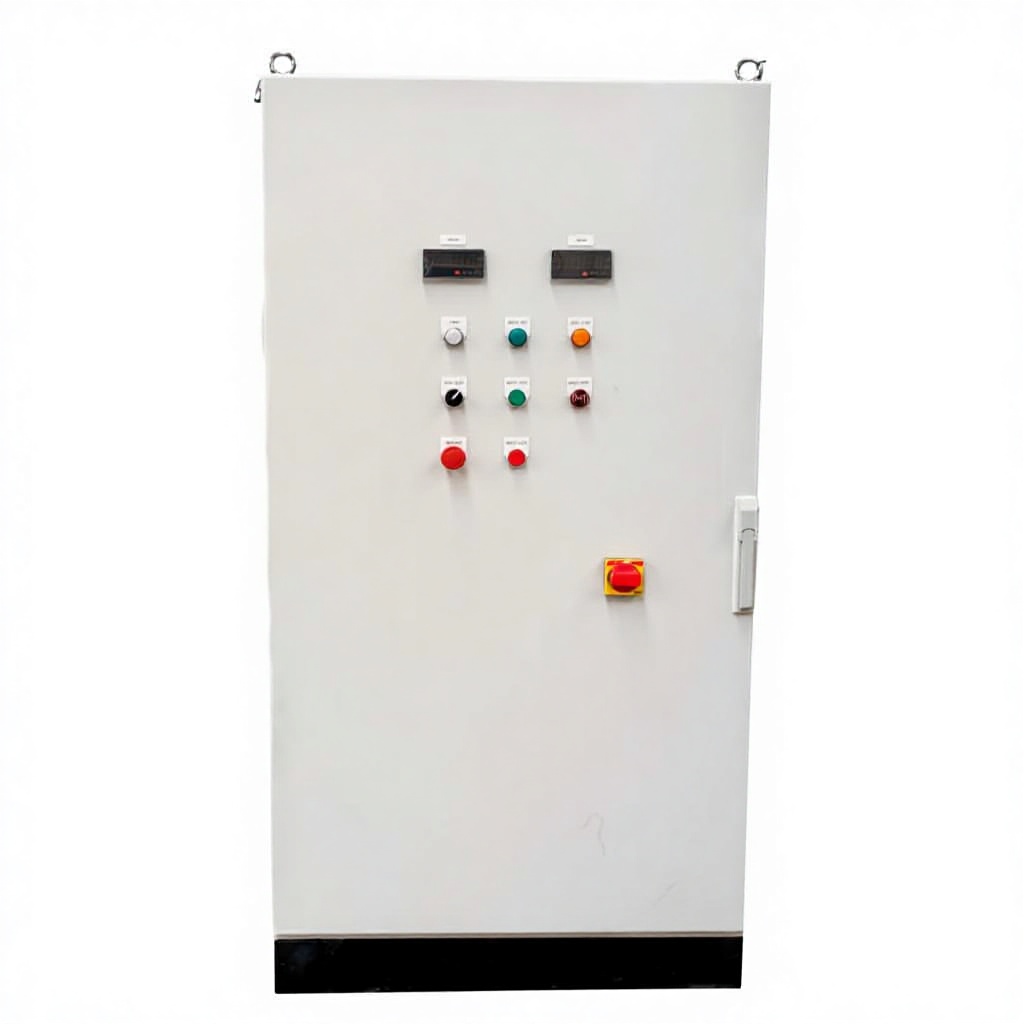

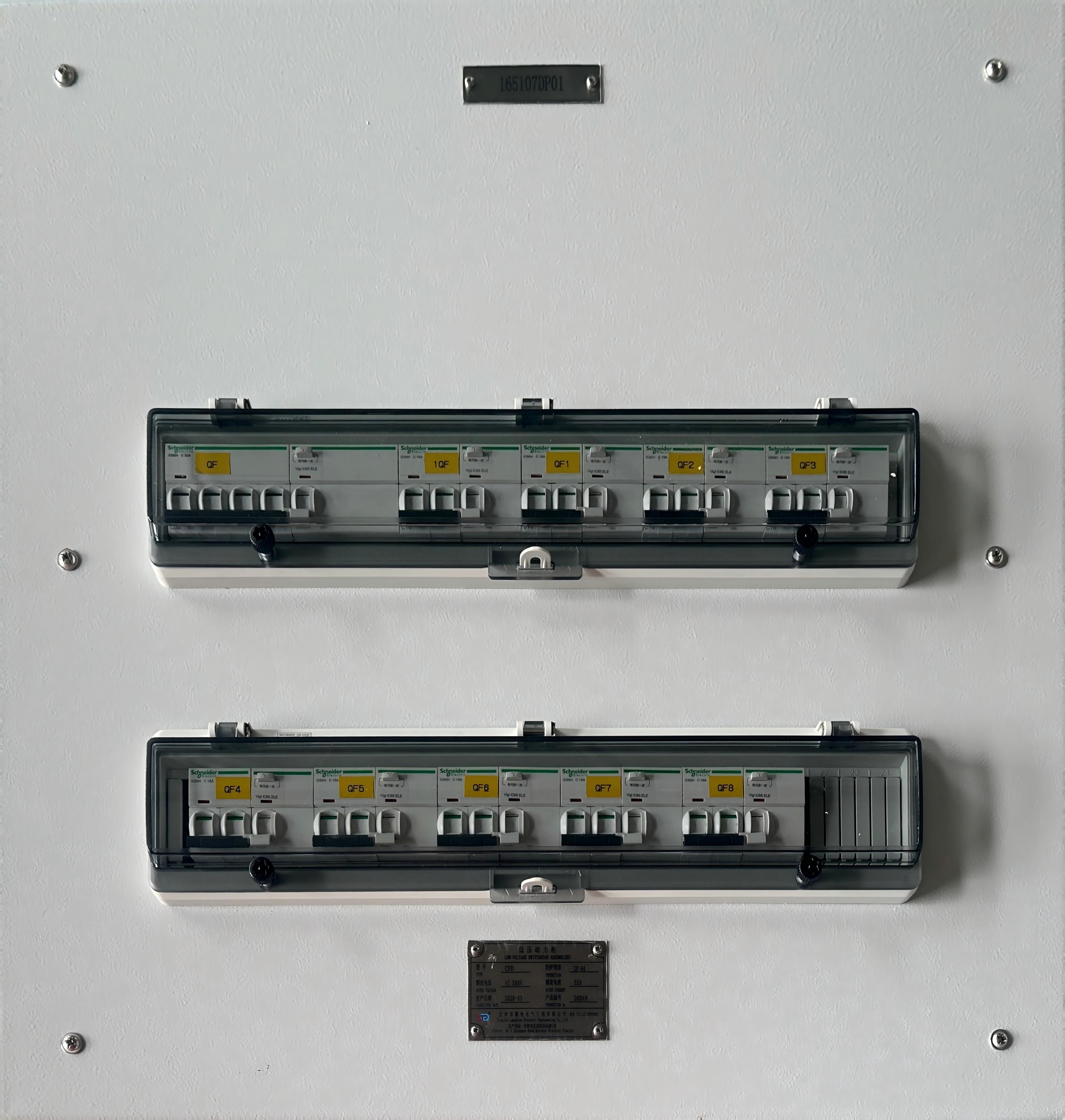

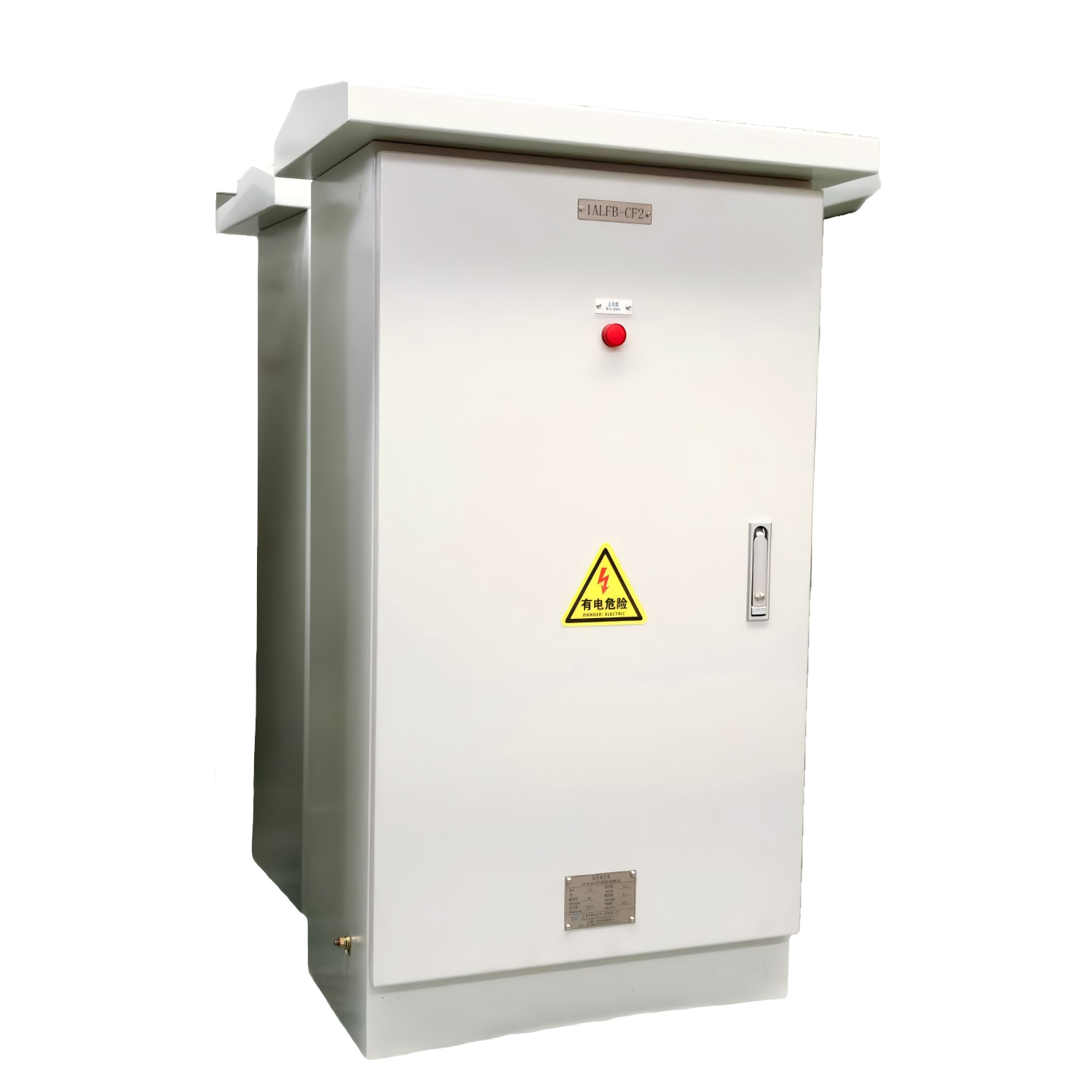

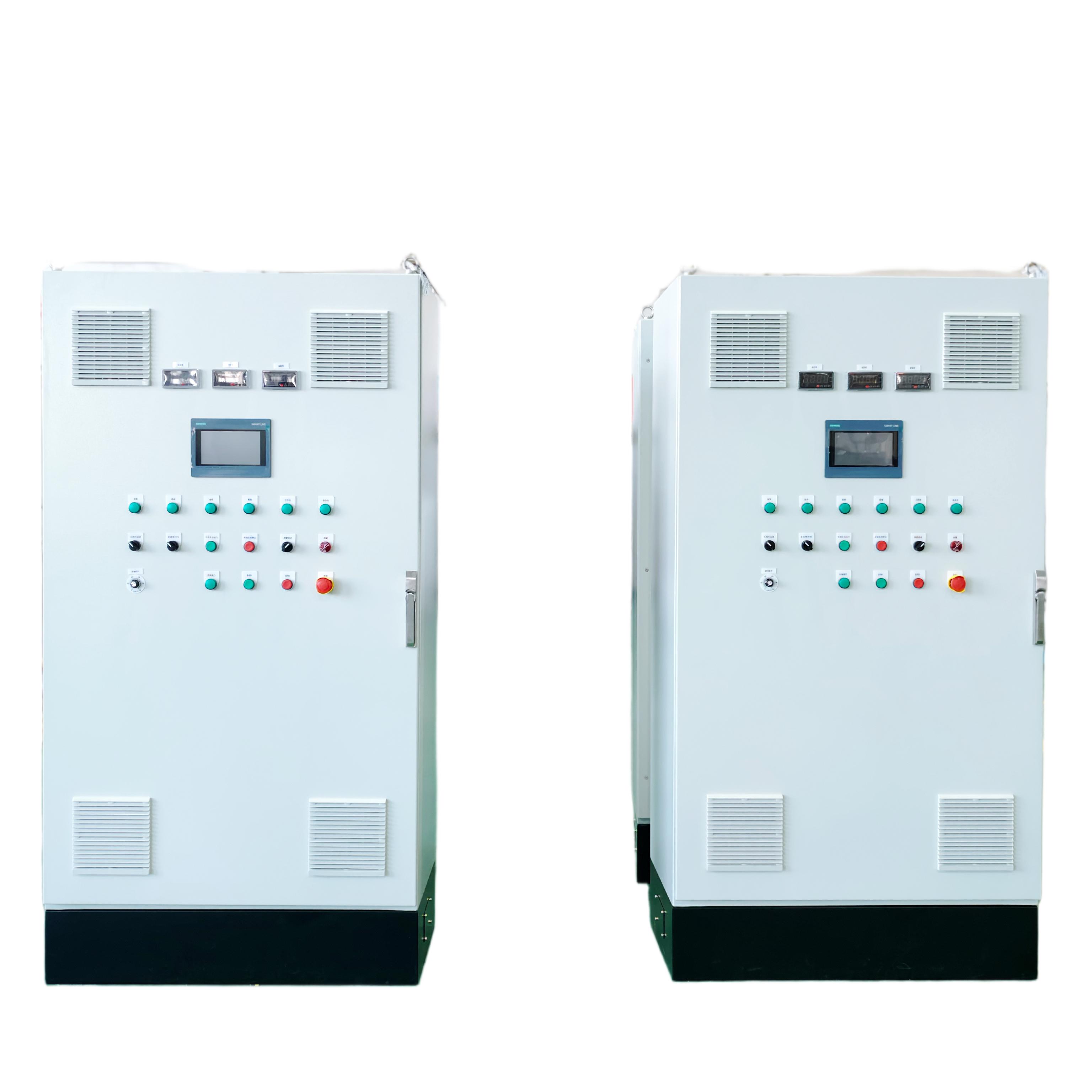

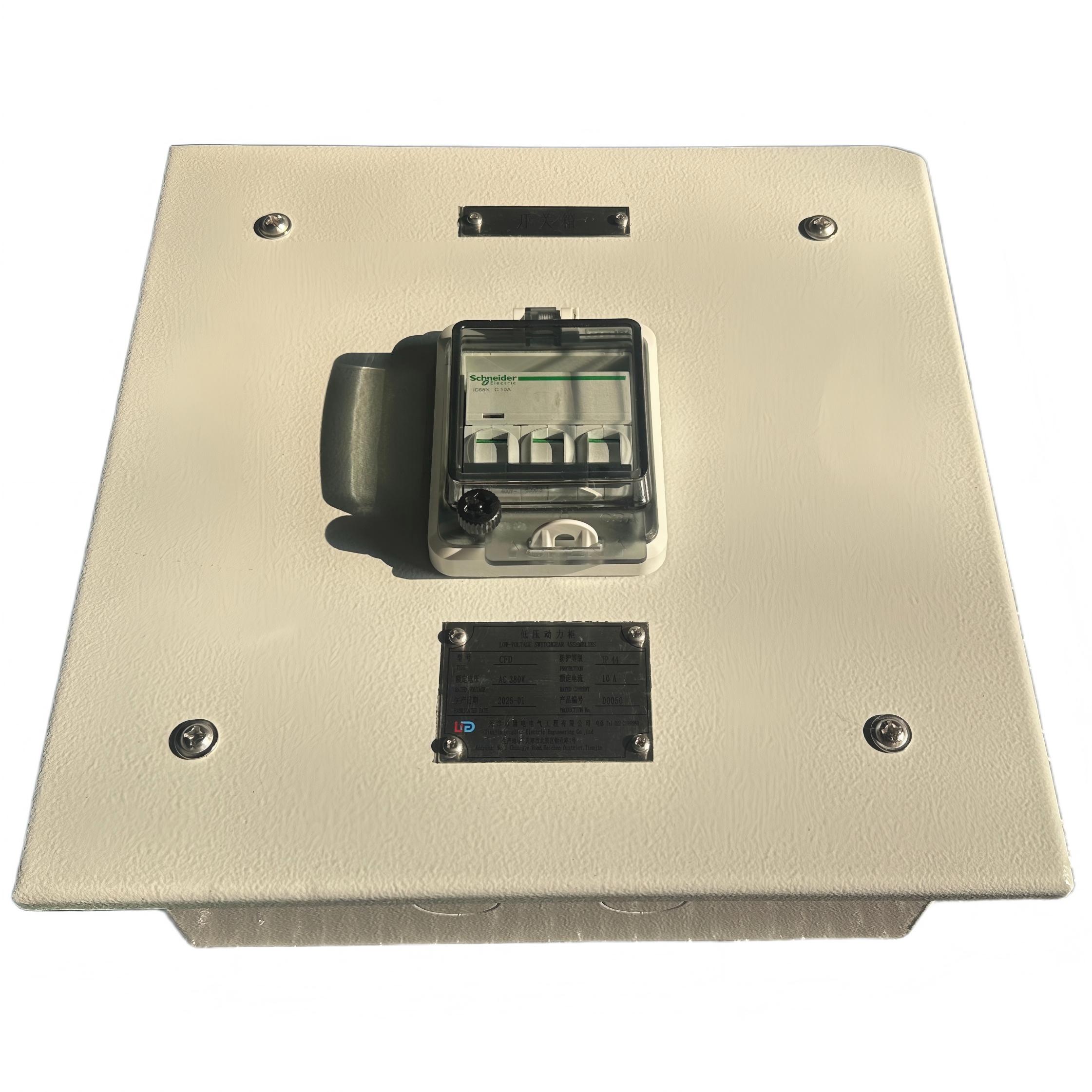

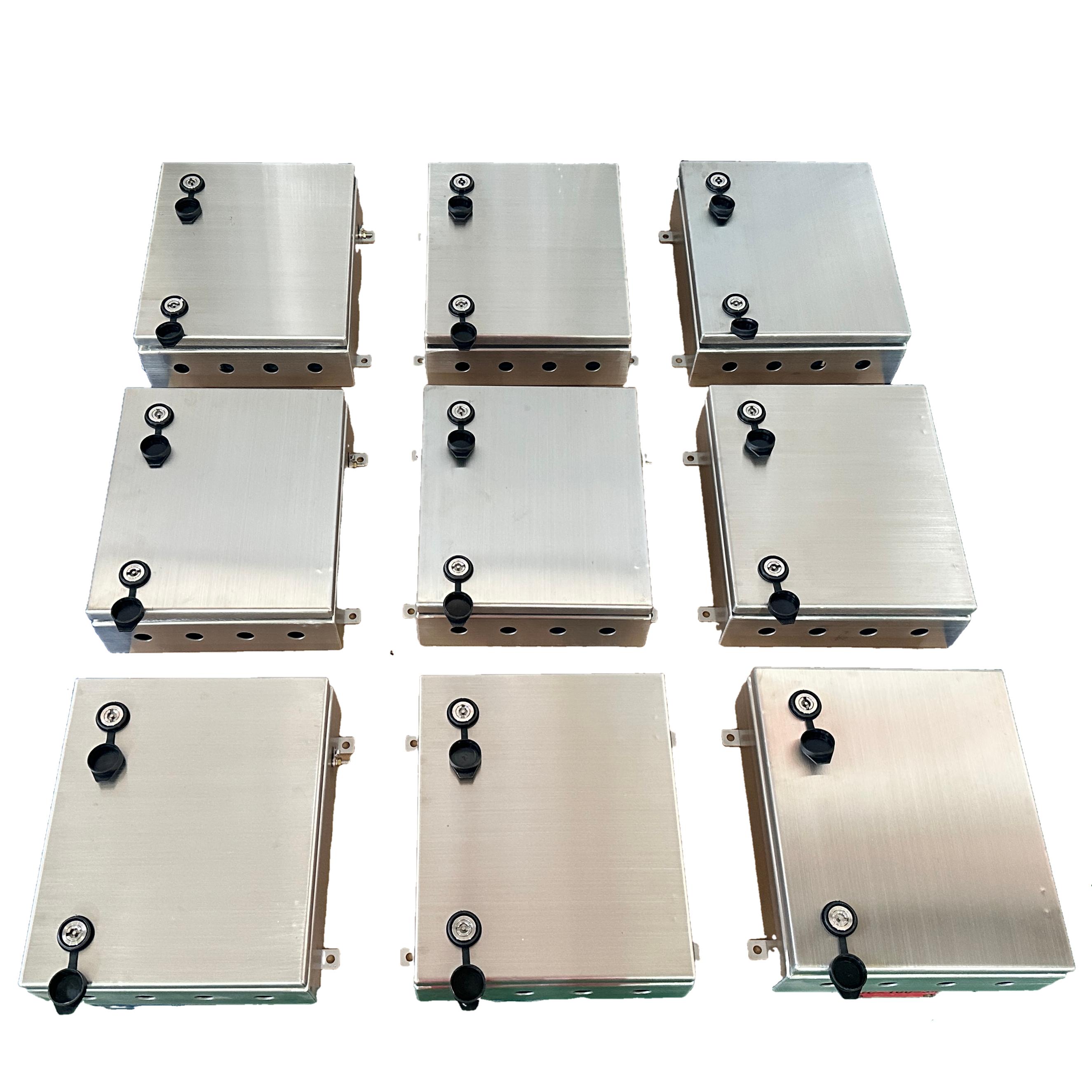

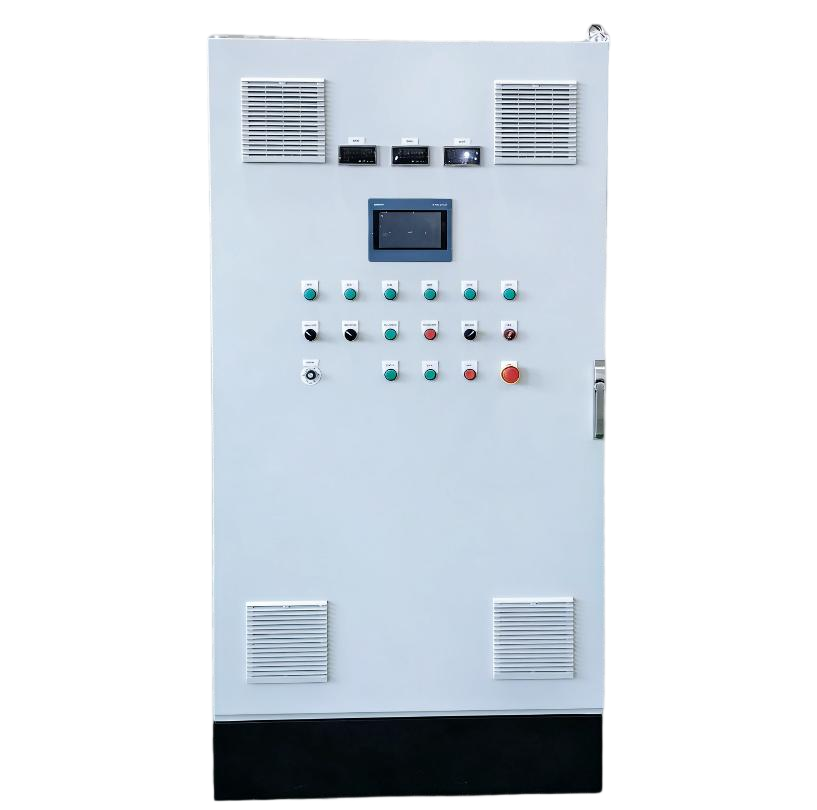

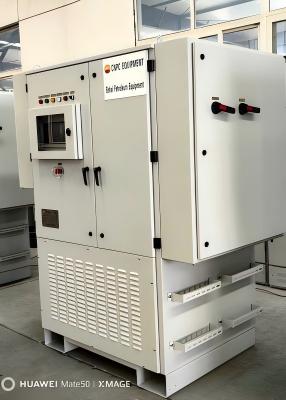

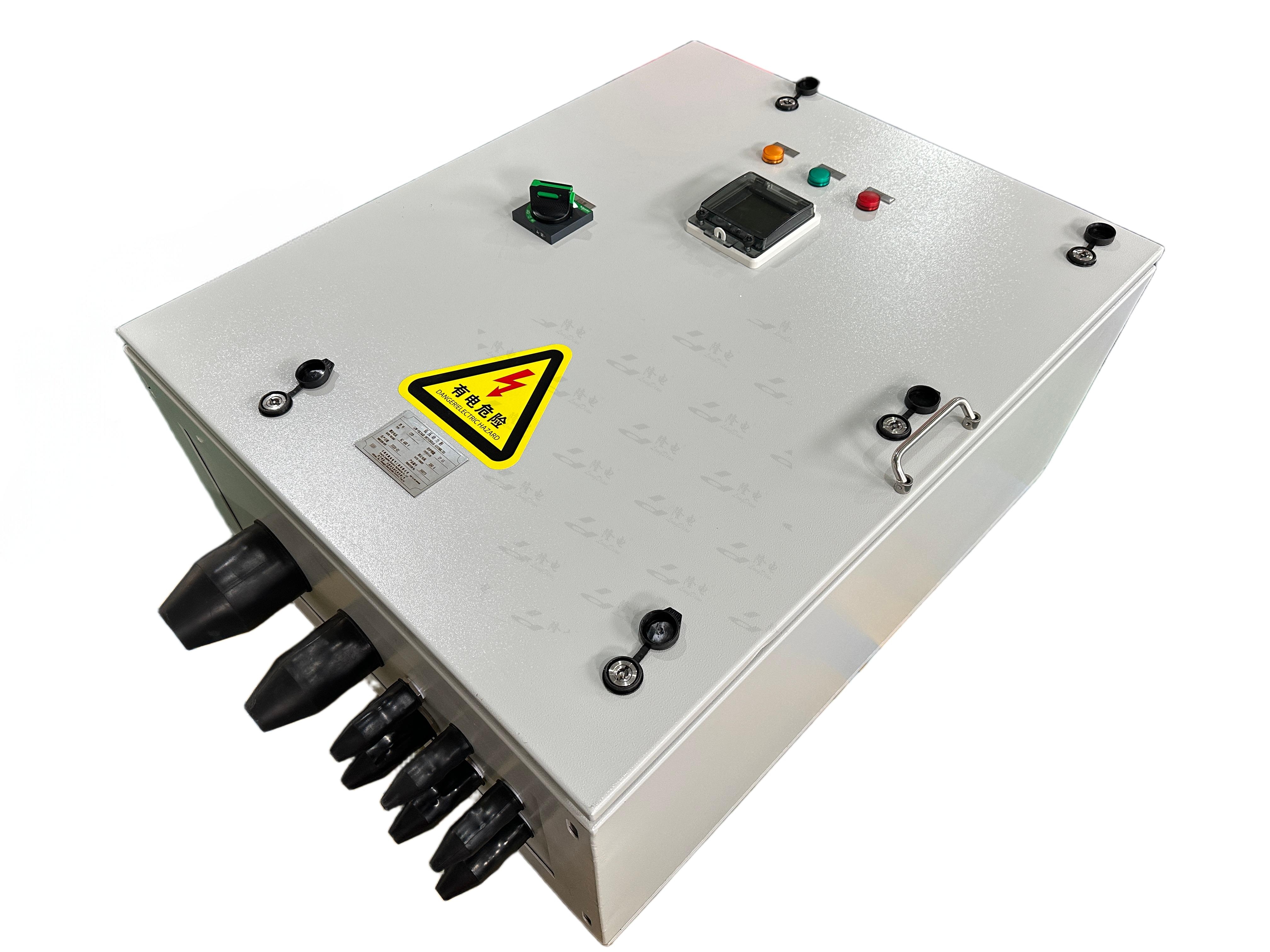

A-07-1 Low Voltage Distribution Box (CFD) IP55 Carbon Steel Distribution Cabinet

1. High-protection enclosure design with IP55 rating and enhanced IP66 dustproof and water-resistant performance.

2. Constructed from 2.0mm carbon steel for durability and long service life.

3.Internal and external electrostatic powder coating in RAL7035 for superior corrosion resistance.

4. Internal and external M8 grounding points for safe and reliable grounding.

5. Top cable entry design equipped with cable glands for efficient cable management.

6. Internal mounting plate and modular assembly structure for easy installation and maintenance.

7. Secure right-opening single door with lock fixing and rear bolt fastening.

8. Reliable sealing system for enhanced environmental protection.

9. Compact wall-mounted design that optimizes installation space.

（1）
Product Type: High-Voltage and Low-Voltage Power Distribution Equipment
Project Name: Tianjin Purun Engineering Technical Service Co., Ltd.
Classification Society: CCS (China Classification Society)
Survey Certificate No.: —
Customer Contract No.: —
Longdian Contract No.: 25-06-09/LD-C-278
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Details:
(1) Model: CFD
(2) Rated Voltage: 480 V
(3) Weight: 1100kg
(4)Rated Current: 415 A
(5)Power:220KW

（2）
Product Type: High and Low Voltage Power Distribution Equipment
Project Name: Tianjin Purun Engineering Technical Service Co., Ltd.
Classification Society: CCS (China Classification Society)
Survey Certificate No.: —
Customer Contract No.: —
Longdian Contract No.: 25-07-30/LD-C-354 Rev. 1
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Details:
(1)Model: CFD
(2)Protection Class: IP65
(3)Material: SS304 Stainless Steel
(4)Quantity: 10 Units
(5)Product Serial No.: C3264

（3）
Product Type: High & Low Voltage Power Distribution
Project Name: China Tianchen Engineering Co., Ltd.
Longdian Contract No.: 26-LD-C-002-L
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Protection Class: IP44
(3) Material: SS316L
(4) Contract Quantity: 10 units
(5) Product Serial No.: D0043, D0047, D0050
(6) Rated Current: 10A, 25A, 32A
(7) Rated Voltage: AC 380V

（4）
Product Type: High & Low Voltage Power Distribution
Project Name: Shandong Kerui Oil & Gas Equipment Co., Ltd.
Longdian Contract No.: 26-01-19/LD-C-030
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: SS316L
(3) Contract Quantity: 2 units

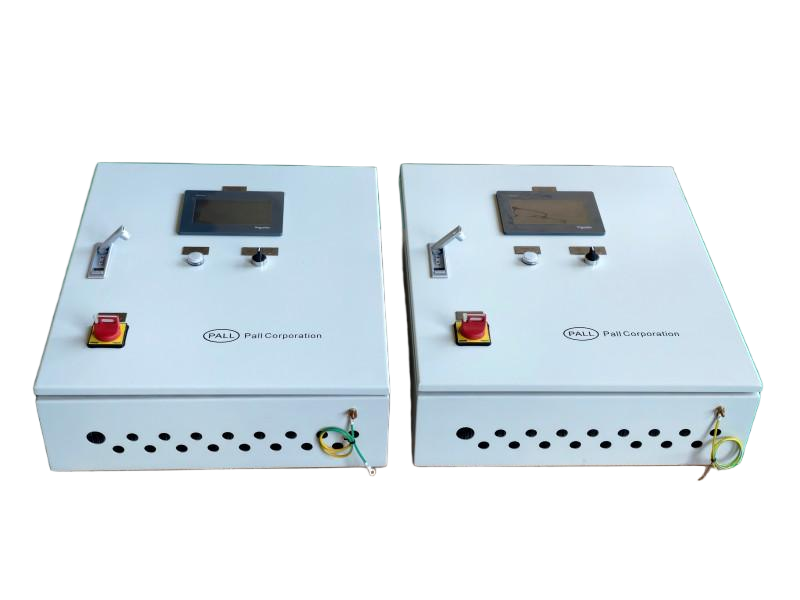

（5）

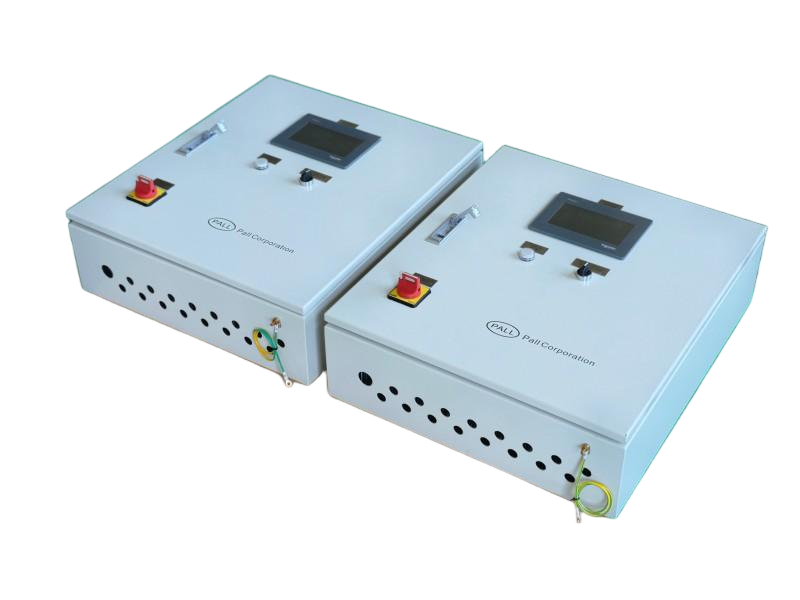

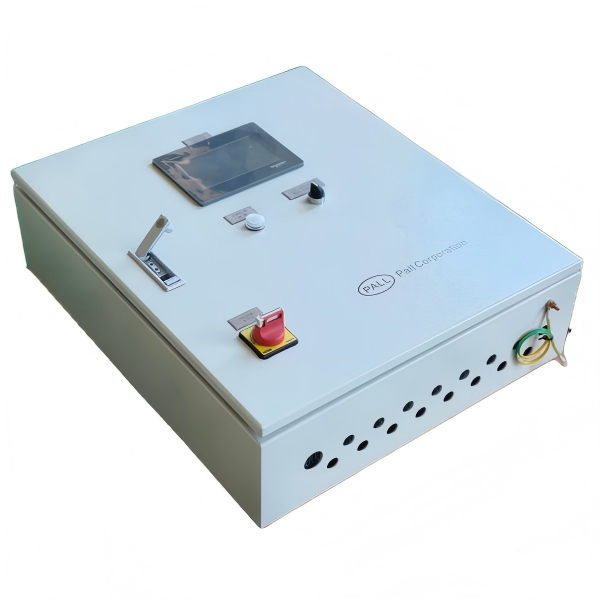

Product Type: High & Low Voltage Power Distribution
Project Name: Pall (China) Co., Ltd.
Classification Society: CCS
Longdian Contract No.: 26-01-28/LD-C-049 Rev.1
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: Carbon Steel
(3) Contract Quantity: 2 units
(4) Enclosure Color: RAL7035
(5) Protection Class: IP55

（6）
Product Type: High & Low Voltage Power Distribution
Project Name: Yili Magnet (Tianjin) Co., Ltd.
Longdian Contract No.: 26-02-06/LD-C-067
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: Carbon Steel Cold-rolled Sheet, SS304
(3) Contract Quantity: 4 units
(4) Enclosure Color: RAL7035
(5) Protection Class: IP54
(6) Overall Dimensions: 1000×1900×600 mm (including 200 mm high pedestal)

（7）

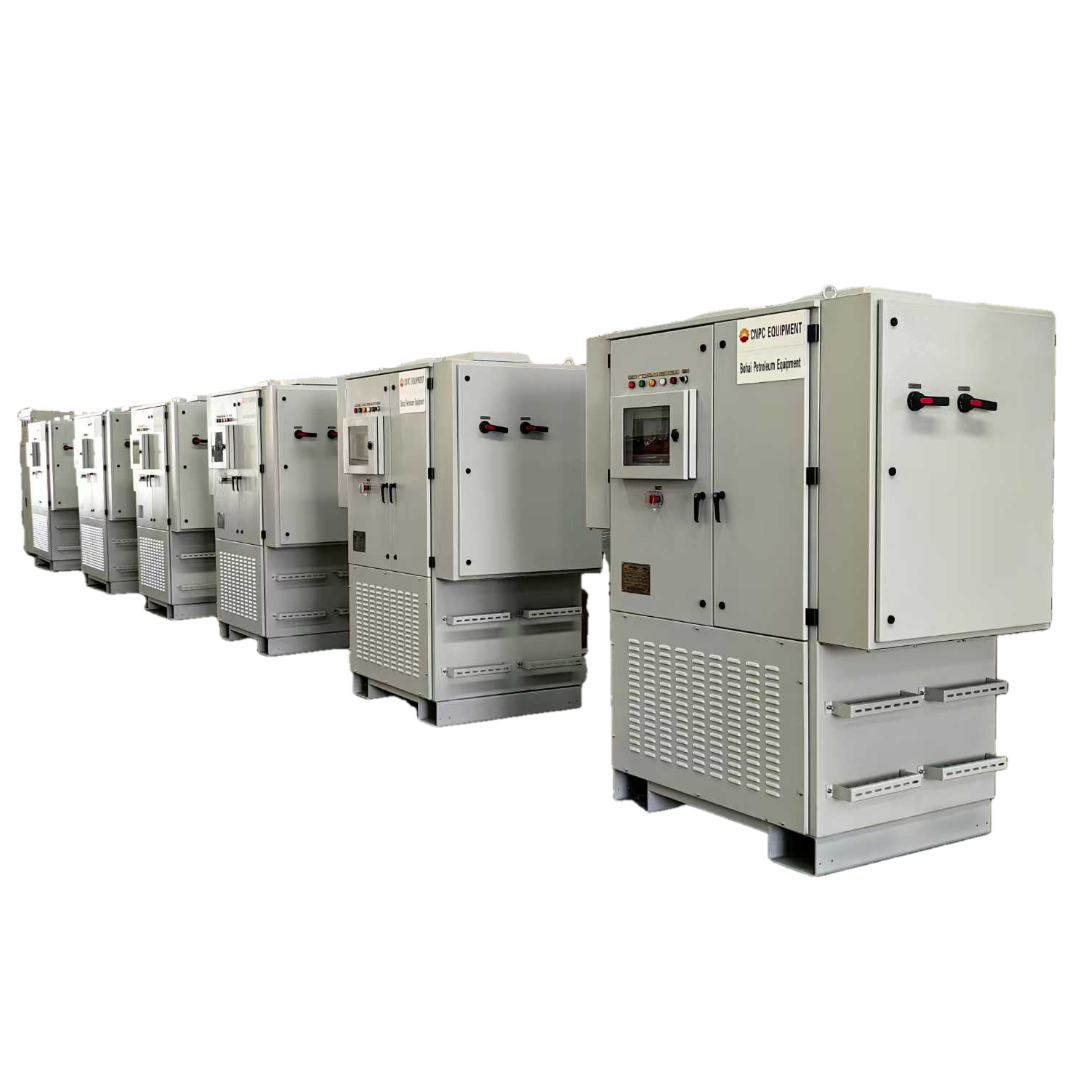

Product Type: Packaged Substation and Supporting Low-Voltage Power Distribution Cabinets
roject Name: Angola Lobito Refinery Unit and Overall Project – Phase 2A Temporary Facilities
Longdian Contract No.: 26-02-07/LD-C-068-L
Contract Goods Name: Low-Voltage Power Equipment (CFD Type) – Total 36 Units
Contract Details:
(1) Model: CFD (GGD-type enclosure) – 7 units
(2) Model: CFD (Rittal-type enclosure) – 2 units
(3) Packaged Substation – 1 unit

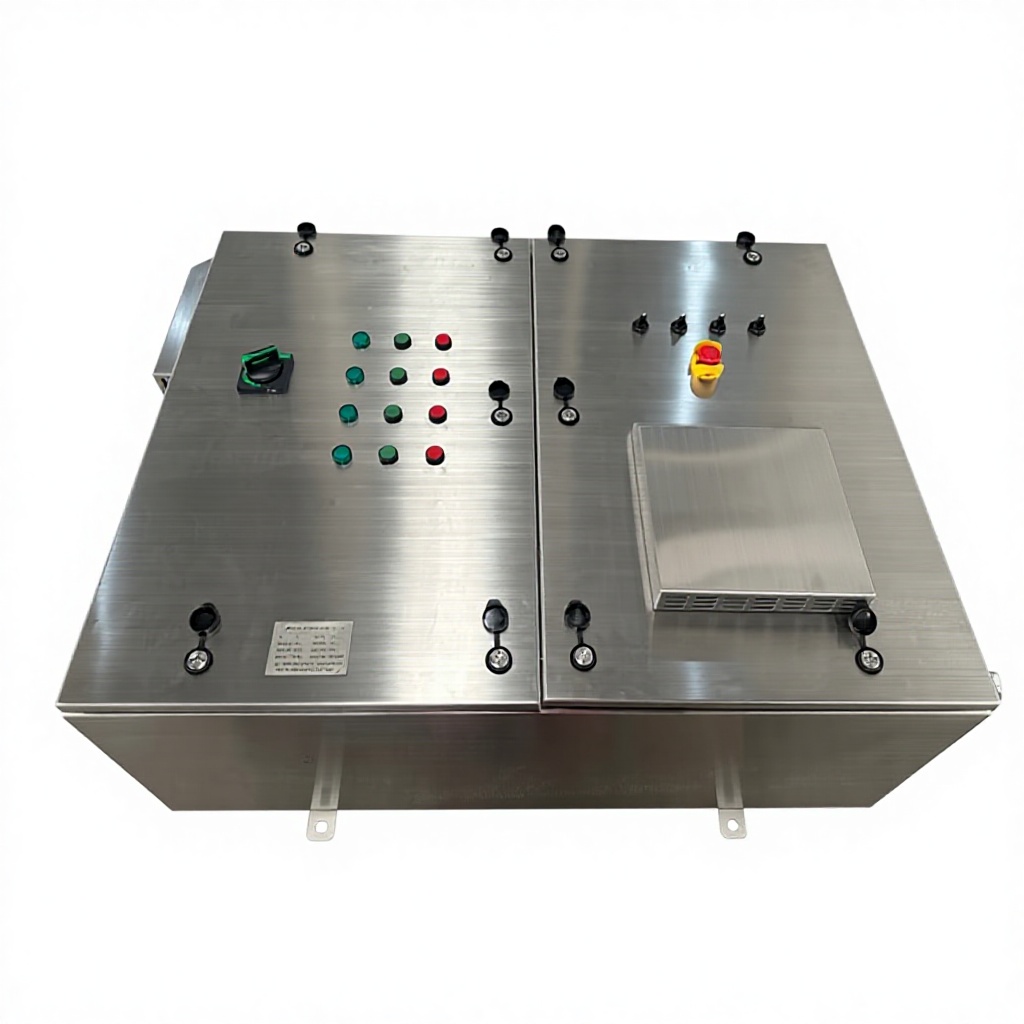

（8）
Product Type: High & Low Voltage Power Distribution
Project Name: Yichang Yilu Information Technology Co., Ltd.
Longdian Contract No.: 26-02-27/LD-C-078
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: SS304
(3) Contract Quantity: 10 units
(4) Enclosure Surface: Brushed Finish
(5) Protection Class: IP65
(6) Product Serial No.: D0262



（9）
Product Type: High & Low Voltage Power Distribution
Project Name: Tianjin Puyou Electromechanical Equipment Co., Ltd.
Classification Society: CCS
Class Certificate No.: —
Customer Contract No.: —
Longdian Contract No.: 26-02-27/LD-C-080
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: SS316L
(3) Contract Quantity: 12 units
(4) Protection Class: IP66
(5) Rated Voltage: AC 110V
(6) Rated Current: 5A
(7) Product Serial No.: D0355

（10）

Product Type: High-Protection Class Electrical Enclosures
Project Name: Asia Pacific Resources International Holdings (APRIL) – Rizhao Project, Singapore
Classification Society: CCS (China Classification Society)
Longdian Contract No.: 25-05-20/LD-C-247
Contract Goods Name: Low-Voltage Power Distribution Cabinets
Contract Details:
(1) Protection Class (IP): IP65

（11）
Product Type: High & Low Voltage Power Distribution
Project Name: Hebei Guanneng Petroleum Machinery Manufacturing Co., Ltd.
Longdian Contract No.: 26-03-04/LD-C-091
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: SS304
(3) Contract Quantity: 2 units
(4) Protection Class: IP66
(5) Enclosure Surface: Brushed Finish
(6) Rated Voltage: 415V
(7) Rated Current: 250A, 400A
(8) Product Serial No.: D0295, D0299

（12）
Product Type: High & Low Voltage Power Distribution
Project Name: Yili Magnet (Qinhuangdao) Co., Ltd.
Longdian Contract No.: 26-03-12/LD-C-102
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: Carbon Steel
(3) Contract Quantity: 1 unit
(4) Protection Class: IP54
(5) Enclosure Surface: RAL7035, RAL2008
(6) Overall Dimensions: 800×1600×500 mm (including 100 mm high base)



（13）
Product Type: High & Low Voltage Power Distribution
Project Name: Yili Magnet (Qinhuangdao) Co., Ltd.
Longdian Contract No.: 26-03-25/LD-C-132
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: Carbon Steel
(3) Contract Quantity: 1 unit
(4) Protection Class: IP54
(5) Enclosure Surface: RAL7035, RAL2008
(6) Overall Dimensions: 1600×900×500 mm

（14）
Product Type: High & Low Voltage Power Distribution
Project Name: Yili Magnet (Tianjin) Co., Ltd.
Longdian Contract No.: 26-03-25/LD-C-133
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: Carbon Steel, SS304
(3) Contract Quantity: 32 units
(4) Protection Class: IP54
(5) Overall Dimensions: 1000×2000×600 mm (plus 200 mm high base)

（15）
Product Type: High & Low Voltage Power Distribution
Project Name: Tianjin Raychem Thermal Control Technology Co., Ltd.
Longdian Contract No.: 26-04-07/LD-C-159
Contract Goods Name: CFD Low Voltage Power Cabinet
Contract Information:
(1) Model: CFD
(2) Material: S31603
(3) Contract Quantity: 3 units
(4) Protection Class: IP66
(5) Rated Current: 25A
(6) Rated Voltage: 220V
(7) Overall Dimensions: 700×550×250 mm
(8) Enclosure Surface: Brushed Finish



（16）
Product Type: High and Low Voltage Power Distribution
Project Name: Dongying Newland West Petroleum Technology Co., Ltd.
Longdian Contract No.: 26-04-09/LD-C-163
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Information:
Model: CFD
Quantity: 10 units
Enclosure Material: SS304 Stainless Steel
Surface Finish: Brushed Finish

（17）
Product Type: High and Low Voltage Power Distribution
Project Name: Hebei Guanneng Petroleum Machinery Manufacturing Co., Ltd.
Longdian Contract No.: 26-04-20/LD-C-187
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Information:
Model: CFD
Quantity: 1 unit
Enclosure Material: SS304 Stainless Steel
Surface Finish: Brushed Finish
Degree of Protection: IP66
Overall Dimensions: 1400x750x300 mm
Rated Voltage: 380 V
Rated Current: 125 A

（18）
Product Type: High and Low Voltage Power Distribution
Project Name: Hangzhou Tianli Air Separation Equipment Manufacturing Co., Ltd.
Longdian Contract No.: 26-04-22/LD-C-191
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Information:
Model: CFD
Quantity: 1 unit
Enclosure Material: SS316L Stainless Steel
Surface Finish: Brushed Finish
Degree of Protection: IP66
Overall Dimensions: 1400 × 800 × 400 mm
Rated Voltage: 380 V
Rated Current: 40 A
Product Serial No.: 26-191-D0565

（19）

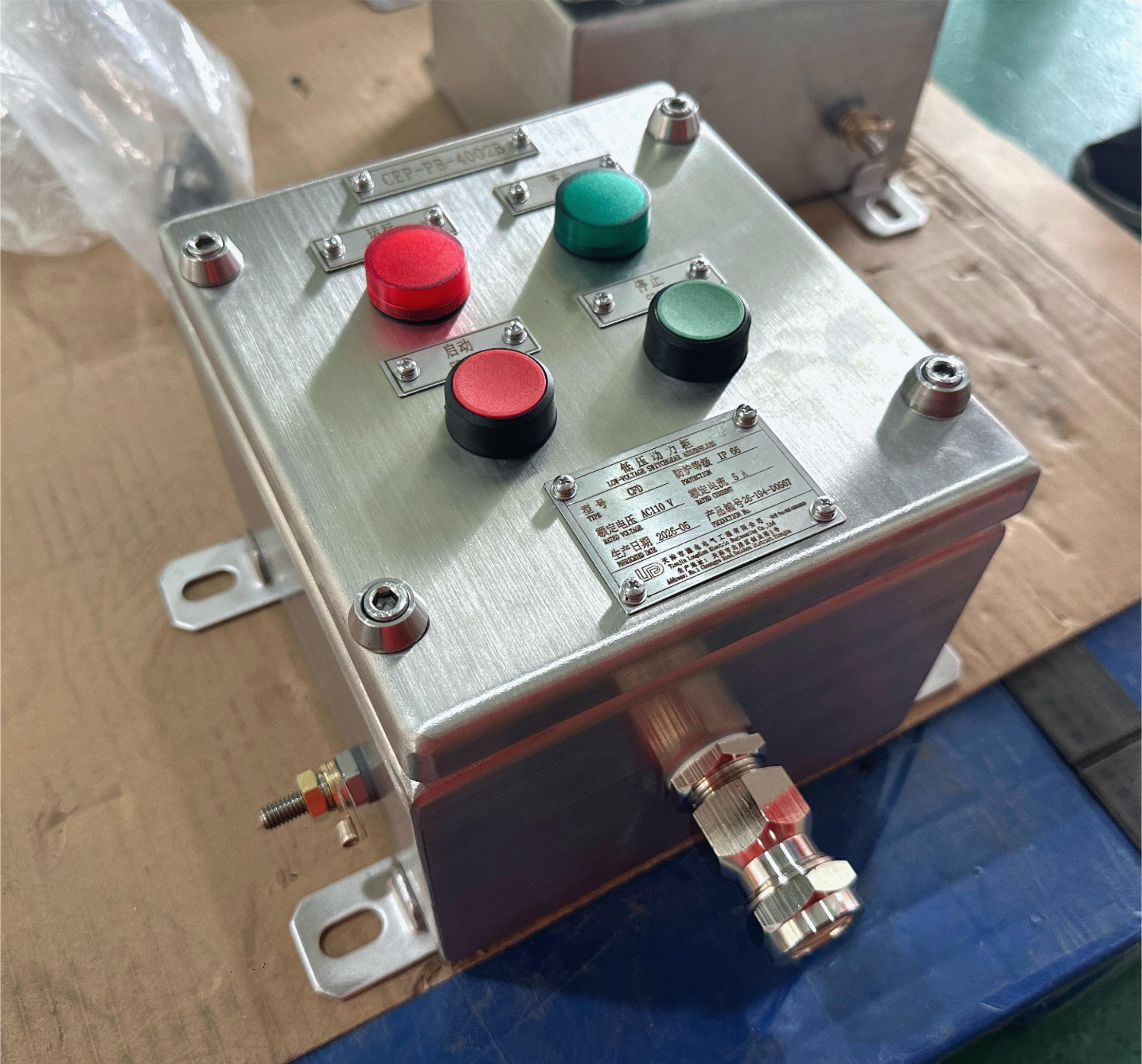

Product Type: High and Low Voltage Power Distribution
Project Name: Tianjin Puyou Electro mechanical Equipment Co., Ltd.
Classification Society: CCS
Longdian Contract No.: 26-04-23/LD-C-194
Contract Goods Name: CFD Low-Voltage Power Distribution Cabinet
Contract Information:
Model: CFD
Quantity: 1 unit
Enclosure Material: SS316L Stainless Steel
Degree of Protection: IP66
Overall Dimensions: 200x220x150mm
Rated Voltage: AC 110 V
Rated Current: 5 A
Product Serial No.: 26-194-D0566
​​​​​​
