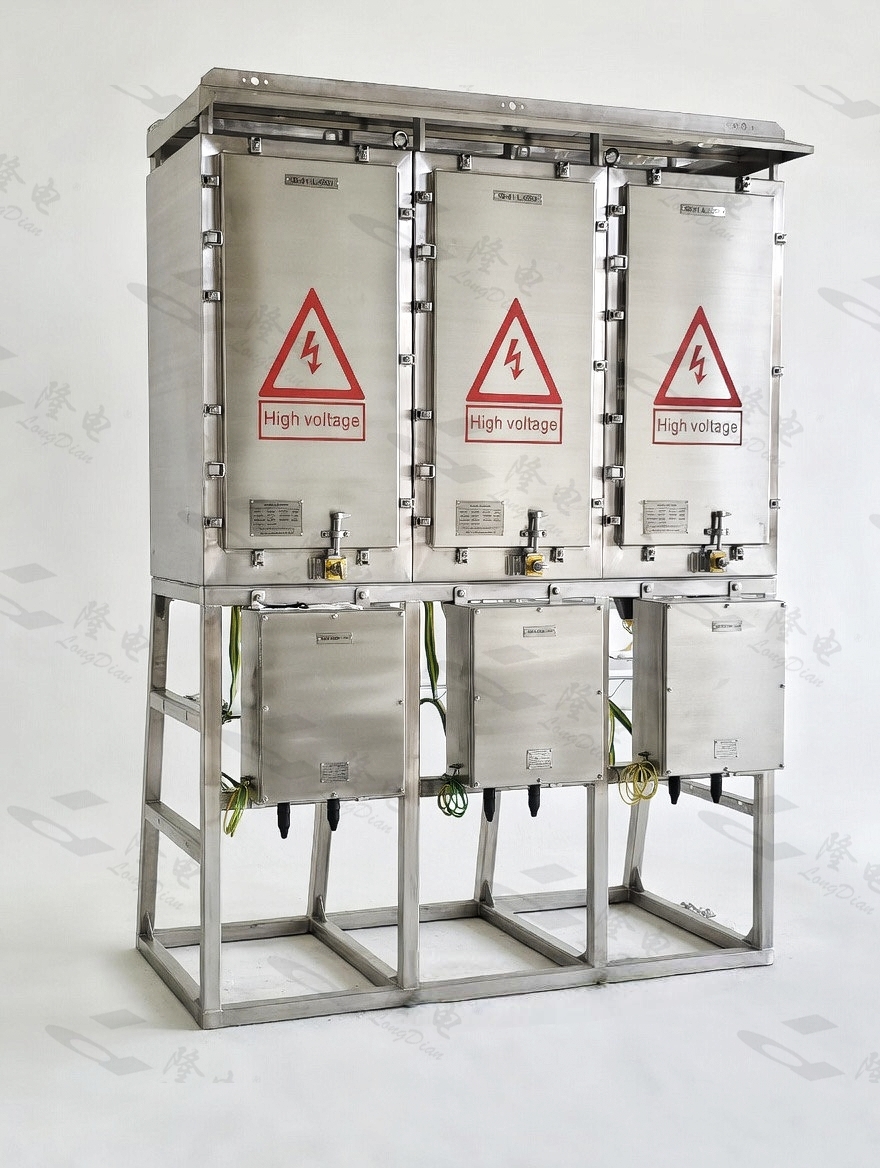

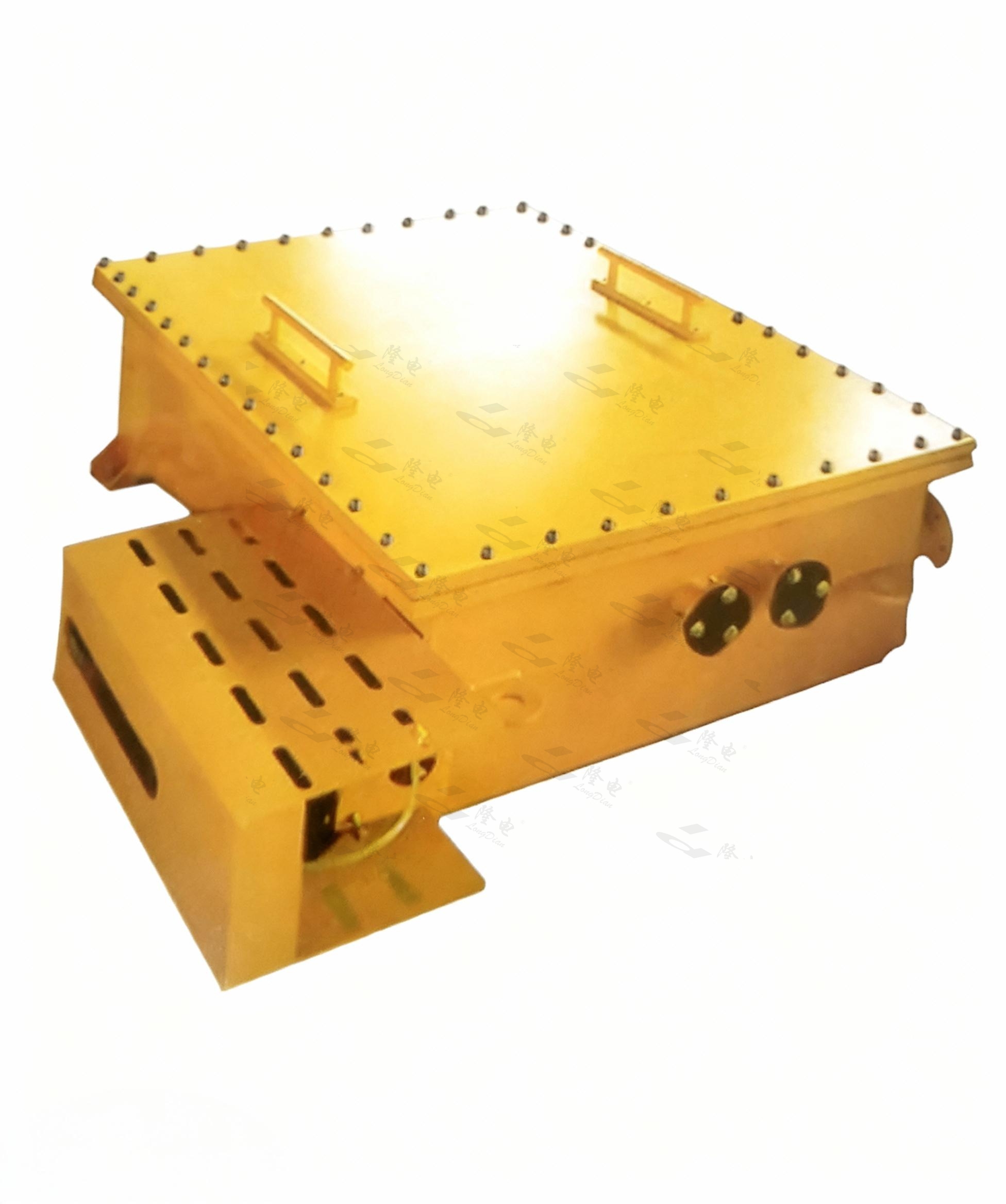

D-01-4 JXX Series Deepwater Junction Box
D-01-4 JXX Series Deepwater Junction Box
D-01-4 JXX Series Deepwater Junction Box
D-01-4 JXX Series Deepwater Junction Box
D-01-4 JXX Series Deepwater Junction Box
D-01-4 JXX Series Deepwater Junction Box

D-01-4 JXX Series Deepwater Junction Box

This subsea power distribution cabinet is designed for deep-water applications, capable of operating at depths of 0–4500 m. It features a high degree of protection (IP68) and is rated for voltages up to 35 kV and currents up to 600 A. The enclosure is constructed from carbon steel, stainless steel 304, or stainless steel 316, with precision argon-shielded welding for maximum structural integrity. Surface treatments include high-voltage electrostatic powder coating for carbon steel and chemical passivation or mechanical brushing for stainless steel, ensuring durability and corrosion resistance in harsh underwater environments. The cabinet is equipped with a temperature and humidity control device to maintain optimal internal conditions.

Inquire Now >

1.Applications

1. This cabinet is ideal for subsea electrical distribution and control systems used in offshore engineering, underwater exploration, oceanographic research, and deep-sea industrial operations.

2. It supports both indoor and controlled environment installations at altitudes up to 2000 m above sea level, providing reliable performance for complex subsea power management, instrumentation, and monitoring equipment.

2.Features

1. Applicable water depth: 0–4500 m.

2. Degree of protection: IP68.

3. Compensation pressure: 0.03–0.05 MPa with a spring-loaded diaphragm pressure compensator.

4. Rated voltage: ≤ 35 kV; rated current: ≤ 600 A.

5. Equipped with temperature and humidity control device.

6. Manufactured from carbon steel, stainless steel 304, or stainless steel 316 with precision argon-shielded welding.

7. Surface treatment: electrostatic powder coating for carbon steel; chemical passivation or mechanical brushing for stainless steel.

8. Cable entries/exits equipped with dedicated subsea sealing glands; direction, specification, and quantity customizable.

9. Standards applied: GB 4208, GB/T 11022, IEC 60529, IEC 62271-1.

10. Ambient temperature: –5°C to +40°C, with 24-hour average not exceeding +35°C.

11. Installation location: indoor use; installation altitude ≤ 2000 m above sea level.

12. Optional inspection report issued by Shanghai Jiao Tong University’s Underwater Technology Comprehensive Laboratory (additional fees apply).

13. Customizable design options available per customer requirements.
