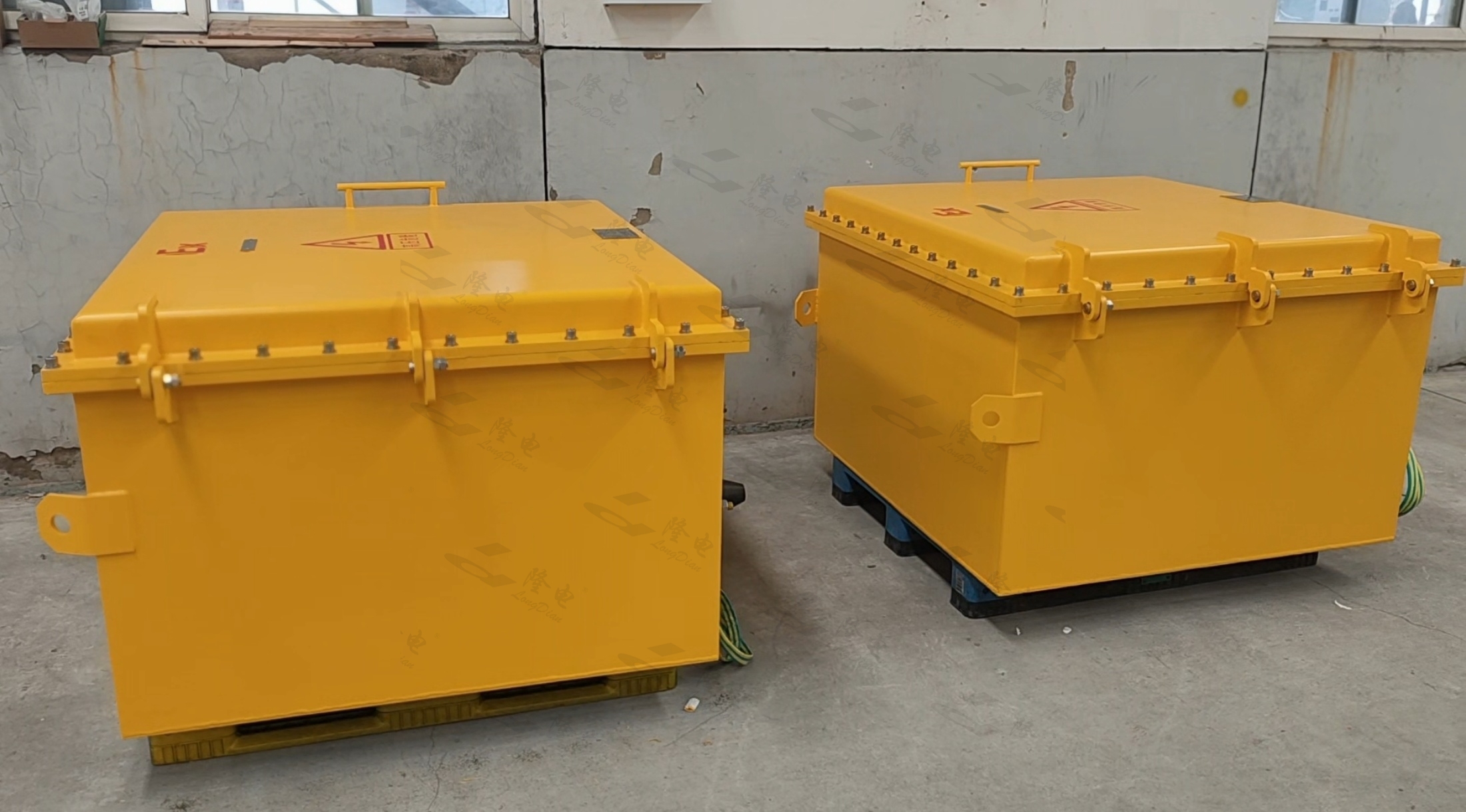

B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage
B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage

B-10 LD-FBJX Series Explosionproof Junction box ( dⅡB/dⅡC ) High-voltage

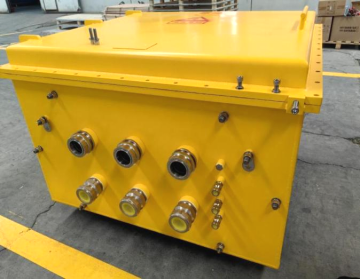

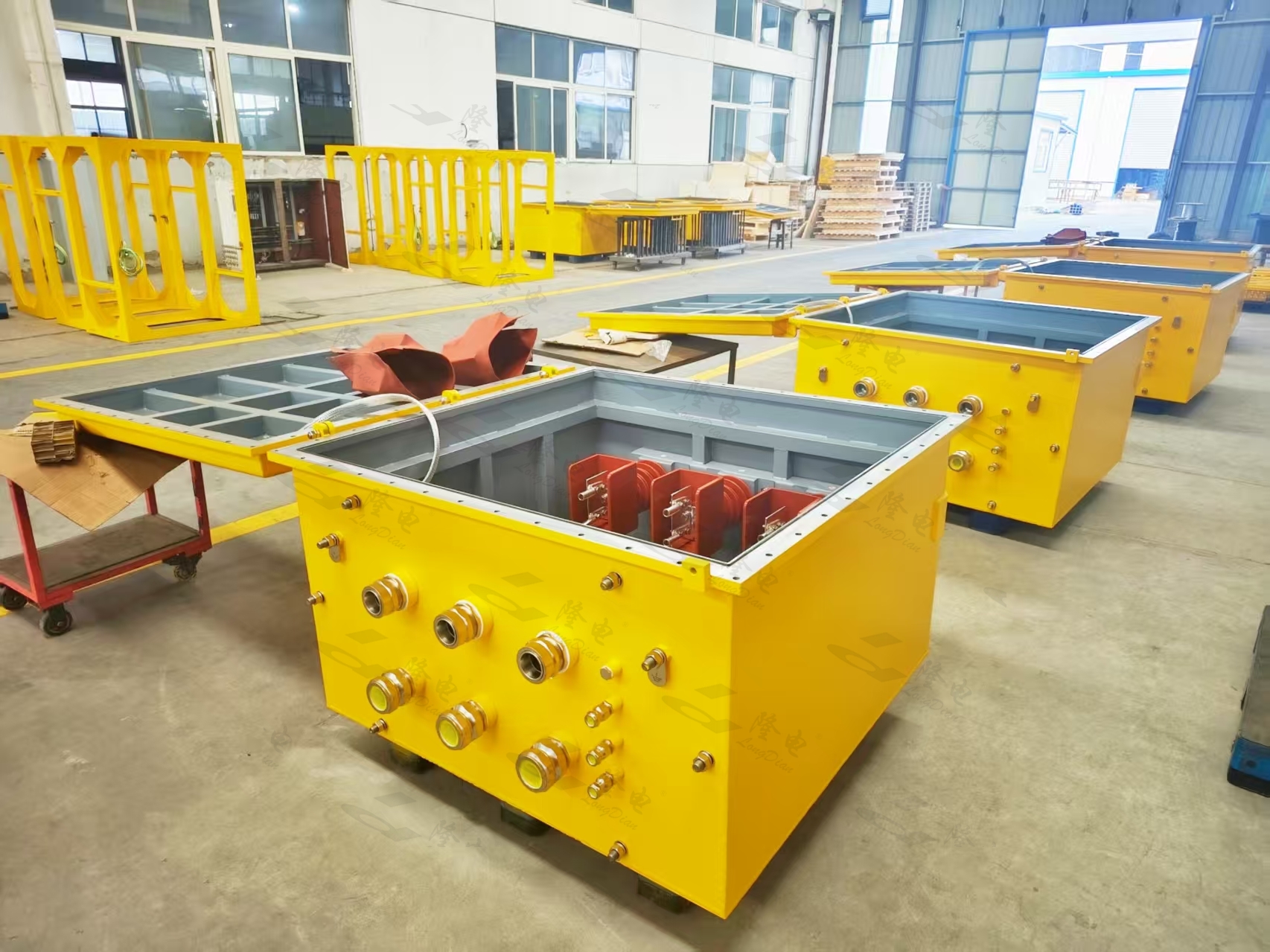

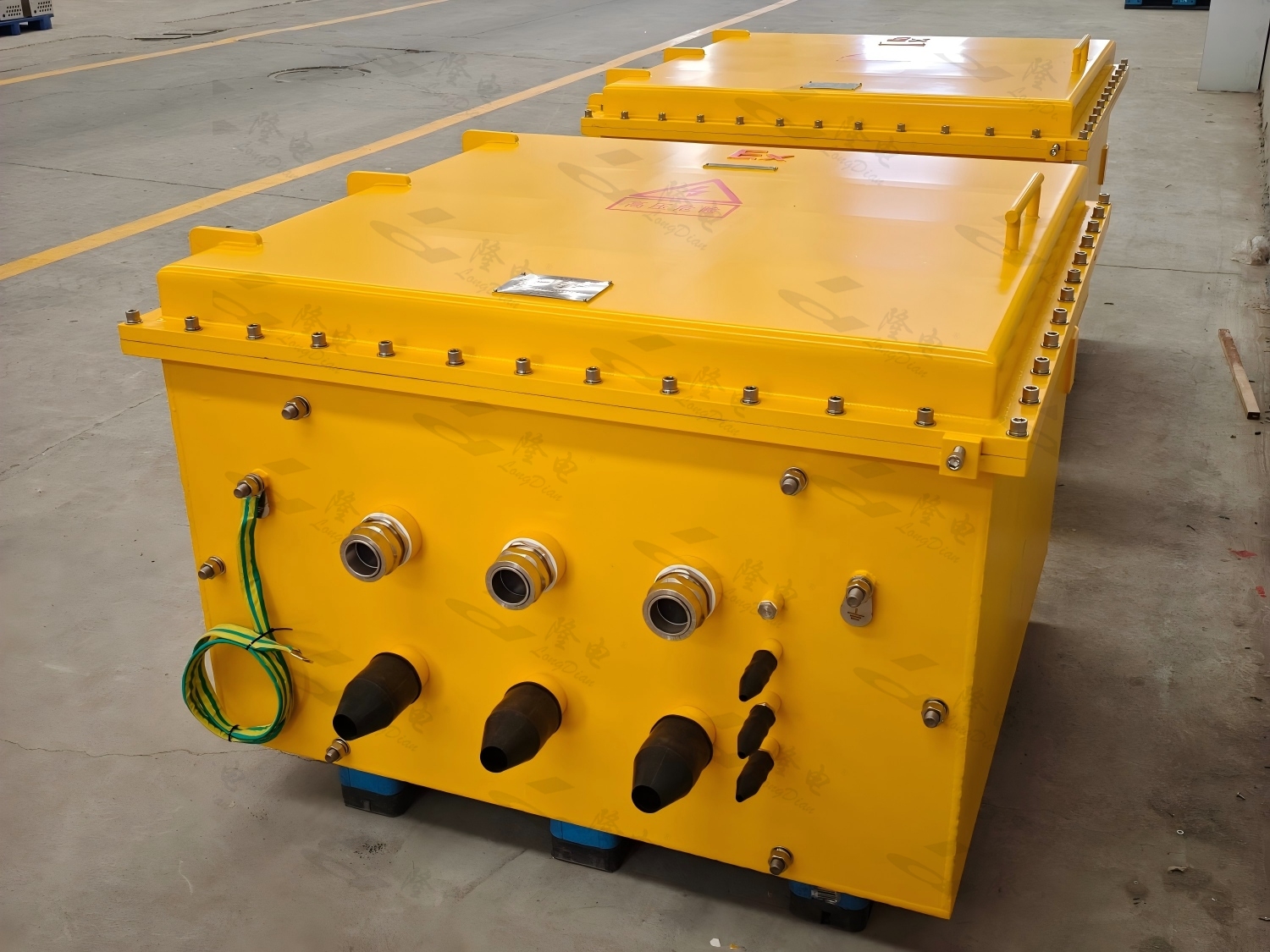

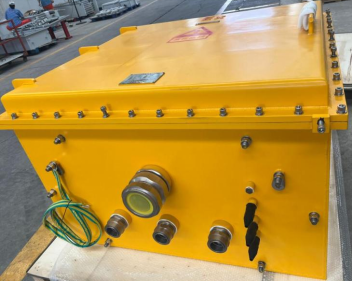

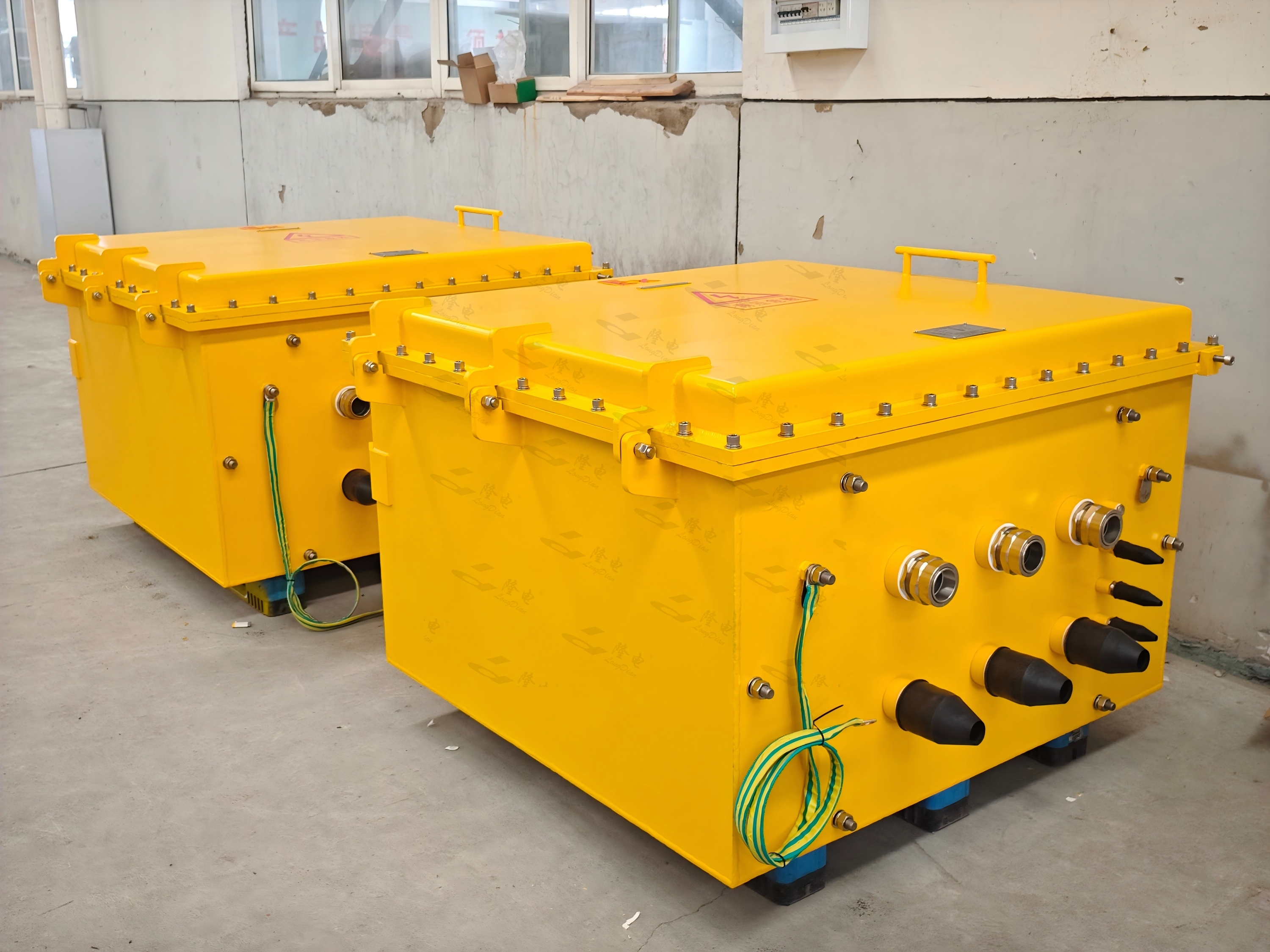

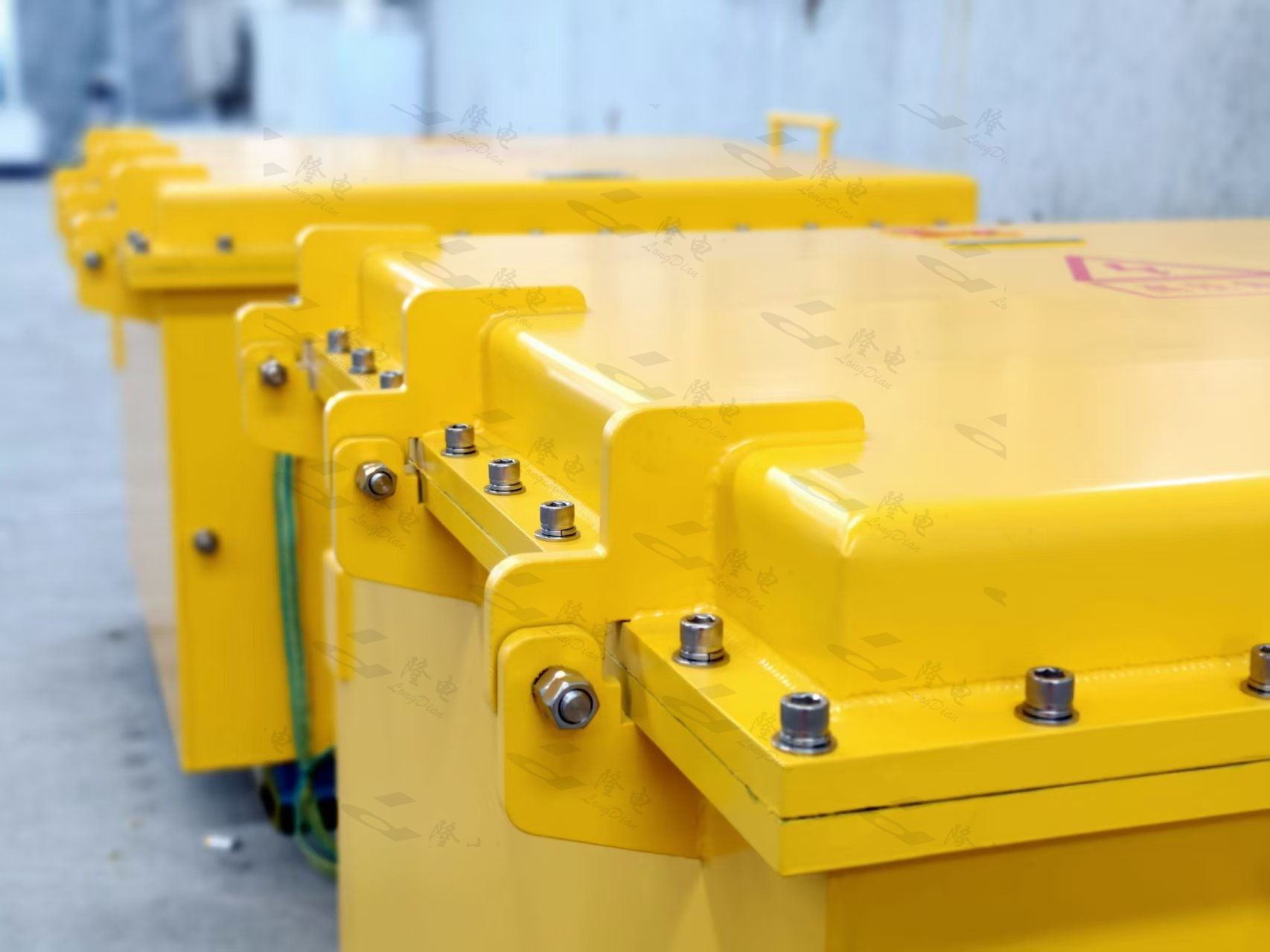

The LD-FBJX Series is a high-voltage flameproof junction box manufactured by LD Electric, designed for Zone 1 and Zone 2 explosive gas atmospheres (Groups IIA to IIC, temperature class T1–T6). Built from carbon steel or stainless steel (304/316) with wall thickness ≥8 mm and IP66 protection, it is certified to GB/T 3836.1, GB/T 3836.2, GB/T 3836.15, and GB/T 3836.16 standards. The enclosure includes a body, cover, mounting plate, heater, T-type cable connectors, and coupling sleeves, with internal and external grounding screws. Cable entries use certified explosion-proof glands with M or NPT threads on welded bosses; flameproof joints are not intended for repair. Rated up to 35 kV / 630 A, it is classified into Type I and Type II per function and dimensions.
Inquire Now > Next Products >

1. Applications

1. Intended for connection and branching of electrical equipment in factories, warehouses, filling stations, offshore oil platforms, and refineries.
2. Widely deployed in oil & gas, petrochemical, and other hazardous industrial systems where high-voltage flameproof junction solutions are required for Zone 1/Zone 2 explosive gas atmospheres (Groups IIA–IIC).
3. Suitable for installations free from significant vibration, mechanical shock, and gases or vapors that may damage insulation.

2. Features

1. Heavy-duty carbon steel or stainless steel construction (≥8 mm wall thickness, anti-corrosion coated) delivers high mechanical strength and IP66-rated waterproof and dustproof performance.
2. Supports wall-mounted, floor-mounted, and surface-mounted installation with customizable cable entry directions, circuit configurations, materials, and dimensions.
3. Rated up to 35 kV / 630 A with temperature class T1–T6 for demanding high-voltage applications; both internal and external grounding screws are provided, and all threaded joints use certified explosion-proof cable glands for safe, maintenance-free operation.

3. Related Parameters

型号Model

外形尺寸(mm) Overall Dimensions(mm)

LD-BJX-h-I

1010X790X1230

LD-BJX-h-II

850x790x1230

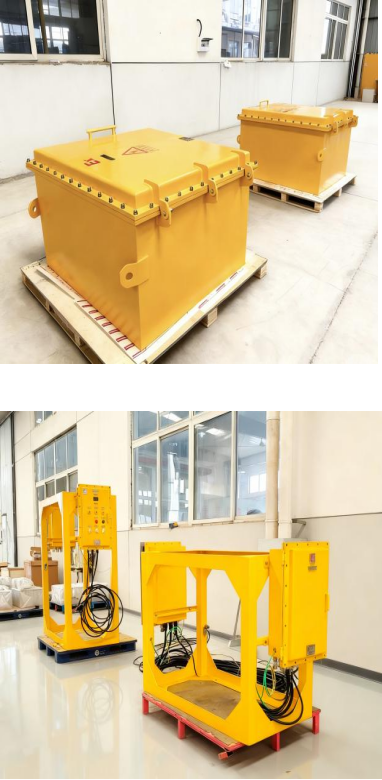

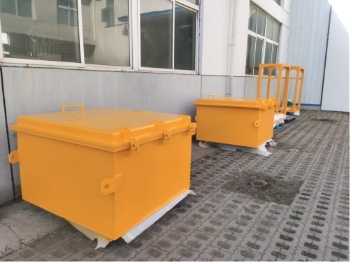

4. Performance Display

（1）

  • Product Type: Explosion-Proof Electrical Equipment
  • Project Name: CNOOC Wenchang 9-7 Project
  • Classification Society: CCS (China Classification Society)
  • Survey Certificate No.: TJ24VPS00501-01
  • Customer Contract No.: —
  • Longdian Contract No.: 24-04-08/LD-C-167
  • Contract Goods Name: Explosion-Proof Junction Boxes (Submarine Cable Boxes) (2 units); Optical Cable Junction Boxes (Flameproof Type) (2 units)
  • Contract Details: Model: LD-FBJX
  • Voltage: 35 kV
  • Material: SS316
  • Explosion-Proof Marking: Ex db IIB T6 Gb
  • Protection Class (IP): IP66




（2）

  • Product Type: Explosion-Proof Electrical Equipment
  • Project Name: Suizhong 36-2
  • Classification Society: CCS (China Classification Society)
  • Survey Certificate No.: TJ24VPS00202-02
  • Customer Contract No.: —
  • Longdian Contract No.: 24-01-15/LD-C-025
  • Contract Goods Name: Submarine Cable Boxes (3 sets); Optical Cable Boxes (2 sets); Cold-Shrink Terminations (2 sets)
  • Contract Details: Model: LD-FBJX
  • Voltage: 35 kV
  • Material: SS316
  • Explosion-Proof Marking: Ex db IIB T6 Gb
  • Protection Class (IP): IP66




（3）

  • Product Type: Explosion-Proof Electrical Equipment
  • Project Name: Longkou NB27-1
  • Classification Society: CCS (China Classification Society)
  • Survey Certificate No.: TJ25VS01241-01-05
  • Customer Contract No.: —
  • Longdian Contract No.: 25-05-16/LD-C-241
  • Contract Goods Name: Submarine Cable Boxes (Explosion-Proof Junction Boxes) (2 sets)
  • Contract Details:
  • (1) Product Name: Explosion-Proof Junction Box
  • (2) Model: LD-FBJX
  • (3) Voltage: 35 kV
  • (4) Material: SS316
  • (5) Explosion-Proof Marking: Ex db IIB T6 Gb
  • (6) Protection Class (IP): IP66





（4）

  • Product Type: Explosion-Proof Electrical Equipment
  • Project Name: Ningbo 31-1 Gas Field North Area Development Project
  • Classification Society: CCS (China Classification Society)
  • Survey Certificate No.: —
  • Customer Contract No.: —
  • Longdian Contract No.: 26-01-08 LD-C-016
  • Contract Goods Name: Submarine Cable Boxes (Explosion-Proof Junction Boxes) (2 sets); Explosion-Proof Power & Lighting Control Boxes (2 sets); Optical Cable Junction Boxes (2 sets)
  • Contract Details:
  • (1) Models: LD-FBJX; LD-BXD(M)99L
  • Rated Voltage: 220 V
  • Material: SS316
  • Explosion-Proof Marking: Ex db IIB T6 Gb
  • Protection Class (IP): IP66
