2. Features
1. Enhanced multi-sealing structure delivers higher protection levels than standard glands, combined with Ex db ⅡC Gb / Ex eb ⅡC Gb / Ex tb ⅢC Db explosion-proof certification, ensuring the gland effectively contains any internal ignition and prevents flame propagation while providing superior waterproof and dustproof performance.
2. Corrosion and salt-spray resistant body materials (nickel-plated brass, SS304, SS316L) with PA6 anti-rotation washers deliver strong mechanical structure, secure cable retention, and long service life in harsh industrial conditions; multiple thread options (M, NPT, G, PG) support flexible wiring configurations.
3. Fully compatible with LD Electric explosion-proof enclosures and cabinets for seamless integration; specifically designed for non-armored cable wiring with easy installation and maintenance, offering customizable specifications and materials to meet specific project requirements across diverse on-site conditions.
3. Technical Parameter
|
Spec
|
Thread standard D
|
Min thread length L(mm)
|
Seal range to cable dia A(mm)
|
Max dia F
(mm)
|
Tightening Torque
(N.m)
|
| |
Metric
|
NPT
|
Metric
|
NPT
|
Standard Sealmin max
|
Thickened Sealmin max
|
Extra-
Thick Seal
min max
|
|
|
|
DT-20-□-Ⅲ/Ⅳ
|
M20×1.5
|
1/2〞
|
15
|
15
|
6.0 10.0
|
5.0 7.5
|
2.5 6.5
|
31
|
20
|
|
DT-25-□-Ⅲ/Ⅳ
|
M25×1.5
|
3/4〞
|
15
|
15
|
11.0 16.0
|
8.0 12.0
|
5.5 9.5
|
41
|
25
|
|
DT-32-□-Ⅲ/Ⅳ
|
M32×1.5
|
1〞
|
15
|
16.5
|
16.0 20.0
|
13.5 17.5
|
11.0 15.0
|
46
|
30
|
|
DT-40-□-Ⅲ/Ⅳ
|
M40×1.5
|
1-1/4〞
|
15
|
17.5
|
23.0 28.0
|
19.5 23.5
|
17.0 21.0
|
55
|
45
|
|
DT-50-□-Ⅲ/Ⅳ
|
M50×1.5
|
1-1/2〞
|
15
|
17.5
|
30.0 35.0
|
27.0 31.0
|
24.5 28.5
|
63
|
50
|
|
DT-63-□-Ⅲ/Ⅳ
|
M63×1.5
|
2〞
|
15
|
18
|
38.0 42.0
|
34.5 38.5
|
32.0 36.0
|
75
|
60
|
|
DT-75-□-Ⅲ/Ⅳ
|
M75×1.5
|
2-1/2〞
|
15
|
23.5
|
48.0 56.0
|
44.5 48.5
|
42.0 46.0
|
90
|
75
|
|
DT-80-□-Ⅲ/Ⅳ
|
M80×2
|
3〞
|
15
|
26
|
61.0 68.0
|
57.5 61.5
|
55.0 59.0
|
110
|
85
|
|
DT-90-□-Ⅲ/Ⅳ
|
M90×2
|
3-1/2〞
|
16
|
27
|
73.0 80.0
|
69.5 73.5
|
67.0 71.0
|
120
|
95
|
|
DT-100-□-Ⅲ/Ⅳ
|
M100×2
|
4〞
|
18
|
28
|
85.0 92.0
|
81.5 85.5
|
79.0 83.0
|
130
|
110
|

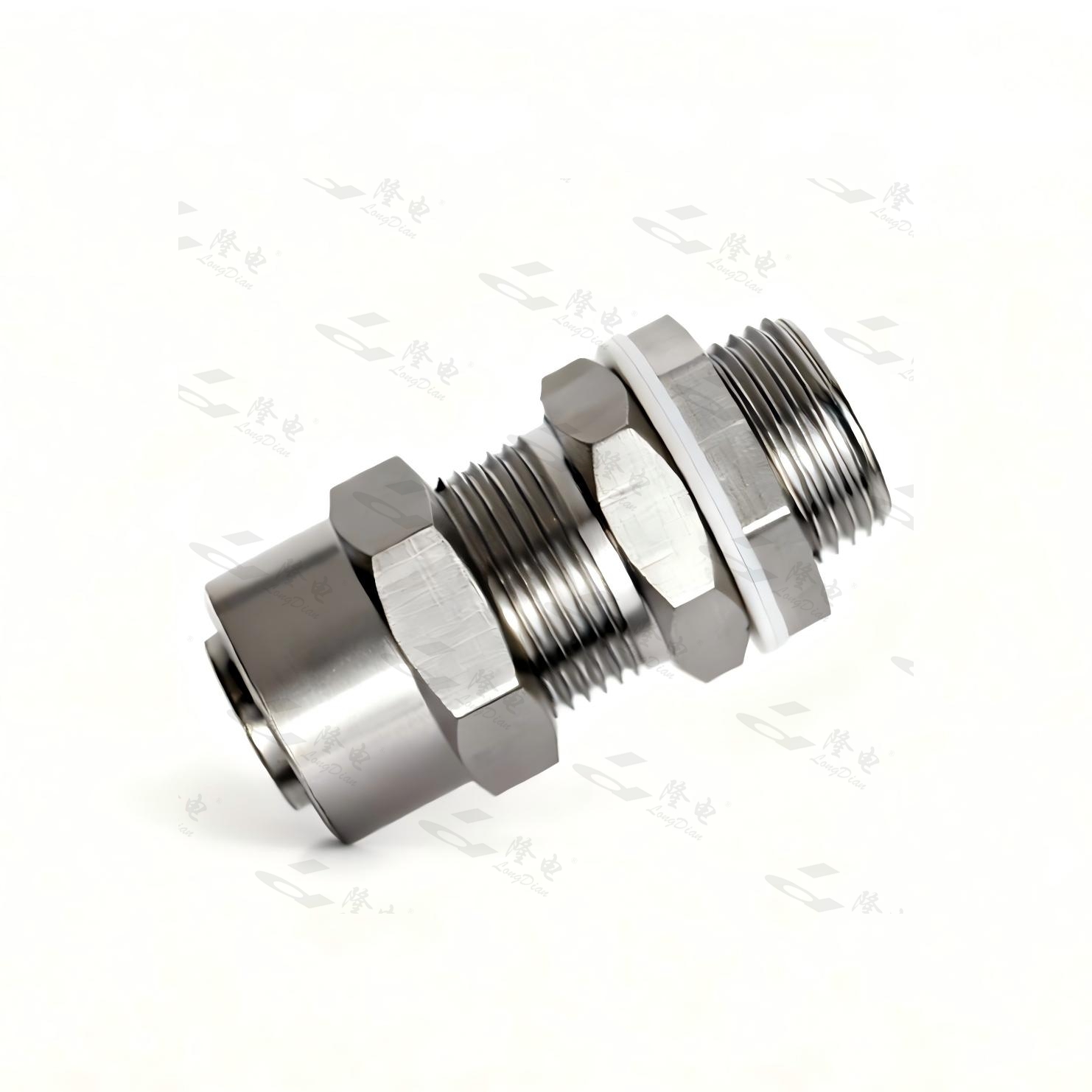

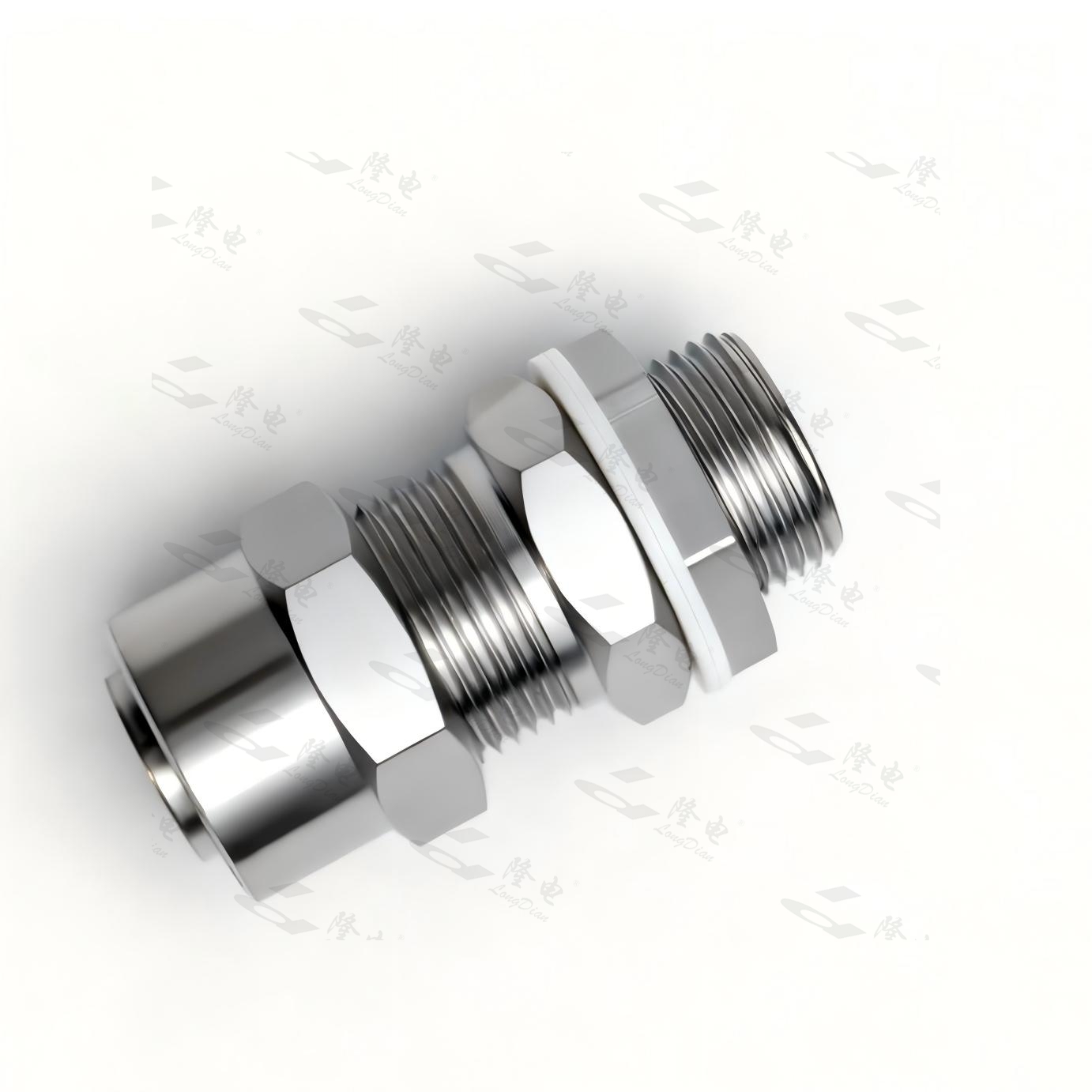

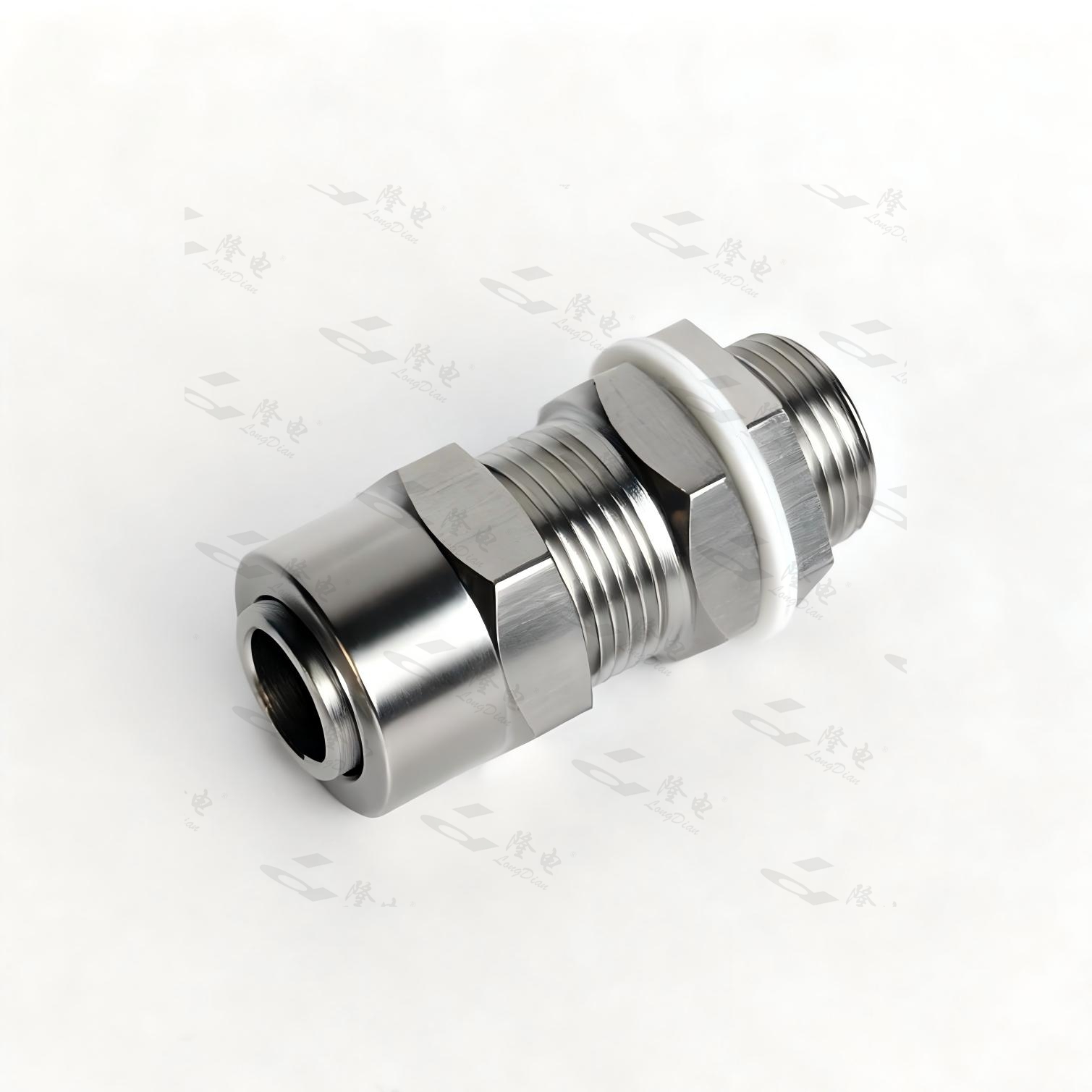

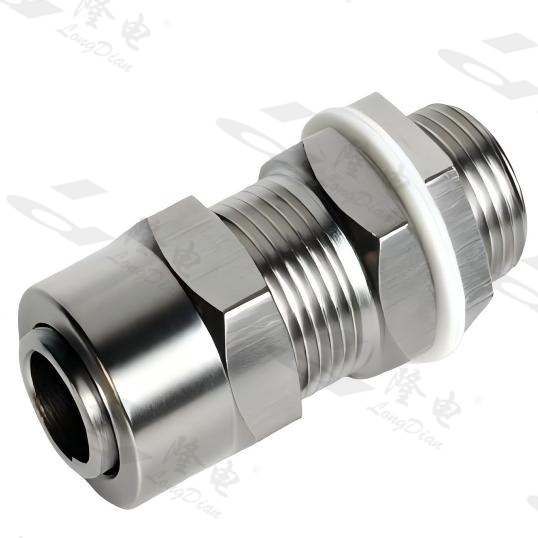

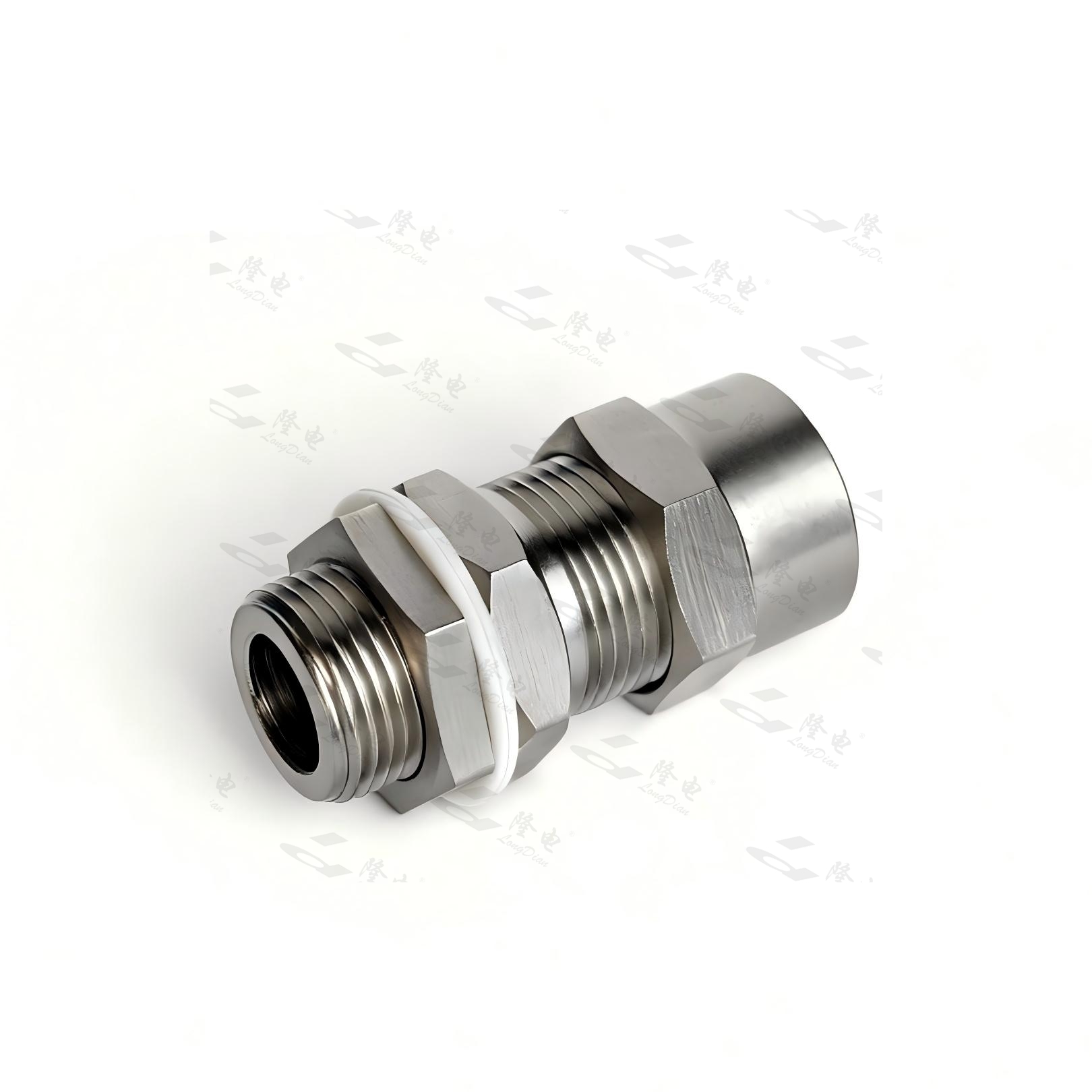

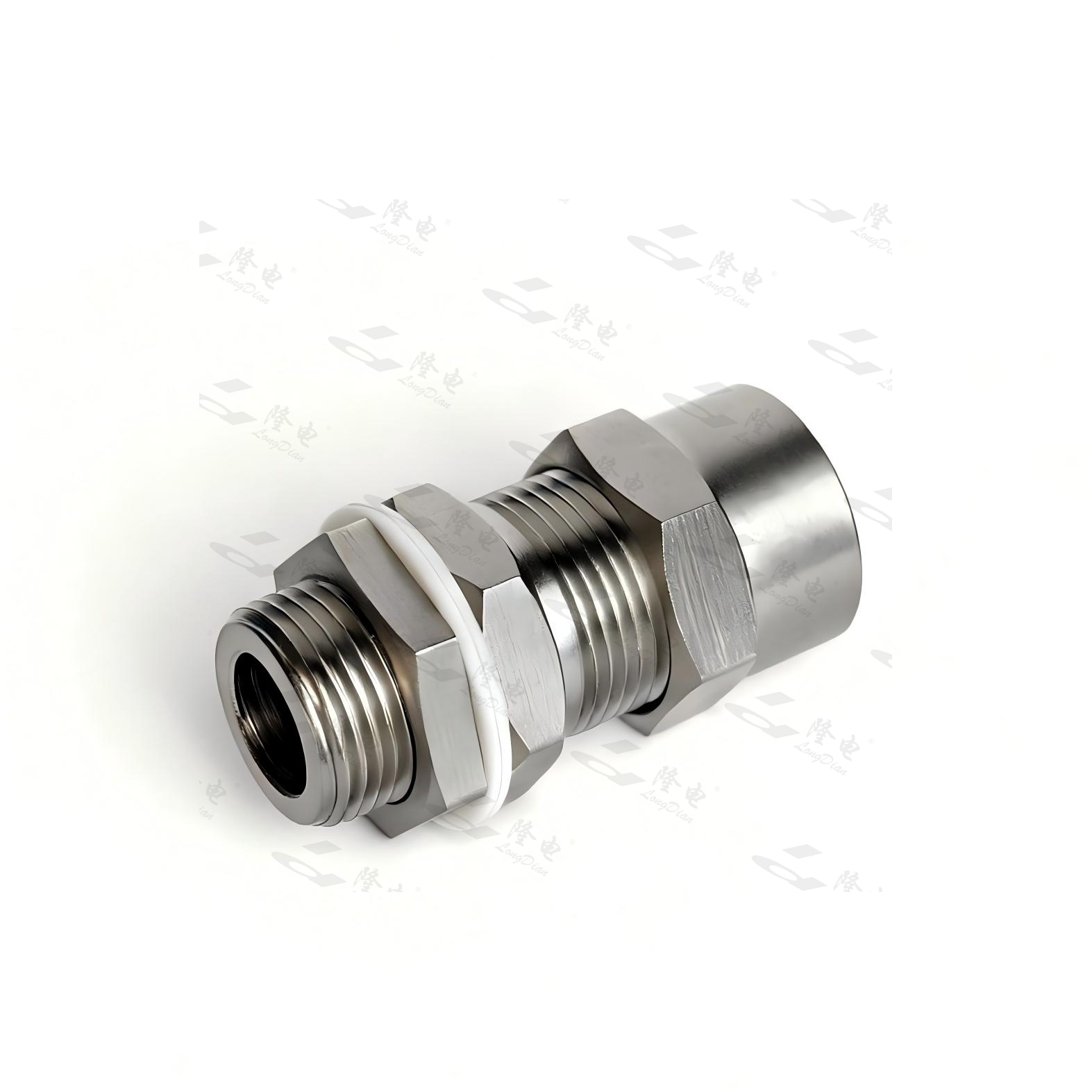

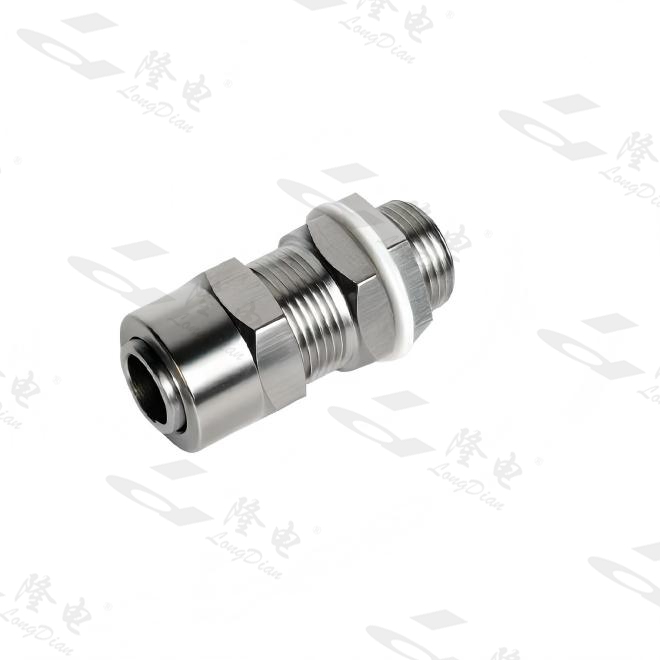

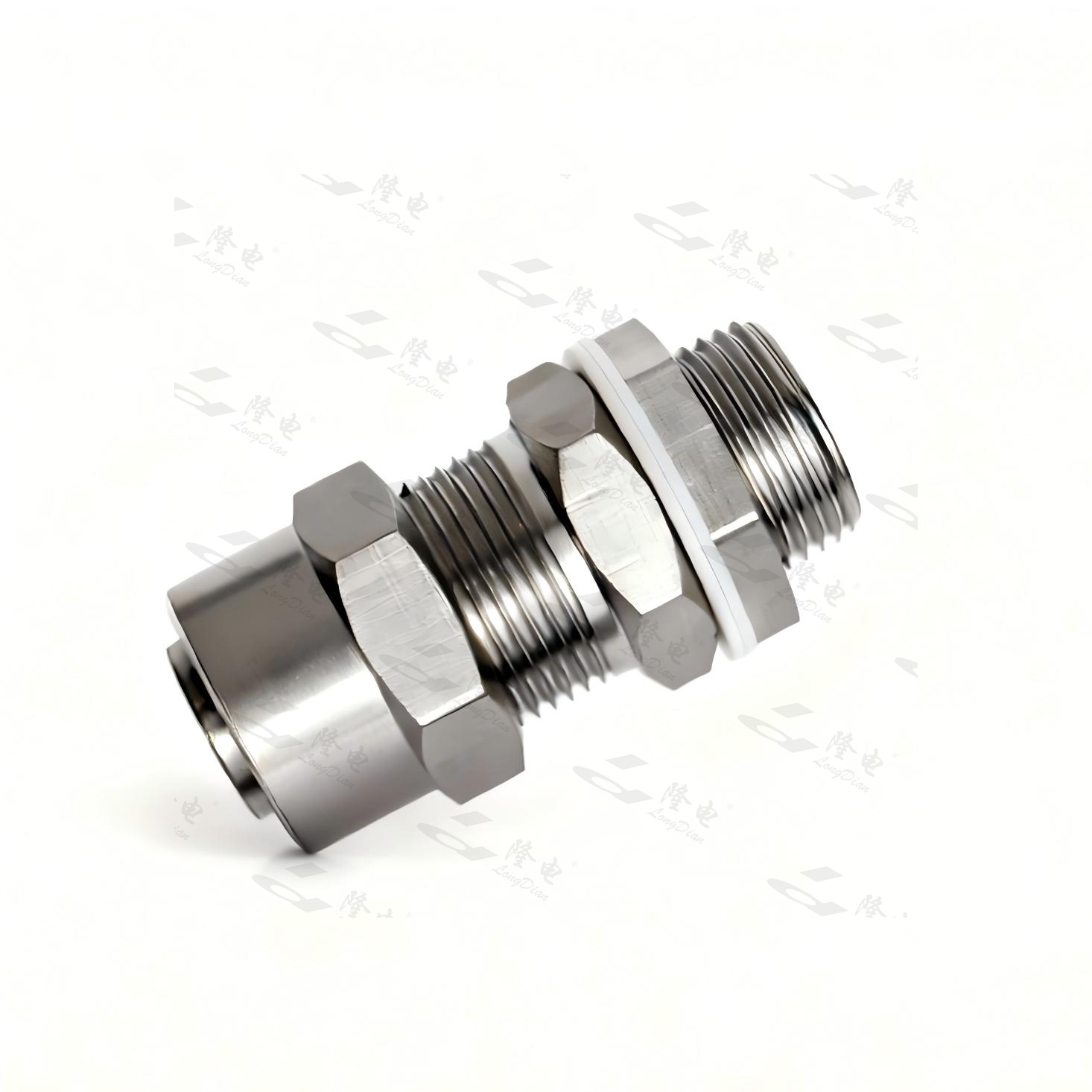

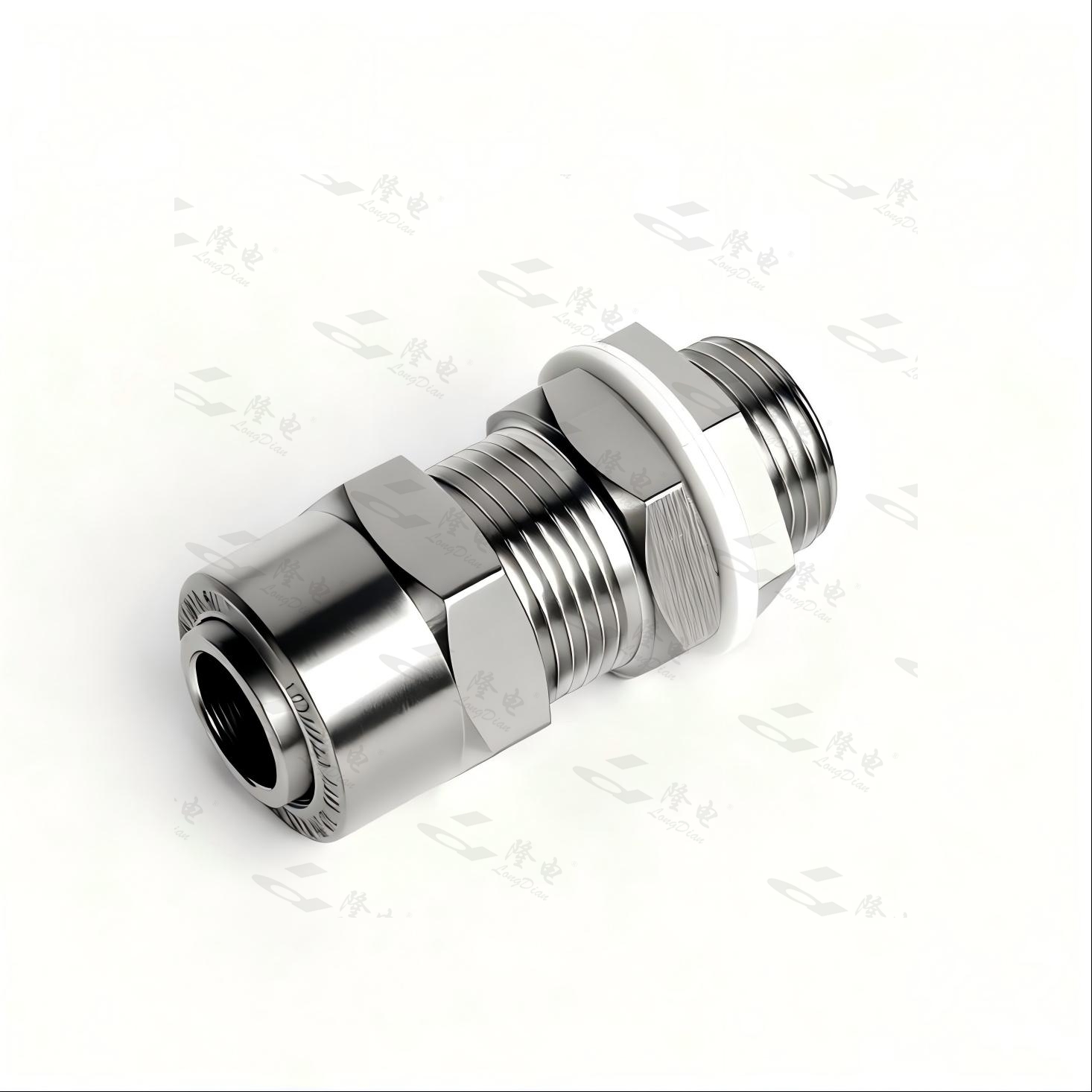

DT series explosion-proof cable gland (Ⅲ)

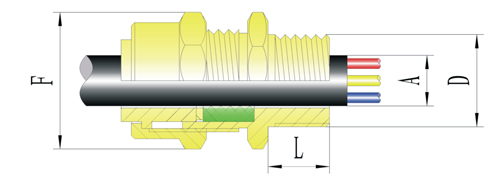

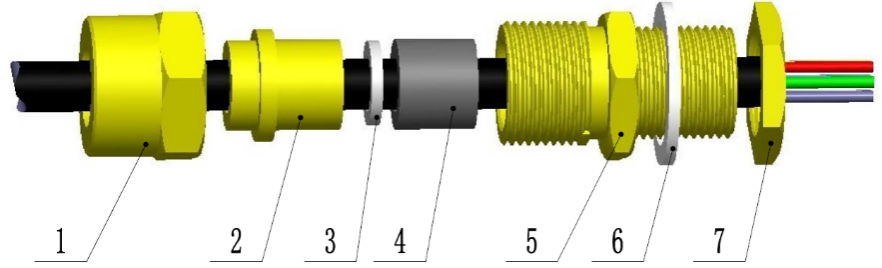

Assembly schematic plan for DT series explosion-proof cable gland(Ⅲ)
1、 seal nut
2、 middle body
3、 gasket to prevent rotating
4、 rubber seal ring
5、 connector
6、 sealing washer
7、 lock nut
