2. Features
1. Ex db ⅡC Gb / Ex eb ⅡC Gb / Ex tb ⅢC Db explosion-proof certification ensures the gland effectively contains any internal ignition and prevents flame propagation; IP66/IP68-rated sealing with high-performance rubber gaskets provides excellent waterproof and dustproof performance.
2. Corrosion-resistant body materials (nickel-plated brass, SS304, SS316L) combined with Nylon 6 anti-rotation washers deliver strong mechanical structure, reliable cable fixing, and long service life in harsh industrial conditions; multiple thread options (M, NPT, G, PG) support flexible wiring configurations.
3. Fully compatible with LD Electric explosion-proof enclosures and cabinets for seamless integration; supports both armored and unarmored cables with proper sealing compound filling and armor compression ring clamping, offering easy installation, stable sealing performance, and customizable specifications to meet specific project requirements.
3. Technical Parameter
|
Spec
|
Thread standard D
|
Min thread
length L (
mm)
|
A
(mm)
|
Seal range to cable dia B(mm)
|
Armour wire dia C(mm)
|
Max dia F
(mm)
|
| |
Metric
|
NPT
|
Metric
|
NPT
|
|
Standard Seal
min max
|
Thickened Seal
min max
|
Layered Seal
min max
|
1 Steel wire braided armor wire diameter
|
2 Corrugated steel tape armor thickness
|
|
|
DT-16-□-Ⅰ
|
M16×1.5
|
3/8〞
|
15
|
15.5
|
6.5
|
9.5 13.4
|
6.0 10.2
|
2.0 13.5
|
0.2/0.3
|
0.9/1.25
|
25.4
|
|
DT-20s-□-Ⅰ
|
M20×1.5
|
1/2〞
|
15
|
20
|
11.5
|
11.6 15.6
|
9.5 13.5
|
4.0 15.8
|
0.2/0.3
|
0.9/1.25
|
29
|
|
DT-20-□-Ⅰ
|
M20×1.5
|
1/2〞
|
15
|
20
|
13.5
|
16.5 20.6
|
13.5 17.5
|
5.0 21.0
|
0.2/0.3
|
0.9/1.25
|
34.6
|
|
DT-25-□-Ⅰ
|
M25×1.5
|
3/4〞
|
15
|
20.5
|
17.5
|
23.5 27.5
|
20.0 24.0
|
12.0 27.5
|
0.2/0.45
|
1.25/1.6
|
43.9
|
|
DT-32-□-Ⅰ
|
M32×1.5
|
1〞
|
15
|
25.5
|
24.5
|
29.5 33.9
|
26.0 30.2
|
18.0 34.0
|
0.3/0.45
|
1.6/2.0
|
55.4
|
|
DT-40-□-Ⅰ
|
M40×1.5
|
1-1/4〞
|
15
|
26
|
31.5
|
35.5 39.8
|
32.0 36.0
|
24.0 40.0
|
0.3/0.45
|
1.6/2.0
|
63.5
|
|
DT-50s-□-Ⅰ
|
M50×1.5
|
1-1/2〞
|
15
|
26.5
|
38.2
|
43.5 47.8
|
38.5 42.6
|
28.0 48.0
|
0.3/0.45
|
2.0/2.5
|
75
|
|
DT-50-□-Ⅰ
|
M50×1.5
|
2〞
|
15
|
27
|
40.0
|
49.0 53.1
|
46.0 50.2
|
33.0 53.0
|
0.3/0.45
|
2.0/2.5
|
80
|
|
DT-63s-□-Ⅰ
|
M63×1.5
|
2〞
|
15
|
27
|
50.0
|
47.6 60.0
|
52.0 56.2
|
40.0 60.0
|
0.3/0.45
|
2.5
|
90
|
|
DT-63-□-Ⅰ
|
M63×1.5
|
2-1/2〞
|
15
|
40
|
53.0
|
61.0 65.3
|
55.5 59.5
|
45.0 65.5
|
0.3/0.45
|
2.5
|
95
|
|
DT-75s-□-Ⅰ
|
M75×1.5
|
2-1/2〞
|
15
|
40
|
61.9
|
68.0 72.1
|
65.5 69.5
|
53.0 72.5
|
0.3/0.45
|
2.5
|
100
|
|
DT-75-□-Ⅰ
|
M75×1.5
|
3〞
|
16
|
41.5
|
63.8
|
73.5 79.8
|
71.5 75.6
|
60.0 80.0
|
0.3/0.45
|
2.5
|
110
|
|
DT-80-□-Ⅰ
|
M80×2
|
3〞
|
18
|
41.5
|
67.0
|
79.0 83.0
|
75.5 79.5
|
64.0 84.0
|
0.45
|
3.15
|
115
|
|
DT-90-□-Ⅰ
|
M90×2
|
3-1/2〞
|
18
|
44
|
77.0
|
89.0 93.0
|
84.5 88.7
|
74.0 93.5
|
0.45
|
3.15
|
125
|
|
DT-100-□-Ⅰ
|
M100×2
|
4〞
|
18
|
47
|
87.0
|
97.0 101.0
|
94.5 98.5
|
82.0 102.0
|
0.45
|
3.15
|
135
|
Special Notice: Use of Series 2 armor wire diameter shall be specified separately.
Installation, Use, and Maintenance：Users shall select the explosion-proof cable gland with the appropriate thread standard according to the structure and outer diameter of the incoming cable, following the requirements in Table 1. Ensure that the cable is securely clamped and properly sealed.

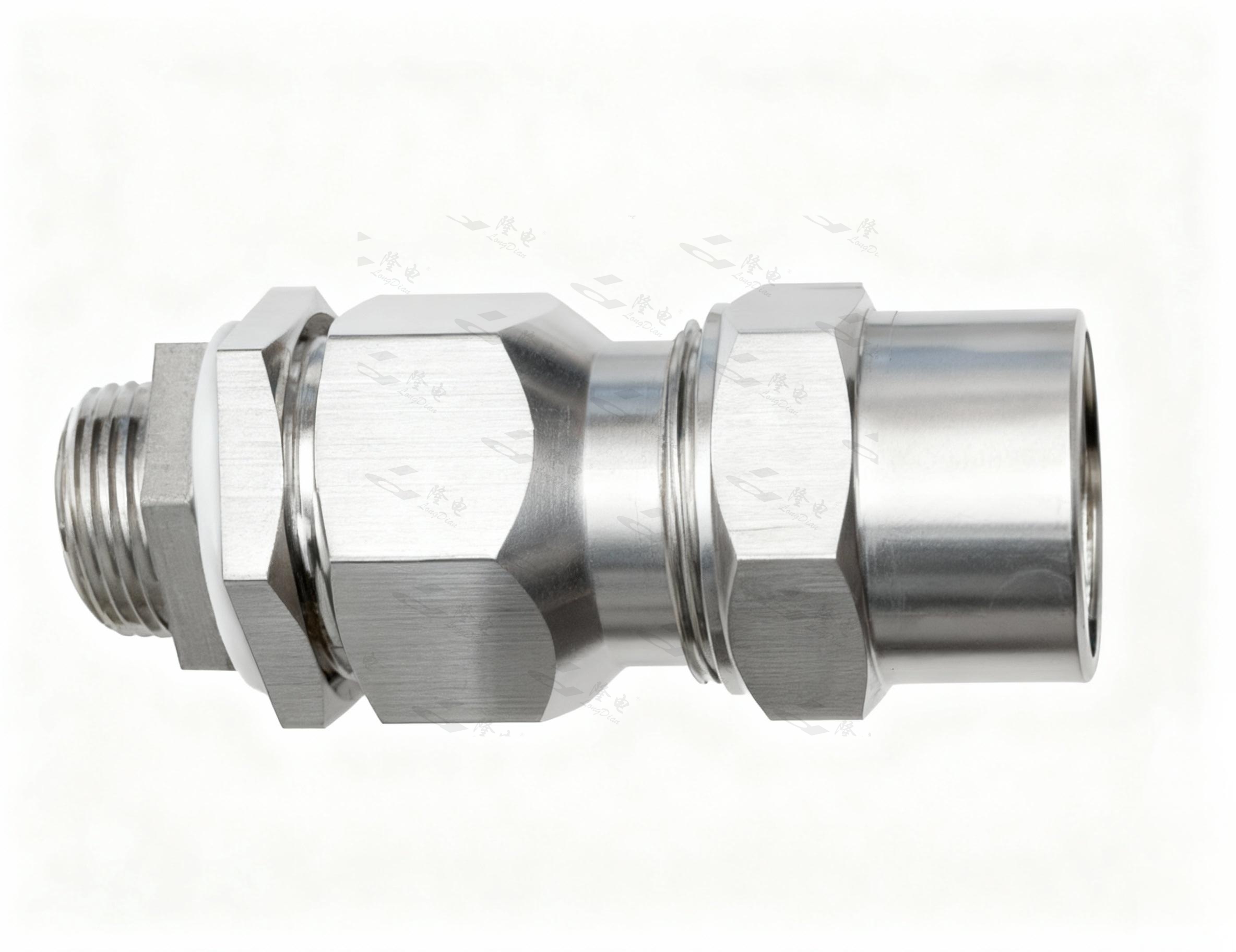

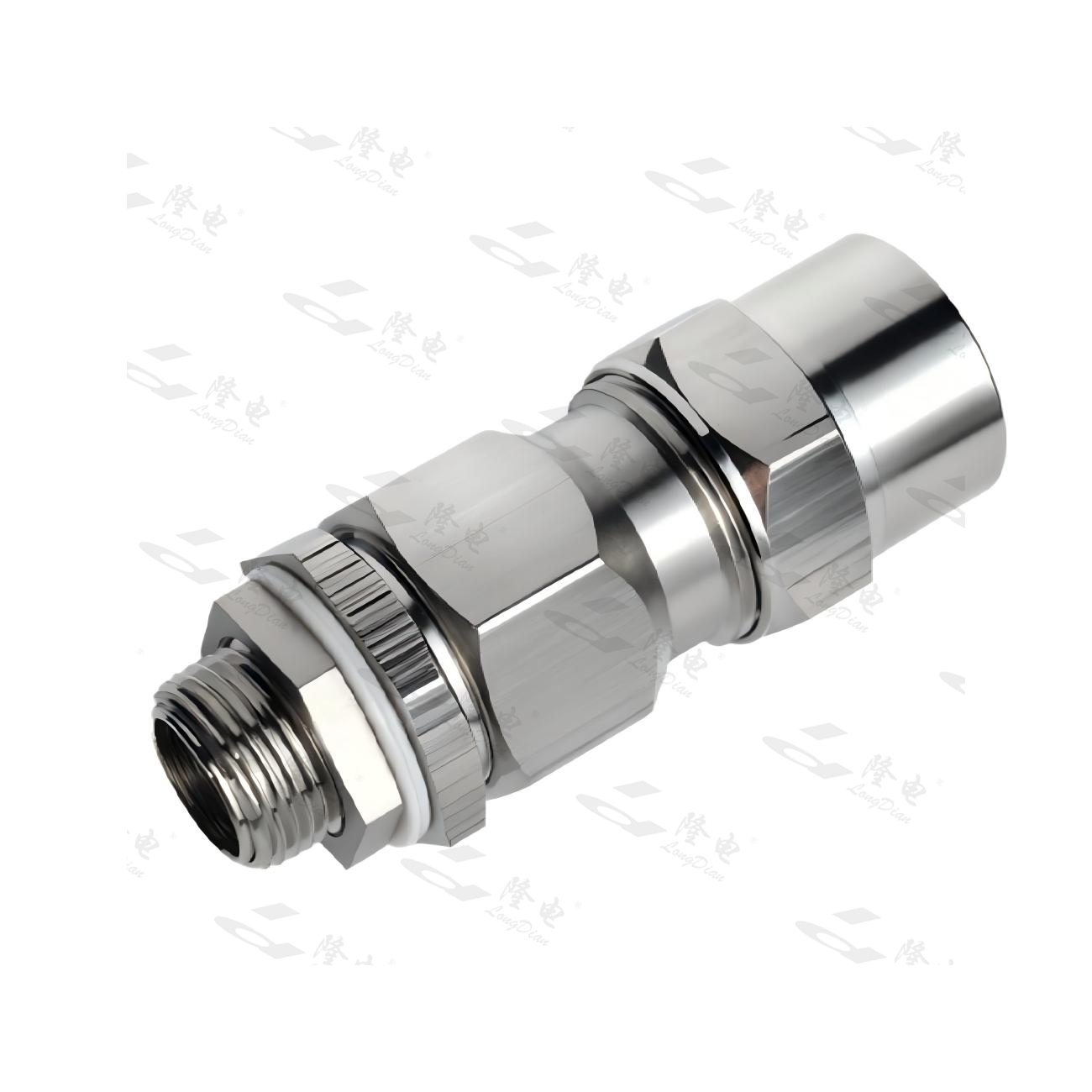

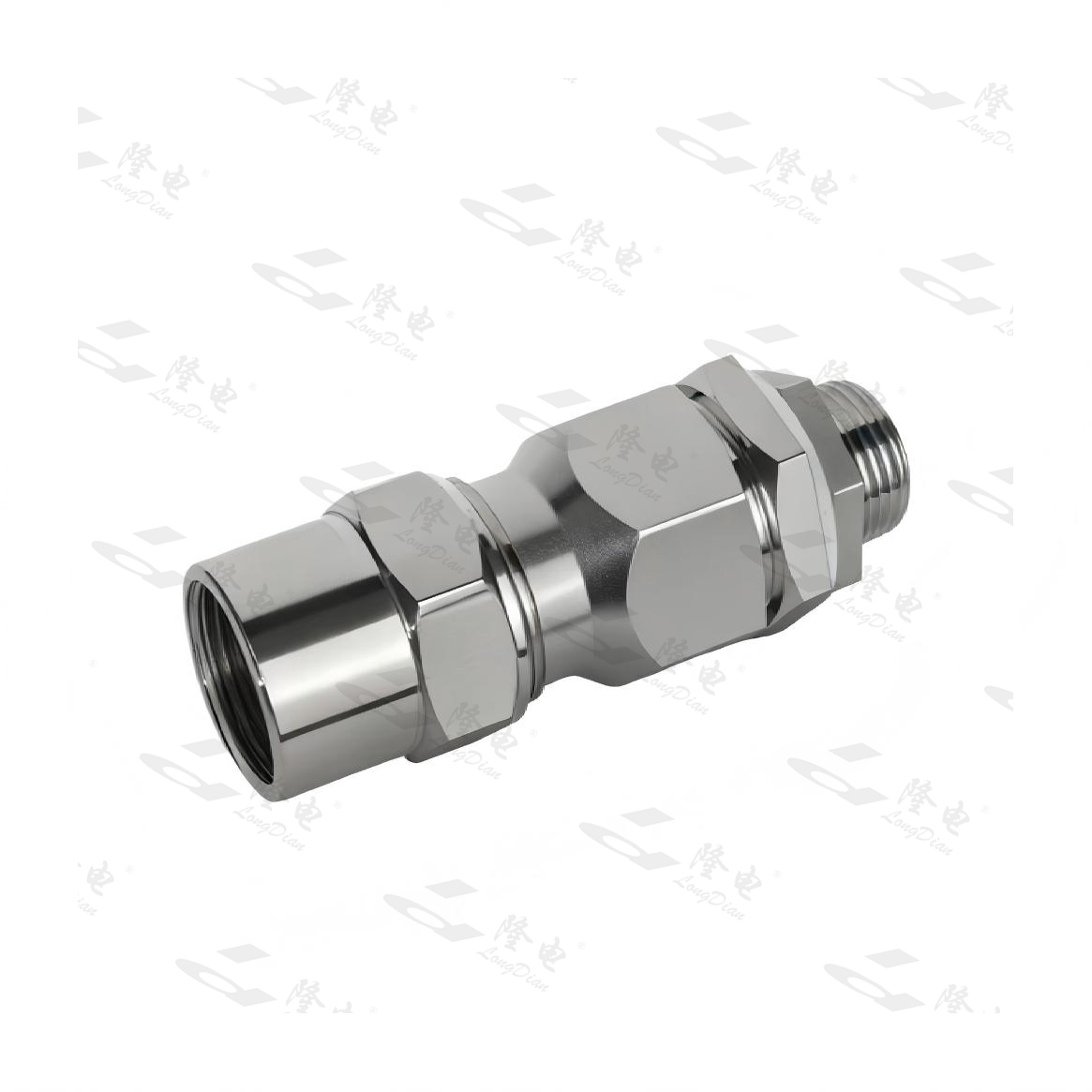

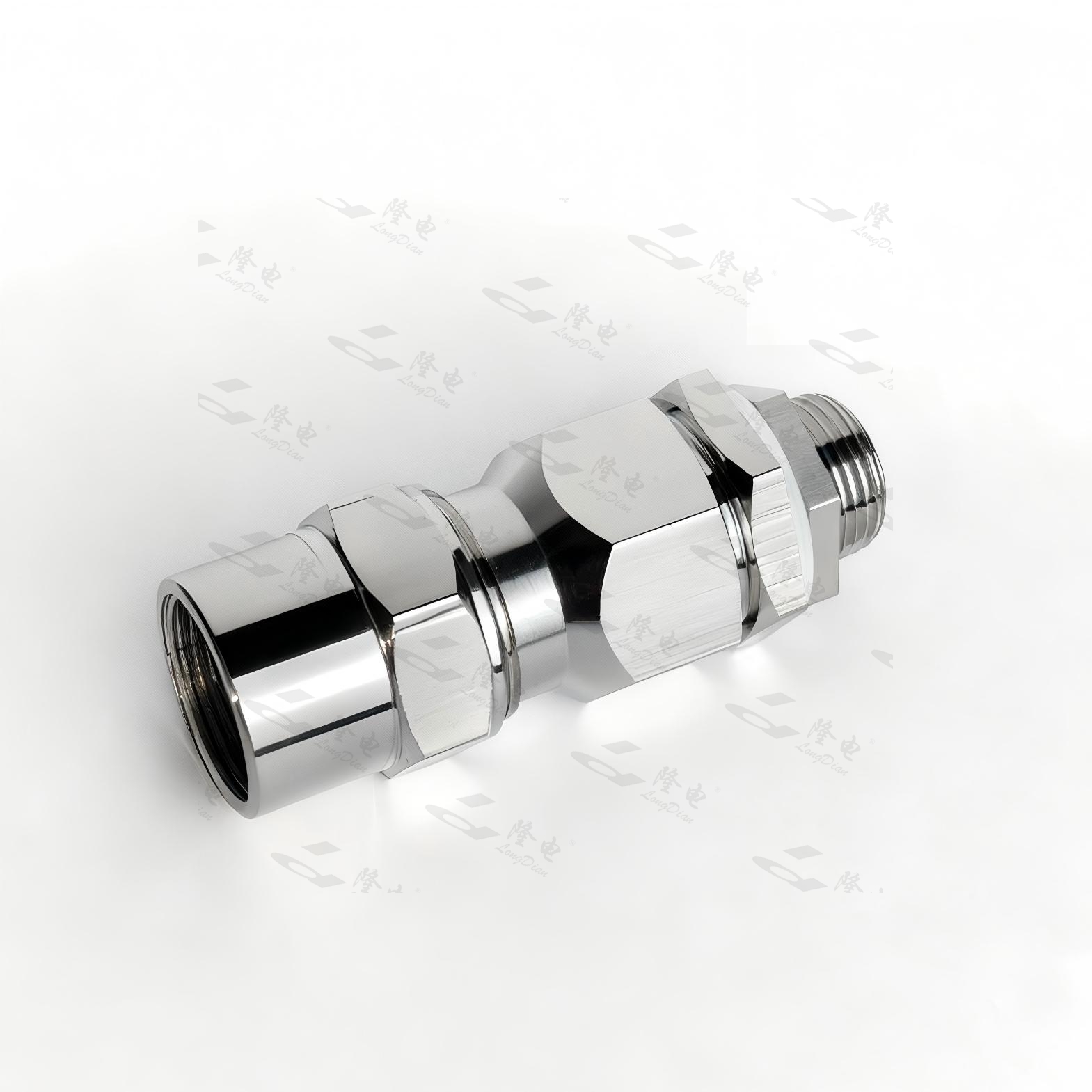

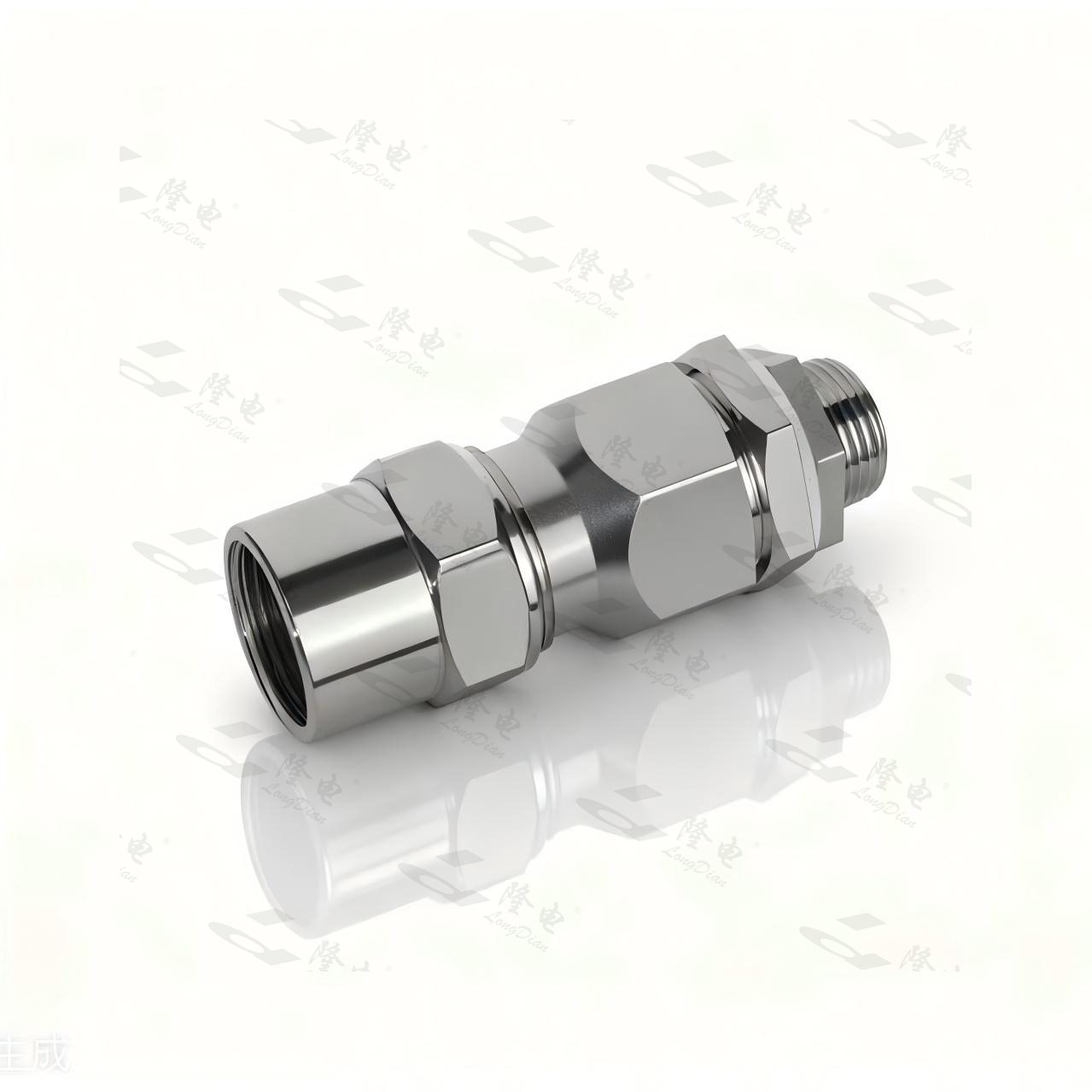

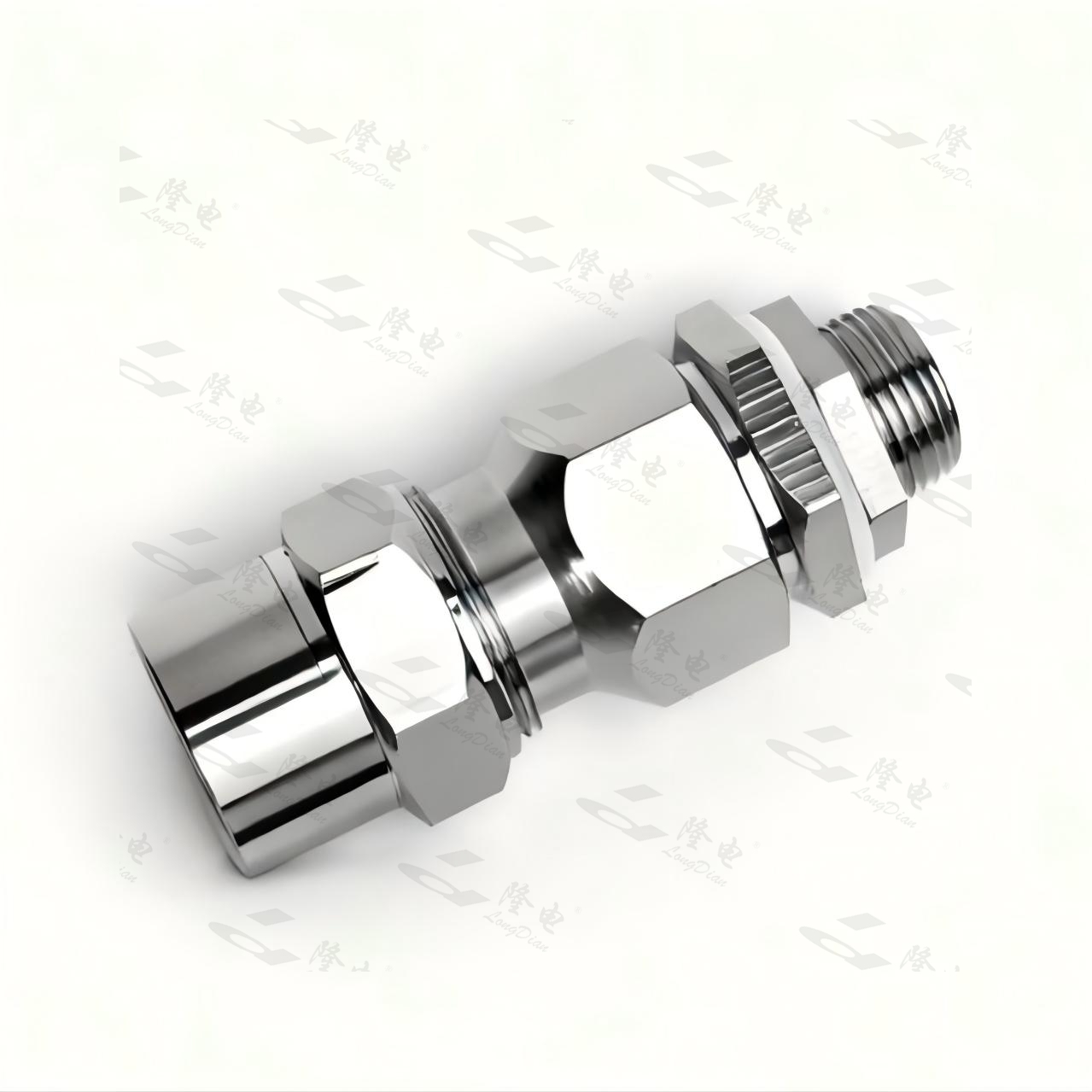

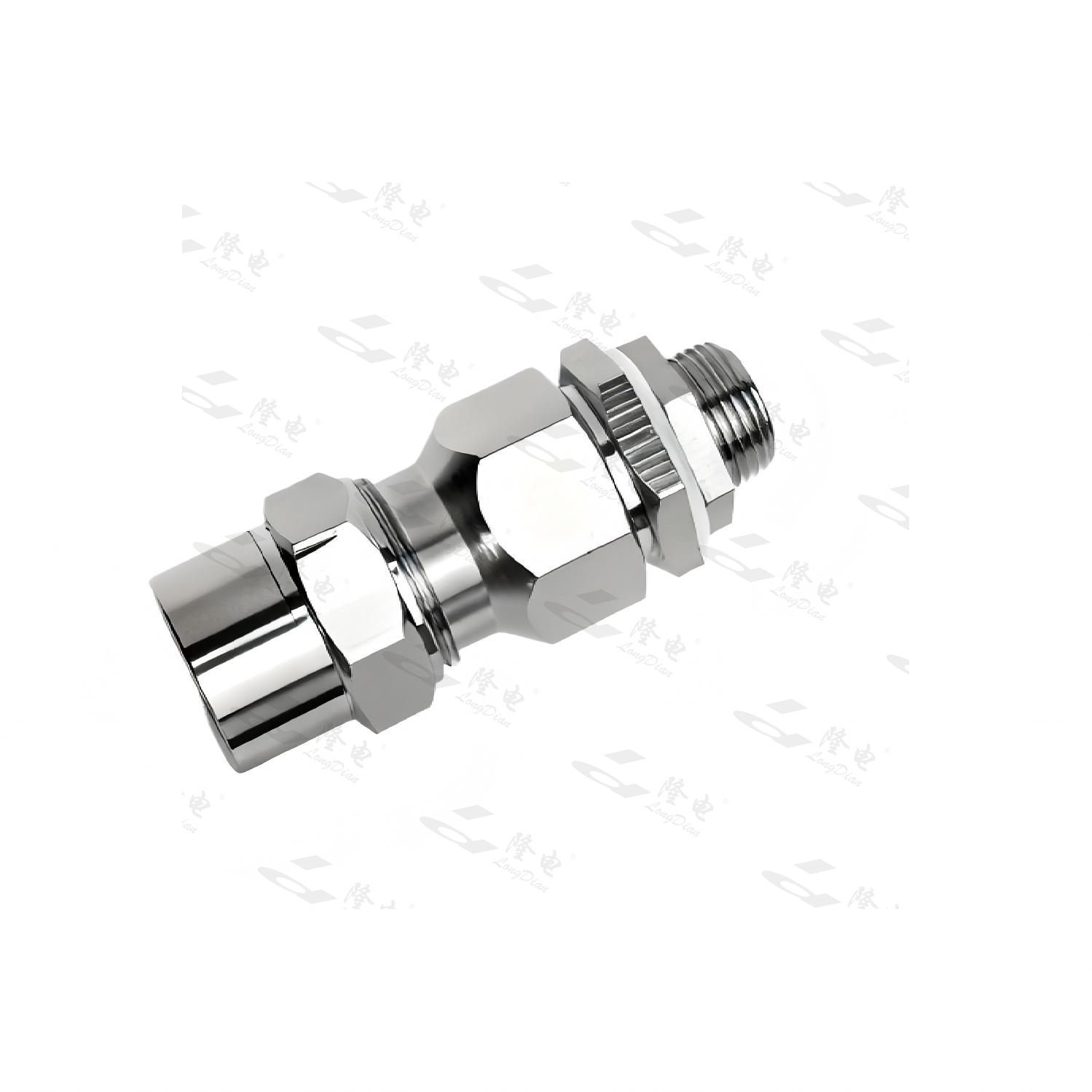

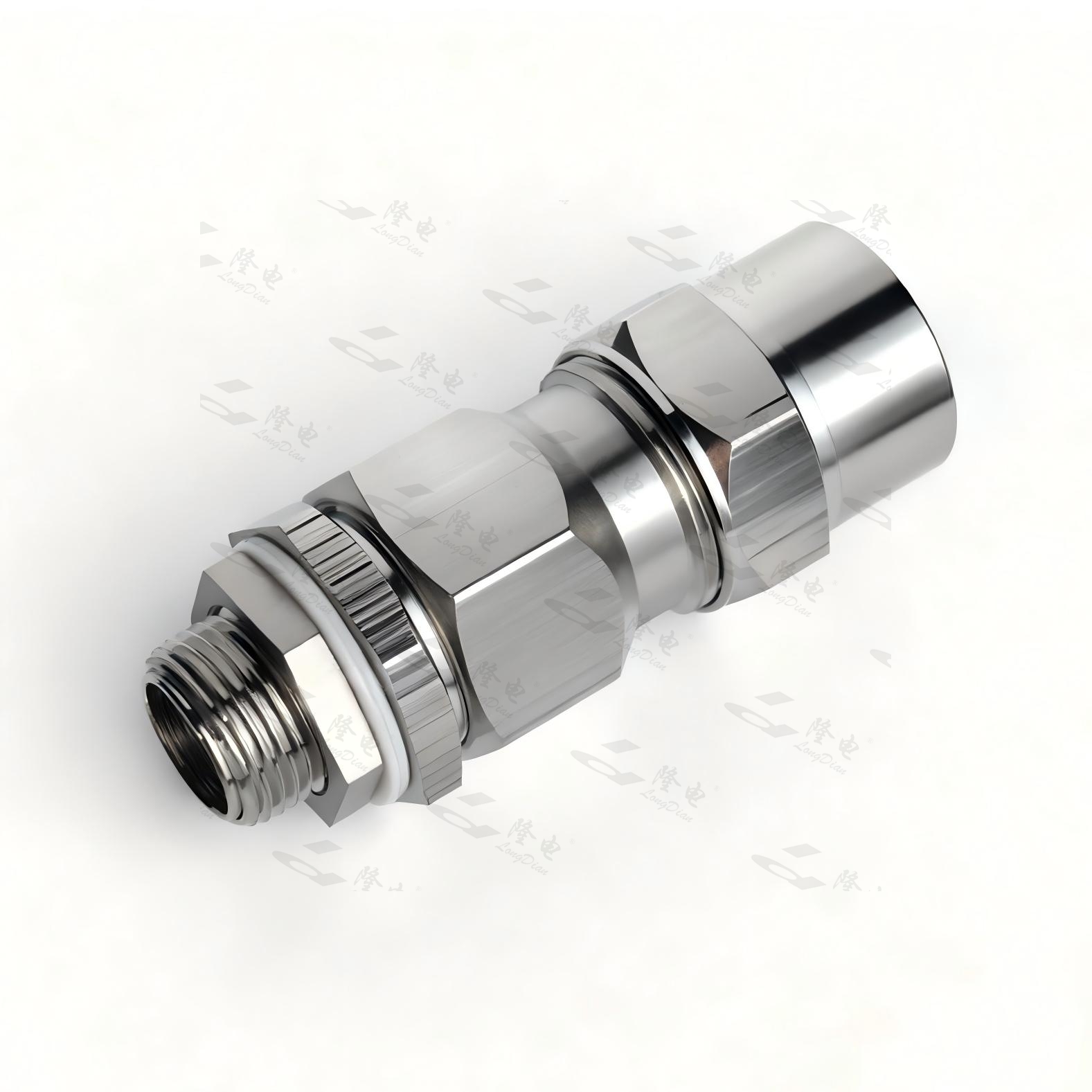

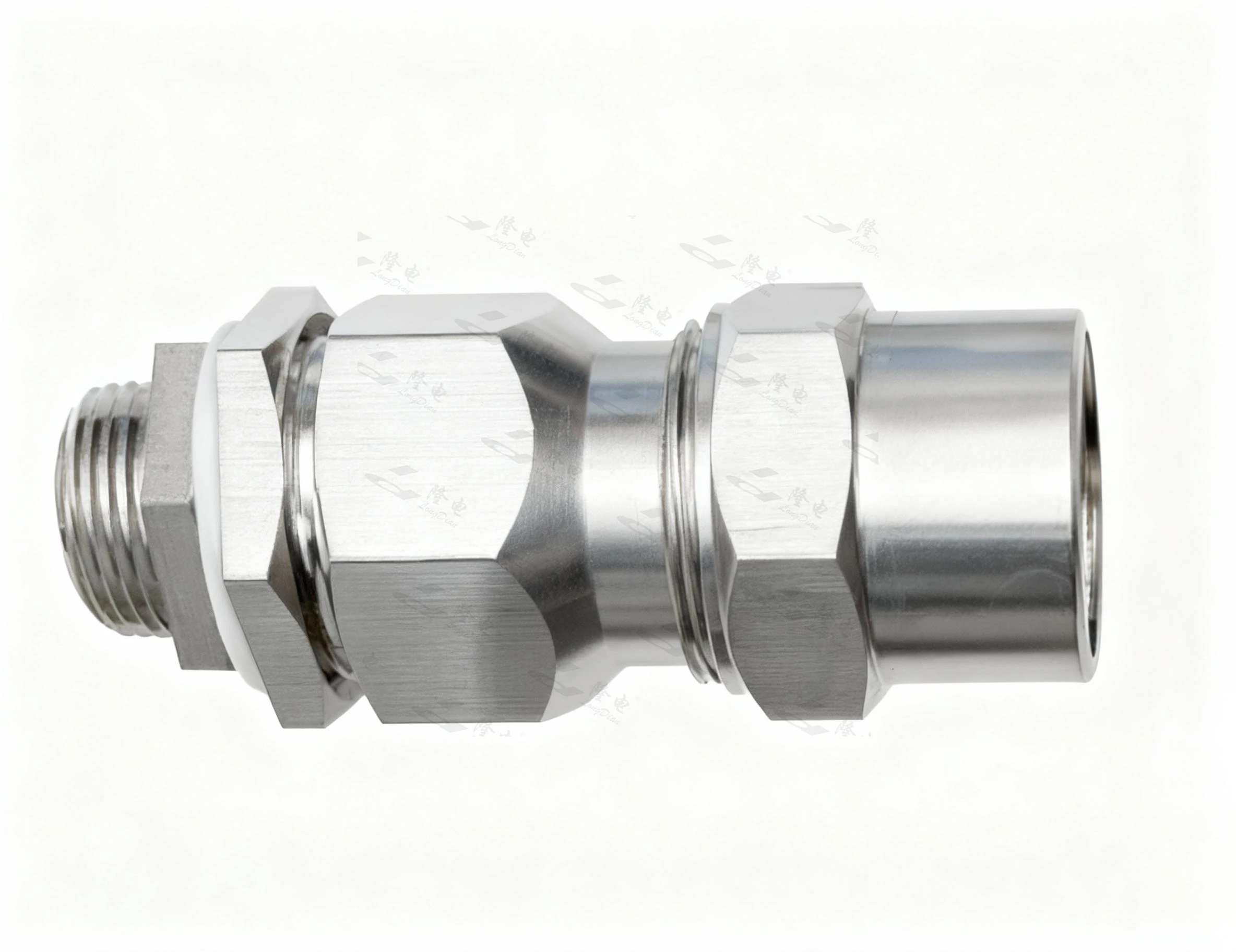

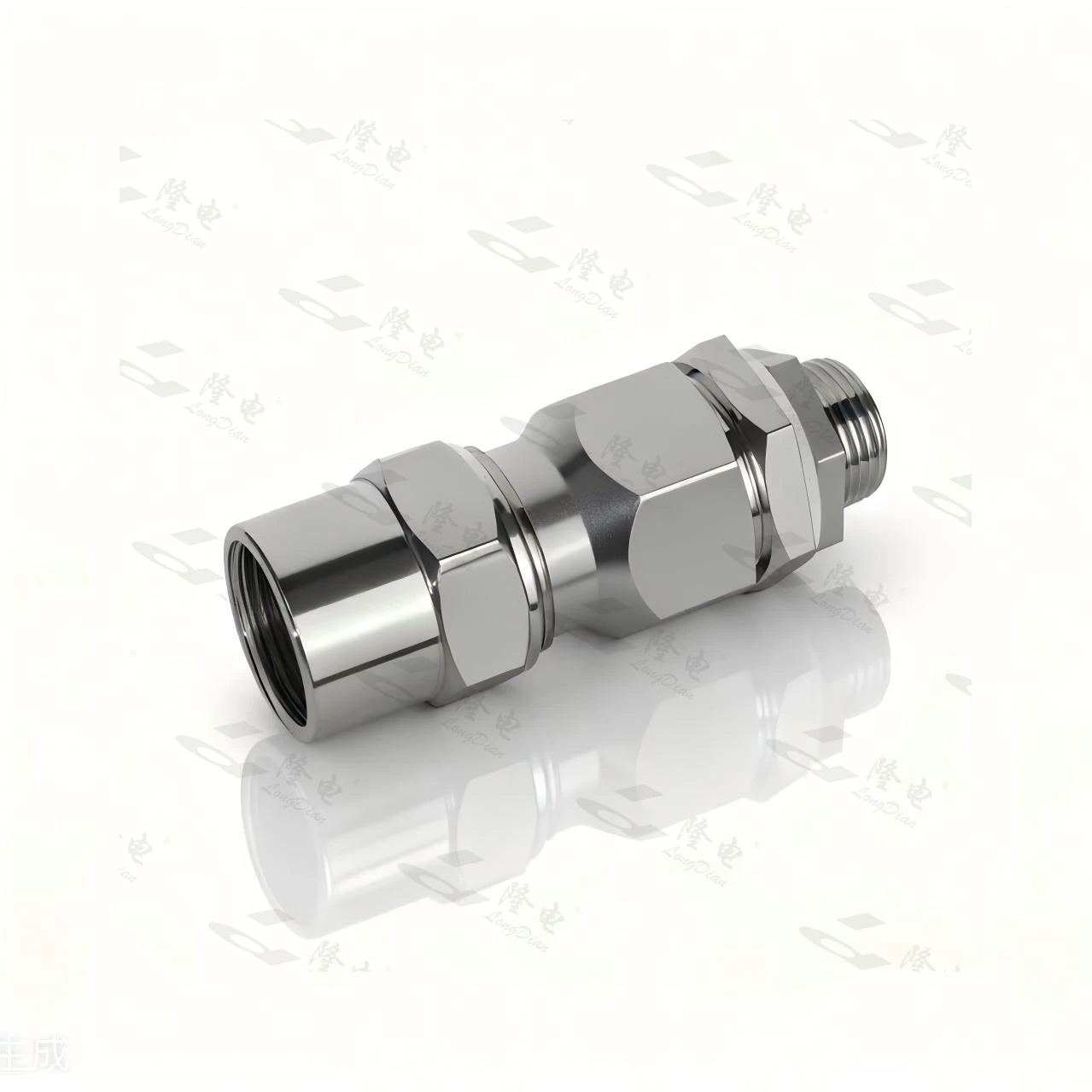

DT series explosion-proof cable gland (Ⅱ)

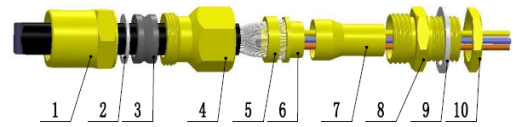

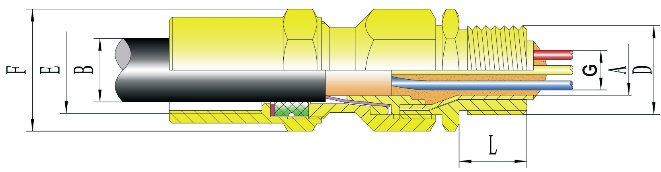

Assembly schematic plan for DT series explosion-proof cable gland(Ⅱ)
1、 seal nut with thread
2、 gasket to prevent rotating
3、 rubber seal ring
4、 middle body
5、 ring to lock armor
6、 ring seat to lock armor
7、 flameproof part
8、 connector
9、 sealing washer
10、 nut
