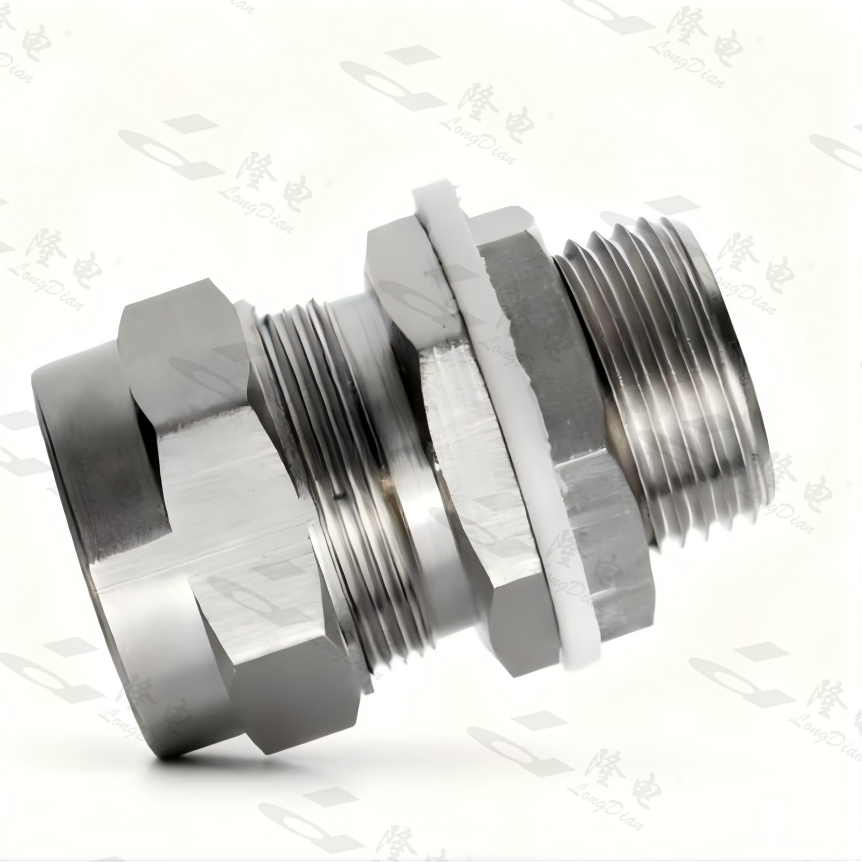

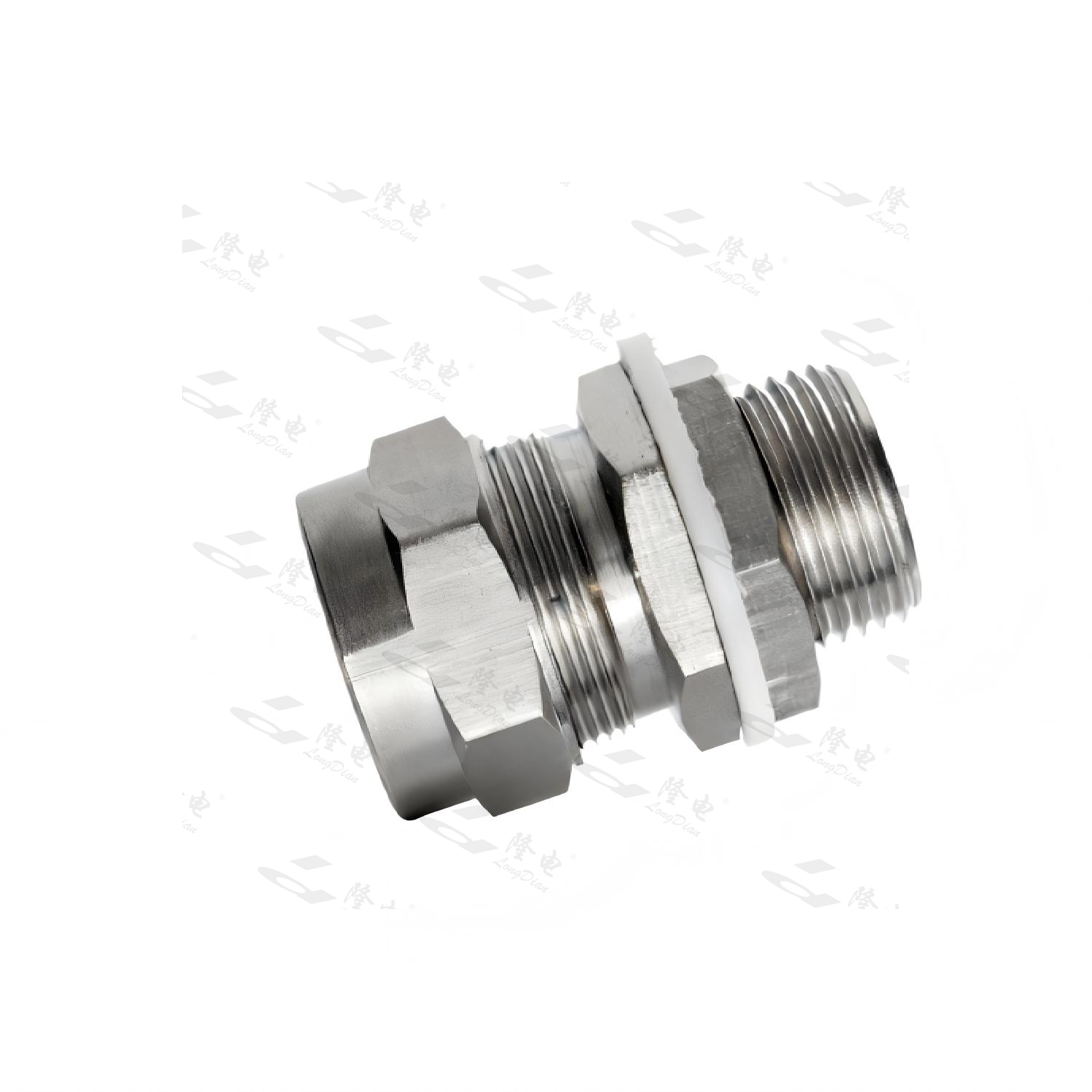

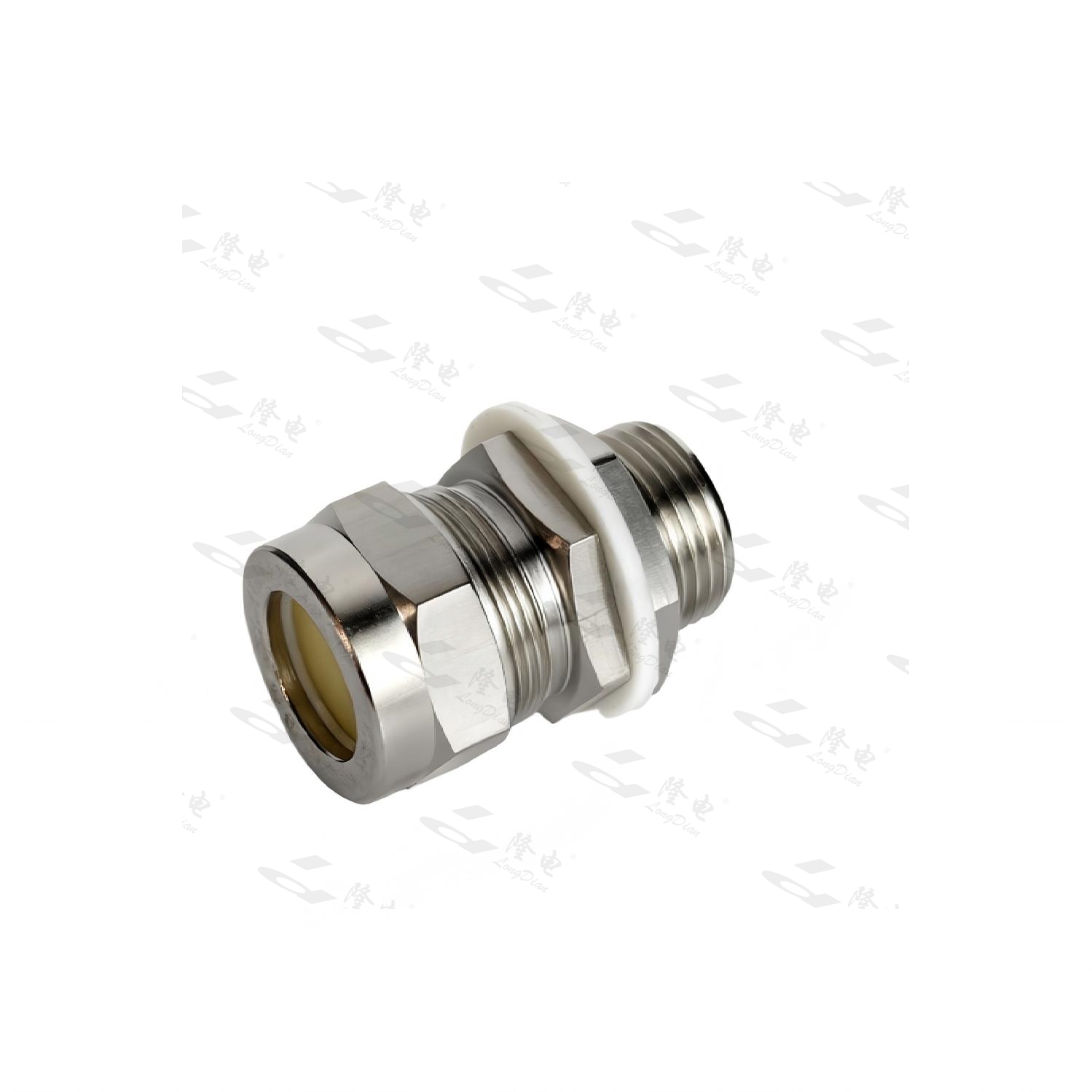

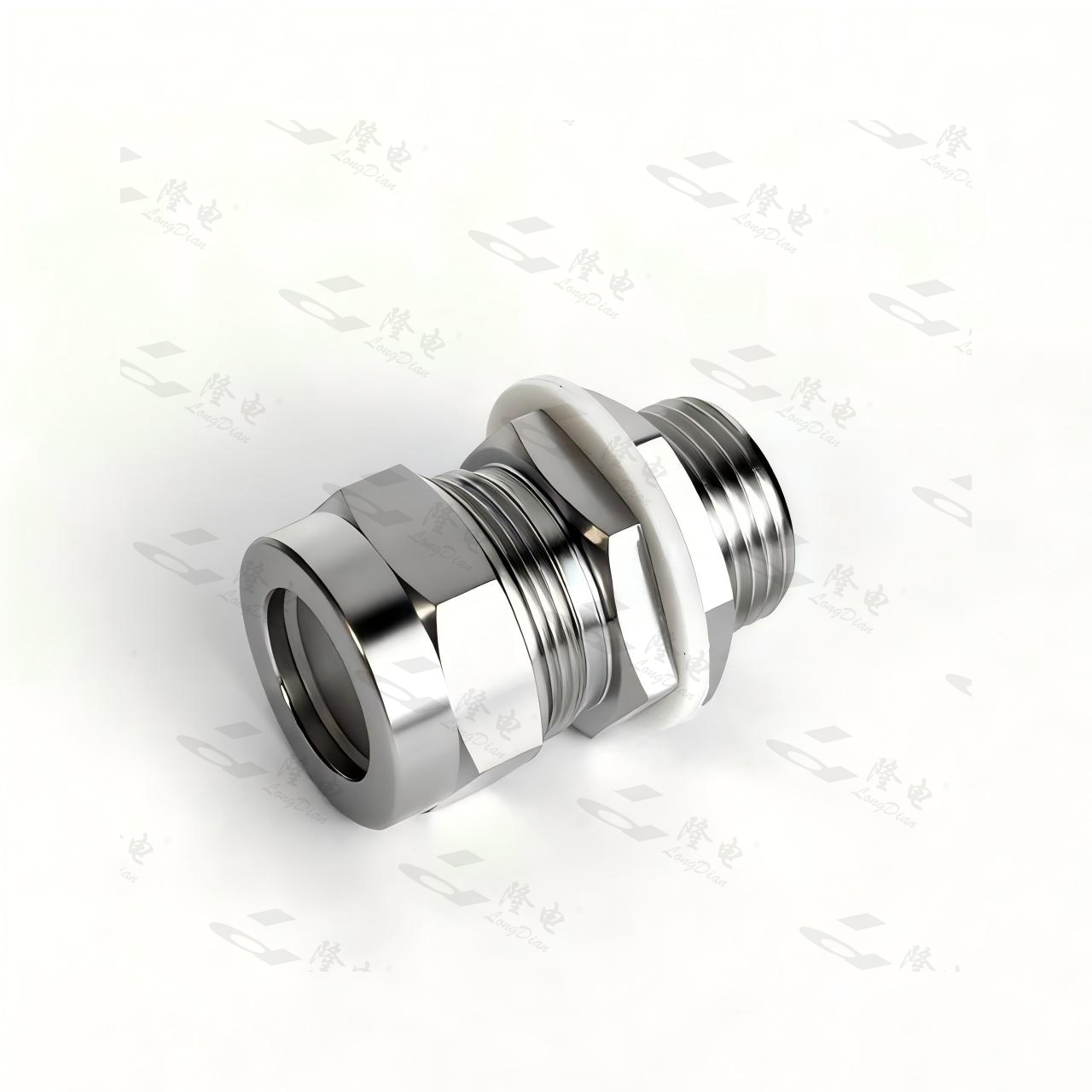

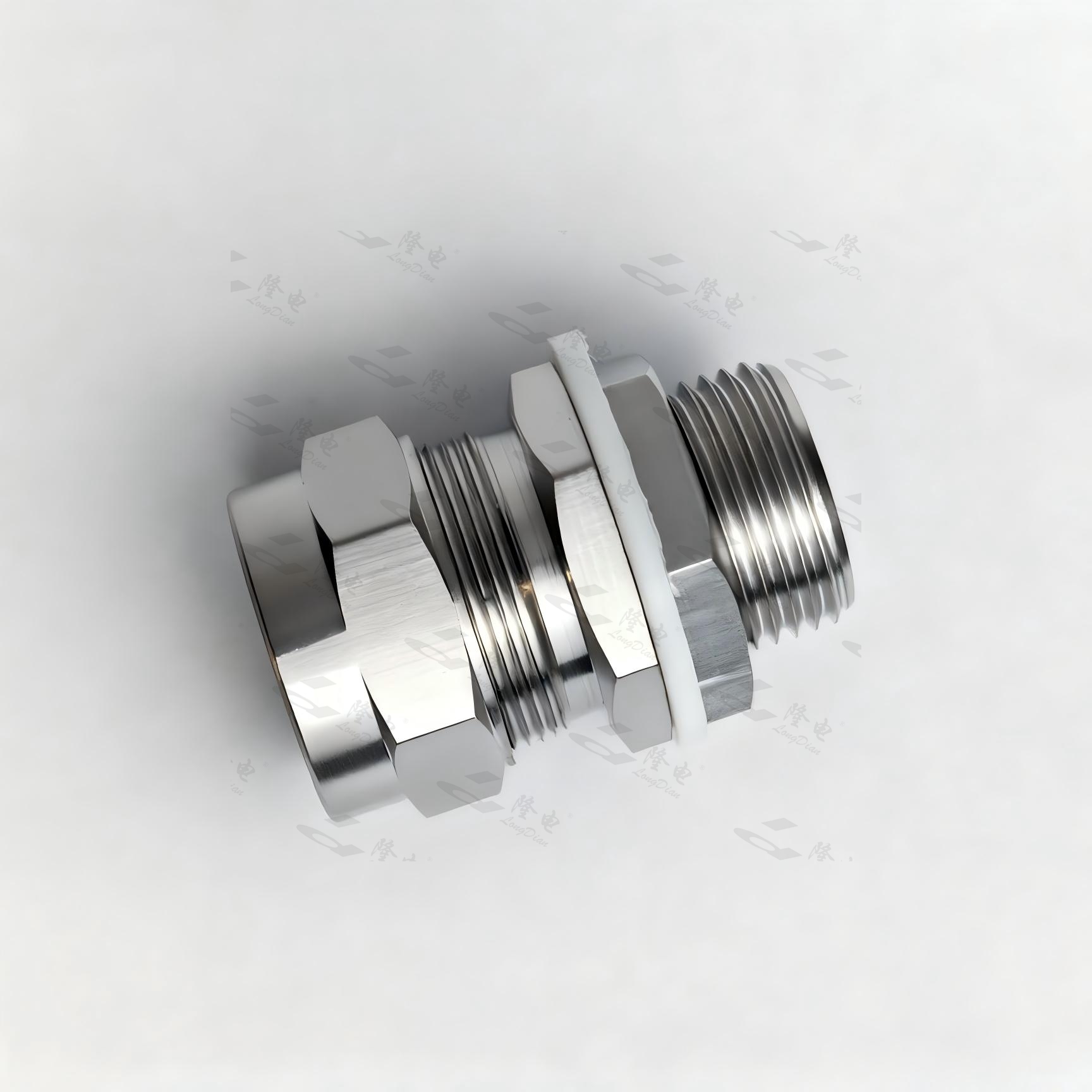

2. Features
1. Upgraded reinforced multi-sealing structure with optional silicone seal material delivers IP66–IP68-rated waterproof and dustproof performance; while the inner cable sheath is not explosion-proof sealed (no explosion-proof performance for cable entry), the gland body carries Ex db ⅡC Gb / Ex eb ⅡC Gb / Ex tb ⅢC Db certification, providing robust mechanical and environmental protection for non-armored cable entry in hazardous locations.
2. Corrosion and salt-spray resistant body materials (nickel-plated brass, SS304, SS316L) with PA6 anti-rotation washers deliver high mechanical strength, reliable cable retention, and excellent vibration and anti-loosening performance in demanding industrial conditions; multiple thread options (M, NPT, G, PG) support flexible wiring configurations across diverse installations.

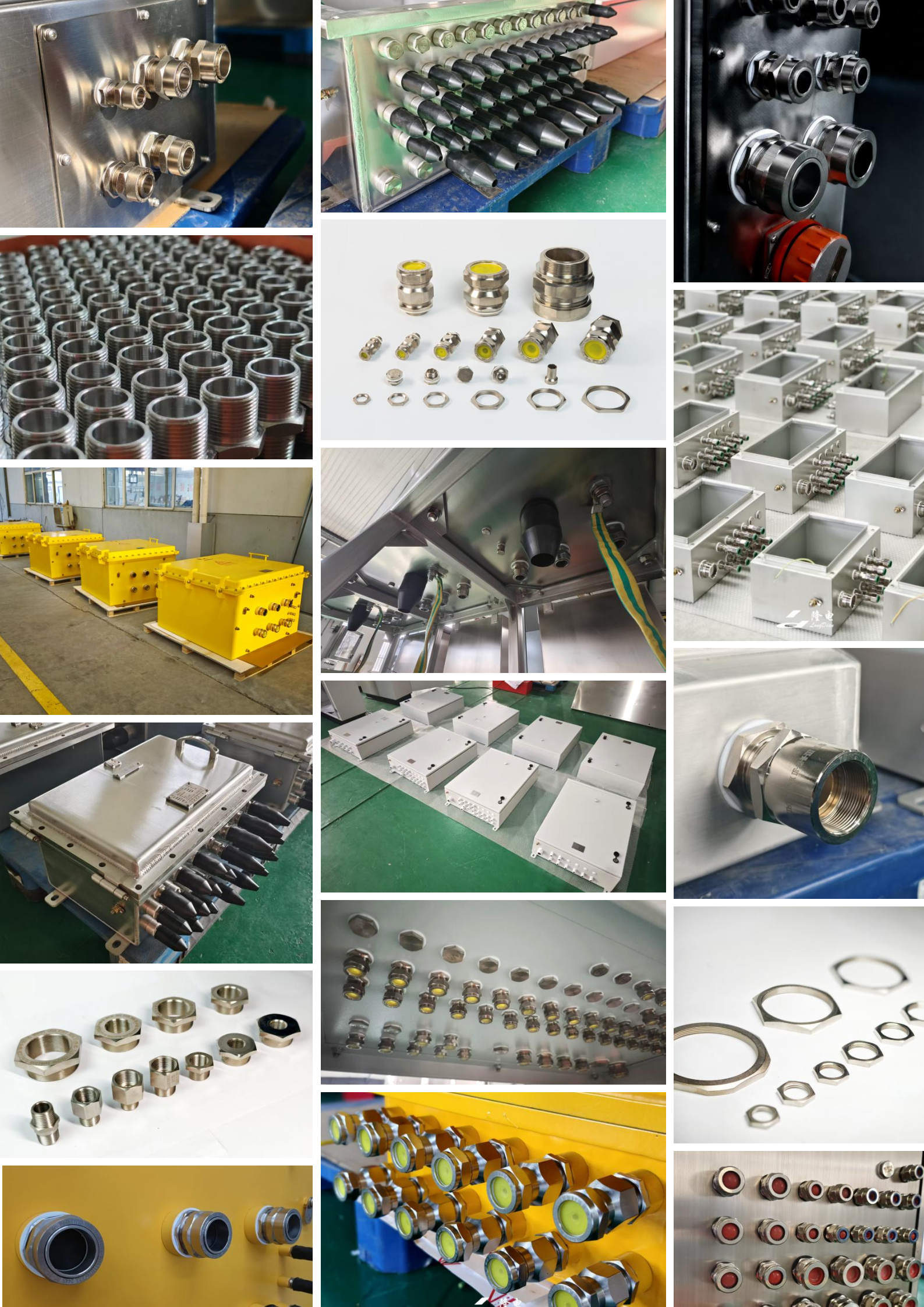

3. Fully compatible with LD Electric explosion-proof enclosures and equipment for seamless integration; offers customizable specifications and materials to meet specific project requirements, with the upgraded reinforced design and anti-loosening functionality particularly suited for rail transit, offshore, and heavy-duty industrial environments where long-term cable retention and environmental sealing are essential — note that this series is intended for non-armored cables only and does not provide explosion-proof cable entry performance.
3. Related Parameter
|
Spec
|
Thread standard D
|
Min thread length L(mm)
|
Seal range to cable dia A(mm)
|
Max dia F
(mm)
|
Tightening Torque
(N.m)
|
| |
Metric
|
NPT
|
Metric
|
NPT
|
Standard Seal
min max
|
Thickened Seal
min max
|
Layered Seal
min max
|
|
|
|
DT-16-□-Ⅶ
|
M16×1.5
|
3/8〞
|
15
|
15
|
9.5 13.4
|
6.0 10.2
|
2.0 13.5
|
25.4
|
20
|
|
DT-20-□-Ⅶ
|
M20×1.5
|
1/2〞
|
15
|
15
|
11.6 15.6
|
9.5 13.5
|
4.0 15.8
|
29
|
25
|
|
DT-25-□-Ⅶ
|
M25×1.5
|
3/4〞
|
15
|
15
|
16.5 20.6
|
13.5 17.5
|
5.0 21.0
|
34.6
|
30
|
|
DT-32-□-Ⅶ
|
M32×1.5
|
1〞
|
15
|
17
|
23.5 27.5
|
20.0 24.0
|
12.0 27.5
|
43.9
|
40
|
|
DT-40-□-Ⅶ
|
M40×1.5
|
1-1/4〞
|
15
|
18
|
29.5 33.9
|
26.0 30.2
|
18.0 34.0
|
55.4
|
45
|
|
DT-50-□-Ⅶ
|
M50×1.5
|
2〞
|
15
|
18
|
35.5 39.8
|
32.0 36.0
|
24.0 40.0
|
63.5
|
55
|
|
DT-63s-□-Ⅶ
|
M63×1.5
|
2〞
|
15
|
18
|
35.3 47.8
|
38.5 42.6
|
28.0 48.0
|
75
|
60
|
|
DT-63-□-Ⅶ
|
M63×1.5
|
2-1/2〞
|
15
|
24
|
42.0 53.1
|
38.5 50.2
|
33.0 53.0
|
80
|
65
|
|
DT-75s-□-Ⅶ
|
M75×1.5
|
2-1/2〞
|
15
|
24
|
47.6 60.0
|
44.1 56.2
|
40.0 60.0
|
90
|
75
|
|
DT-75-□-Ⅶ
|
M75×1.5
|
3〞
|
15
|
26
|
57.2 65.3
|
51.3 59.5
|
45.0 65.5
|
95
|
80
|
|
DT-90s-□-Ⅶ
|
M90×2
|
3〞
|
16
|
26
|
60.6 72.1
|
55.8 69.5
|
52.5 72.0
|
100
|
95
|
|
DT-90-□-Ⅶ
|
M90×2
|
3-1/2〞
|
16
|
27
|
62.5 79.8
|
61.8 75.6
|
60.0 80.0
|
110
|
95
|
|
DT-100-□-Ⅶ
|
M100×2
|
4〞
|
18
|
28
|
73.5 83.0
|
71.3 79.5
|
64.0 84.0
|
115
|
100
|

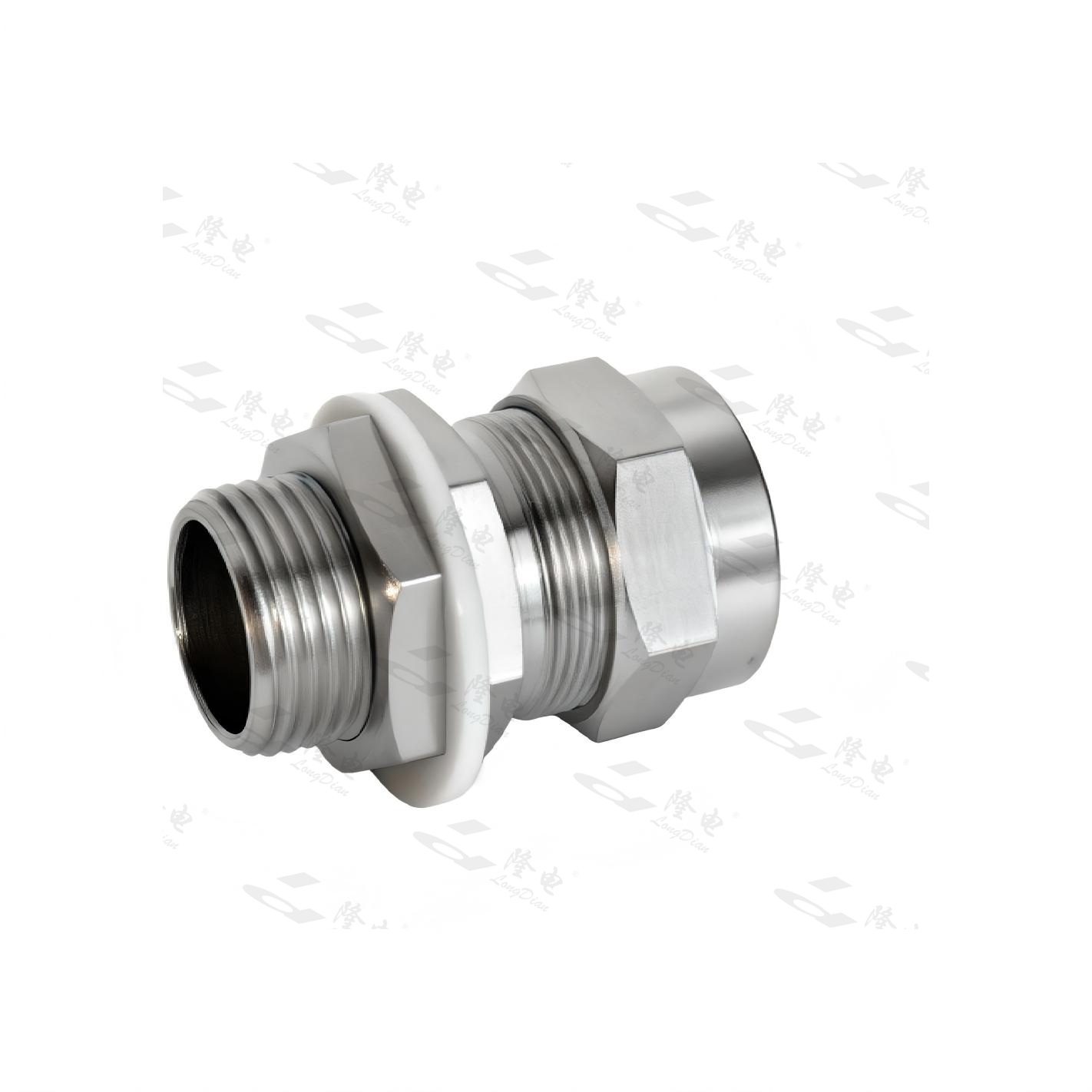

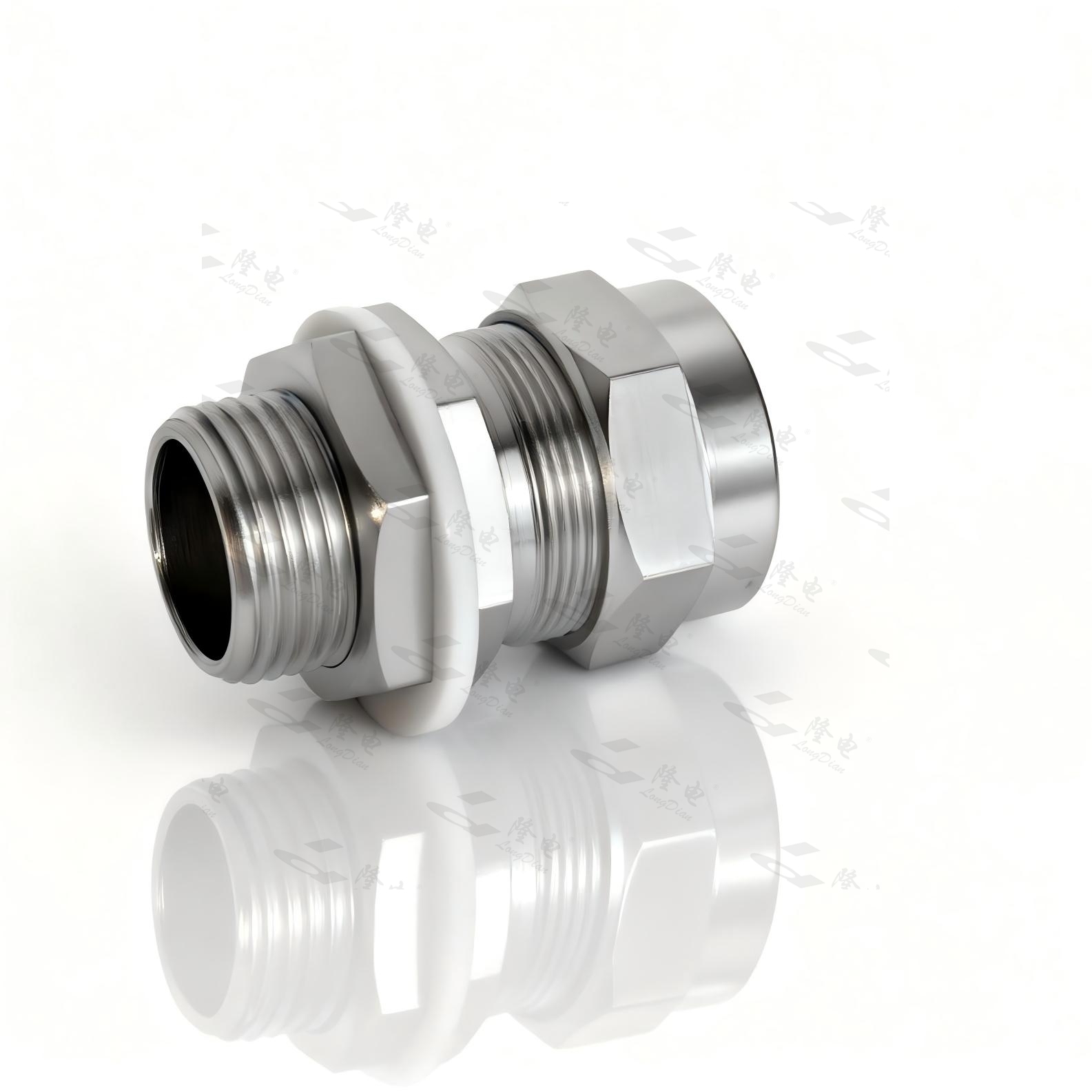

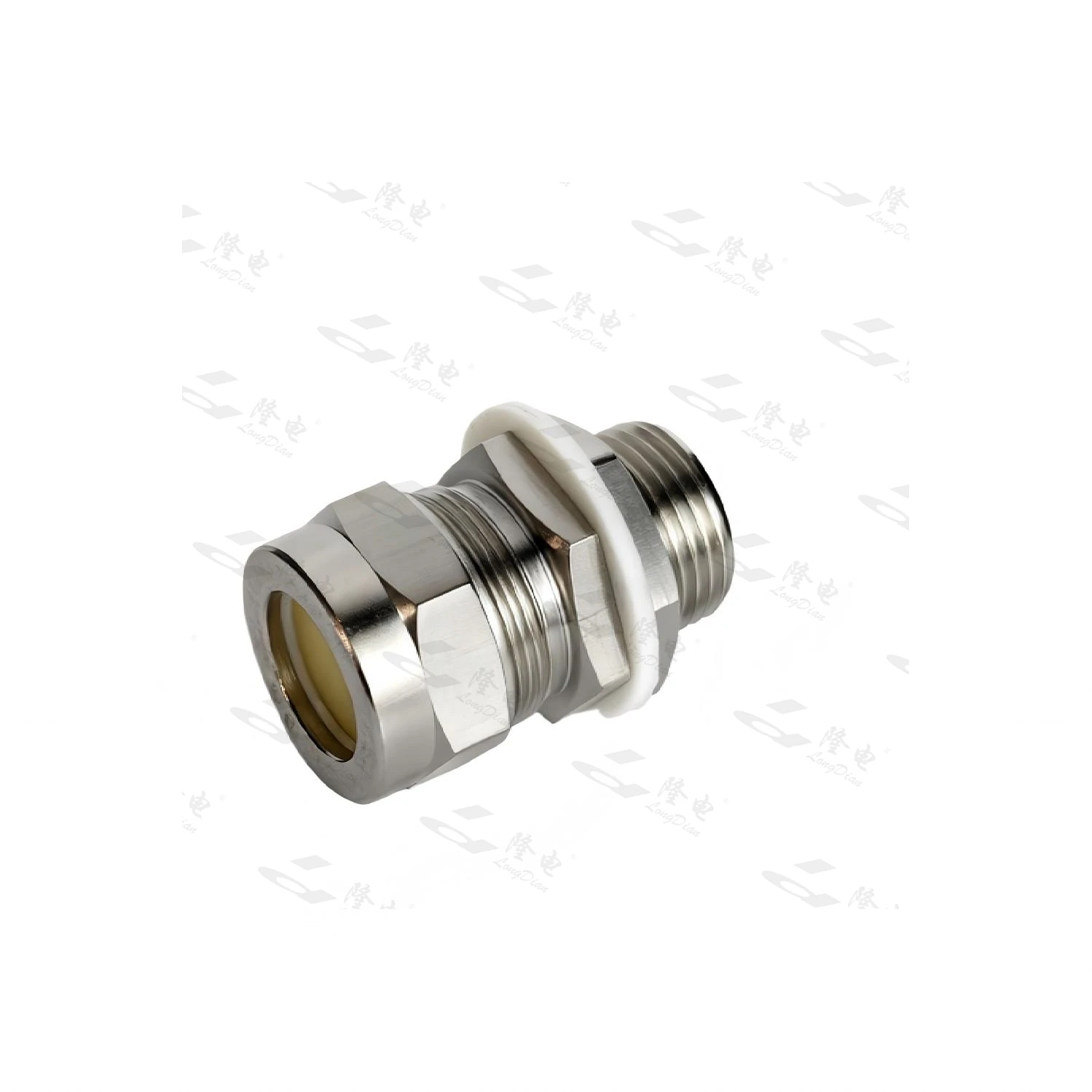

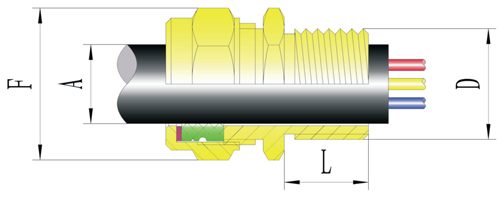

DT series explosion-proof cable gland (Ⅶ)

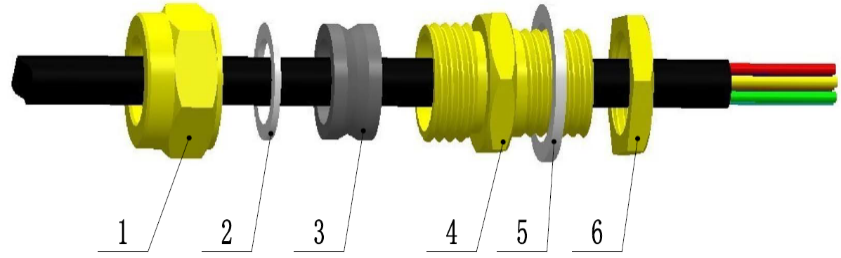

Assembly schematic plan for DT series explosion-proof cable gland(Ⅶ)
1、 seal nut
2、 gasket to prevent rotating
3、 rubber seal ring
4、 connector
5、 sealing washer
6、 lock nut
