2. Features
1. Reinforced heavy-duty multi-sealing structure with optional silicone seal material delivers IP66–IP68-rated waterproof and dustproof performance; while the inner cable sheath is not explosion-proof sealed, the gland body carries Ex db ⅡC Gb / Ex eb ⅡC Gb / Ex tb ⅢC Db certification, providing robust mechanical and environmental protection for cable entry in hazardous locations.
2. Corrosion and salt-spray resistant body materials (nickel-plated brass, SS304, SS316L) with PA6 anti-rotation washers deliver high mechanical strength, reliable cable retention, and vibration resistance in demanding industrial conditions; multiple thread options (M, NPT, G, PG) support flexible wiring configurations across diverse installations.
3. Fully compatible with LD Electric explosion-proof enclosures and equipment for seamless integration; offers customizable specifications and materials to meet specific project requirements, with the reinforced design particularly suited for offshore, chemical, and heavy-duty industrial environments where long-term reliability under harsh conditions is essential.
3. Related Parameter
|
Spec
|
Thread standard D
|
Min thread length L(mm)
|
A
(mm)
|
Seal range to cable dia A(mm)
|
Max dia F
(mm)
|
Tightening Torque
(N.m)
|
| |
Metric
|
NPT
|
Metric
|
NPT
|
|
Standard Seal
min max
|
Thickened Seal
min max
|
Layered Seal
min max
|
|
|
|
DT-16-□-Ⅵ
|
M16×1.5
|
3/8〞
|
15
|
15
|
6.0
|
9.5 13.4
|
6.0 10.2
|
2.0 13.5
|
25.4
|
20
|
|
DT-20s-□-Ⅵ
|
M20×1.5
|
1/2〞
|
15
|
15
|
11.5
|
11.6 15.6
|
9.5 13.5
|
4.0 15.8
|
29
|
25
|
|
DT-20-□-Ⅵ
|
M20×1.5
|
1/2〞
|
15
|
15
|
13.5
|
16.5 20.6
|
13.5 17.5
|
5.0 21.0
|
34.6
|
30
|
|
DT-25-□-Ⅵ
|
M25×1.5
|
3/4〞
|
15
|
15
|
19.0
|
23.5 27.4
|
20.0 24.0
|
12.0 27.5
|
43.9
|
40
|
|
DT-32-□-Ⅵ
|
M32×1.5
|
1〞
|
15
|
17
|
23.5
|
29.5 33.9
|
26.0 30.2
|
18.0 34.0
|
55.4
|
45
|
|
DT-40-□-Ⅵ
|
M40×1.5
|
1-1/4〞
|
15
|
18
|
31.0
|
35.5 39.8
|
32.0 36.0
|
24.0 40.0
|
63.5
|
55
|
|
DT-50s-□-Ⅵ
|
M50×1.5
|
1-1/2〞
|
15
|
20
|
38.2
|
43.5 47.8
|
38.5 42.6
|
28.0 48.0
|
75
|
60
|
|
DT-50-□-Ⅵ
|
M50×1.5
|
2〞
|
15
|
18
|
43.0
|
49.0 53.1
|
46.0 50.2
|
33.0 53.0
|
80
|
65
|
|
DT-63s-□-Ⅵ
|
M63×1.5
|
2〞
|
15
|
18
|
50.0
|
47.6 60.0
|
52.0 56.2
|
40.0 60.0
|
90
|
75
|
|
DT-63-□-Ⅵ
|
M63×1.5
|
2-1/2〞
|
15
|
24
|
50.0
|
61.0 65.3
|
55.5 59.5
|
45.0 65.5
|
95
|
80
|
|
DT-75s-□-Ⅵ
|
M75×1.5
|
2-1/2〞
|
15
|
24
|
61.9
|
68.0 72.1
|
65.5 69.5
|
53.0 72.5
|
100
|
90
|
|
DT-75-□-Ⅵ
|
M75×1.5
|
3〞
|
15
|
26
|
67.0
|
73.5 79.8
|
71.5 75.6
|
60.0 80.0
|
110
|
95
|
|
DT-80-□-Ⅵ
|
M80×2
|
3〞
|
15
|
26
|
71.0
|
79.0 83.0
|
75.5 79.5
|
64.0 84.0
|
115
|
100
|
|
DT-90-□-Ⅵ
|
M90×2
|
3-1/2〞
|
16
|
27
|
77.0
|
89.0 93.0
|
84.5 88.7
|
74.0 93.5
|
125
|
105
|
|
DT-100-□-Ⅵ
|
M100×2
|
4〞
|
18
|
28
|
87.0
|
97.0 101.0
|
94.5 98.5
|
82.0 102.0
|
135
|
115
|

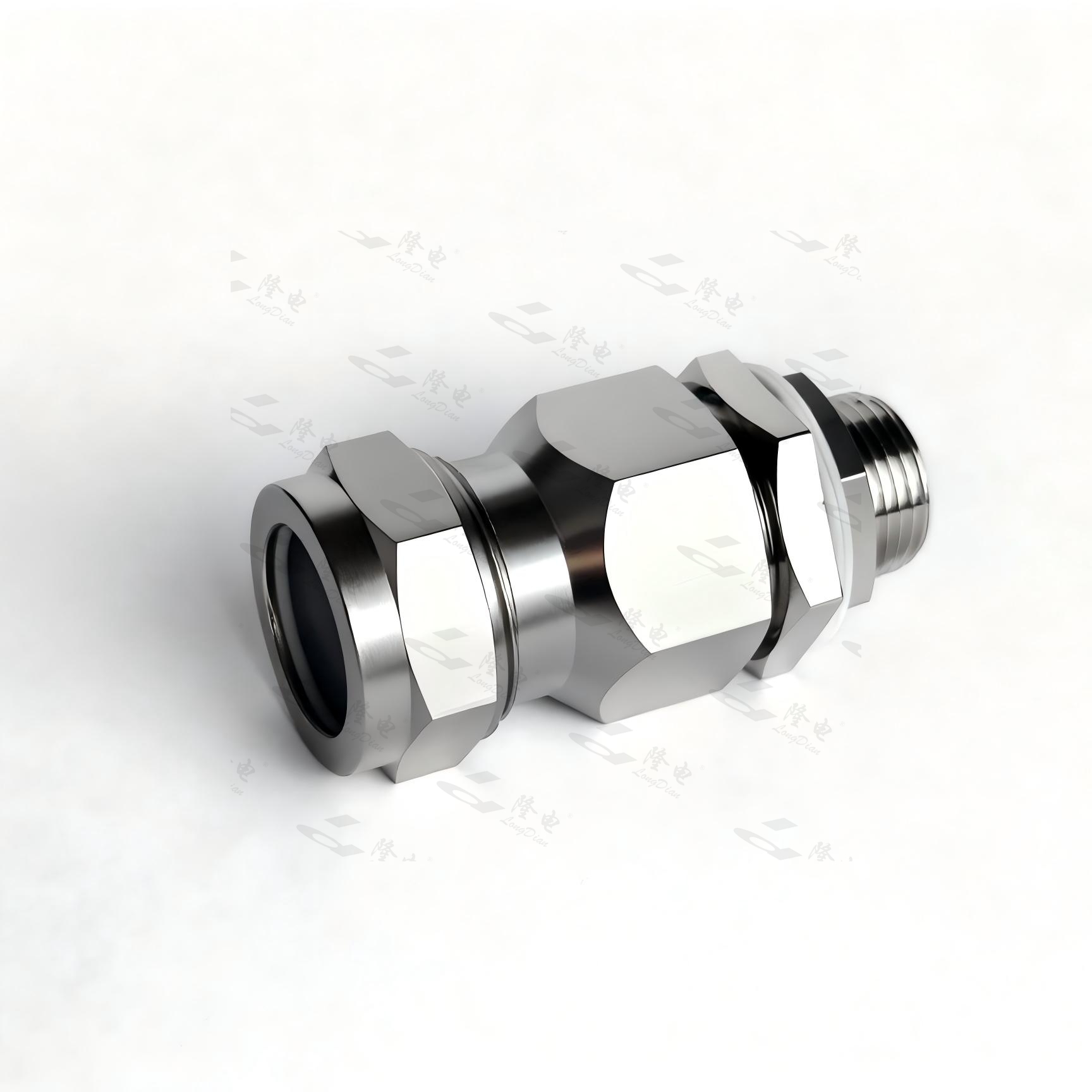

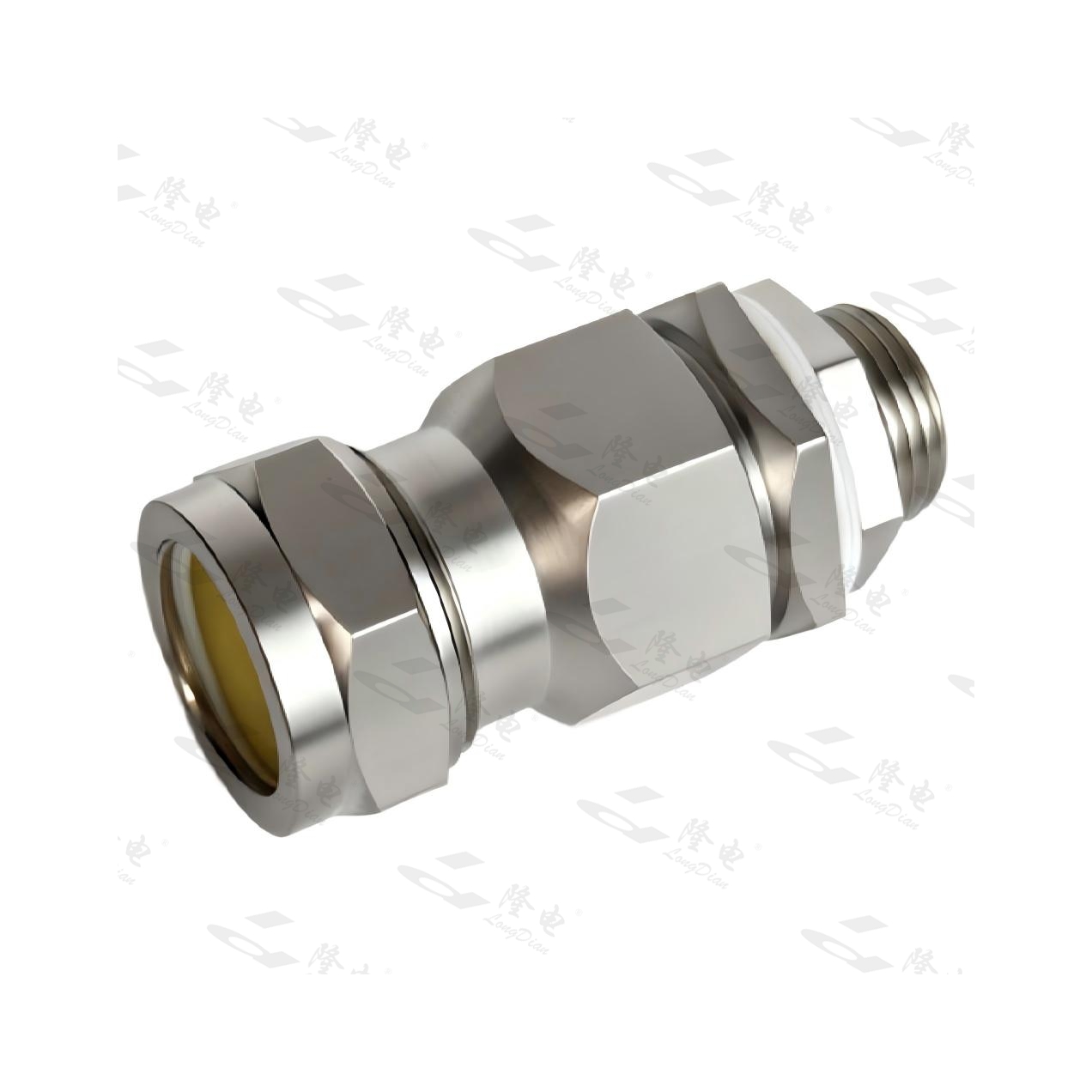

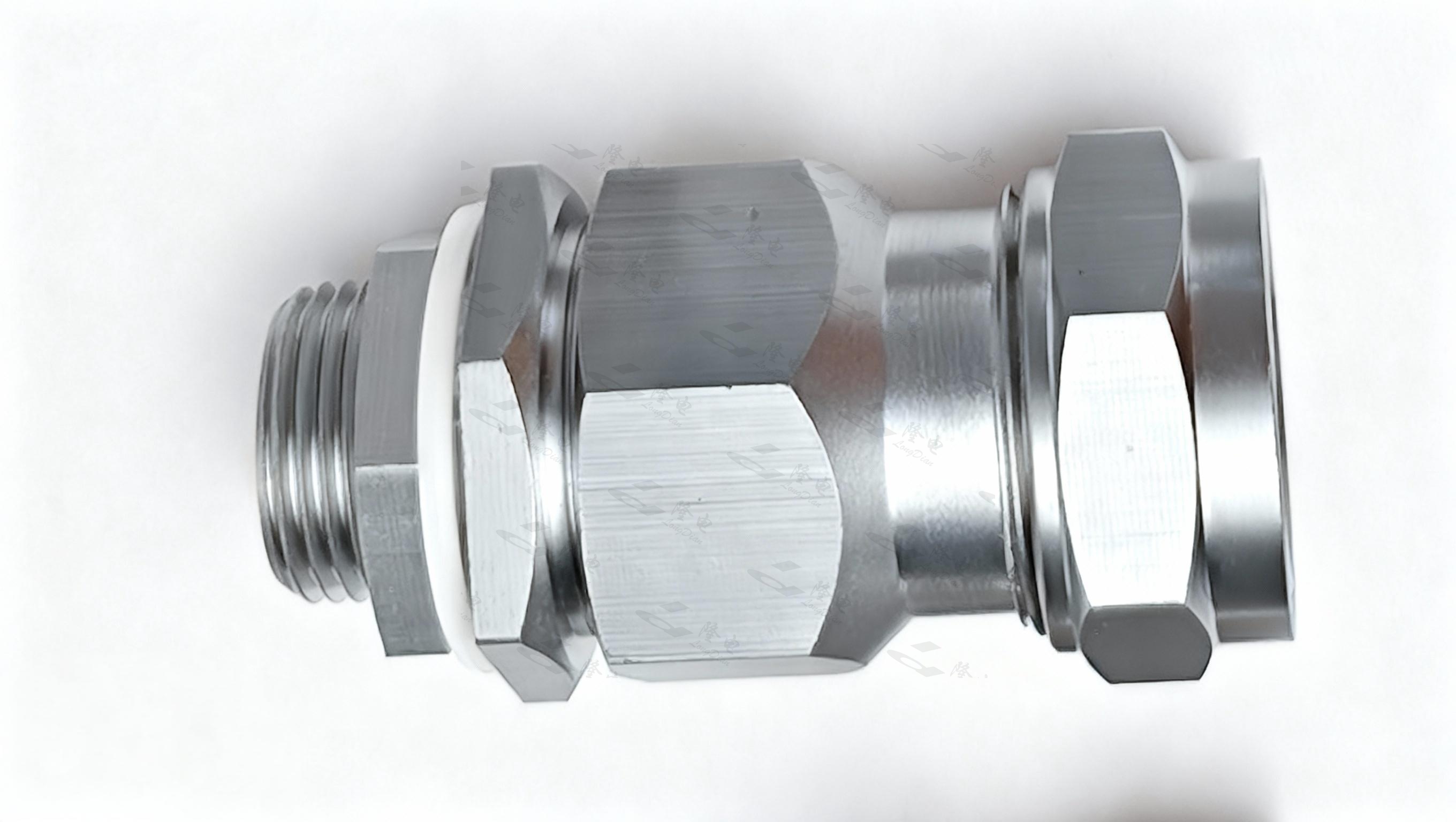

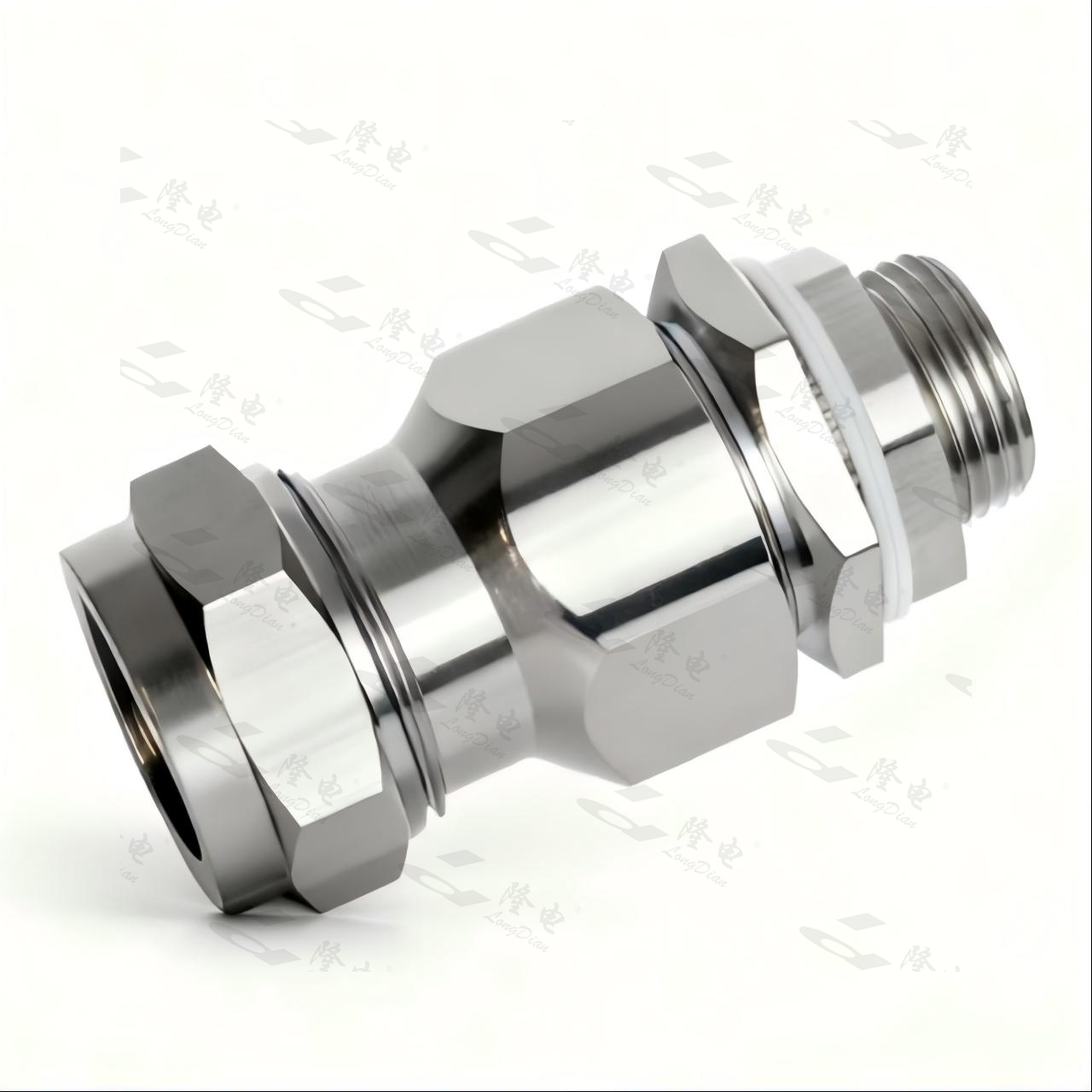

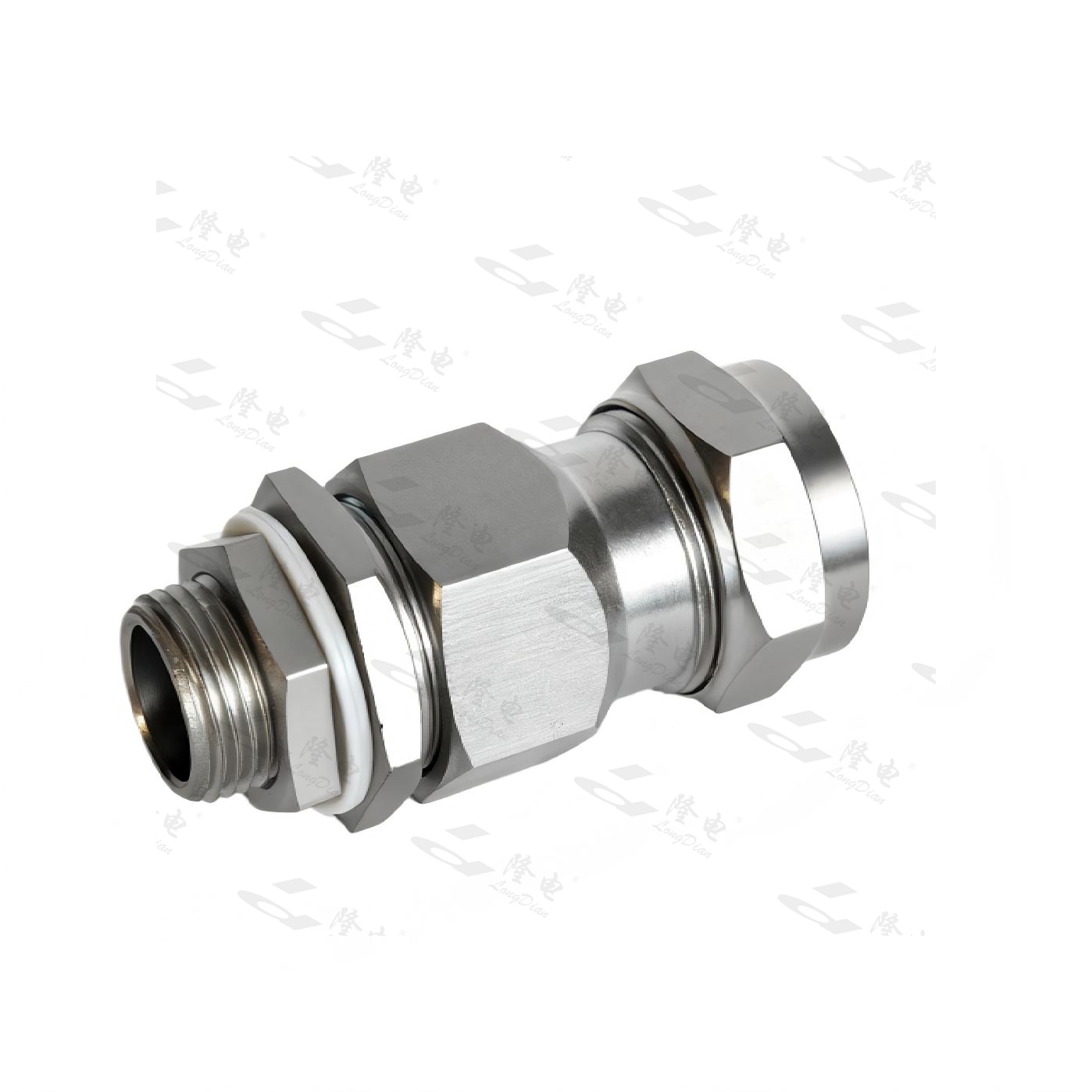

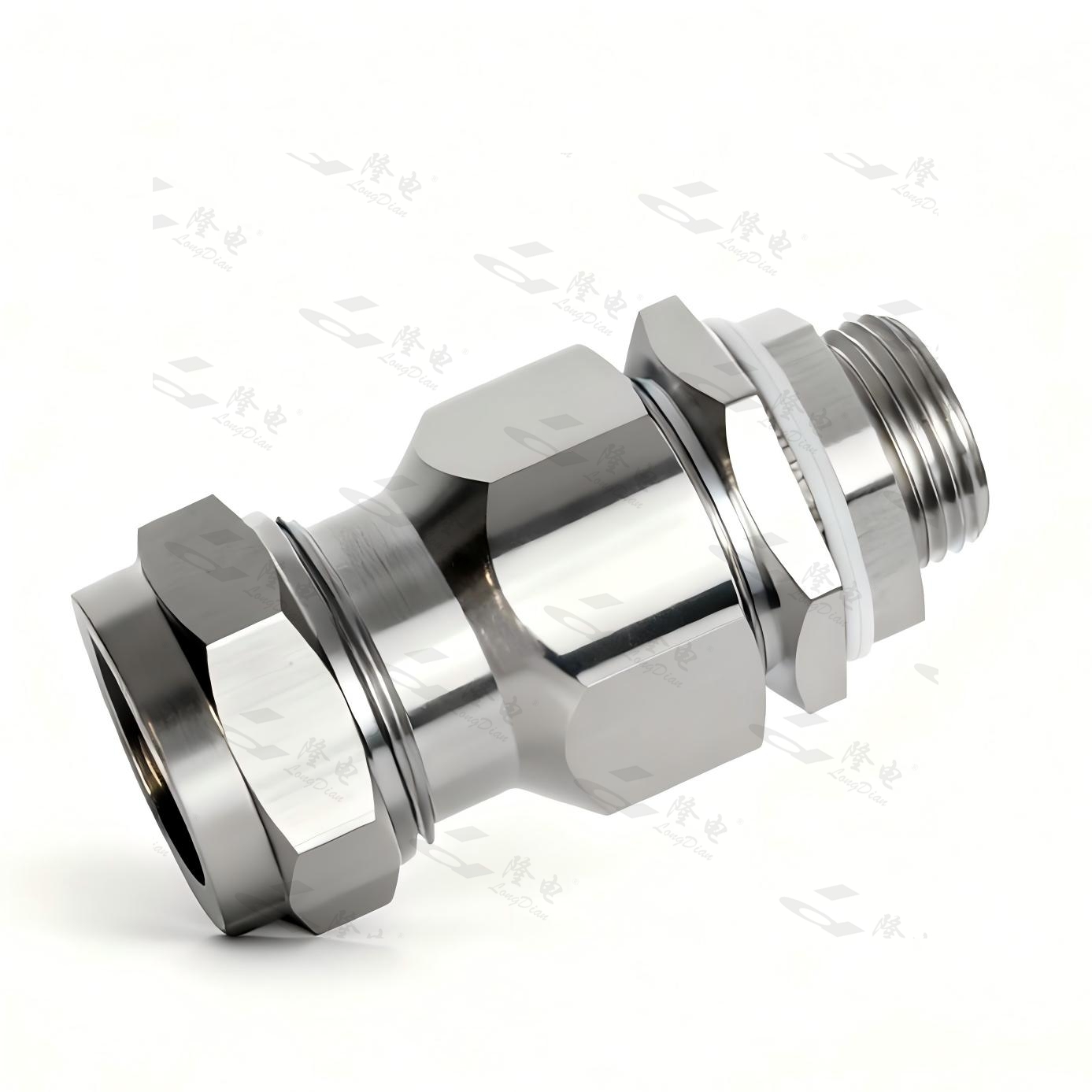

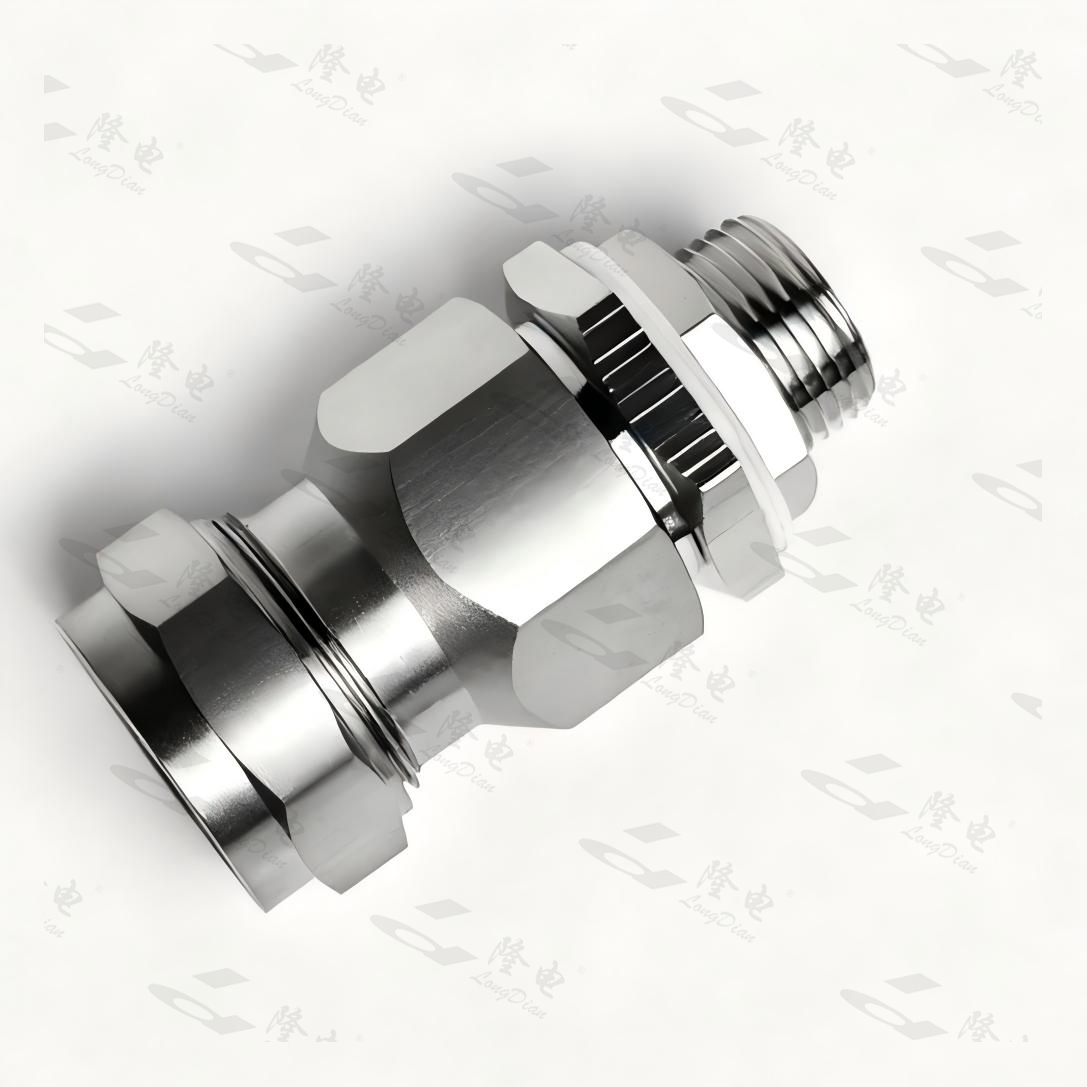

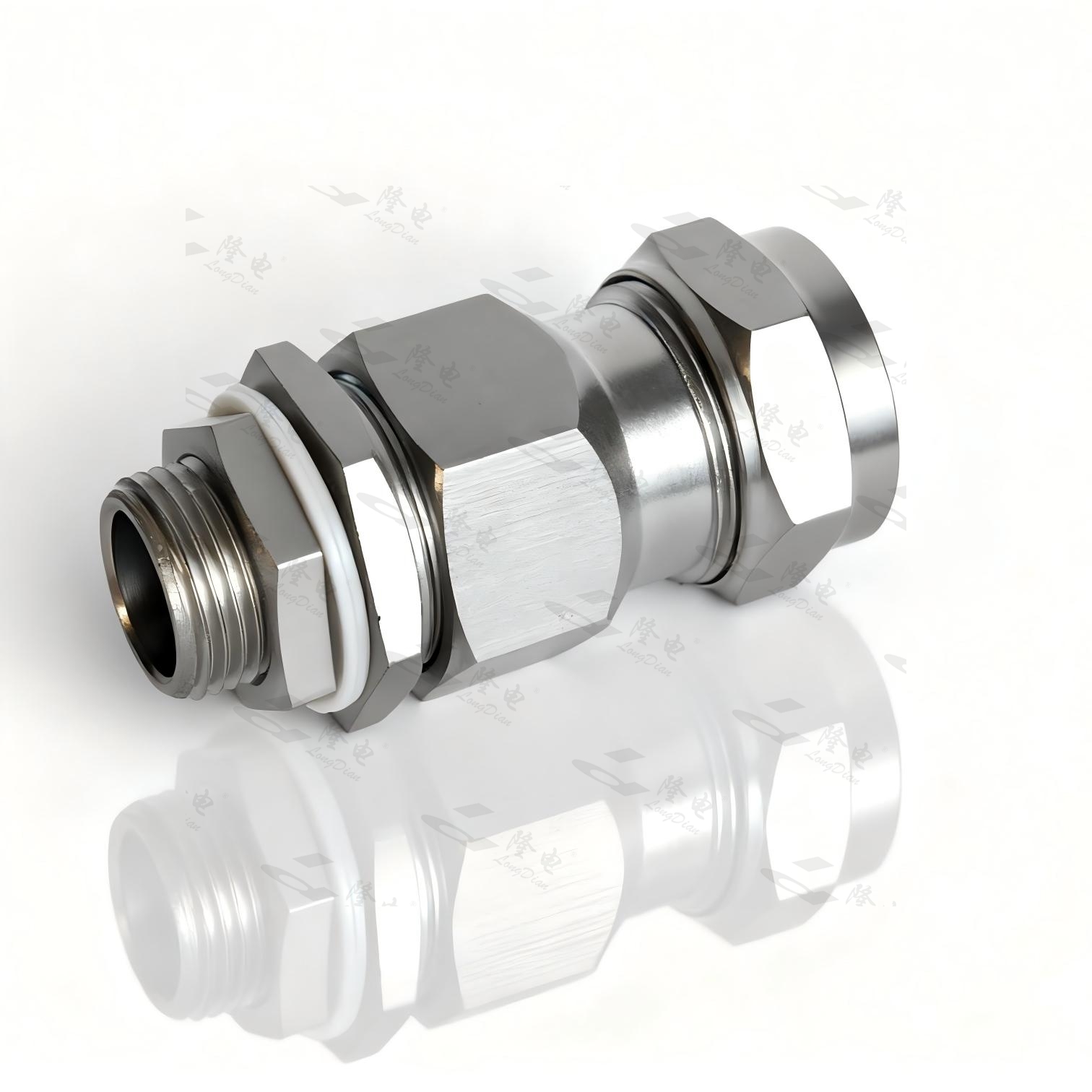

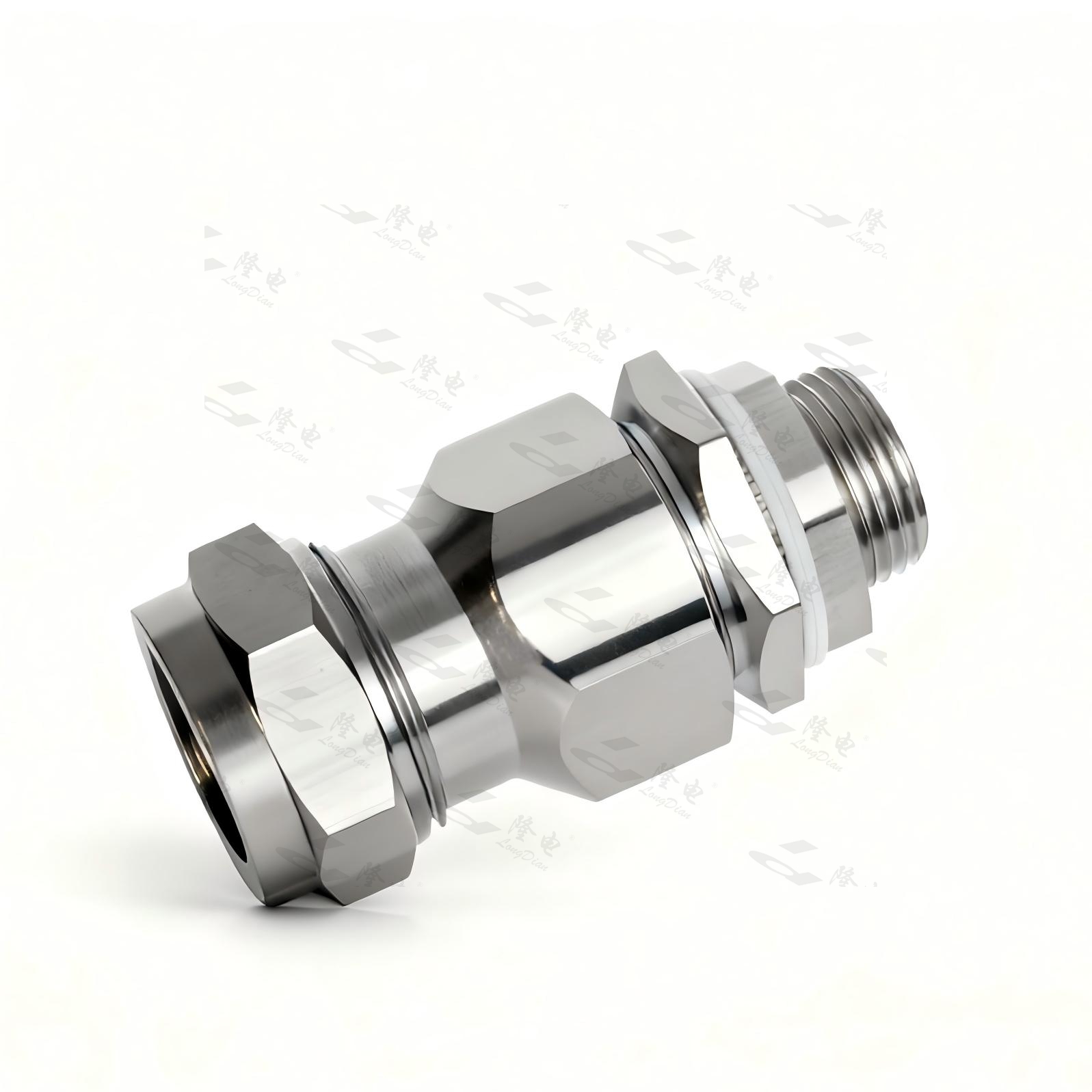

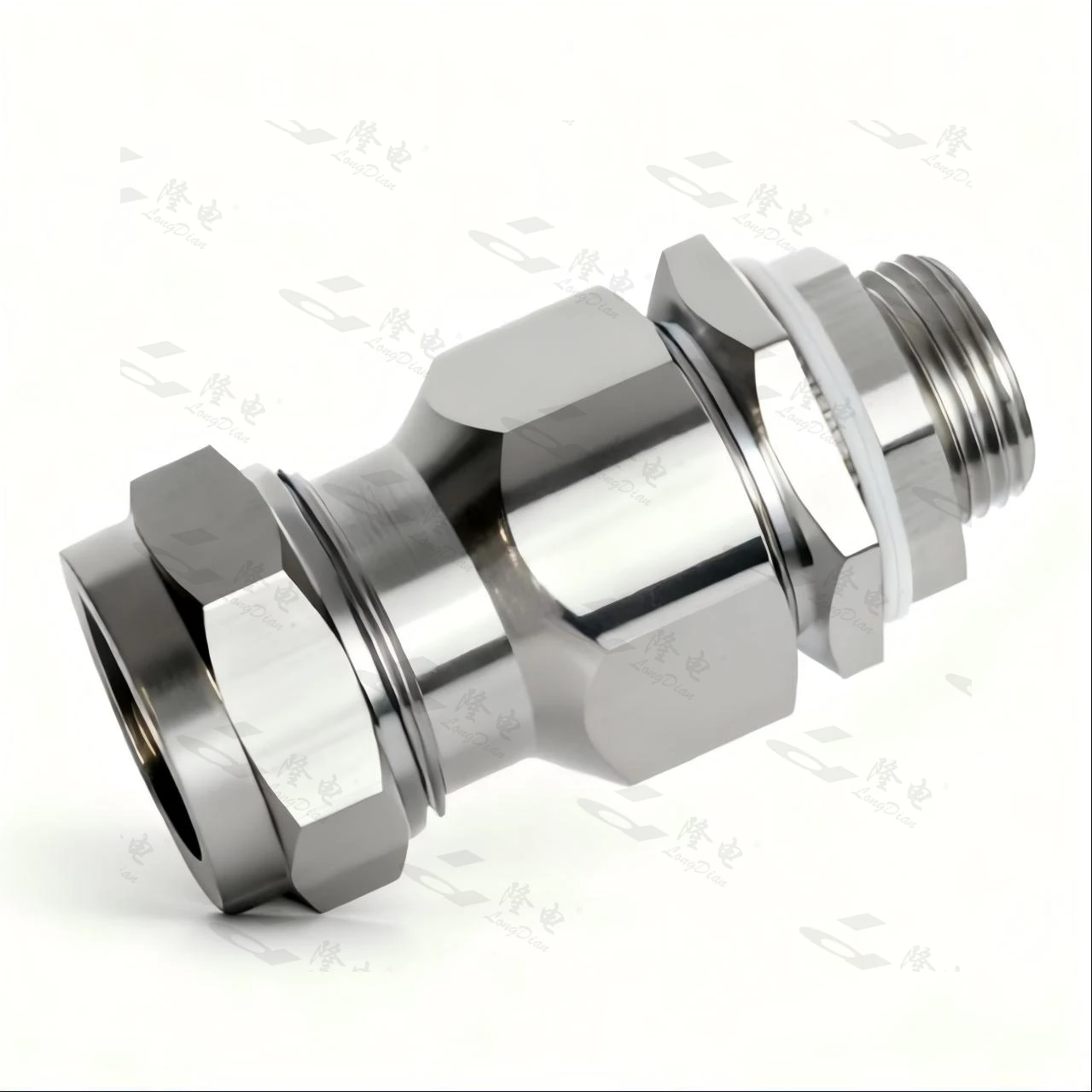

DT series explosion-proof cable gland (VI)

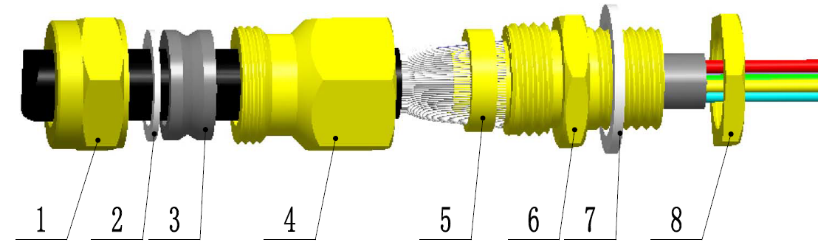

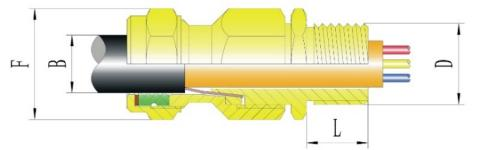

Assembly schematic plan for DT series explosion-proof cable gland(Ⅵ)
1、 seal nut
2、 gasket to prevent rotating
3、 rubber seal ring
4、 middle body
5、 ring to lock armor
6、 connector
7、 sealing washer
8、 lock nut
