2. Features
1. Upgraded heavy-duty multi-sealing structure with double-seal design specifically for armored cable wiring ensures the inner cable sheath is sealed effectively, delivering IP66/IP67/IP68-rated explosion-proof, waterproof, and dustproof performance; Ex db ⅡC Gb / Ex eb ⅡC Gb / Ex tb ⅢC Db certification guarantees containment of internal ignition and prevention of flame propagation.
2. High mechanical strength body materials (nickel-plated brass, SS304, SS316L) with PA6 anti-rotation washers provide excellent corrosion and salt-spray resistance, reliable cable retention, and vibration resistance in demanding industrial conditions; multiple thread options (M, NPT, G, PG) support flexible wiring configurations.
3. Fully compatible with LD Electric explosion-proof enclosures and equipment for seamless integration; the double-seal structure with anti-loosening functionality ensures secure armored cable entry, offering customizable specifications and materials to meet specific project requirements across diverse on-site conditions including rail transit and offshore platforms.
3. Related Parameter
|
Spec
|
Thread standard D
|
Min thread length L(mm)
|
Seal range to cable dia A(mm)
|
Cable Outer Sheath Sealing Diameter Range B(mm)
|
Max dia F
(mm)
|
Tightening Torque
(N.m)
|
| |
Metric
|
NPT
|
Metric
|
NPT
|
Standard Seal
min max
|
Thickened Seal
min max
|
Extra-
Thick Seal
min max
|
Standard Seal
min max
|
Thickened Seal
min max
|
Layered Seal
min max
|
|
|
|
DT-16-□-Ⅴ
|
M16×1.5
|
3/8〞
|
15
|
15
|
5.0 8.6
|
3.5 6.5
|
1.5 5.0
|
9.5 13.4
|
6.0 10.2
|
2.0 13.5
|
25.4
|
20
|
|
DT-20s-□-Ⅴ
|
M20×1.5
|
1/2〞
|
15
|
15
|
7.5 11.5
|
5.0
9.0
|
2.5
6.5
|
11.6 15.6
|
9.5 13.5
|
4.0 15.8
|
29
|
25
|
|
DT-20-□-Ⅴ
|
M20×1.5
|
1/2〞
|
15
|
15
|
9.5
13.5
|
7.0
11.0
|
4.5
8.5
|
16.5 20.6
|
13.5 17.5
|
5.0 21.0
|
34.6
|
30
|
|
DT-25-□-Ⅴ
|
M25×1.5
|
3/4〞
|
15
|
15
|
15.0 19.0
|
12.5 16.5
|
10.0 14.0
|
23.5 27.4
|
20.0 24.0
|
12.0 27.5
|
43.9
|
40
|
|
DT-32-□-Ⅴ
|
M32×1.5
|
1〞
|
15
|
18
|
22.0 26.0
|
19.5 23.5
|
17.0 21.0
|
29.5 33.9
|
26.0 30.2
|
18.0 34.0
|
55.4
|
45
|
|
DT-40-□-Ⅴ
|
M40×1.5
|
1-1/4〞
|
15
|
18
|
28.0 32.0
|
25.5 29.5
|
23.0 27.0
|
35.5 39.8
|
32.0 36.0
|
24.0 40.0
|
63.5
|
55
|
|
DT-50s-□-Ⅴ
|
M50×1.5
|
1-1/2〞
|
15
|
20
|
34.0 38.3
|
31.5 35.5
|
29.0 33.0
|
43.5 47.8
|
38.5 42.6
|
28.0 48.0
|
75
|
60
|
|
DT-50-□-Ⅴ
|
M50×1.5
|
2〞
|
15
|
20
|
39.0 43.0
|
36.5 40.5
|
34.0 38.0
|
49.0 53.1
|
46.0 50.2
|
33.0 53.0
|
80
|
65
|
|
DT-63s-□-Ⅴ
|
M63×1.5
|
2〞
|
15
|
20
|
46.0 50.0
|
43.5 47.5
|
41.0 45.0
|
47.6 60.0
|
52.0 56.2
|
40.0 60.0
|
90
|
75
|
|
DT-63-□-Ⅴ
|
M63×1.5
|
2-1/2〞
|
15
|
20
|
51.0 55.0
|
48.5 52.5
|
46.0 50.0
|
61.0 65.3
|
55.5 59.5
|
45.0 65.5
|
95
|
80
|
|
DT-75s-□-Ⅴ
|
M75×1.5
|
2-1/2〞
|
15
|
26
|
58.0 62.3
|
55.5 59.5
|
53.0 57.0
|
68.0 72.1
|
65.5 69.5
|
53.0 72.5
|
100
|
90
|
|
DT-75-□-Ⅴ
|
M75×1.5
|
3〞
|
15
|
26
|
63.0 67.0
|
60.5 64.5
|
58.0 62.0
|
73.5 79.8
|
71.5 75.6
|
60.0 80.0
|
110
|
95
|
|
DT-80-□-Ⅴ
|
M80×2
|
3〞
|
15
|
26
|
67.0 71.0
|
64.5 68.5
|
62.0 66.0
|
79.0 83.0
|
75.5 79.5
|
64.0 84.0
|
115
|
100
|
|
DT-90-□-Ⅴ
|
M90×2
|
3-1/2〞
|
16
|
28
|
76.0 81.0
|
72.5 77.5
|
69.0 74.0
|
89.0 93.0
|
84.5 88.7
|
74.0 93.5
|
125
|
105
|
|
DT-100-□-Ⅴ
|
M100×2
|
4〞
|
18
|
28
|
86.0 91.0
|
82.5 87.5
|
79.0 84.0
|
97.0
101.0
|
94.5 98.5
|
82.0
102.0
|
135
|
115
|

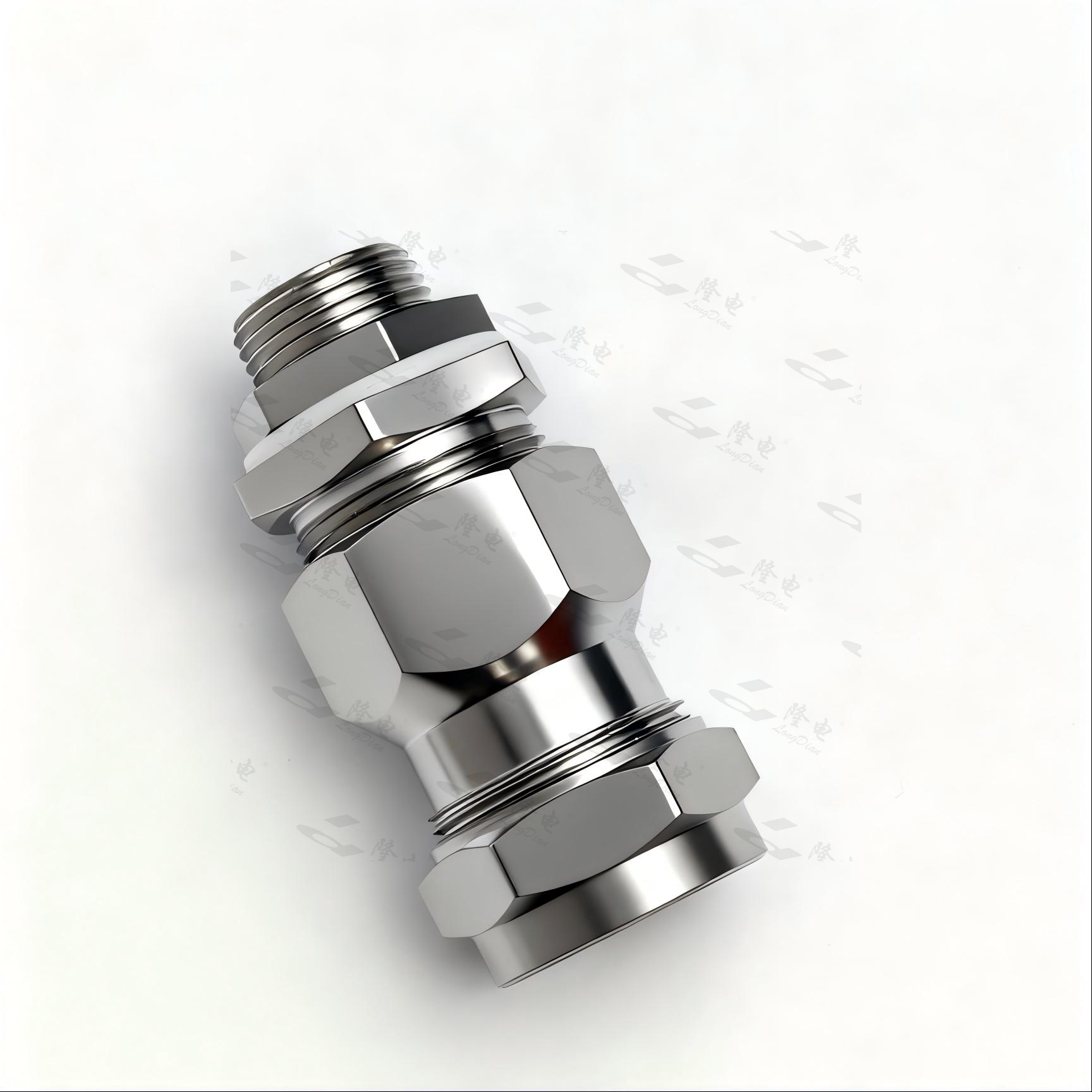

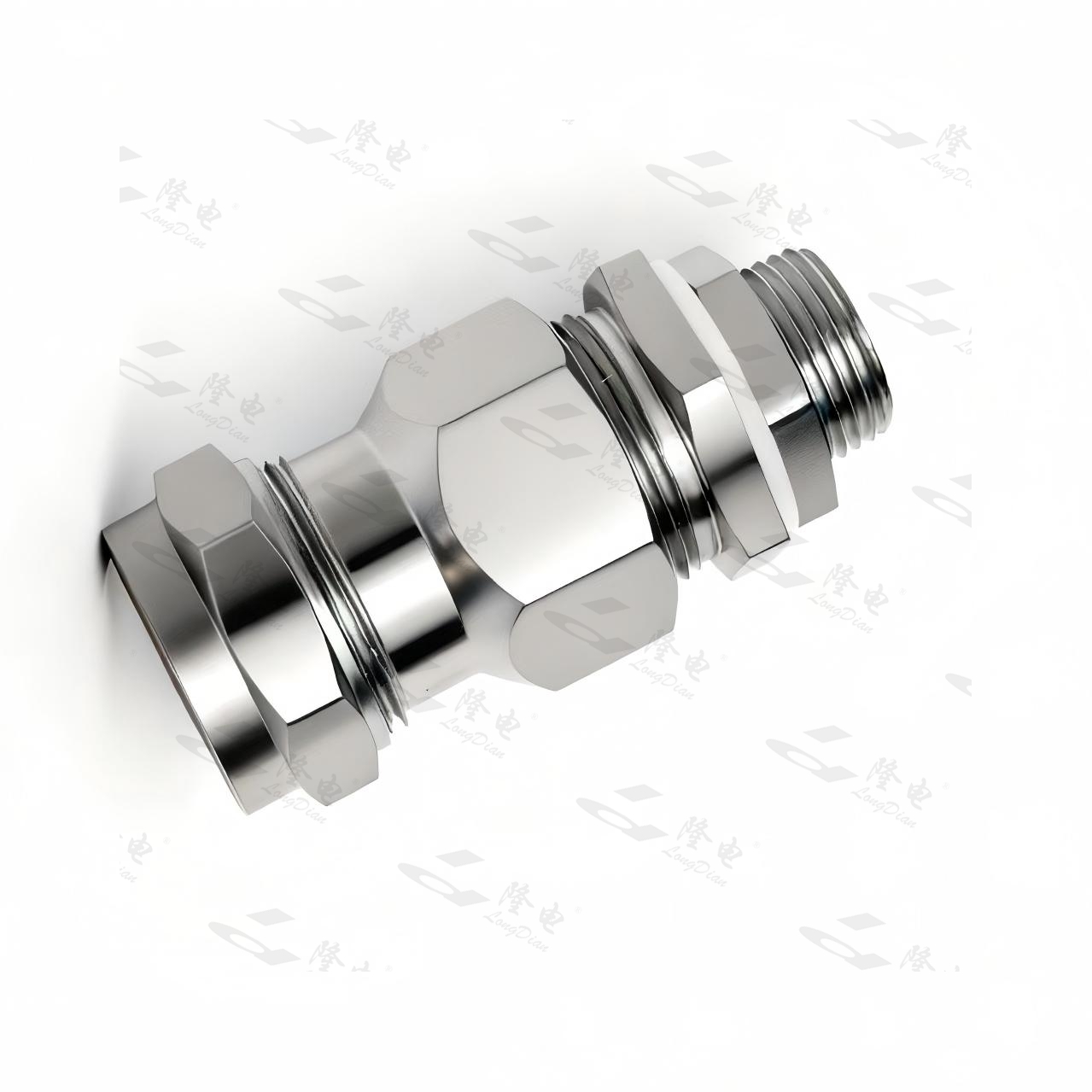

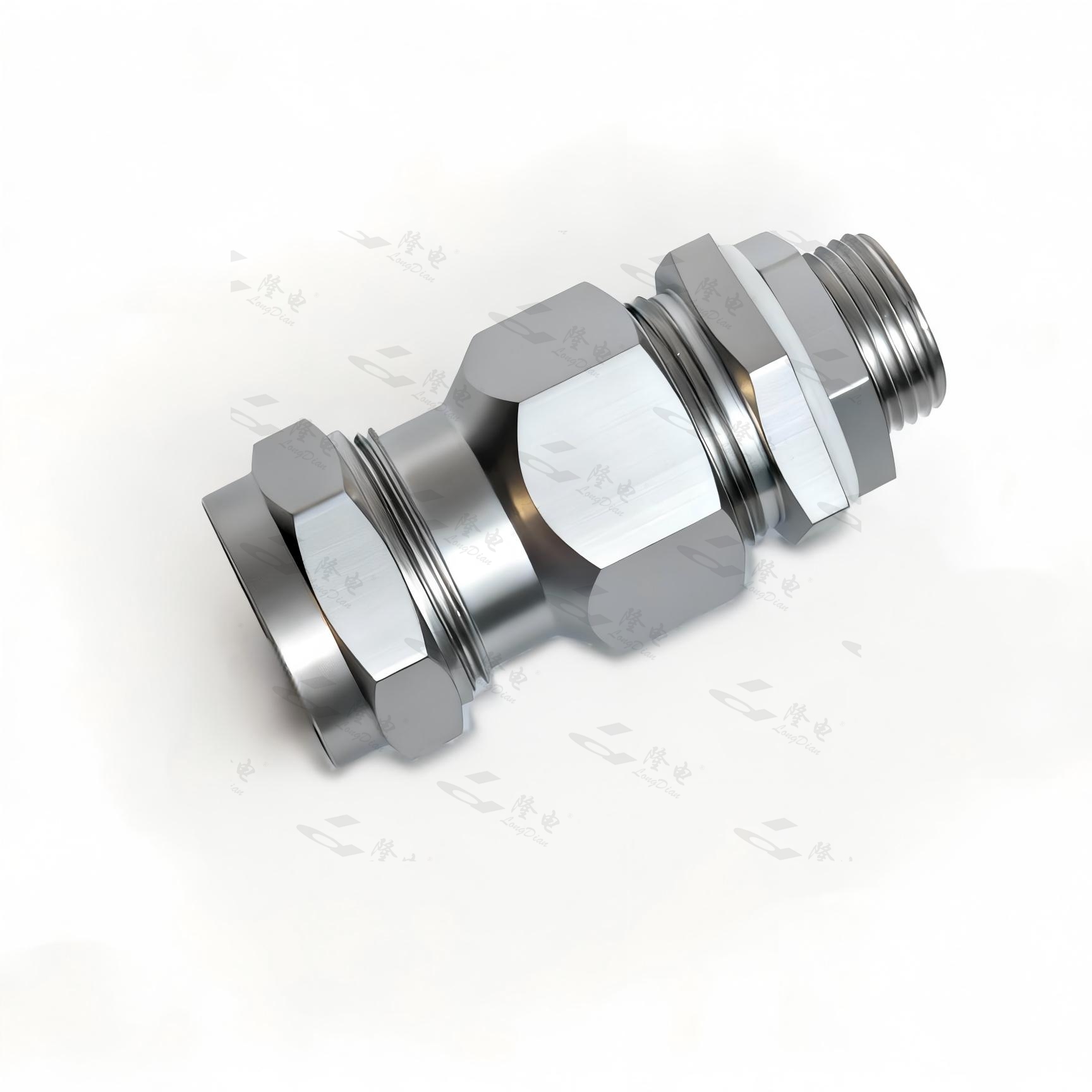

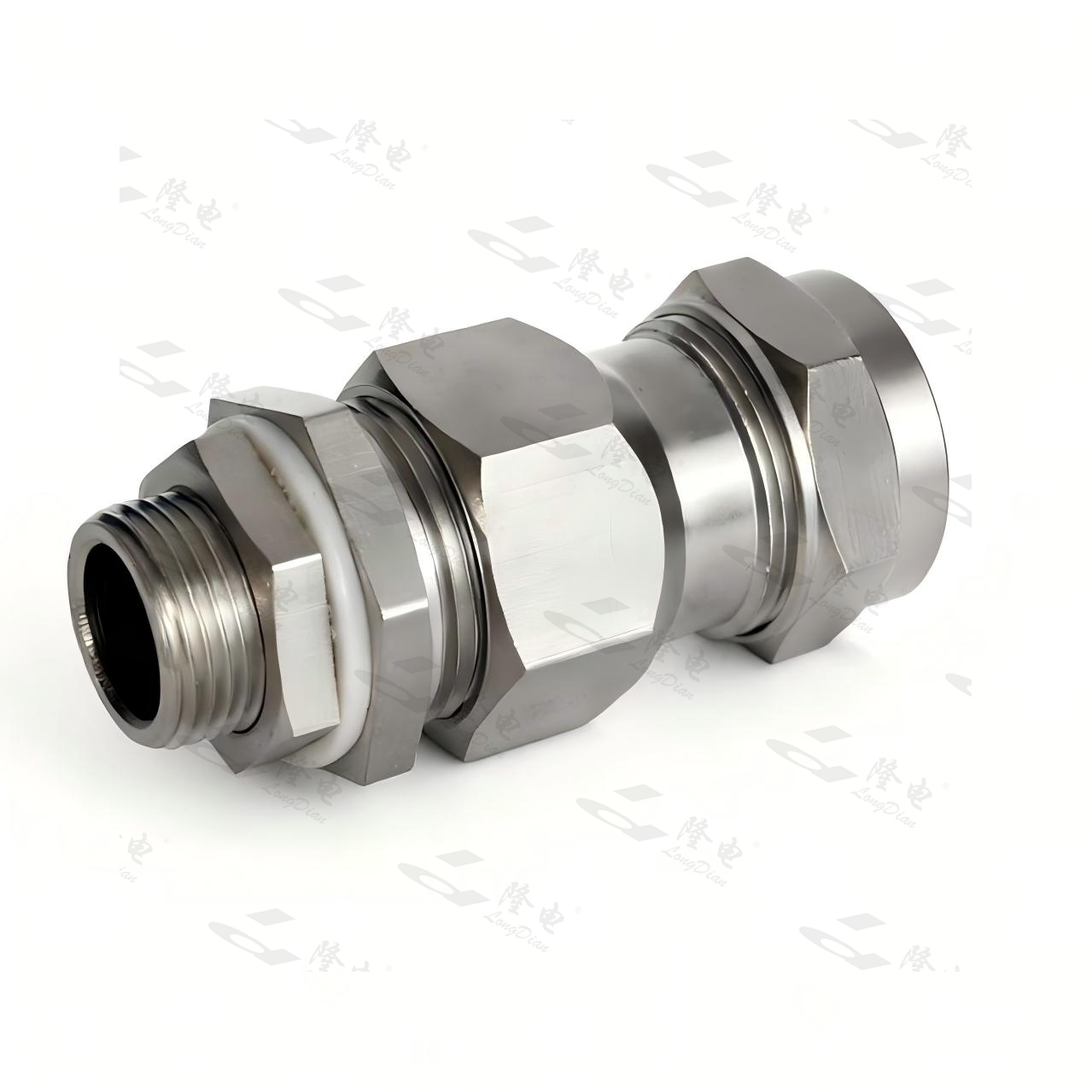

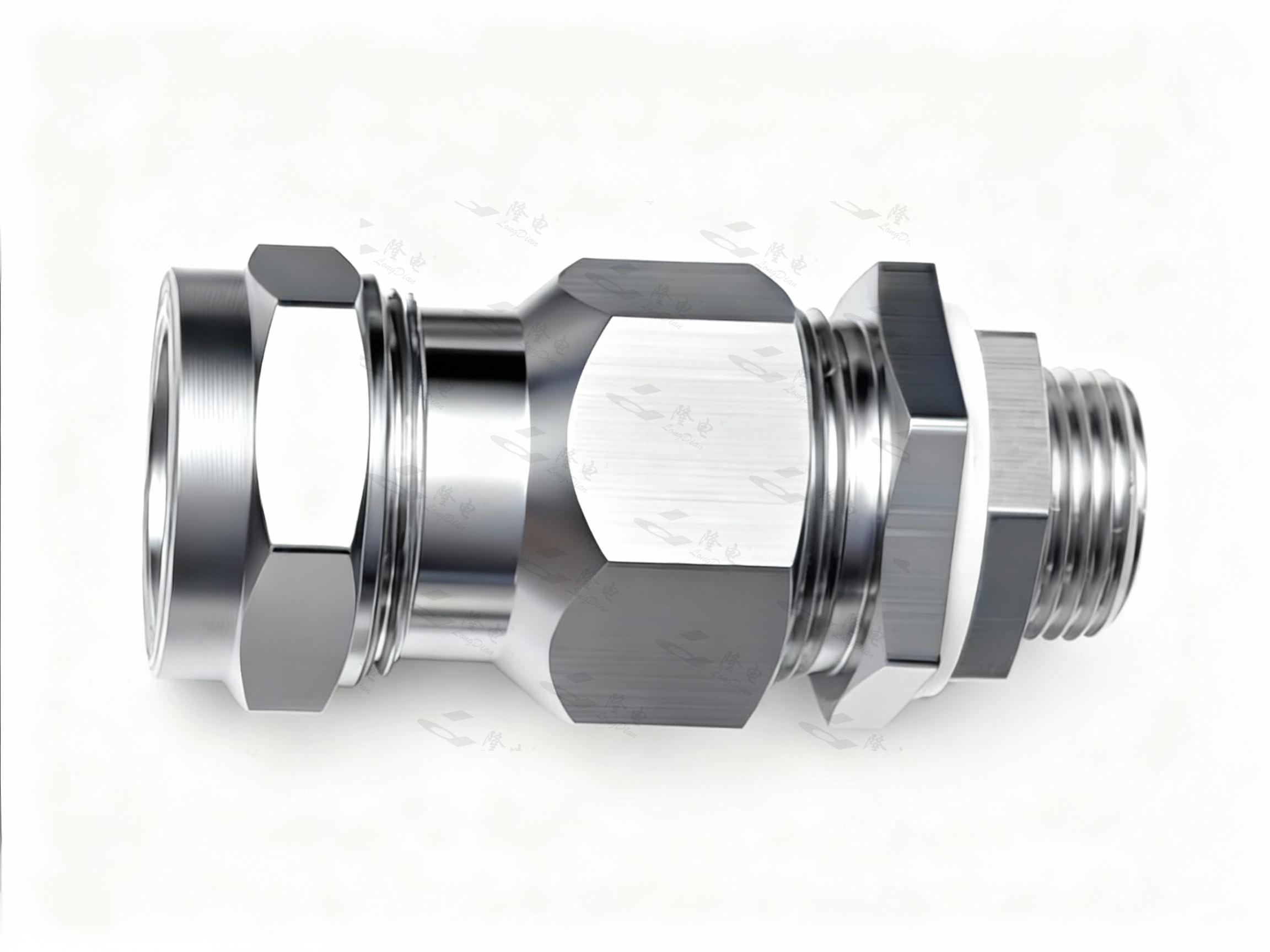

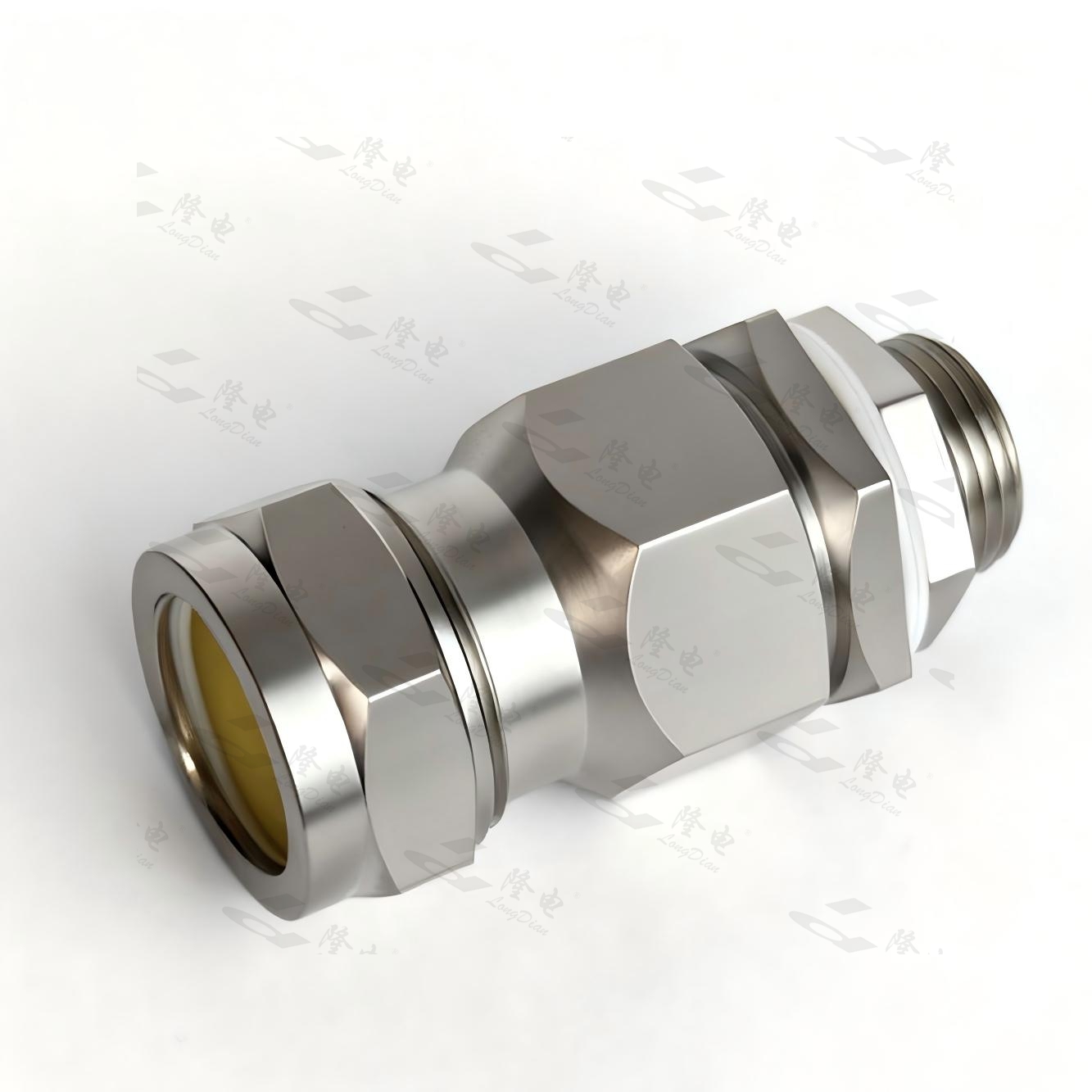

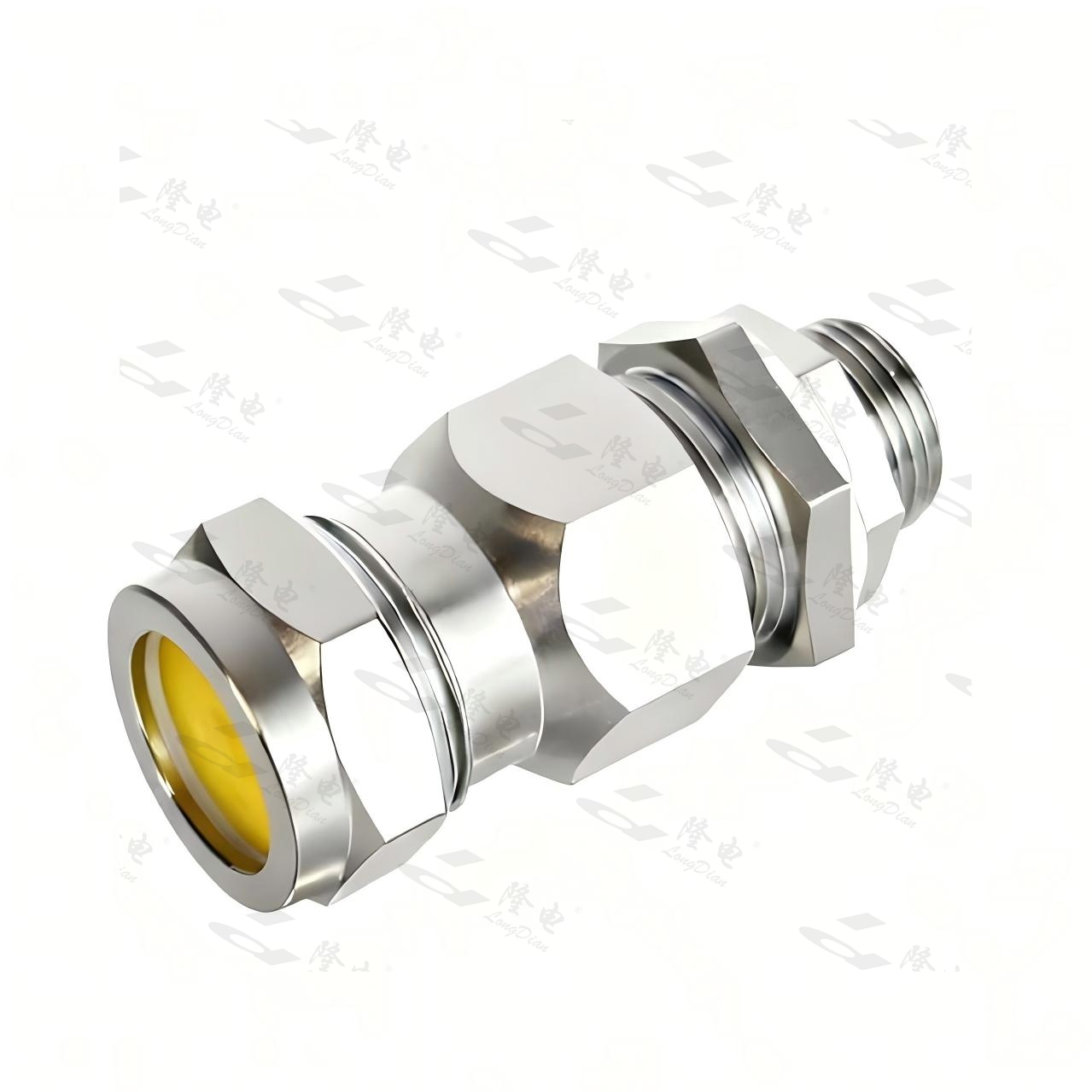

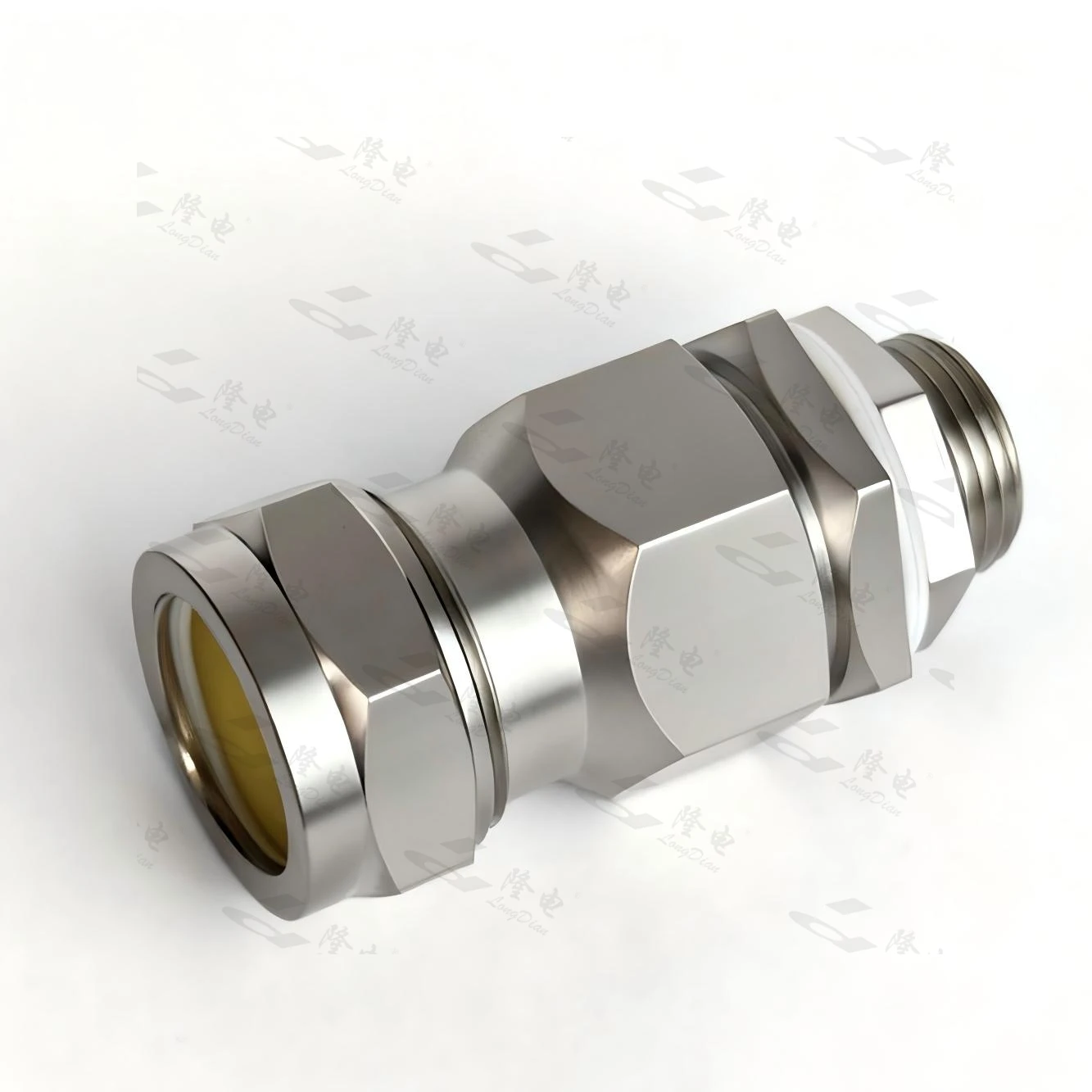

DT series explosion-proof cable gland (Ⅴ)

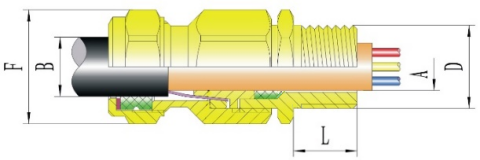

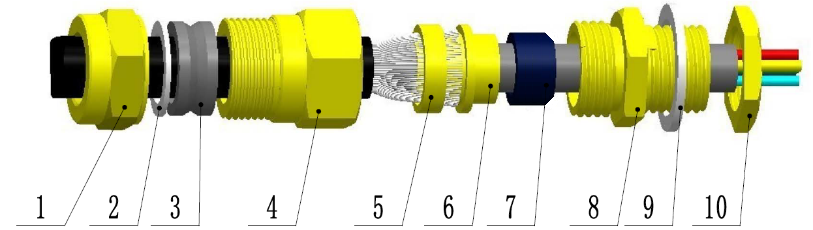

Assembly schematic plan for DT series explosion-proof cable gland(Ⅴ)
1、 seal nut
2、 gasket to prevent rotating
3、B rubber seal ring B
4、 middle body
5、 ring to lock armor
6、 ring seat to lock armor
7、A sealing ring A
8、 connector
9、 sealing washer
10、 lock nut
