B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer
B-08-LD-B Series Explosion-proof Reducer

B-08-LD-B Series Explosion-proof Reducer

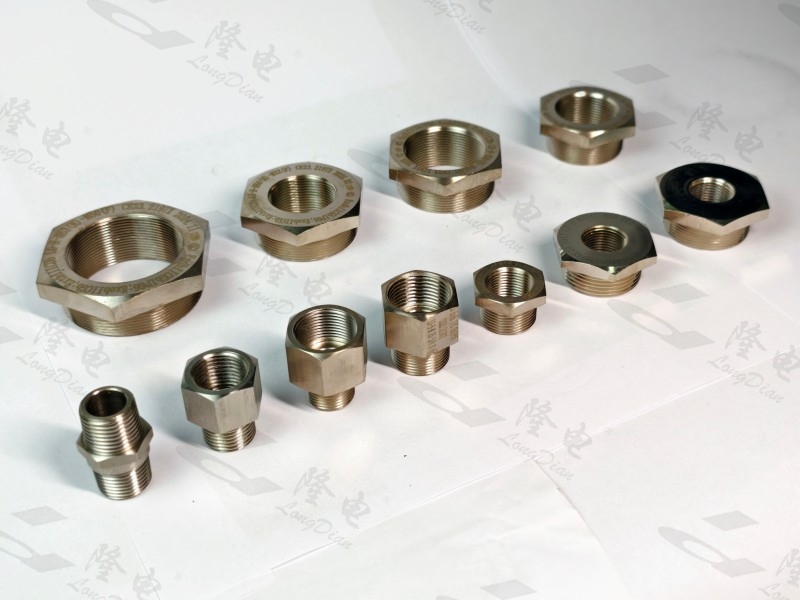

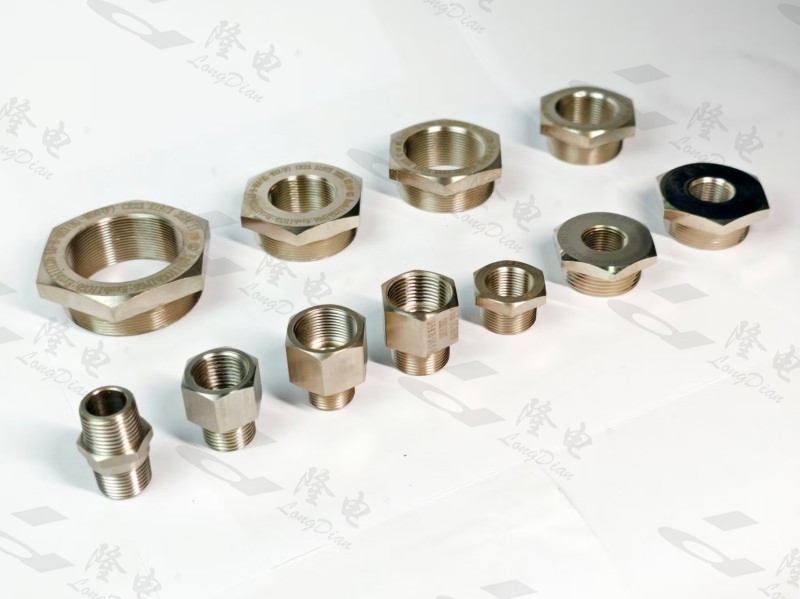

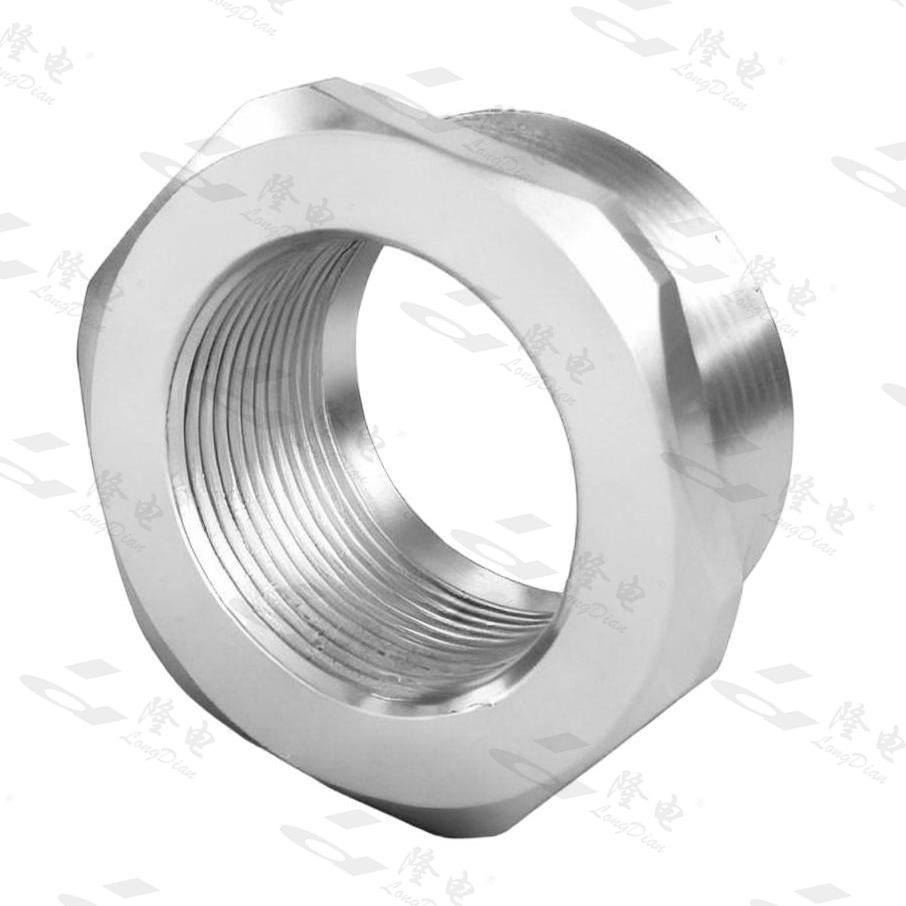

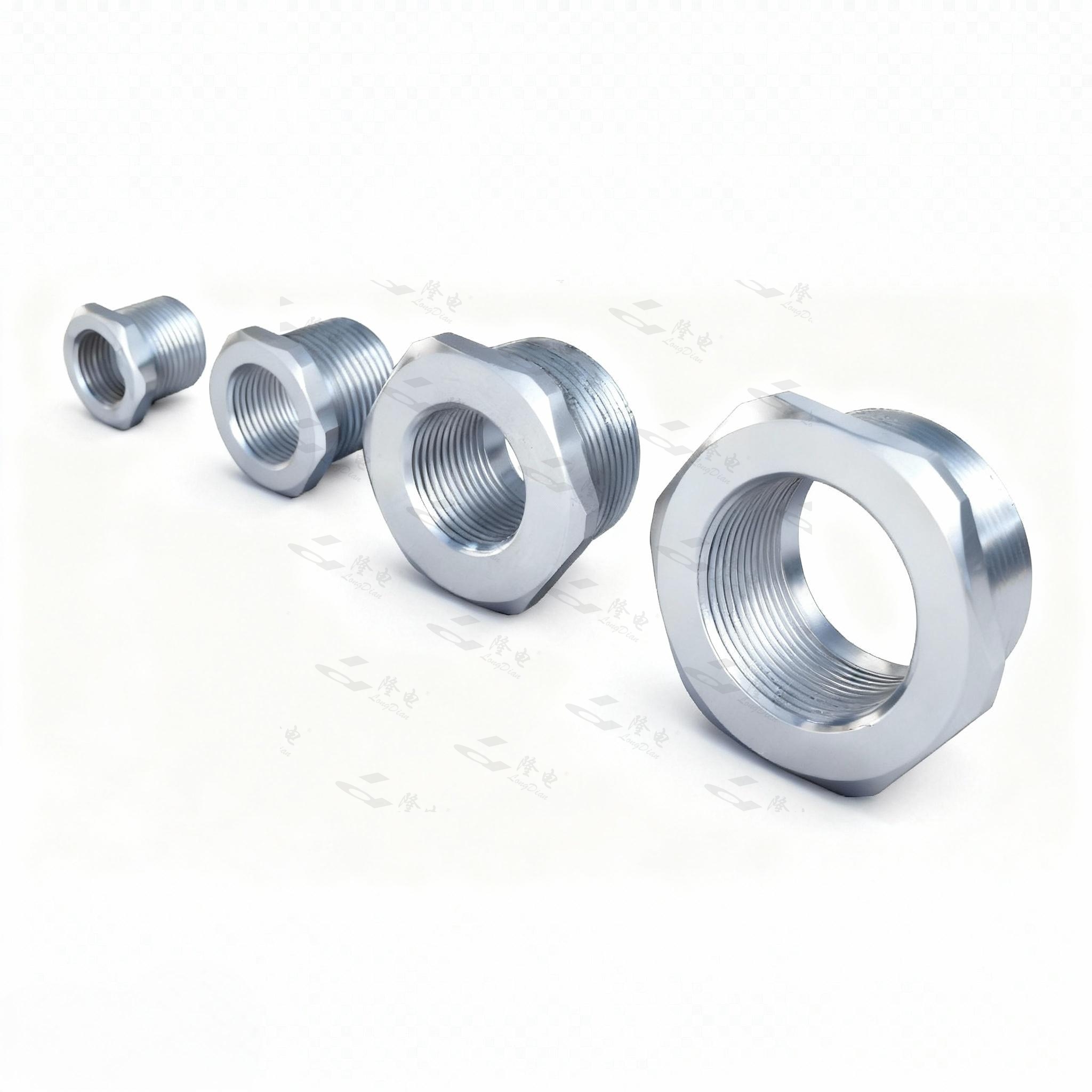

The LD-B Series is an explosion-proof reducer manufactured by LD Electric, designed for thread and interface size conversion between explosion-proof equipment threaded openings and cable entry devices (glands, plugs, etc.). It is certified to IEC 60079 / GB/T 3836 standards with explosion-proof markings Ex db ⅡC Gb, Ex eb ⅡC Gb, Ex tb ⅢC Db (M/NPT threads) and Ex eb ⅡC Gb, Ex tb ⅢC Db (G threads). The body is available in nickel-plated brass, SS304, or SS316L (customizable), with M, NPT, G, and PG thread options, IP66–IP68 ingress protection, and an operating temperature range of –40 °C to +80 °C. When G-thread is used in explosive dust environments, it must be used with blind hole conduits (diameter tolerance ≤ 0.7 mm), and the enclosure interior must have sufficient space for the locking nut.

Inquire Now > Next Products >

1. Applications

1. Compatible with explosion-proof control panels, junction boxes, distribution cabinets, power cabinets, cable glands, and various explosion-proof electrical equipment from LD Electric.
2. Widely deployed in oil & gas, petrochemical, offshore, power generation, metallurgy, and other hazardous industrial systems where different thread specifications need to be connected securely while maintaining explosion-proof integrity.

2. Features

1. Provides safe thread size conversion while preserving the enclosure's sealing and explosion-proof protection; corrosion and salt-spray resistant body materials ensure long-term reliability in harsh environments.
2. IP66–IP68 rated with multiple thread options (M, NPT, G, PG) for flexible integration, fully compatible with LD Electric cable glands and equipment, with custom threads and non-standard specifications available.

3. Related Parameters

Spec

D1-D2
Thread spec

L（mm）
Reducer length

L1(mm)
Thread length

Max diameter F

(mm)


LD-B-20□(M)-16□(F)

M20×1.5(M)-M16×1.5(F)

25

20

29

NPT1/2″(M)-NPT3/8″(F)

34

29

G1/2″(M)-G3/8″(F)

25

20

LD-B-25□(M)-20□(F)

M25×1.5(M)-M20×1.5(F)

25

20

34.5

NPT3/4″(M)-NPT1/2″(F)

34

29

G3/4″(M)-G1/2″(F)

25

20

LD-B-32□(M)-25□(F)

M32×1.5(M)-M25×1.5(F)

25

20

44

NPT1″(M)-NPT3/4″(F)

30

34

G1″(M)-G3/4″(F)

39

25

LD-B-40□(M)-32□(F)

M40×1.5(M)-M32×1.5(F)

30

23

55.5

NPT11/4"(M)-NPT1"(F)

39

34

G11/4"(M)-G1"(F)

32

25

LD-B-50□(M)-40□(F)

M50×1.5(M)-M40×1.5(F)

30

23

69.5

NPT11/2"(M)-NPT11/4"(F)

39

34

G11/2"(M)-G11/4"(F)

32

25

LD-B-63□(M)-50□(F)

M63×1.5(M)-M50×1.5(F)

30

23

80

NPT2"(M)-NPT11/2"(F)

39

34

G2"(M)-G11/2"(F)

32

25

LD-B-75□(M)-63□(F)

M75×1.5(M)-M63×1.5(F)

33

24

95

NPT21/2"(M)-NPT2"(F)

53

45

G21/2"(M)-G2"(F)

34

25

LD-B-80□(M)-75□(F)

M80×2(M)-M75×1.5(F)

37

27.5

105

NPT3"(M)-NPT21/2"(F)

55

45

G3"(M)-G21/2"(F)

37

27.5

LD-B-90□(M)-80□(F)

M90×2(M)-M80×2(F)

37

27.5

115

NPT31/2"(M)-NPT3"(F

55

45

G31/2"(M)-G3"(F)

37

27.5

LD-B-100□(M)-90□(F)

M100×2(M)-M90×2(F)

37

27.5

129

NPT4"(M)-NPT31/2"(F)

55

45

G4"(M)-G31/2"(F)

37

27.5
