B- Explosion-proof Electrical Equipment
B-07 Extd Explosion-proof Electrical Control Box

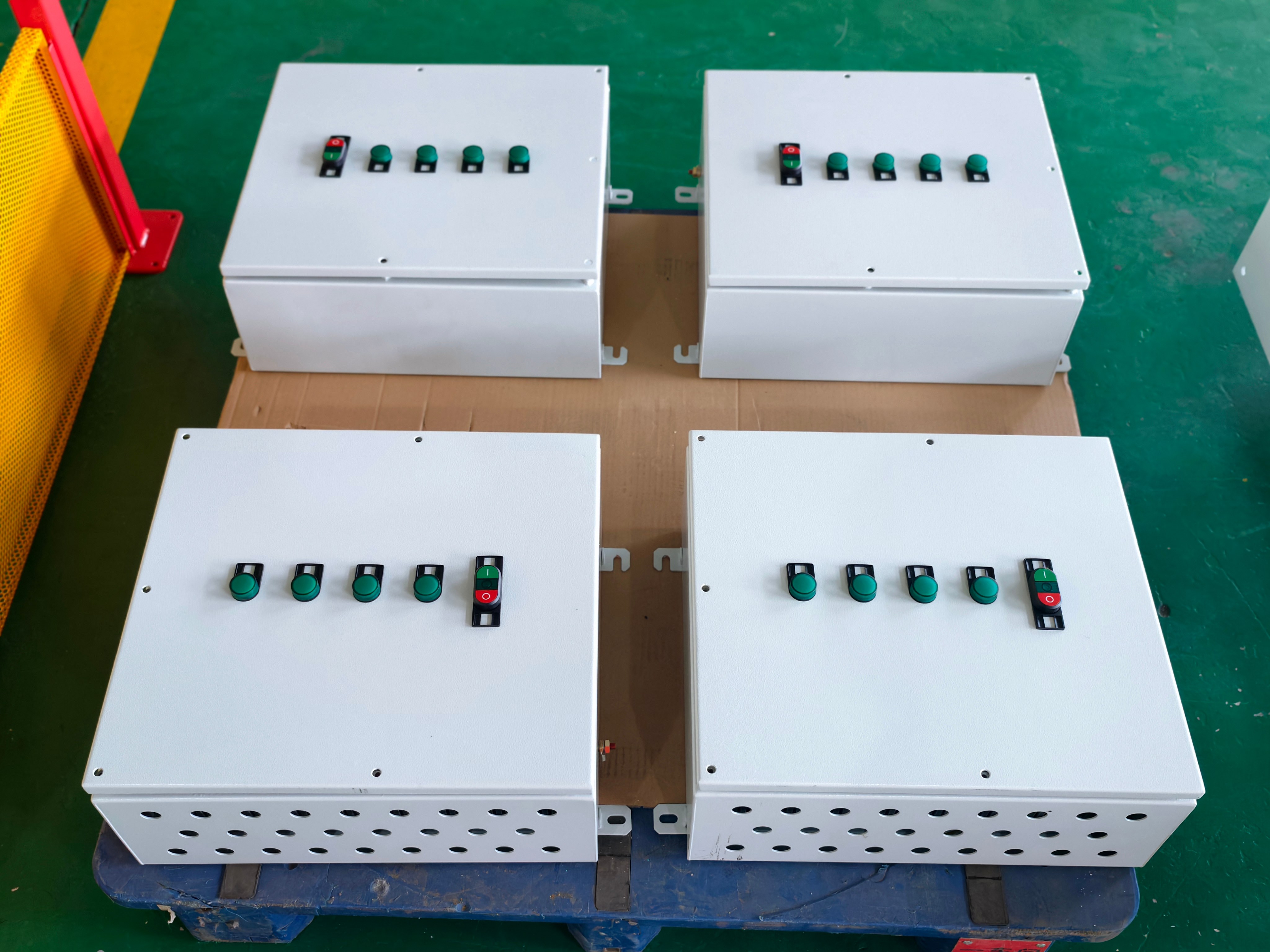

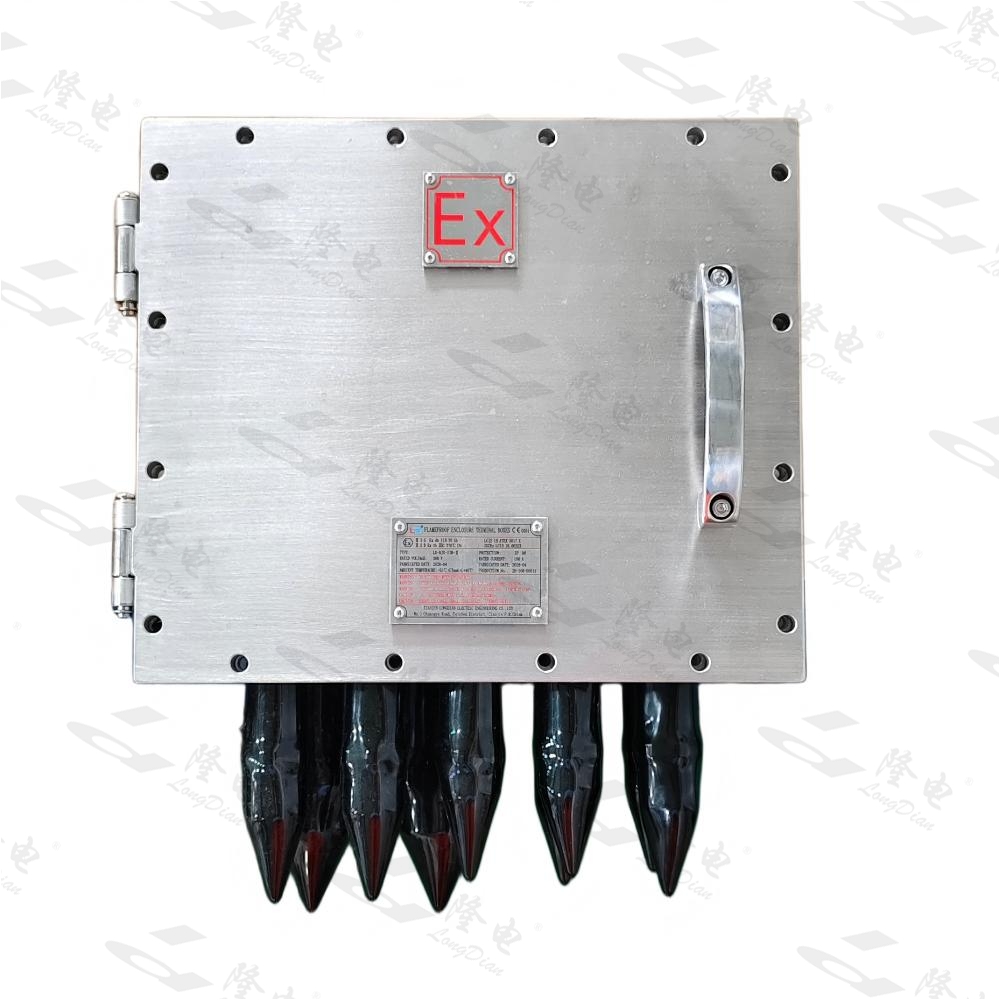

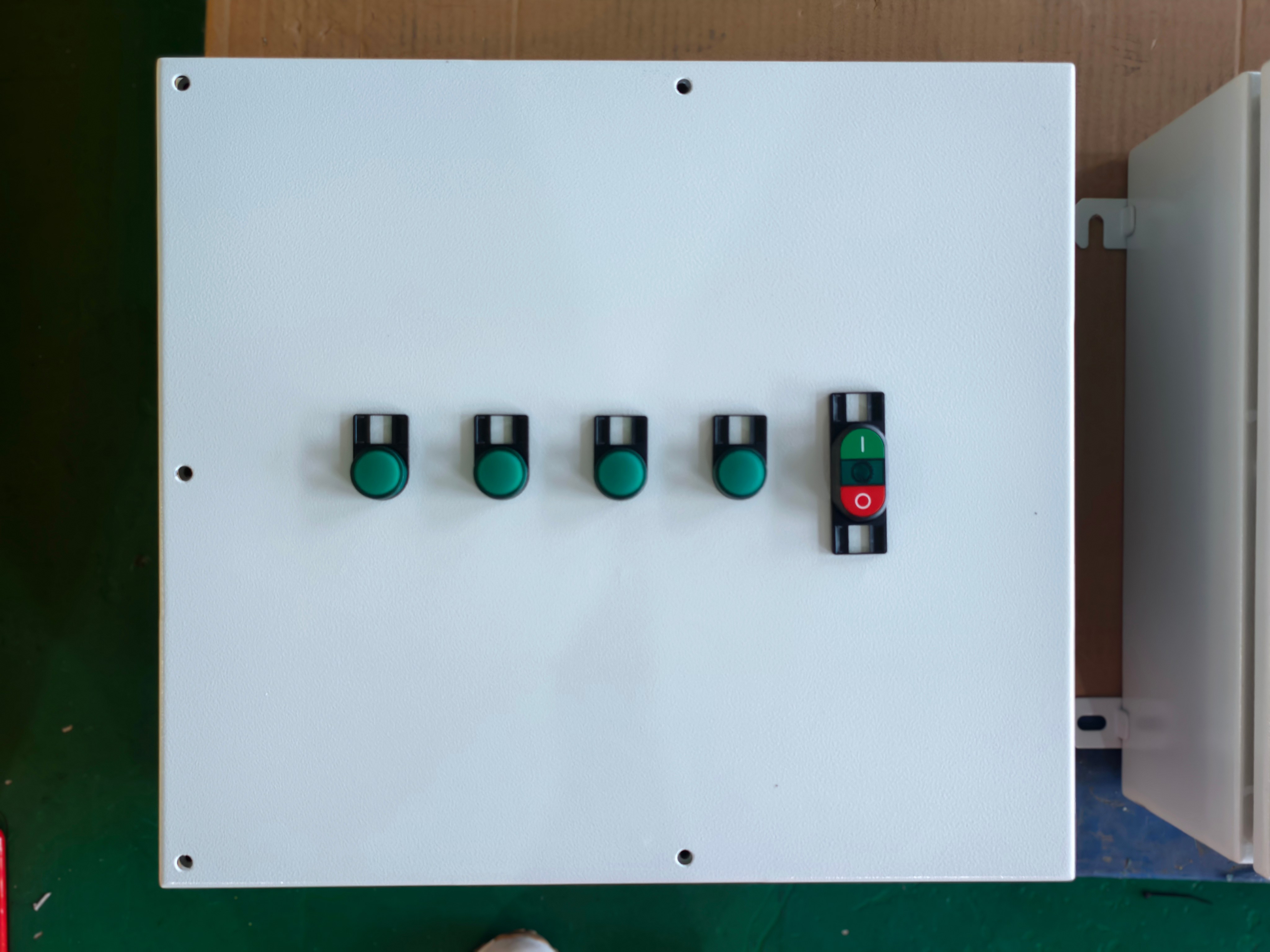

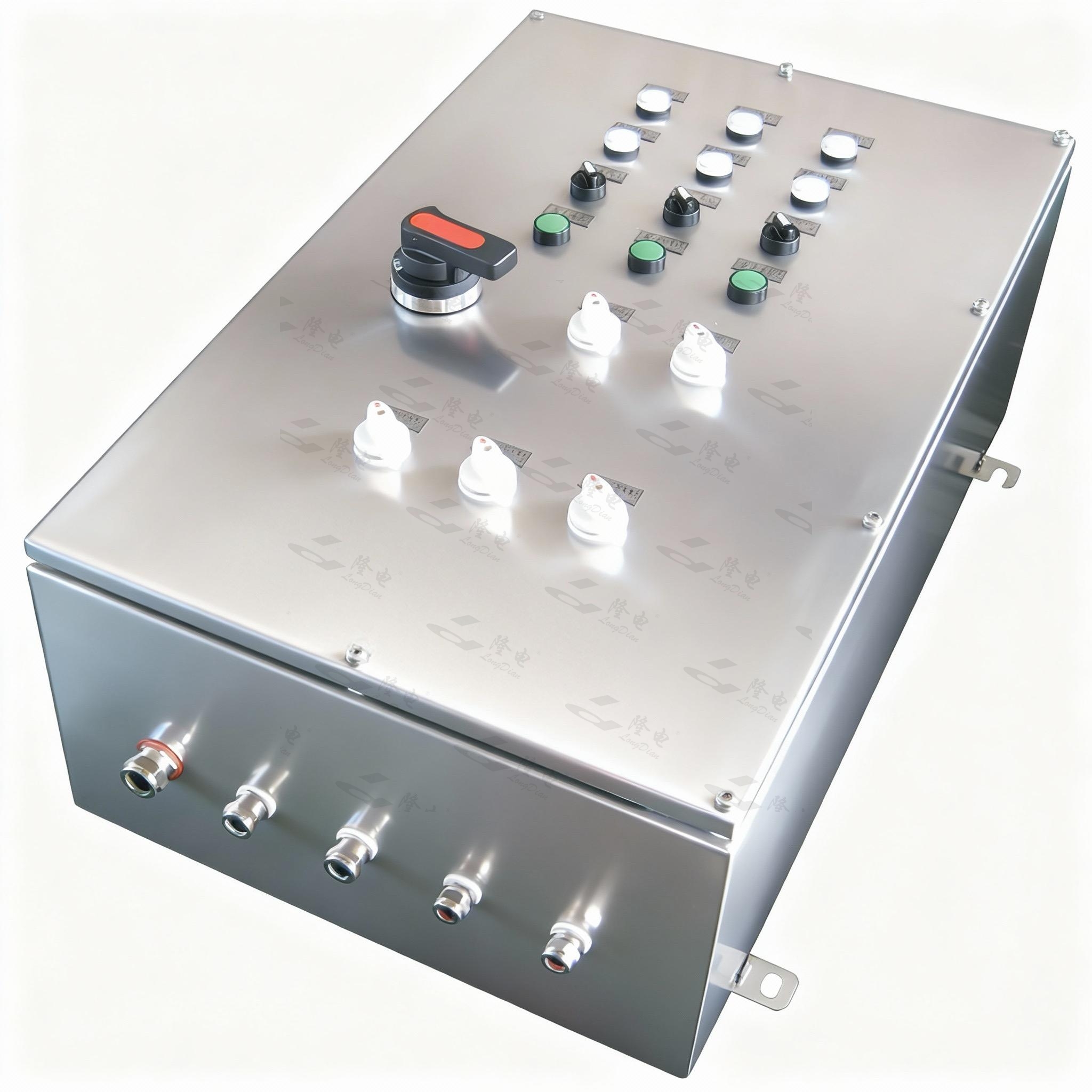

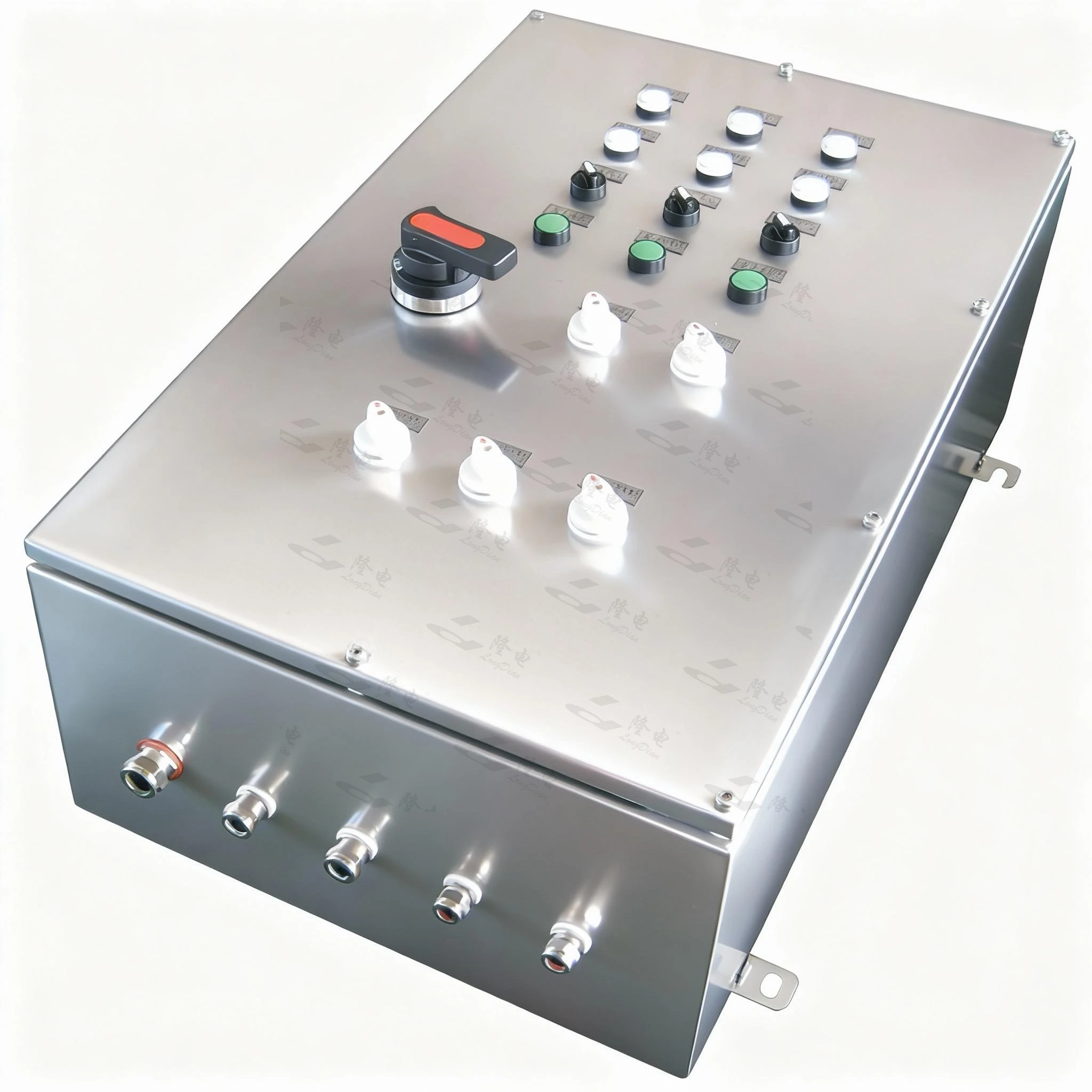

The LDK-DIP Series dust explosion-proof electric control cabinet is designed for dust explosion hazardous areas. It can flexibly configure buttons, indicators, meters, switches and other components according to requirements, supports multiple inlet modes and port specifications, and is suitable for outdoor scenarios to meet dust explosion-proof electrical control needs.
1. Applications
1 . Hazardous:zone 21&22 ,flammable dust atmospheres;
2 . Temperature class:T1 ~T4;
3 . Indoor and outdoor(IP66);
4 . As the lighting and the power and control cable connections and branch used in chemical industry,oil refining ,oil exploration ,offshore oil platforms ,tankers ,military and other dangerous places . 1 .Hazardous:zone 21&22 ,flammable dust atmospheres;2 .Temperature class:T1 ~T4;3.Indoor and outdoor(IP66);4 .As the lighting and the power and control cable connections and branch used in chemical industry,oil refining ,oil exploration ,offshore oil platforms ,tankers ,military and other dangerous places .
2. Features
1.Material: CS or SS ,argon protected precision welding;
2.Surface treatment: coating or chemical treatment ;
3.Built-in indicator lamps , ammeter and voltmeter , button , convert switch and other components (potentionmeter,frequency meter , tachometer and so on) ;
4.The transfer switch has 30 kinds of functions . It can be selected by user or made special request ;
5.Inlet and outlet: with explosion-proof cable gland ;
6.Inlet ,outlet and size can be designed according to the requirement of customer.

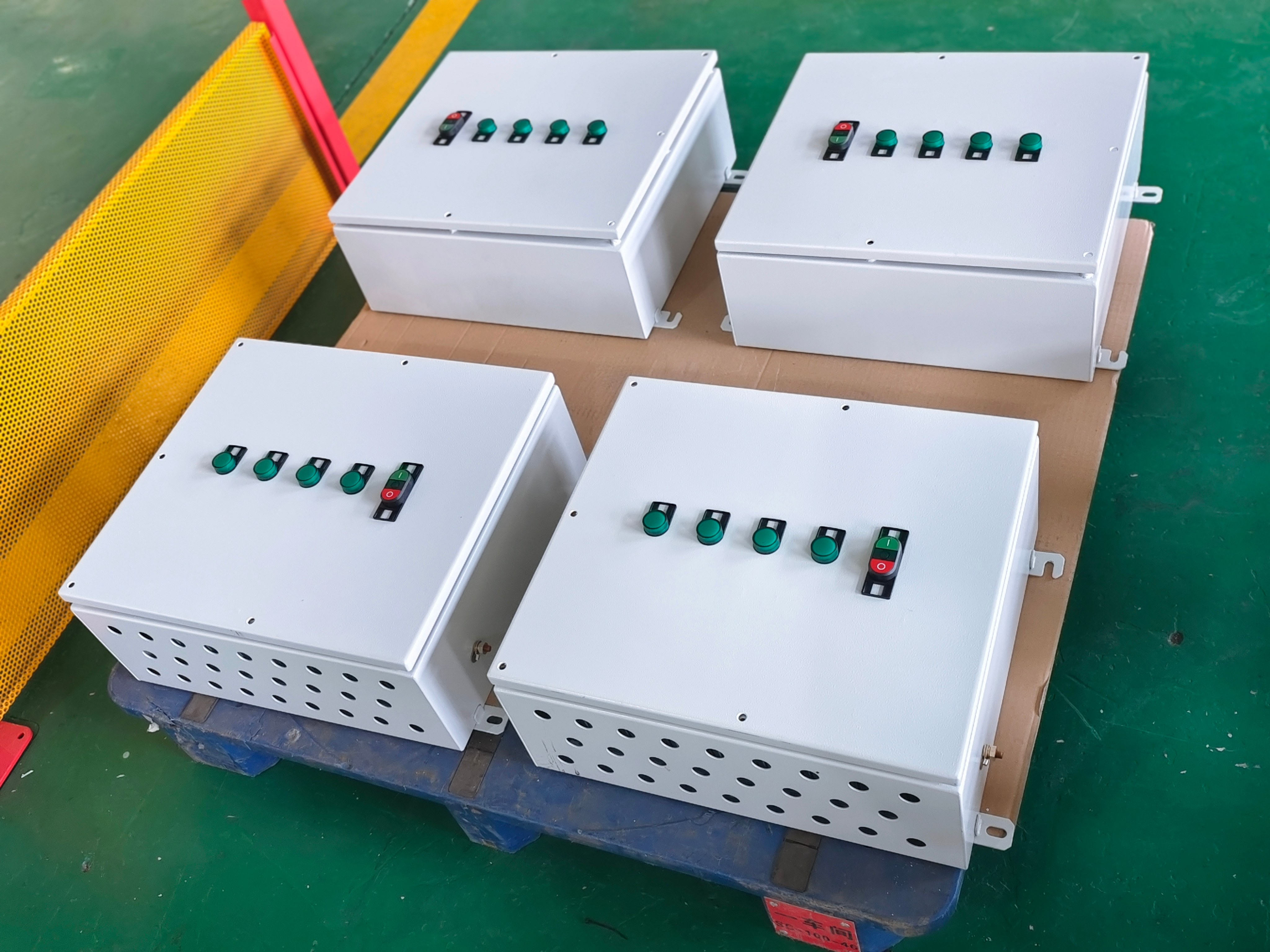

3. Performance Display
（1）

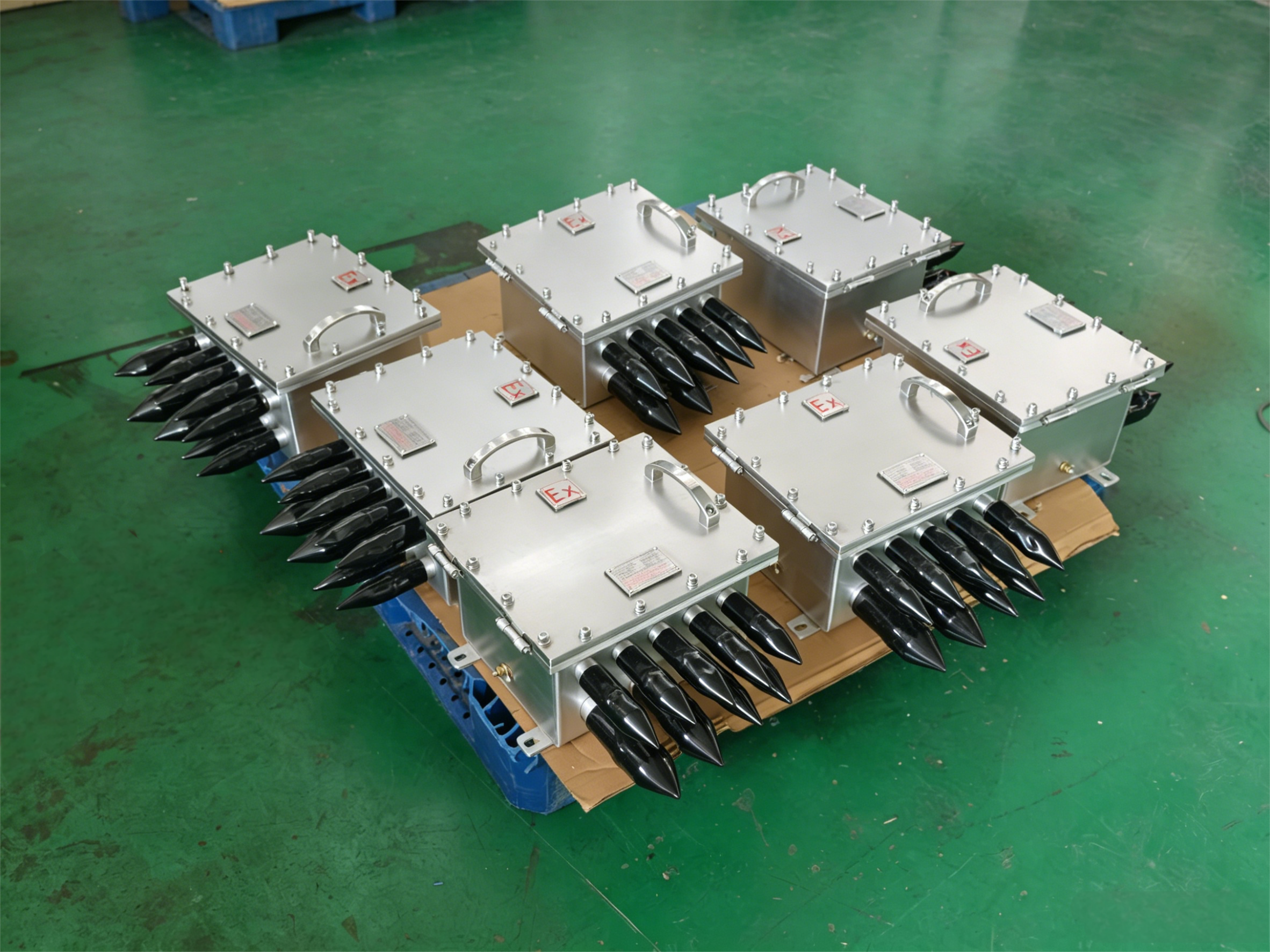

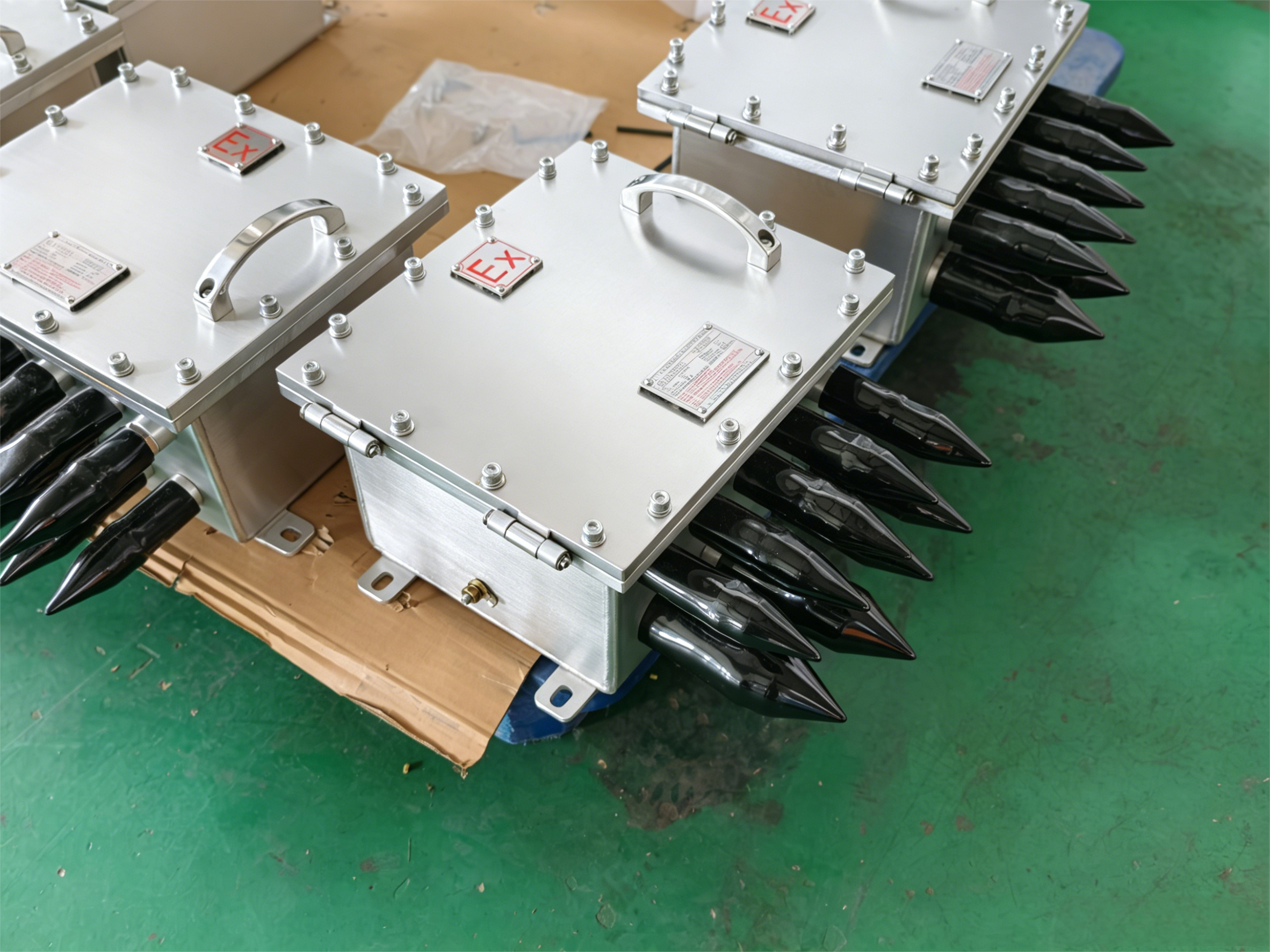

Longdian Contract No.:26-04-09LD-C-166
（2）

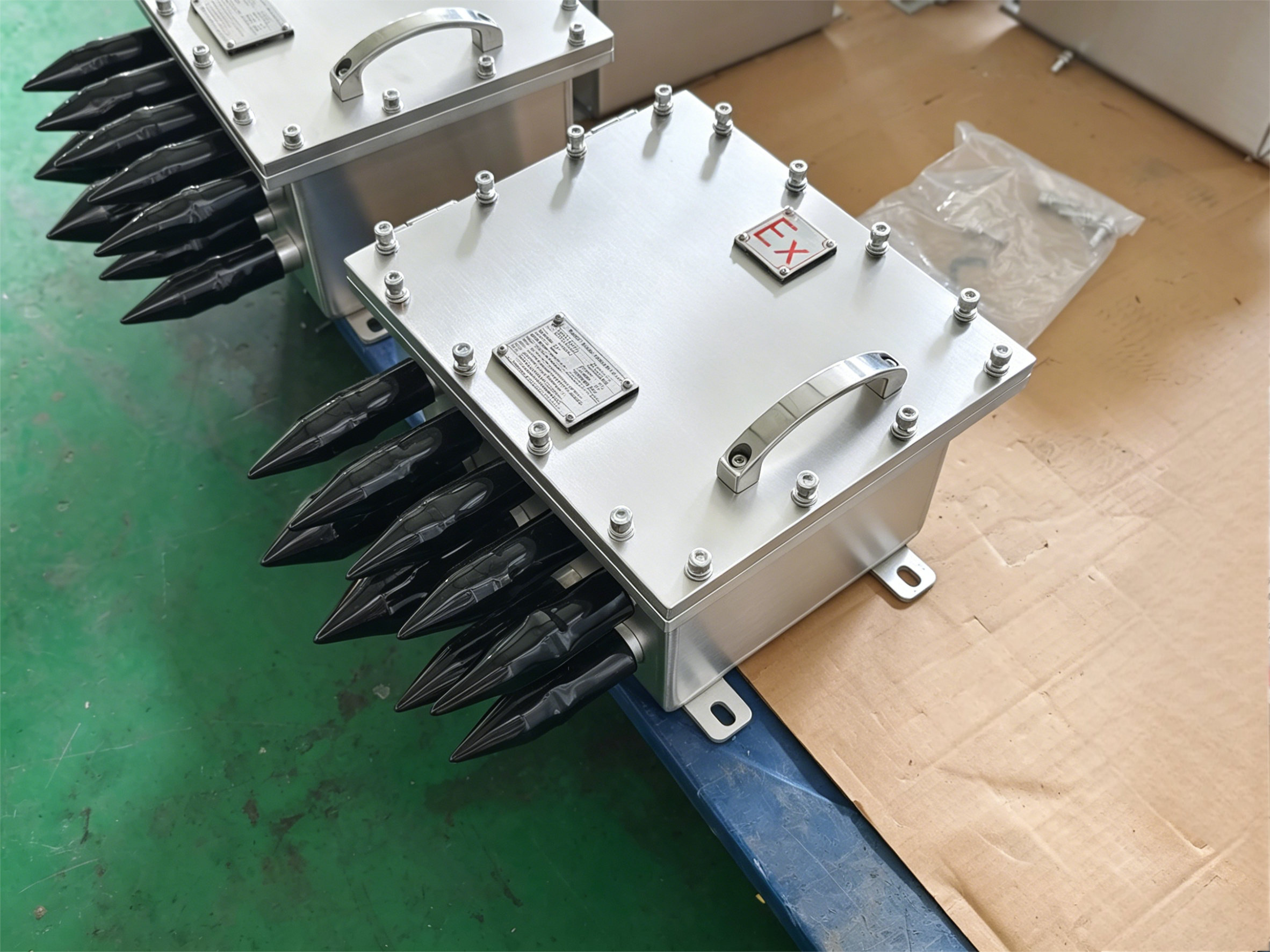

Longdian Contract No.:26-04-20LD-C-188
