A-04-2 GCK Withdrawable Low-Voltage Switchgear
A-04-2 GCK Withdrawable Low-Voltage Switchgear
A-04-2 GCK Withdrawable Low-Voltage Switchgear
A-04-2 GCK Withdrawable Low-Voltage Switchgear

A-04-2 GCK Withdrawable Low-Voltage Switchgear

Longdian Electric GCK withdrawable low-voltage switchgear is an indoor assembled modular distribution unit rated at 380V, 50Hz, IP30. Main busbar current 400A–1600A with 30kA short-time withstand; distribution busbar 800A (30kA for feeder / 20kA for control panels). C-profile steel frame with modular grid mounting, isolated functional compartments, mechanical interlock on drawer doors, and high-reliability primary plug-in connectors. Enclosure in cold-rolled/galvanized/Al-Zn steel.

Inquire Now > Next Products >

1. Applications

1.Ambient Air Temperature： Not exceeding +40°C, with 24-hour average not exceeding +35°C, and not lower than -5°C

2.Relative Humidity： Not exceeding 50% at +40°C；higher humidity is permitted at lower temperatures, e.g., up to 90% at +20°C

3.Installation Environment： Free from fire and explosion hazards, excessive dust, chemical corrosion, and severe vibration

4.Transportation and Storage Temperature： -25°C to +55°C；for short periods (not exceeding 24 hours), up to +70°C is permissible

5.Special Conditions： If the above service conditions cannot be met, the user and manufacturer shall reach a mutual agreement

2. Features

1.Assembled modular structure with grid mounting; high component interchangeability and standardization

2.Three isolated compartments — busbar, electrical apparatus, cable — separated by steel or insulated partitions for safe operation

3.Drawer door mechanically interlocked with switch handle; door opens only in OFF (disconnected) position

4.High-reliability primary plug-in connectors ensure stable connections

5.Enclosure available in cold-rolled, galvanized, or Al-Zn steel for versatile operating environments

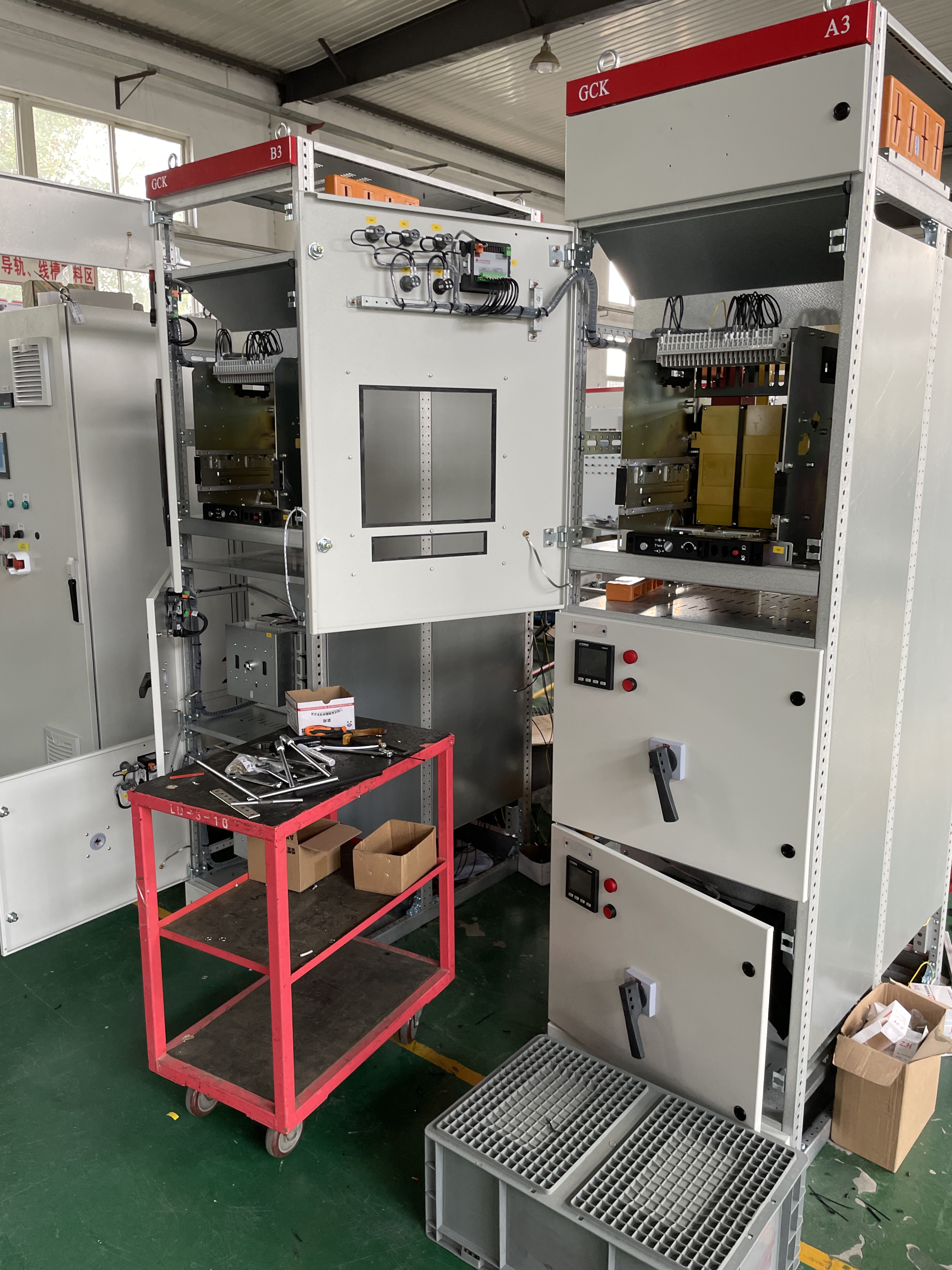

3. Performance Display

Longdian Contract No.: 22-08-22LD-C-392

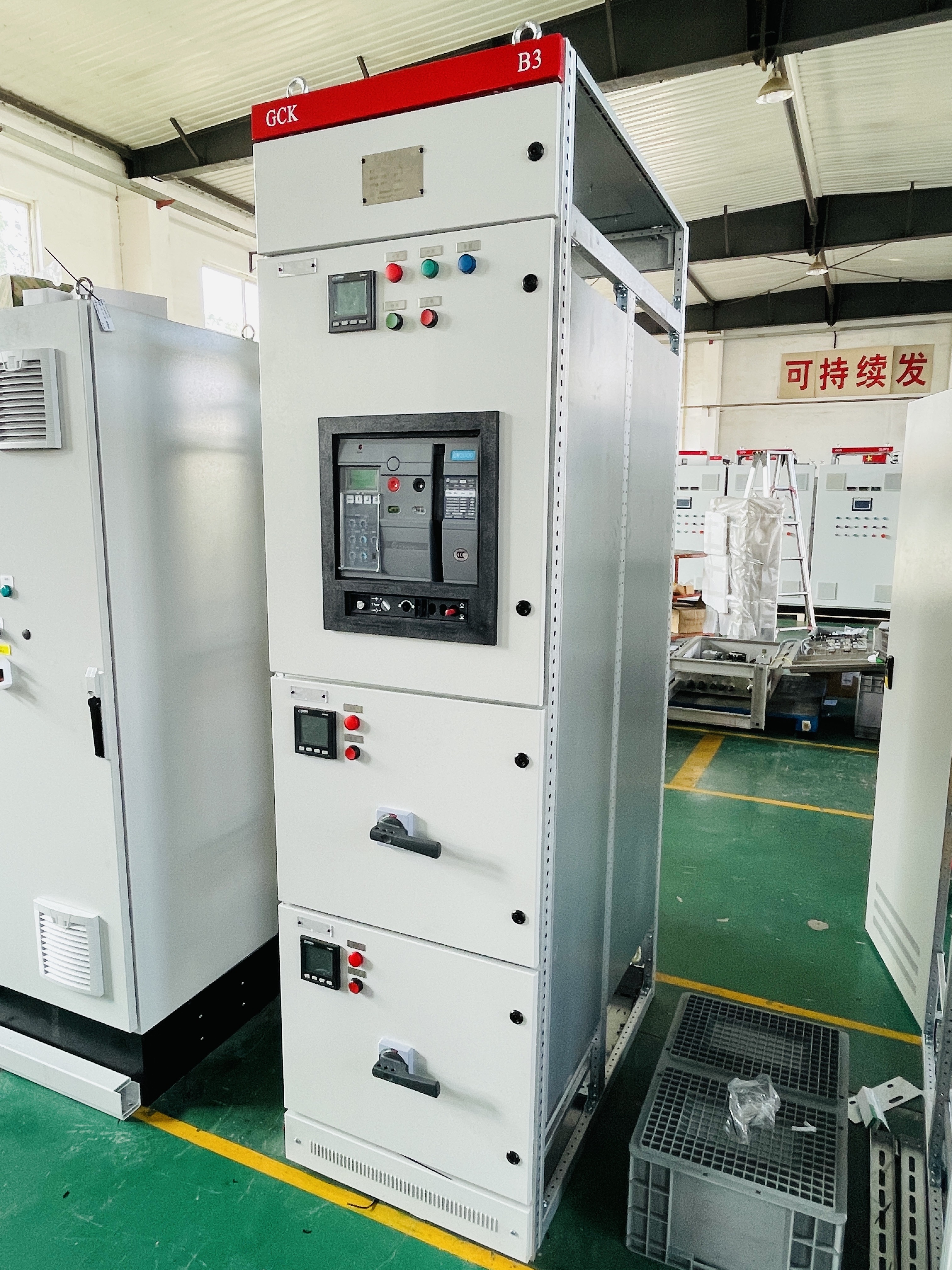

GCK Withdrawable Low-Voltage Switchgear
