A-04 GCS/GCK low-voltage withdrawable switchgear

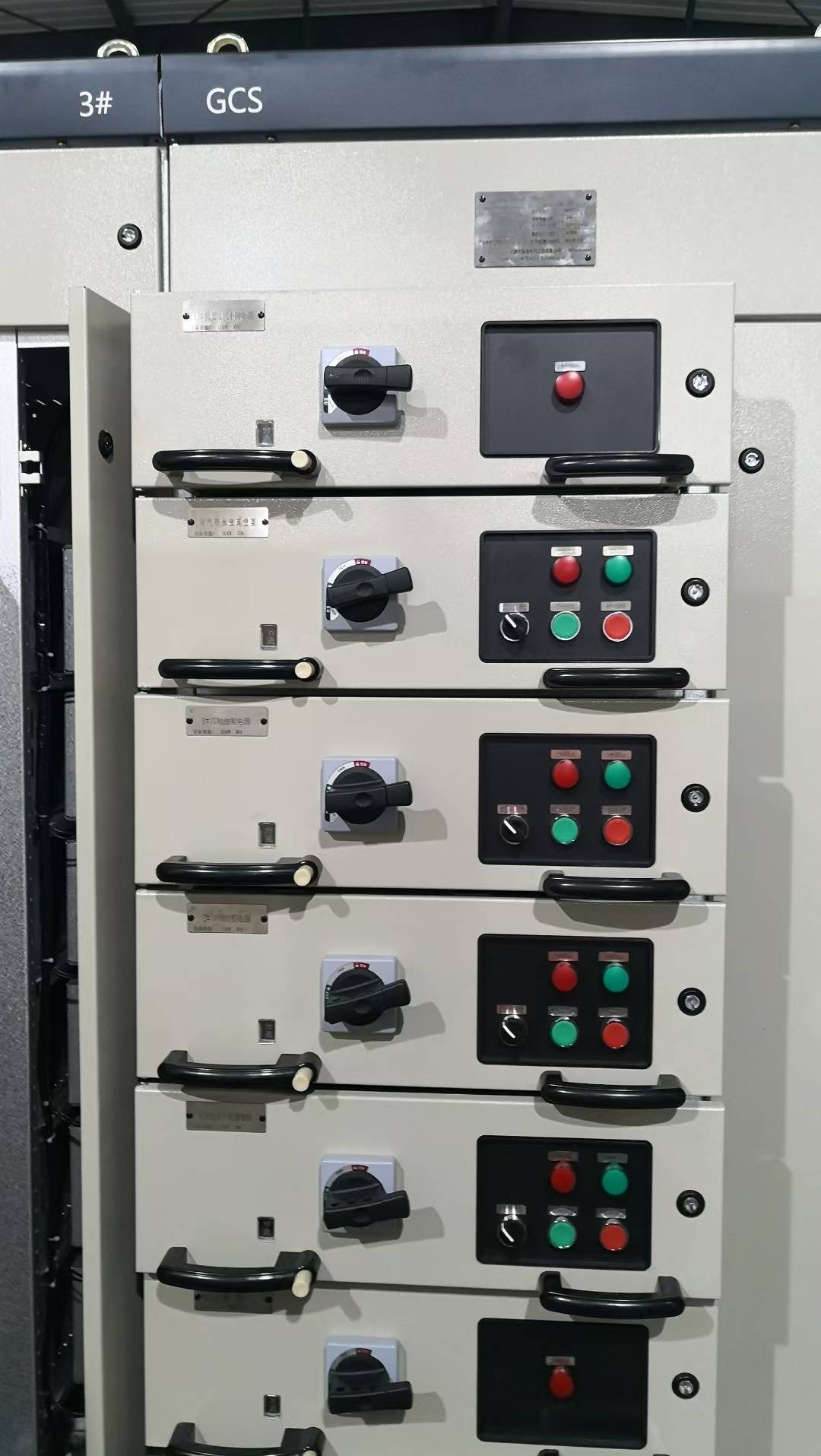

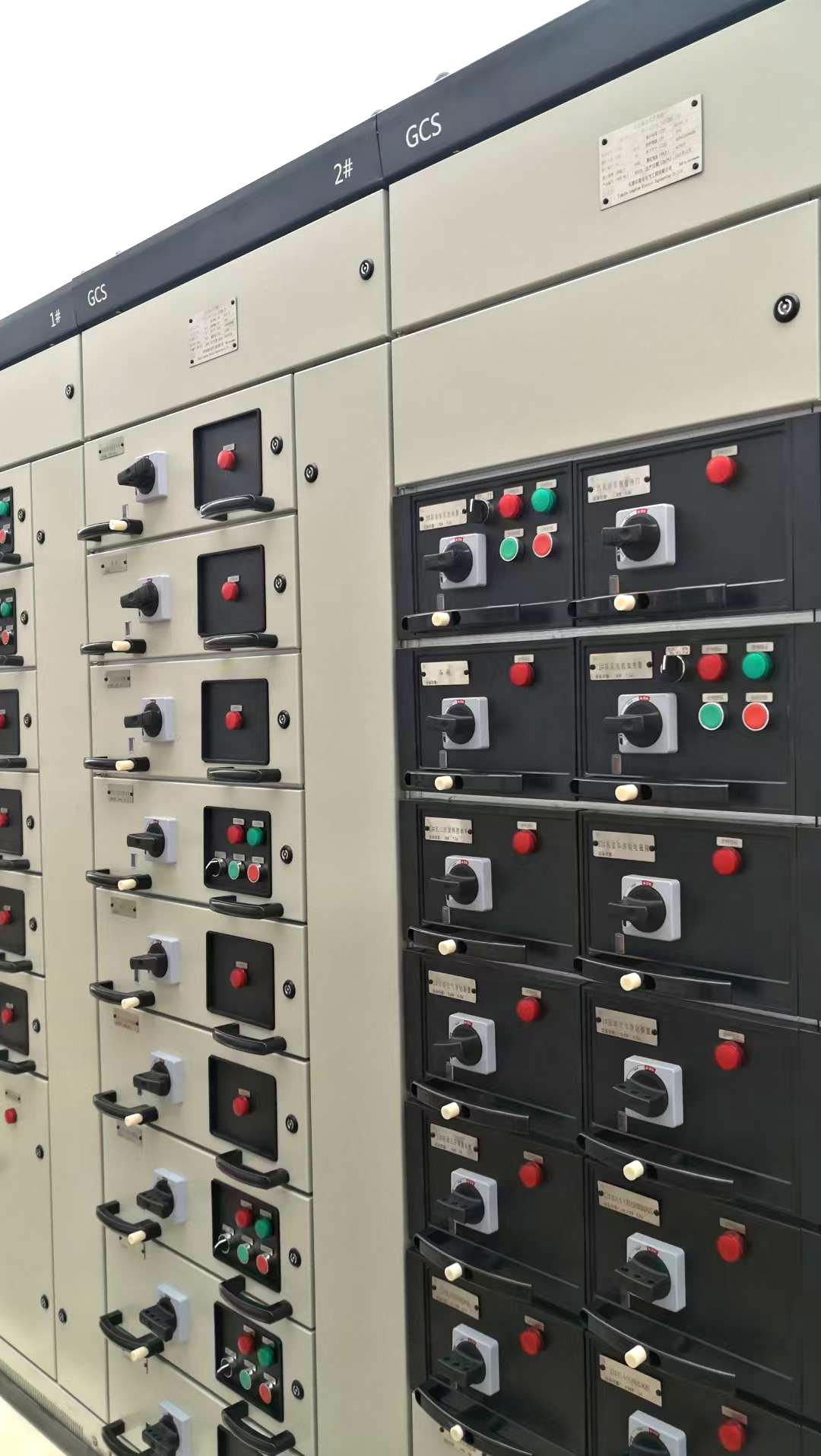

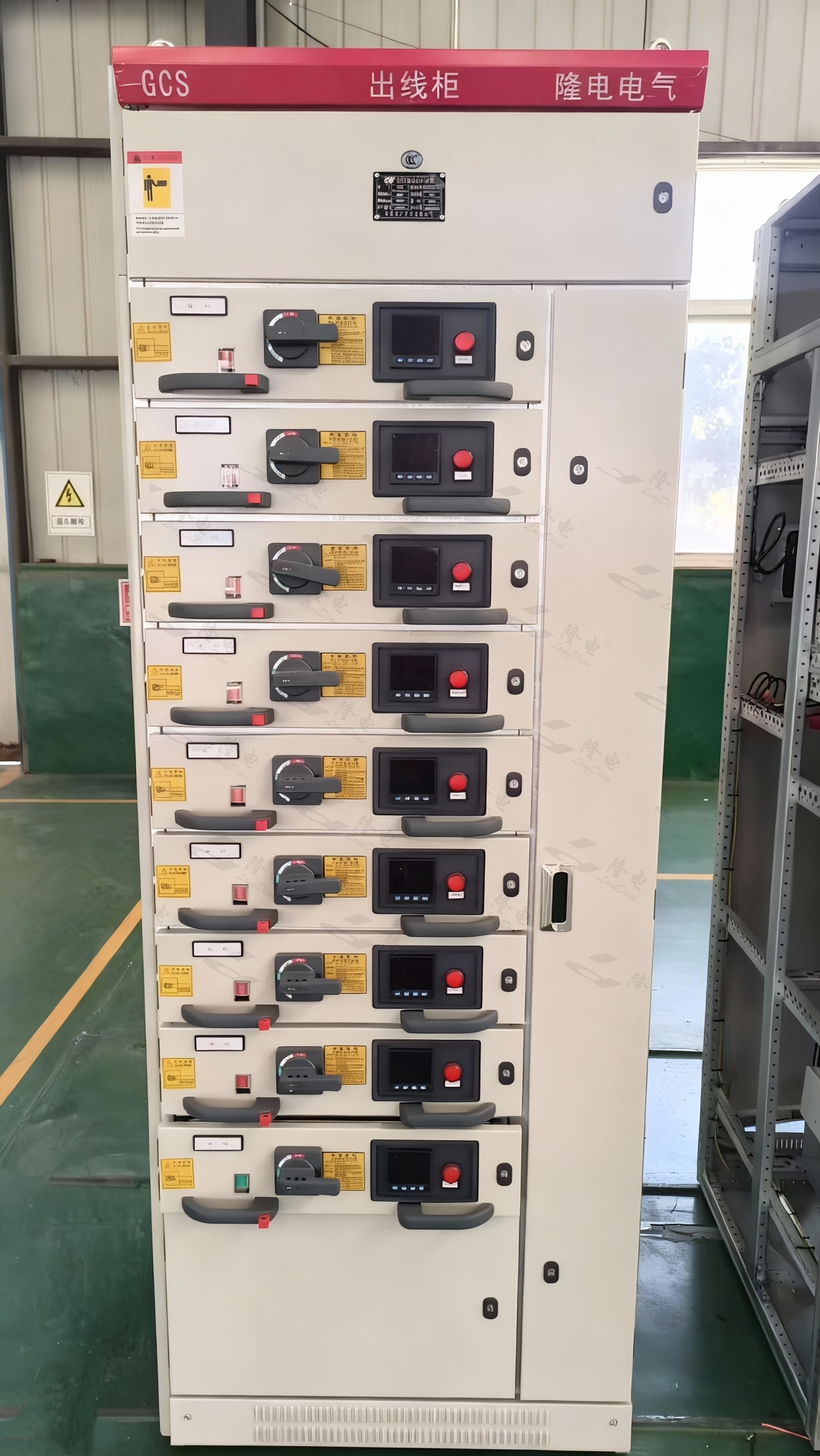

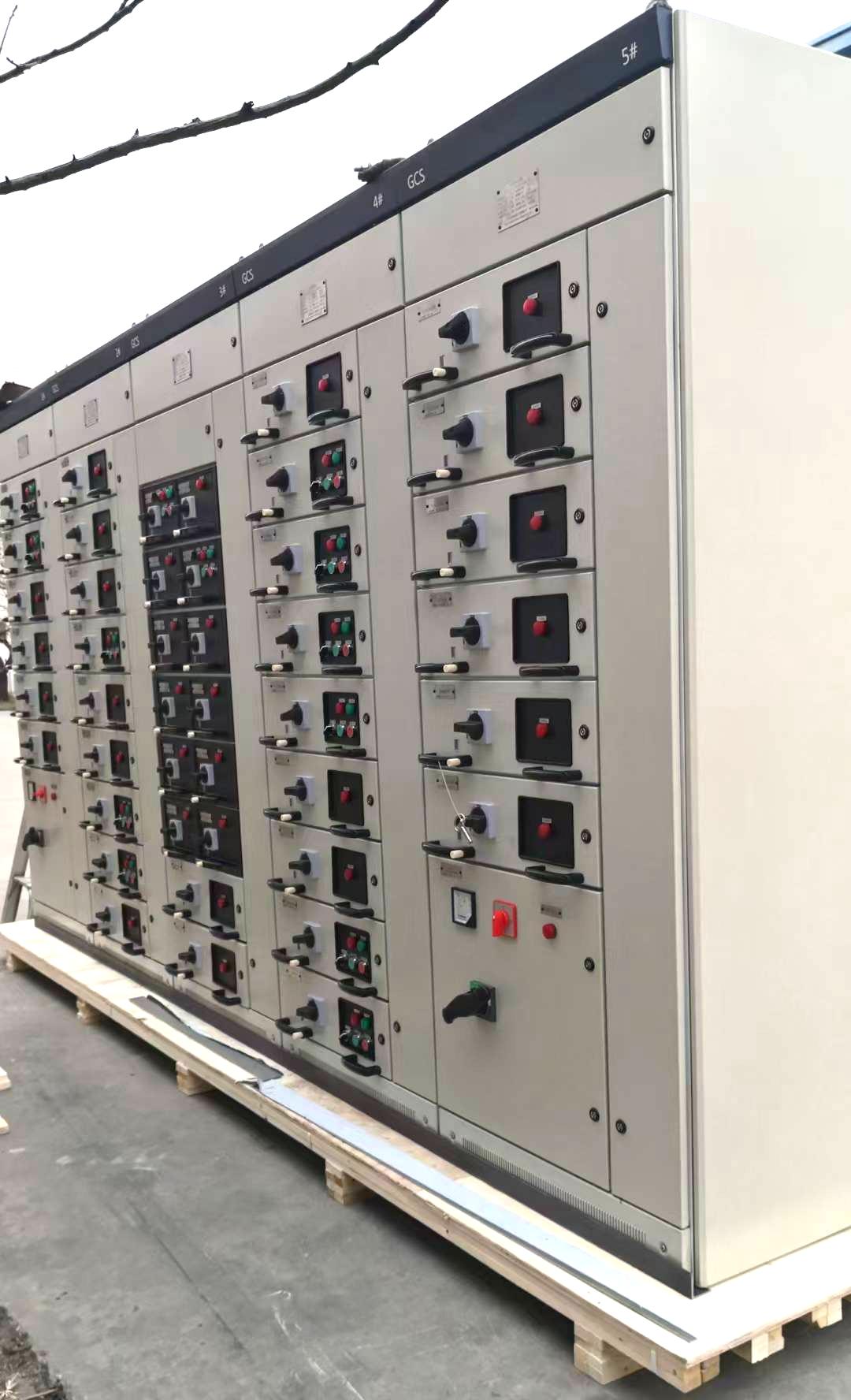

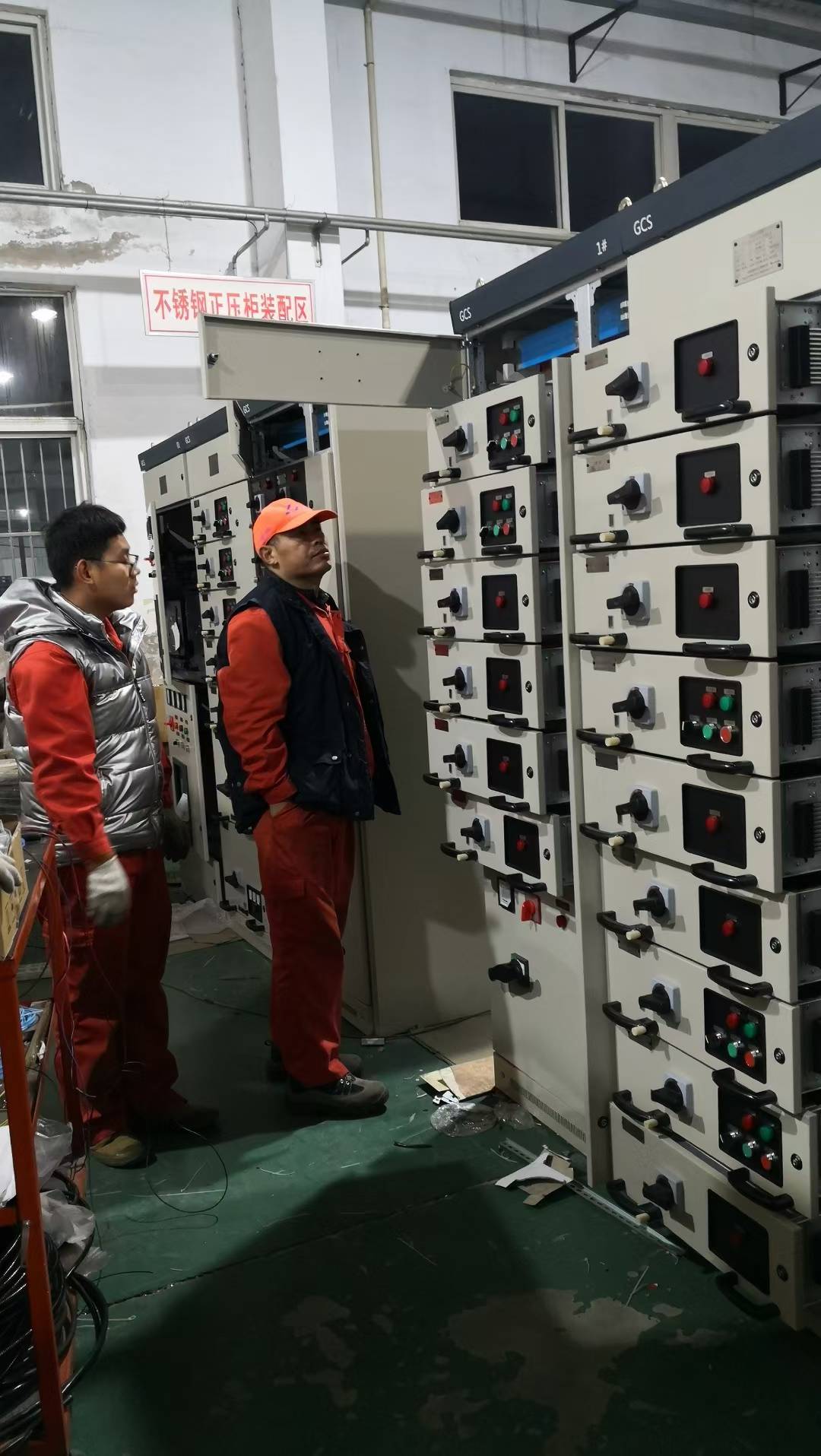

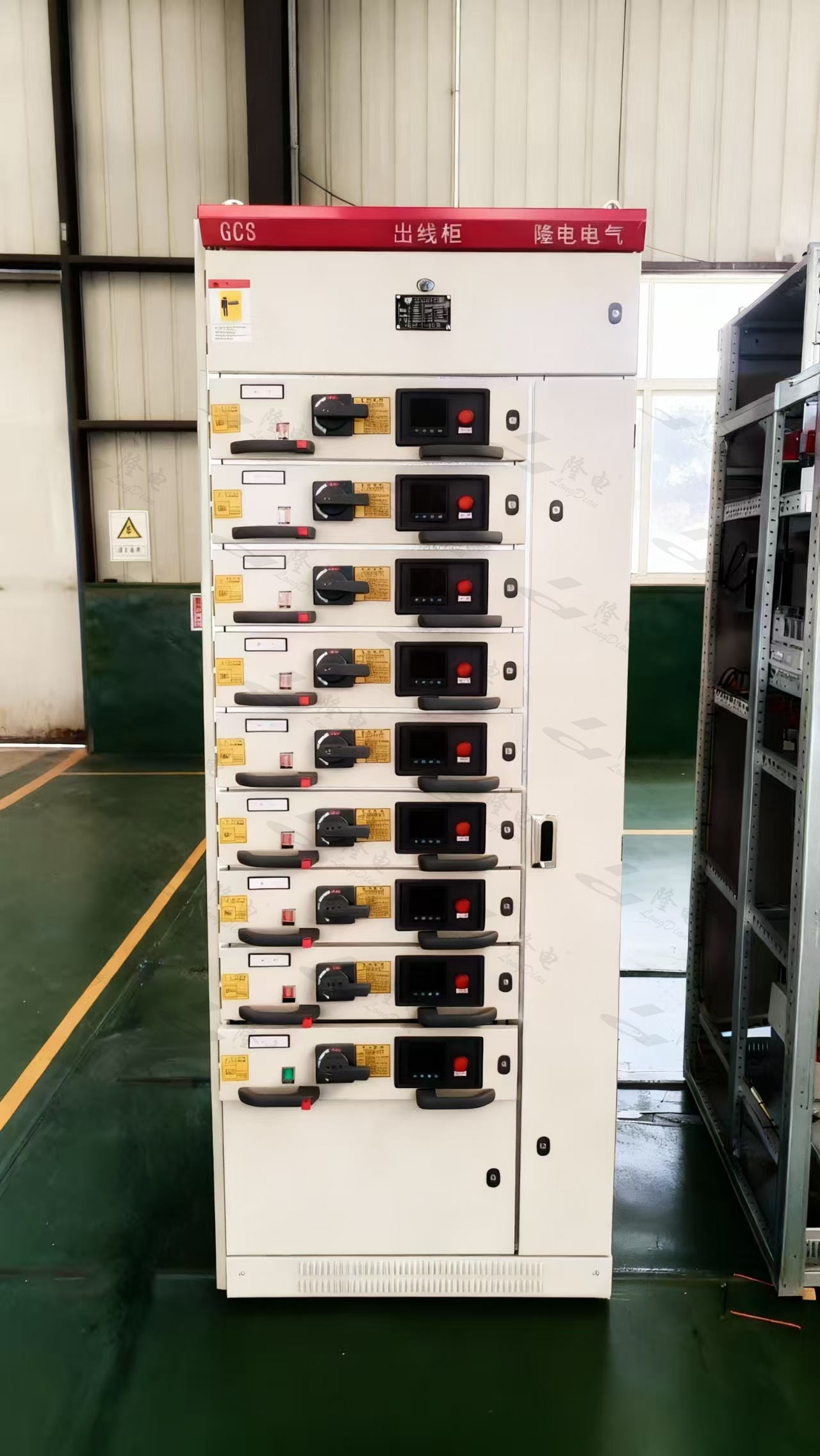

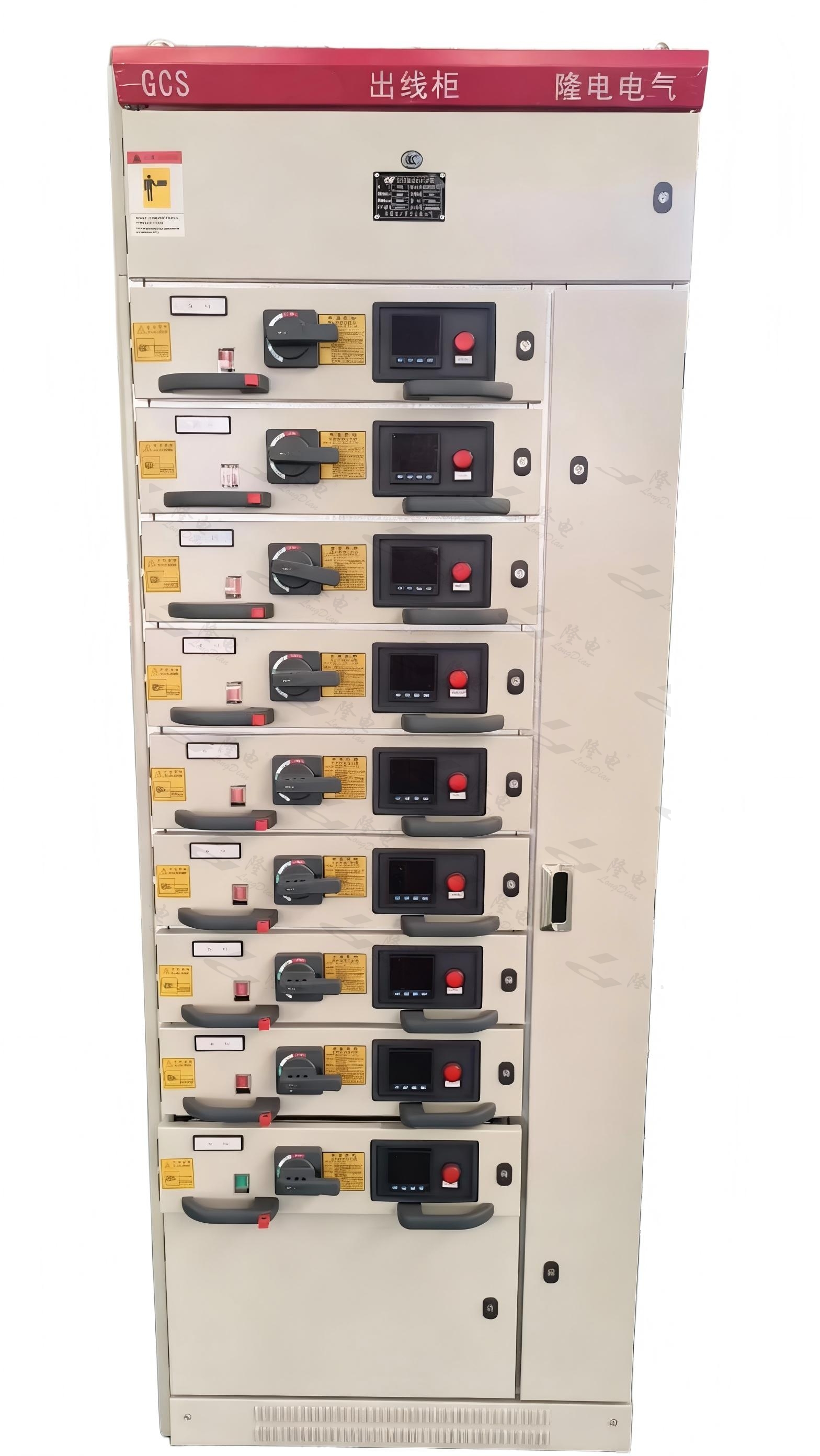

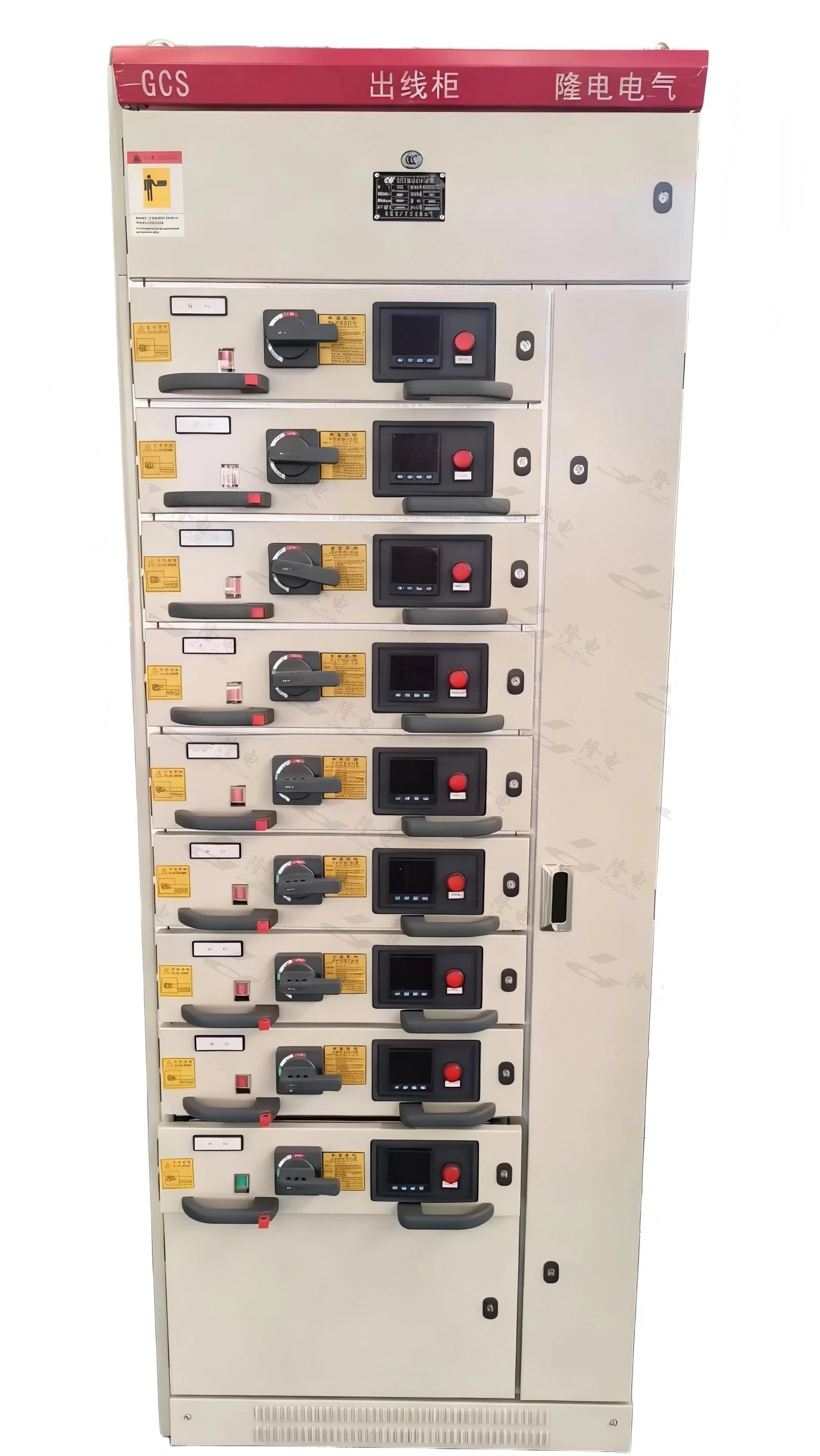

Longdian Electric GCS withdrawable low-voltage switchgear is an indoor modular distribution unit rated at 380V, 50Hz, IP40. Main busbar current 1600A–3150A with 65kA short-time withstand; distribution busbar 600A–1250A with 30kA withstand. C-profile frame with E=25mm pitch, rear-mounted flat busbar layout, isolated functional compartments, and drawer heights from 150mm to 600mm. Supports mixed withdrawable and fixed unit configuration.
1. Applications
1.Installation Type： Indoor Type
2.Degree of Protection： IP40
3.Suitable Location： Indoor environment that is dry, clean, and free of corrosive gases
4.Ambient Temperature： -5°C to +40°C (recommended)
5.Relative Humidity： Not exceeding 90% (non-condensing)
2. Features
1.LV power distribution and motor control in industrial plants
2.Power and lighting distribution in commercial buildings
3.Municipal infrastructure and switchroom projects
4.Data center LV incoming and feeder panels
5.PV and wind power grid-connected LV distribution
3. Performance Display
（1）
