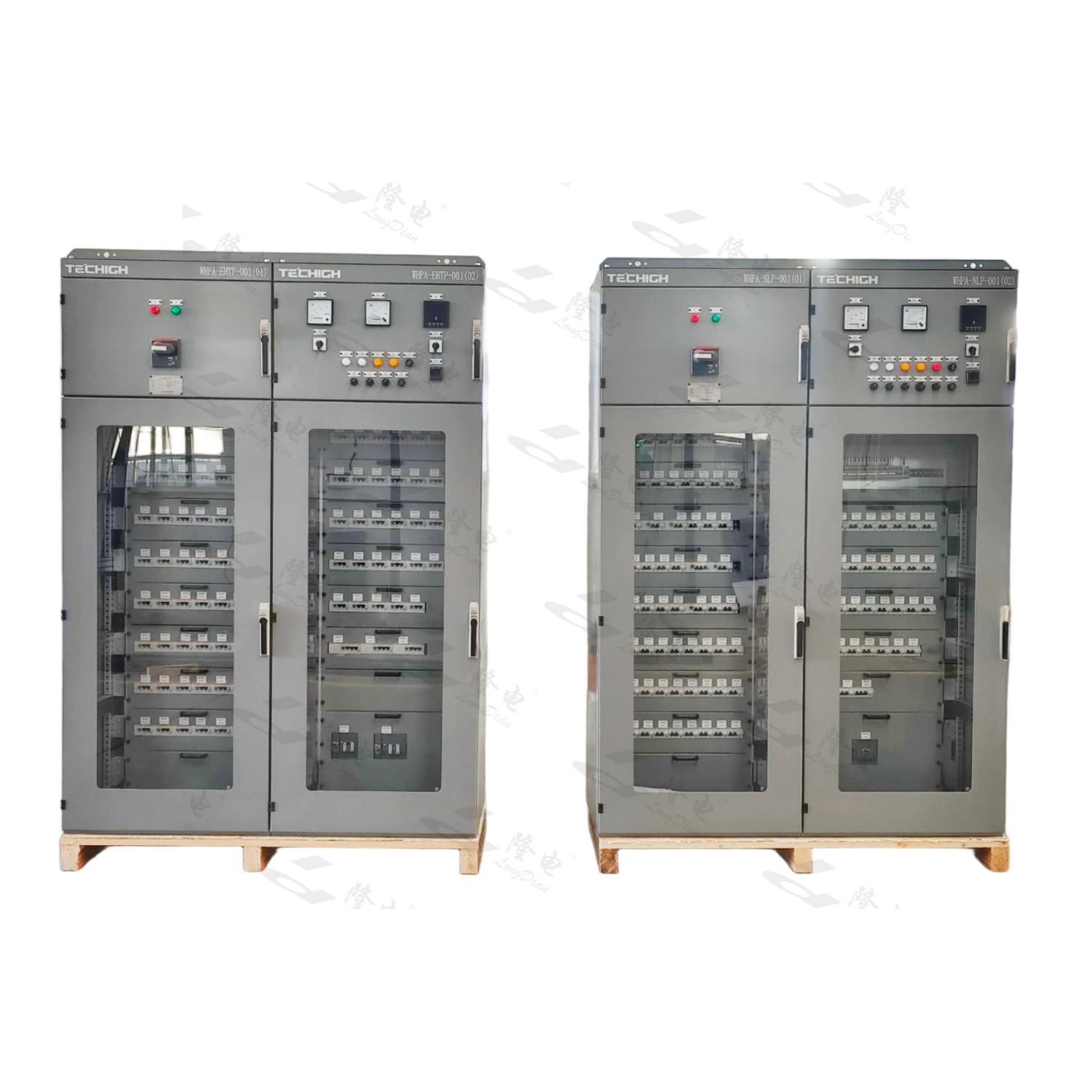

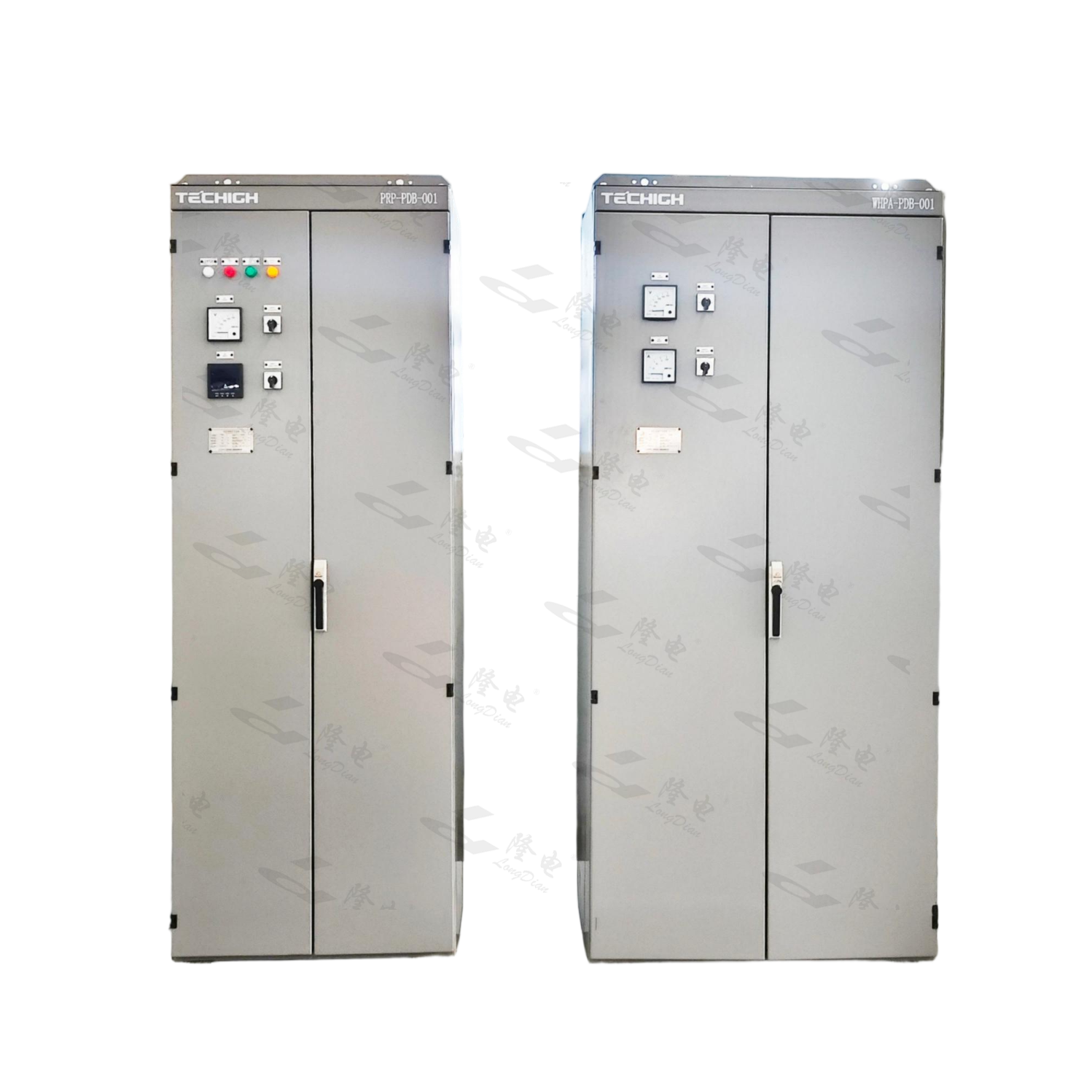

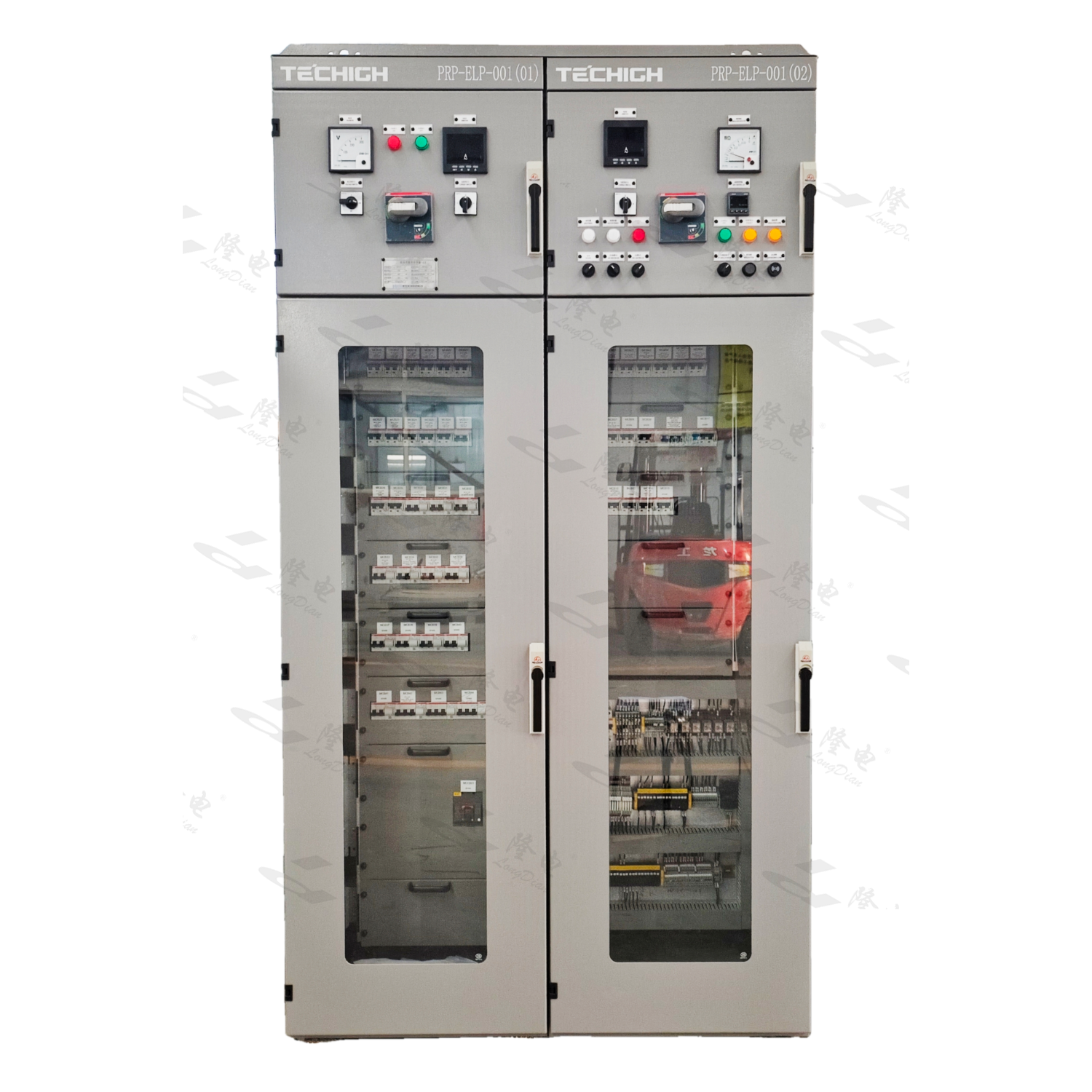

A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear
A-06 GFH10 Low-Voltage Switchgear

A-06 GFH10 Low-Voltage Switchgear

Longdian Electric GFH10 low-voltage switchgear is an indoor fixed-type distribution unit rated at 690V/400V/380V, 50Hz, with IP44–IP65 protection options. Main busbar current 400A–1000A with 20kA short-time withstand. Branch horizontal busbars located at mid-cabinet; N and PE bars at the bottom. 2.0mm cold-rolled steel welded frame with rubber sealing strips and waterproof grooves on doors. Bottom-in/bottom-out configuration. Suitable for distribution scenarios requiring high ingress protection.

Inquire Now > Next Products >

1.Applications

1.LV power distribution and feeder systems in industrial plants with humid environments

2.Underground switchrooms and damp-area distribution in commercial buildings

3.Municipal infrastructure and near-outdoor switchroom projects

4.PV and wind farm LV busbar collection and grid connection

5.Chemical, metallurgical, and other high-dust/high-humidity distribution systems

2.Features

1.2.0mm cold-rolled steel welded frame with IP44–IP65 protection options

2.Branch horizontal busbars at mid-cabinet, N/PE bars at bottom — clear and rational wiring layout

3.Rubber sealing strips and waterproof grooves on doors; bottom-in/bottom-out for excellent water and dust protection

4.Rated voltage 380V/400V/690V; main busbar current 400A–1000A with 20kA short-time withstand

5.Compatible with MCCBs; modular flexible configuration; rated for indoor use up to 2000m altitude

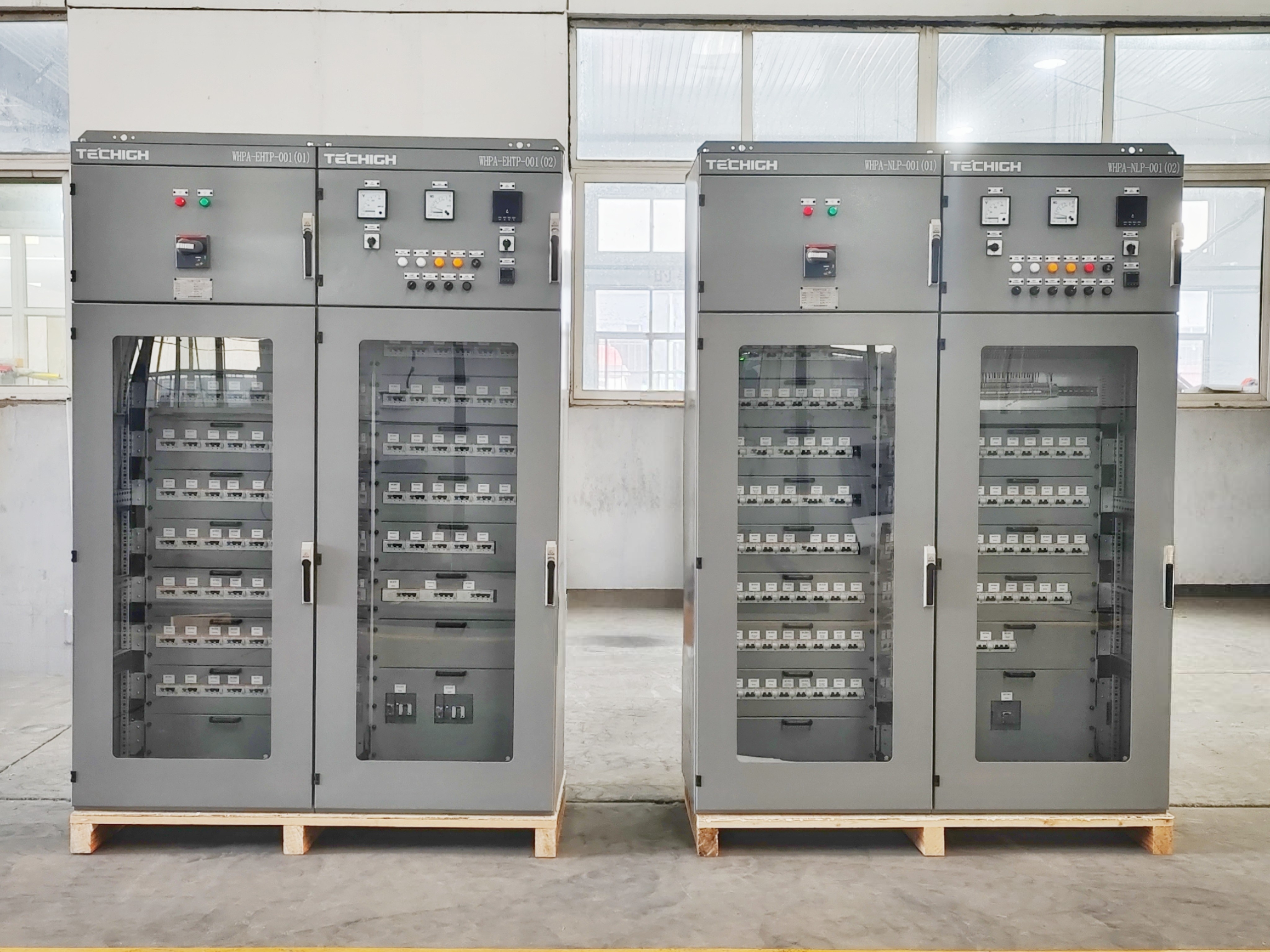

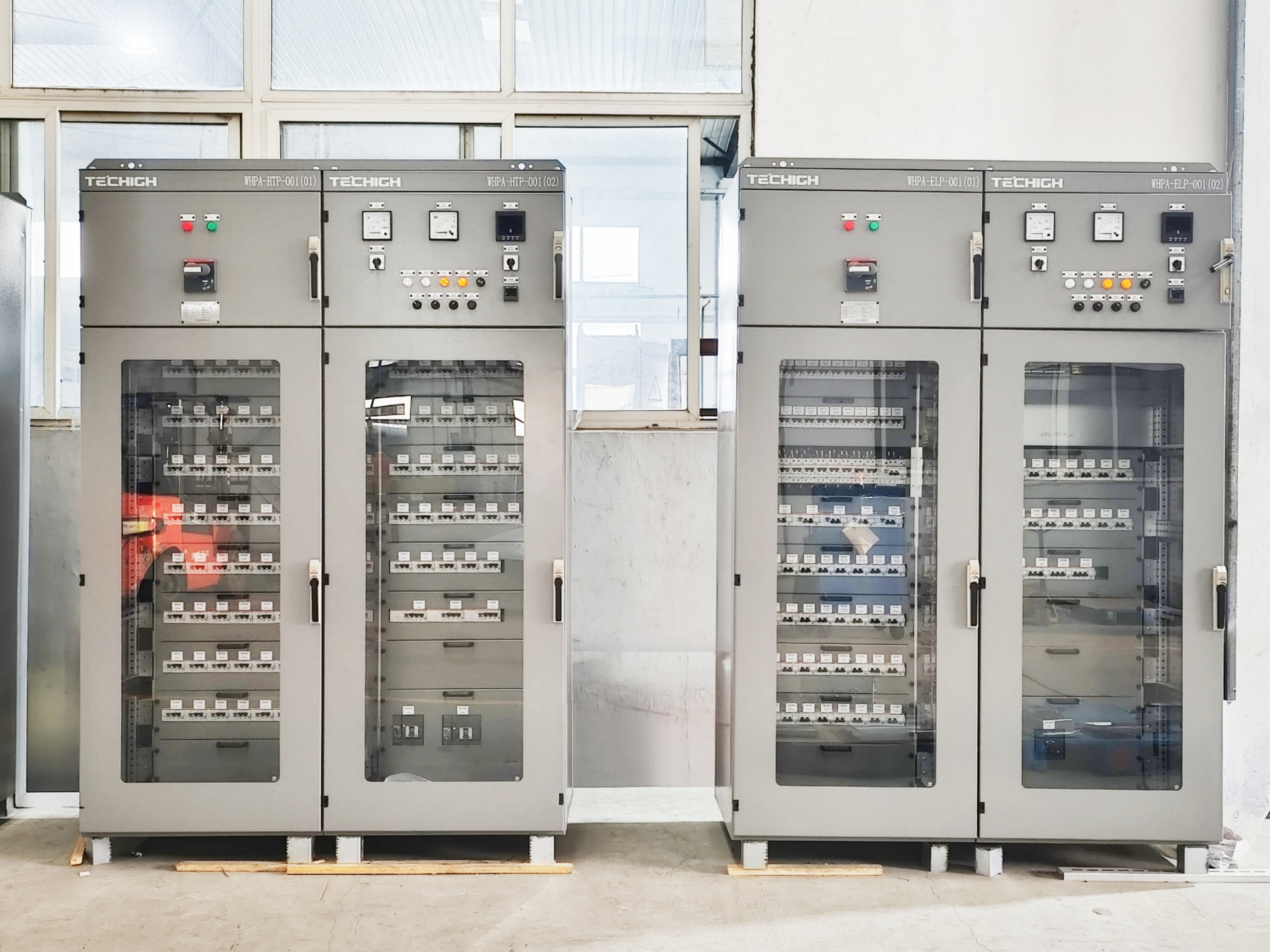

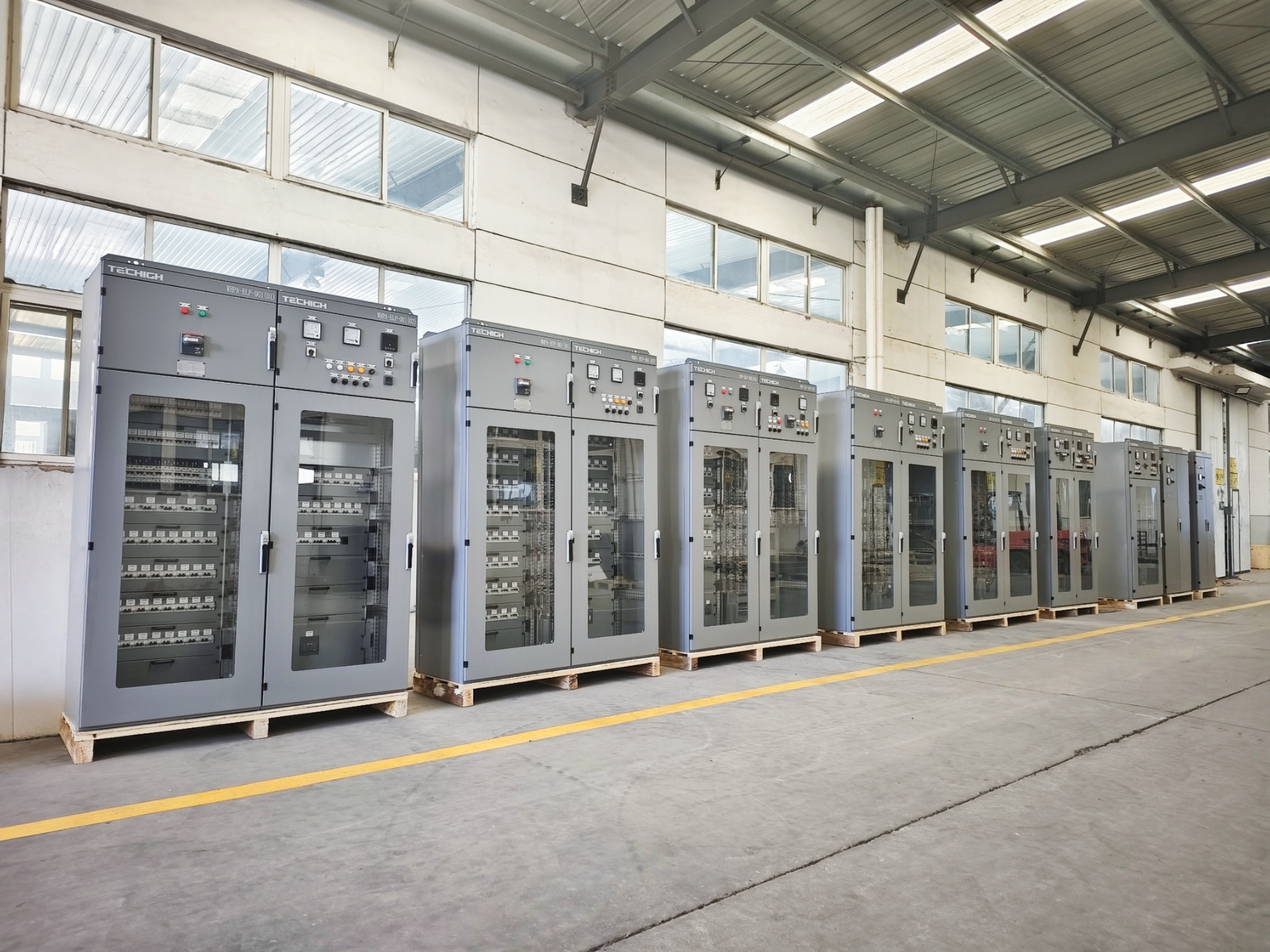

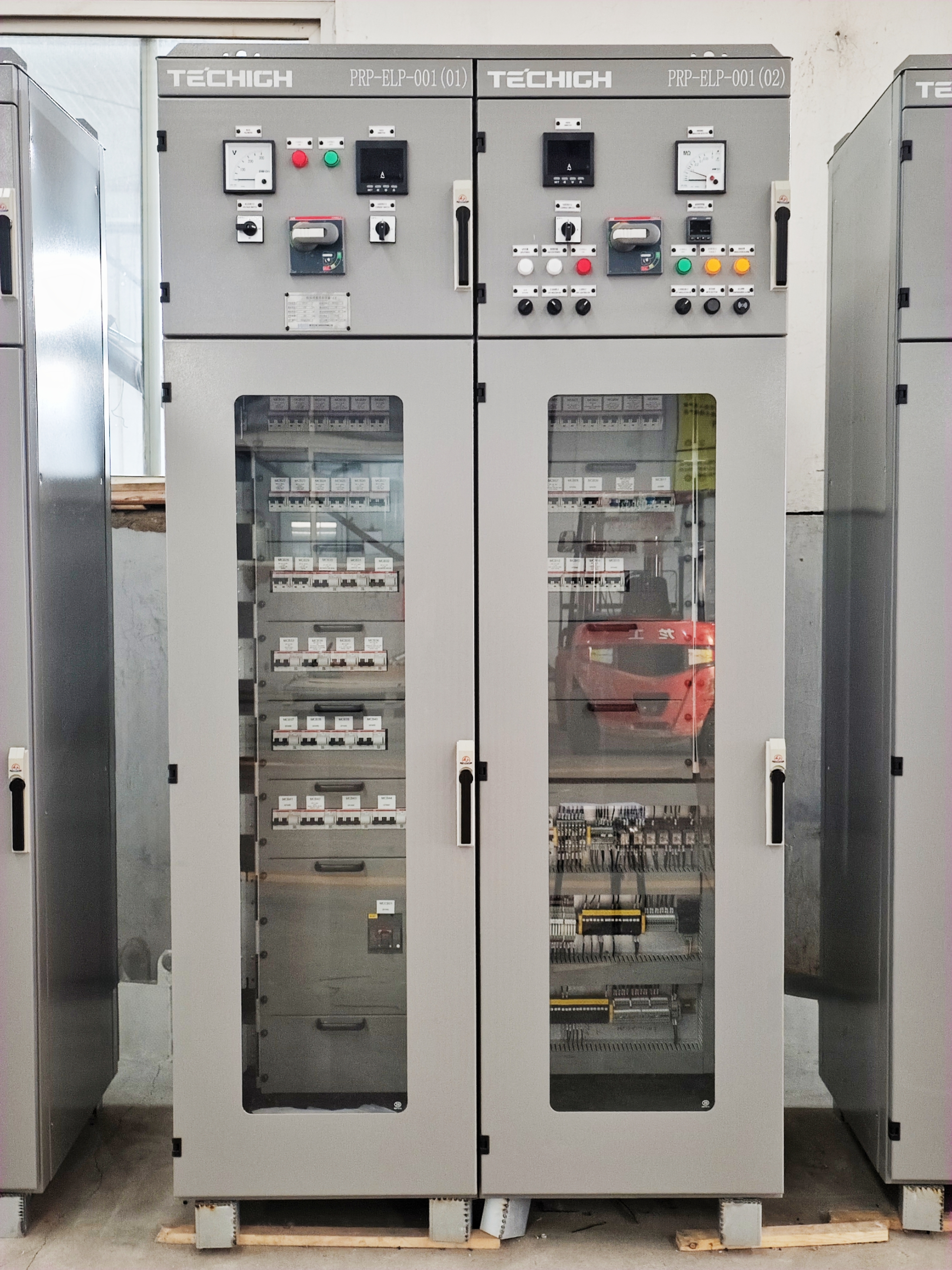

3.Performance Display

（1）

  • Product Type: High and Low Voltage Power Distribution
  • Project Name: Lüda / Shore Power / Ledong / Panyu
  • Classification Society: CCS
  • Survey Report No.: TJ25VPS01241
  • Longdian Contract No.: 25-05-22/LD-C-255
  • Contract Product Name: GFH10 Low Voltage Switchgear (16 small power distribution units, 4 distribution boxes)
  • Model: PZ2.0-I
  • Rated Voltage: 230V
  • Rated Current: 630A
  • Protection Rating: IP23

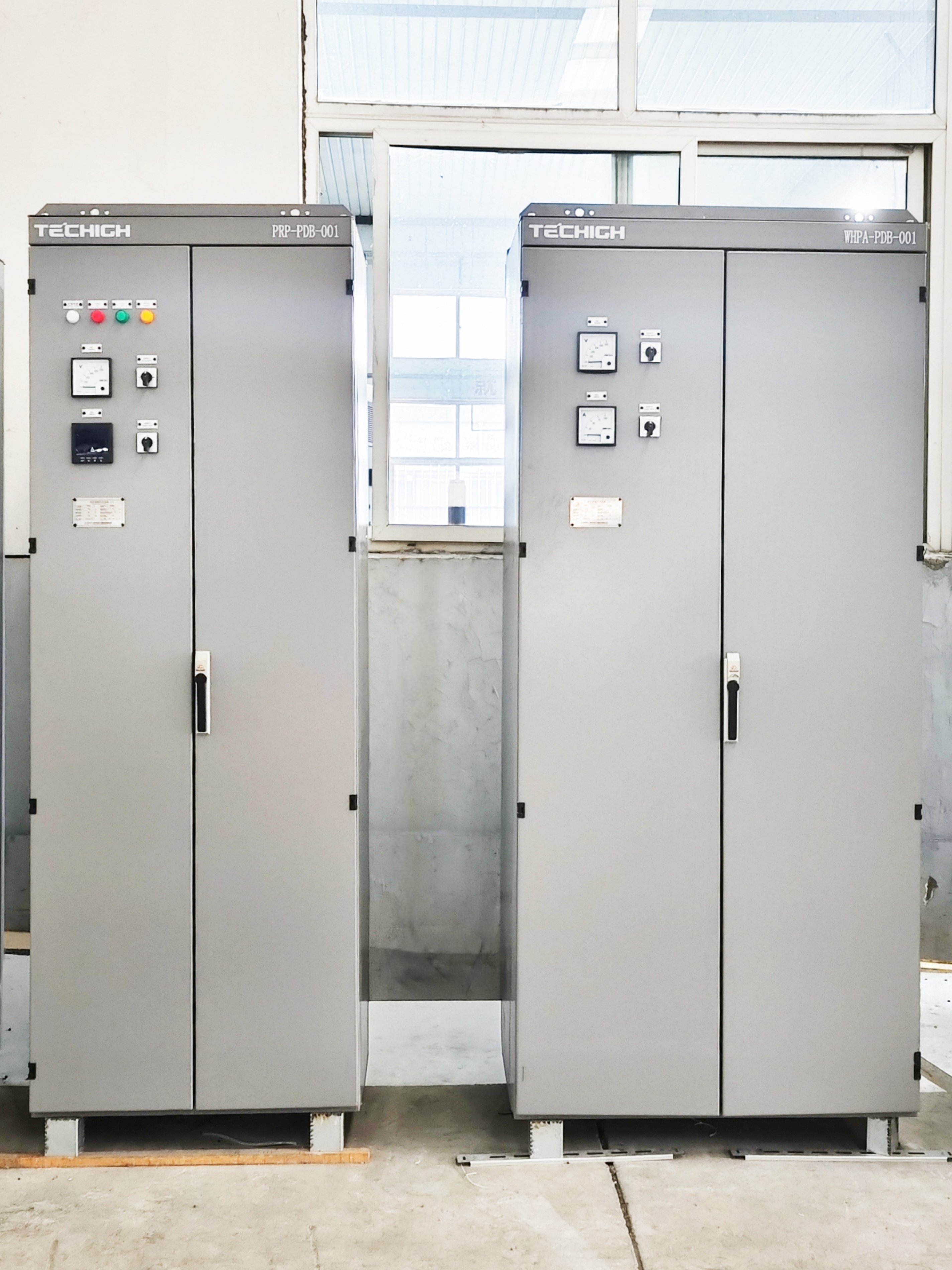

  • Distribution Box:
    (1) Model: PDBC-I
    (2) Rated Voltage: 230V
    (3) Rated Current: 100A
    (4) Protection Rating: IP23
