A-05-1 GGD AC Low-Voltage Distribution Cabinet
A-05-1 GGD AC Low-Voltage Distribution Cabinet
A-05-1 GGD AC Low-Voltage Distribution Cabinet
A-05-1 GGD AC Low-Voltage Distribution Cabinet

A-05-1 GGD AC Low-Voltage Distribution Cabinet

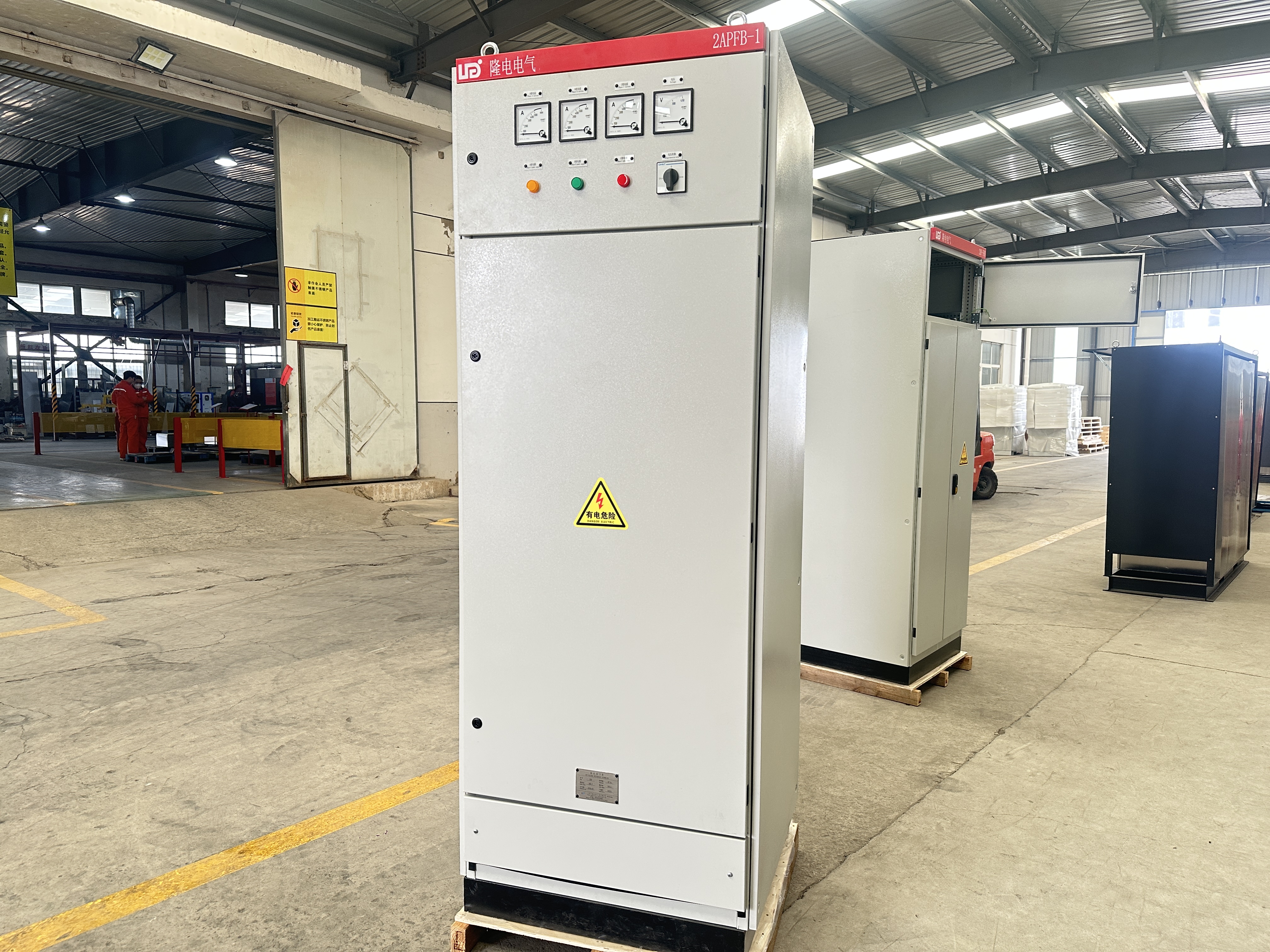

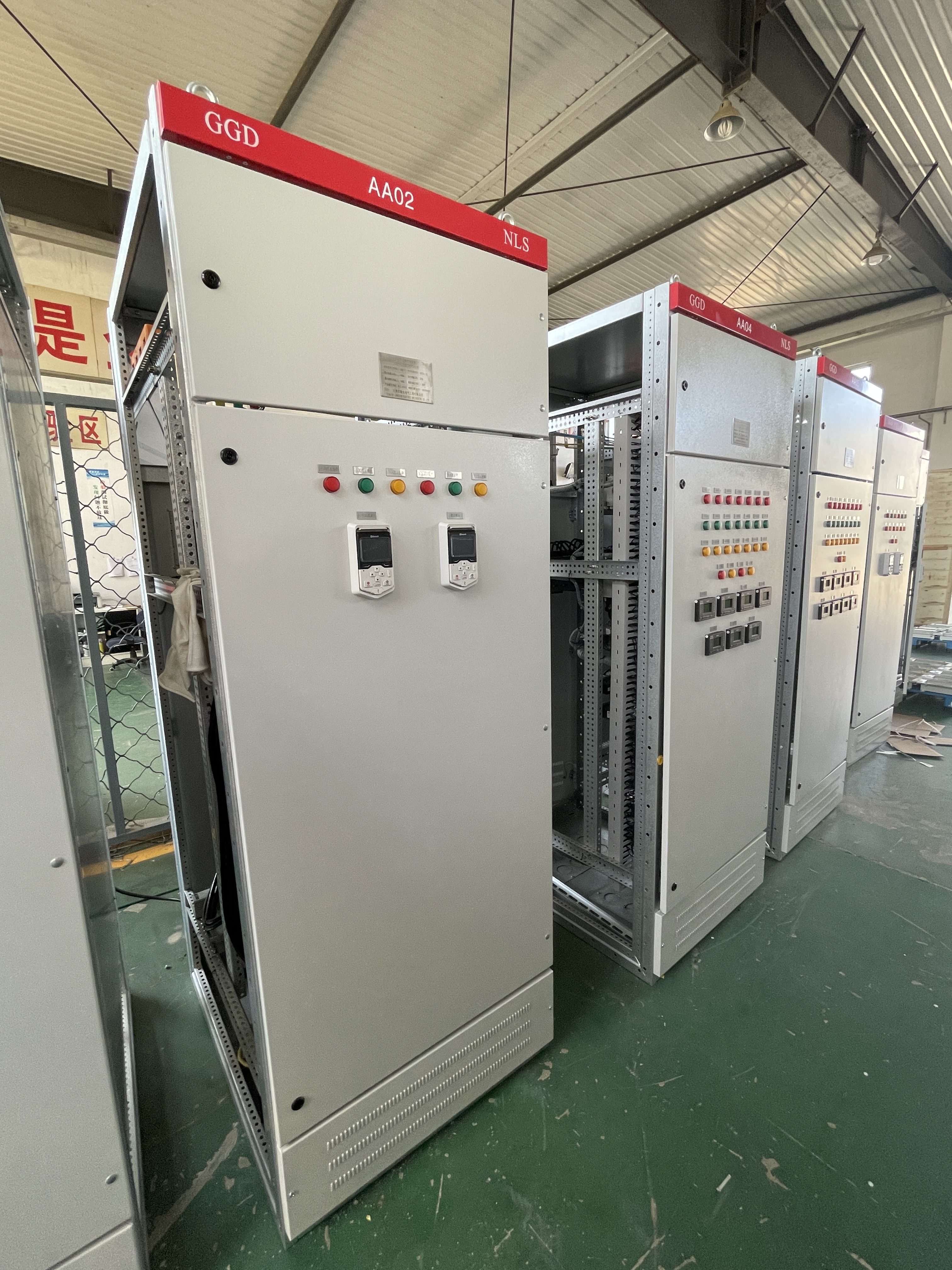

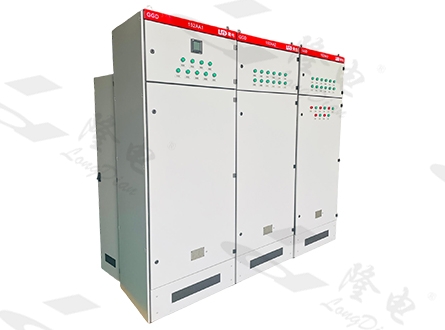

Longdian Electric GGD AC low-voltage distribution cabinet is an indoor fixed-type modular distribution unit rated at 380V, 50Hz, IP30, compliant with IEC 60439 and GB 7251.1. Main busbar current 400A–1600A with 30kA short-time withstand; GGD1/GGD2/GGD3 series support up to 3150A. Frame built from 8MF cold-formed steel with E=20mm/100mm dual-pitch mounting holes. Natural ventilation via top/bottom ventilation slots. High flame-retardant ZMJ busbar clamps. Removable top/bottom covers for cable routing. Suitable for incoming, feeder, bus-coupling, reactive compensation, and lighting distribution — 129 circuit schemes, 298 specifications.

Inquire Now > Next Products >

1. Applications

1.LV distribution in power plants and substations

2.Power and lighting distribution in industrial plants

3.Commercial buildings and municipal infrastructure

4.Reactive power compensation and capacitor banks

5.Data centers and PV grid-connected LV distribution

2. Features

1.8MF cold-formed steel frame with E=20mm/100mm dual-pitch mounting holes for high modularity

2.Top and bottom ventilation slots create natural airflow for effective heat dissipation

3.High flame-retardant ZMJ busbar clamps with superior mechanical strength and insulation

4.Removable top/bottom covers facilitate cable routing and wiring

5.Modular design ensures component interchangeability; compatible with domestic and imported brands, unaffected by component upgrades

3. Performance Display

（1）

  • Product Type: Packaged Substation and Supporting Low-Voltage Power Distribution Cabinets
  • Project Name: Angola Lobito Refinery Unit and Overall Project – Phase 2A Temporary Facilities
  • Longdian Contract No.: 26-02-07/LD-C-068-L
  • Contract Goods Name: Low-Voltage Power Equipment (CFD Type) – Total 36 Units
  • Contract Details:
    （1）Model: CFD (GGD-type enclosure) – 7 units
    （2）Model: CFD (Rittal-type enclosure) – 2 units
    （3）Packaged Substation – 1 unit



（2）

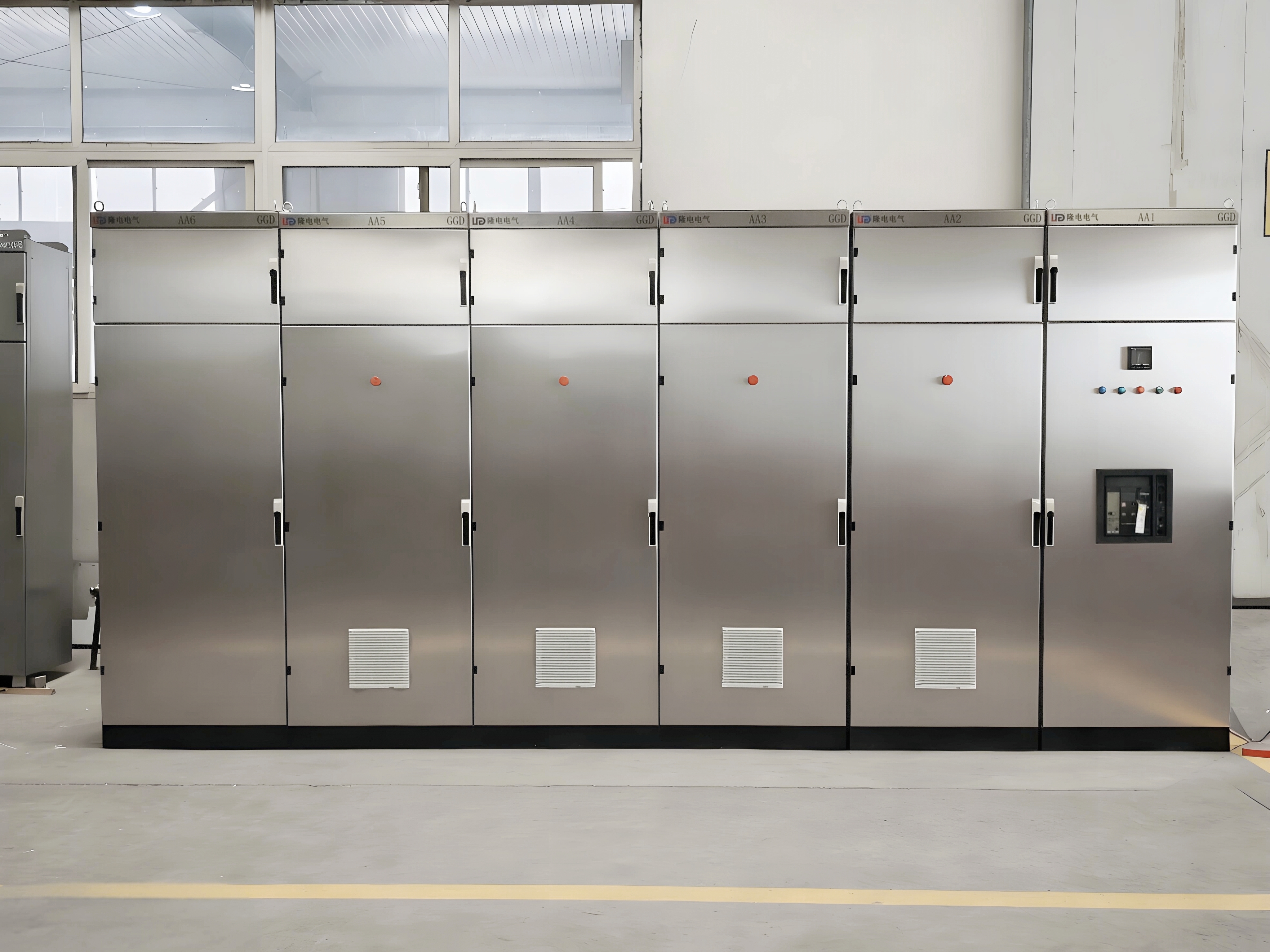

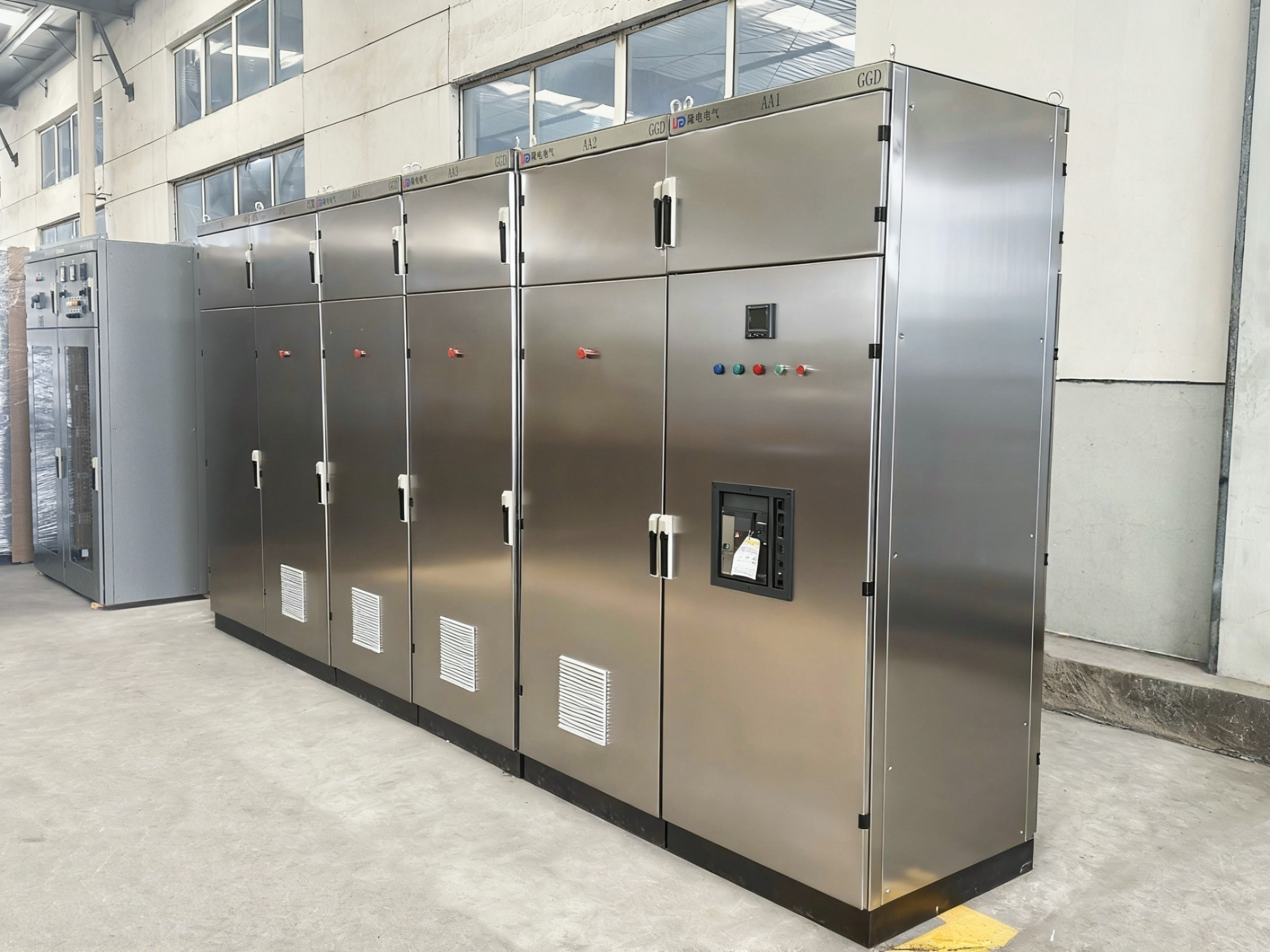

  • Product Type: High-Protection Class Electrical Enclosures
  • Project Name: Russia Project
  • Classification Society: CCS (China Classification Society)
  • Longdian Contract No.: 25-09-19/LD-C-443
  • Contract Product Name: 1 unit of Master Control System (GGD)
  • Contract Details:
    (1) Degree of Protection: IP30
    (2) Rated Voltage: 380V
    (3) Rated Current: 1600A

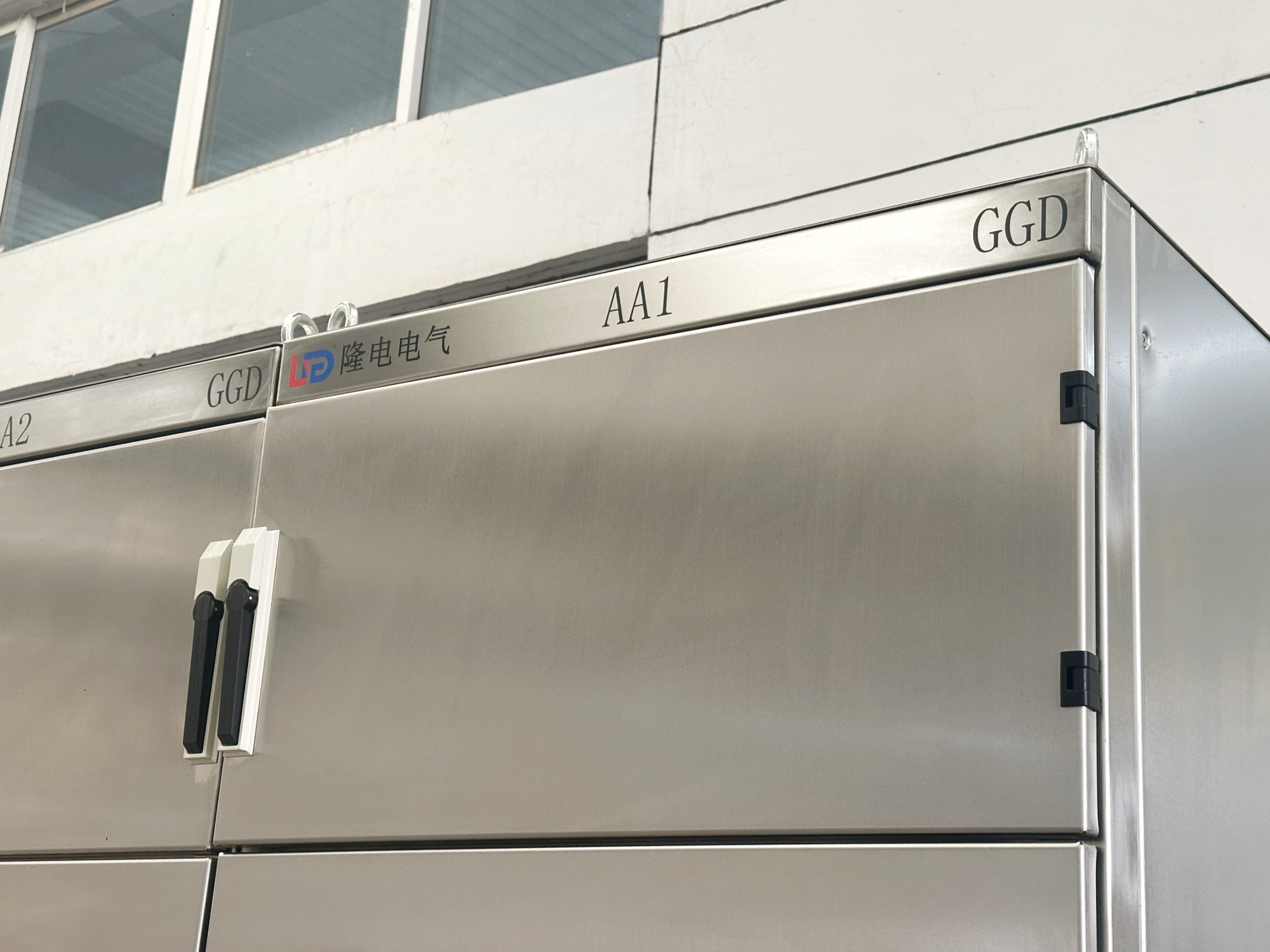

    (4) Material: SS316 (Stainless Steel 316)

（3）

Longdian Contract No.:

GGD AC Low-Voltage Distribution CabinetGGD AC Low-Voltage Distribution Cabinet

（4）

Longdian Contract No.:

GGD AC Low-Voltage Distribution CabinetGGD AC Low-Voltage Distribution Cabinet
