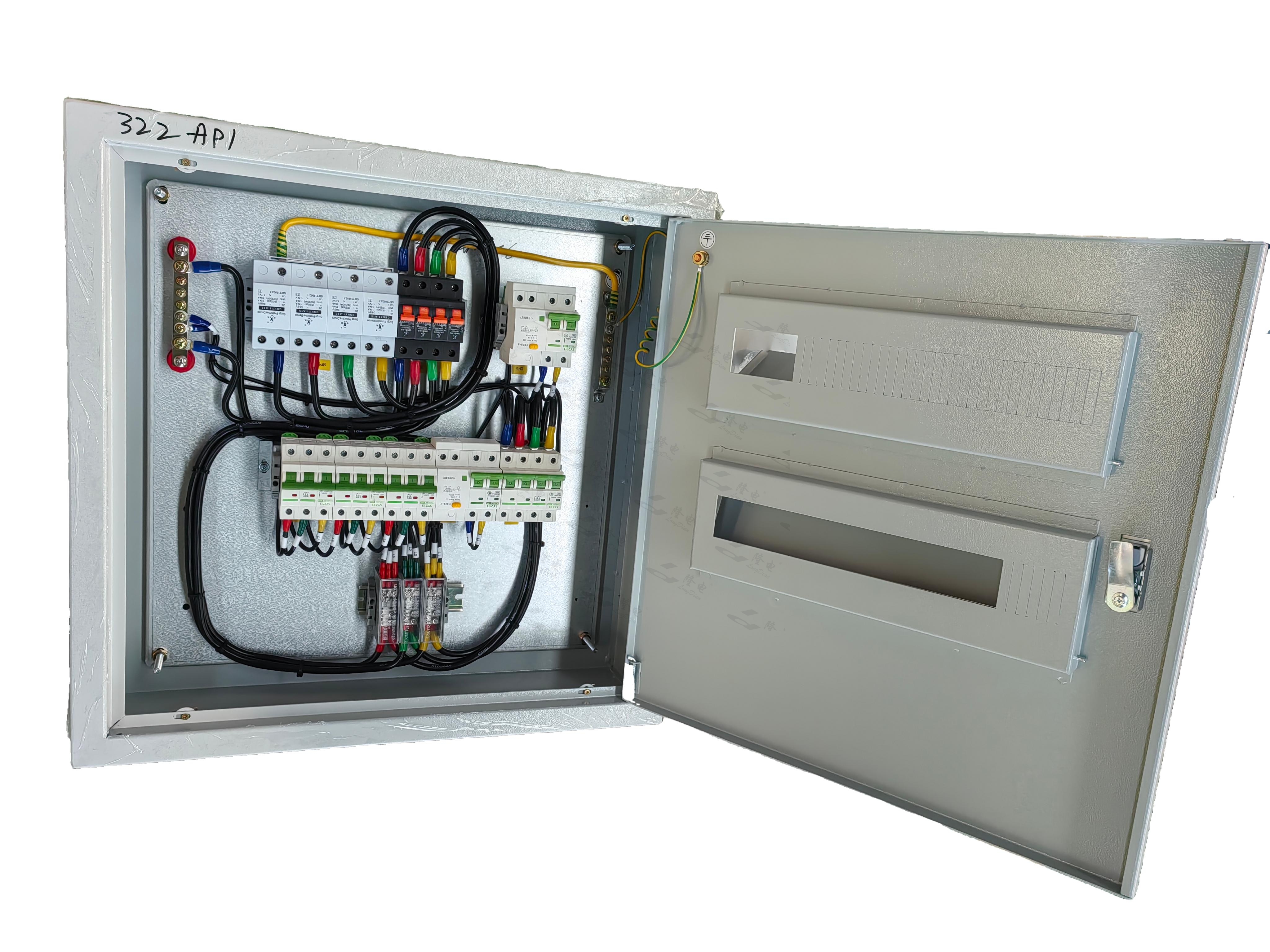

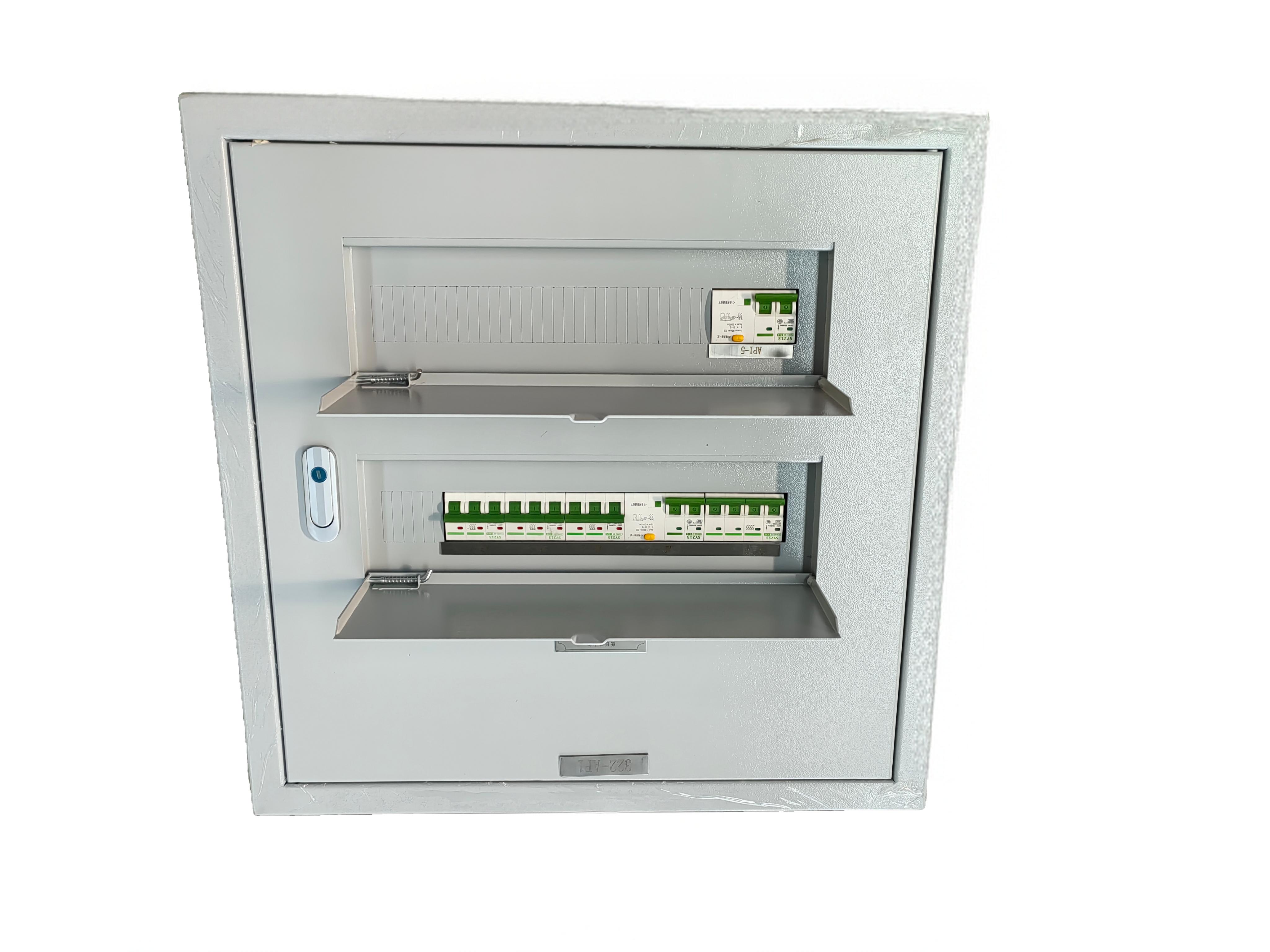

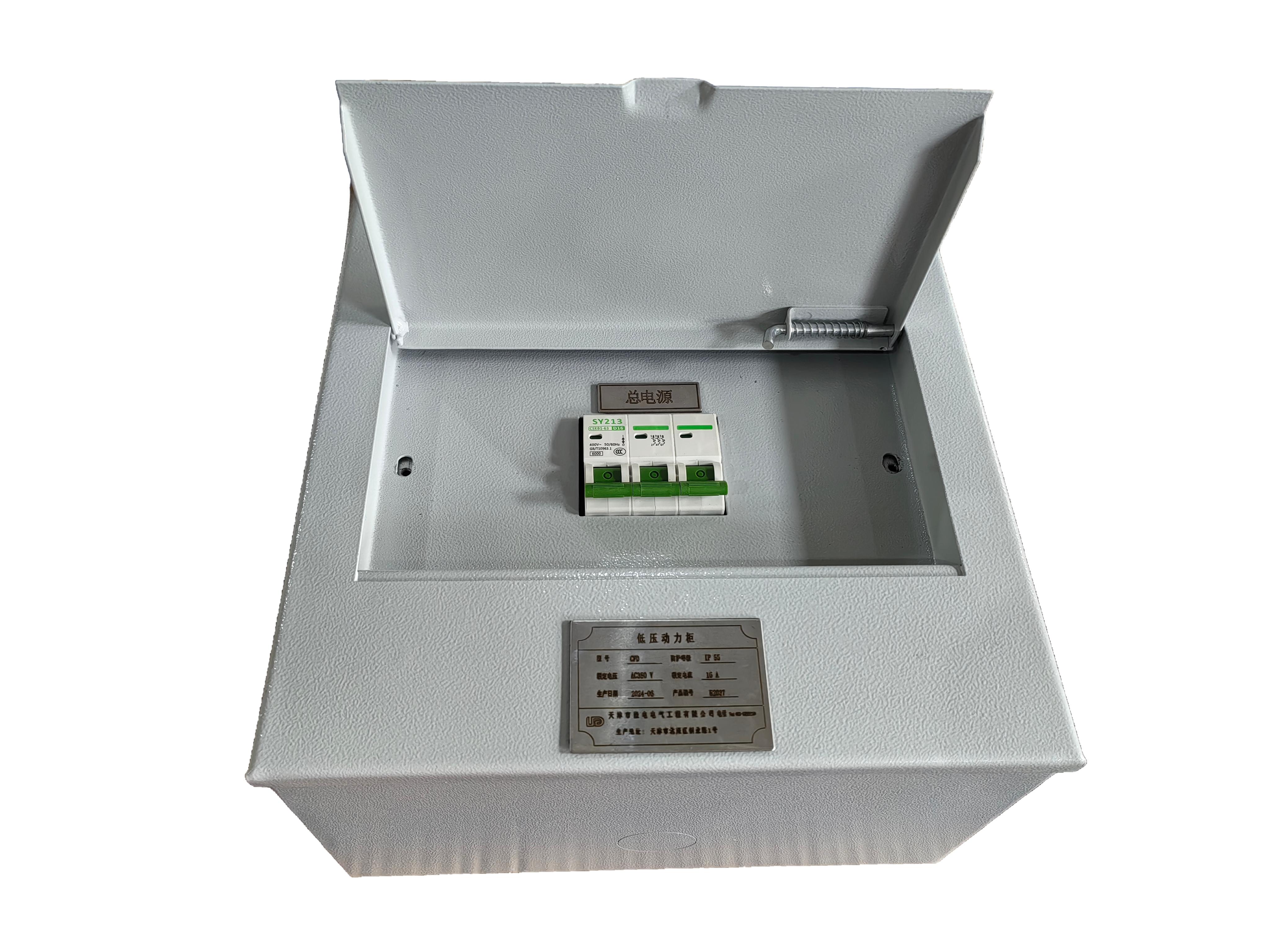

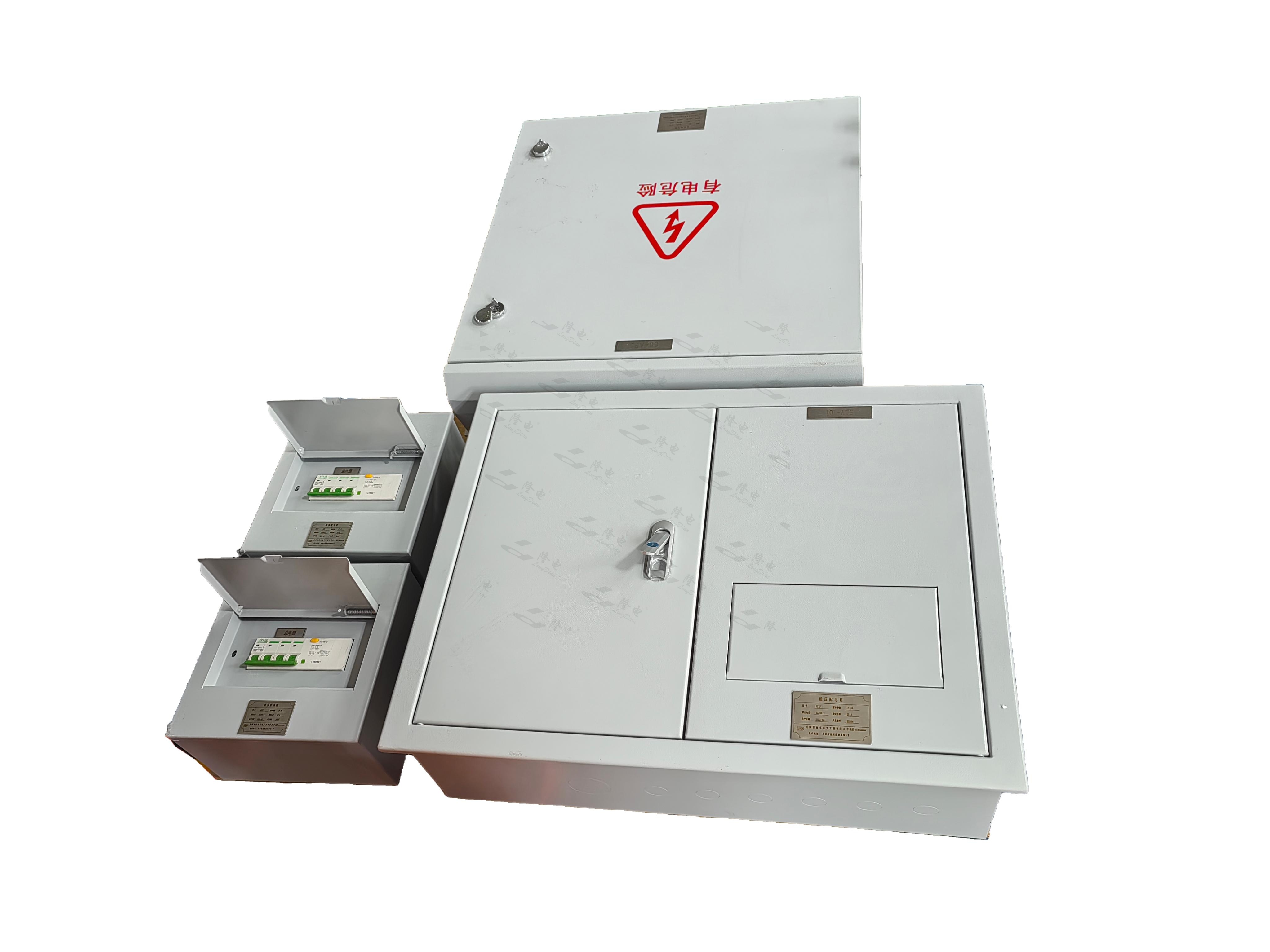

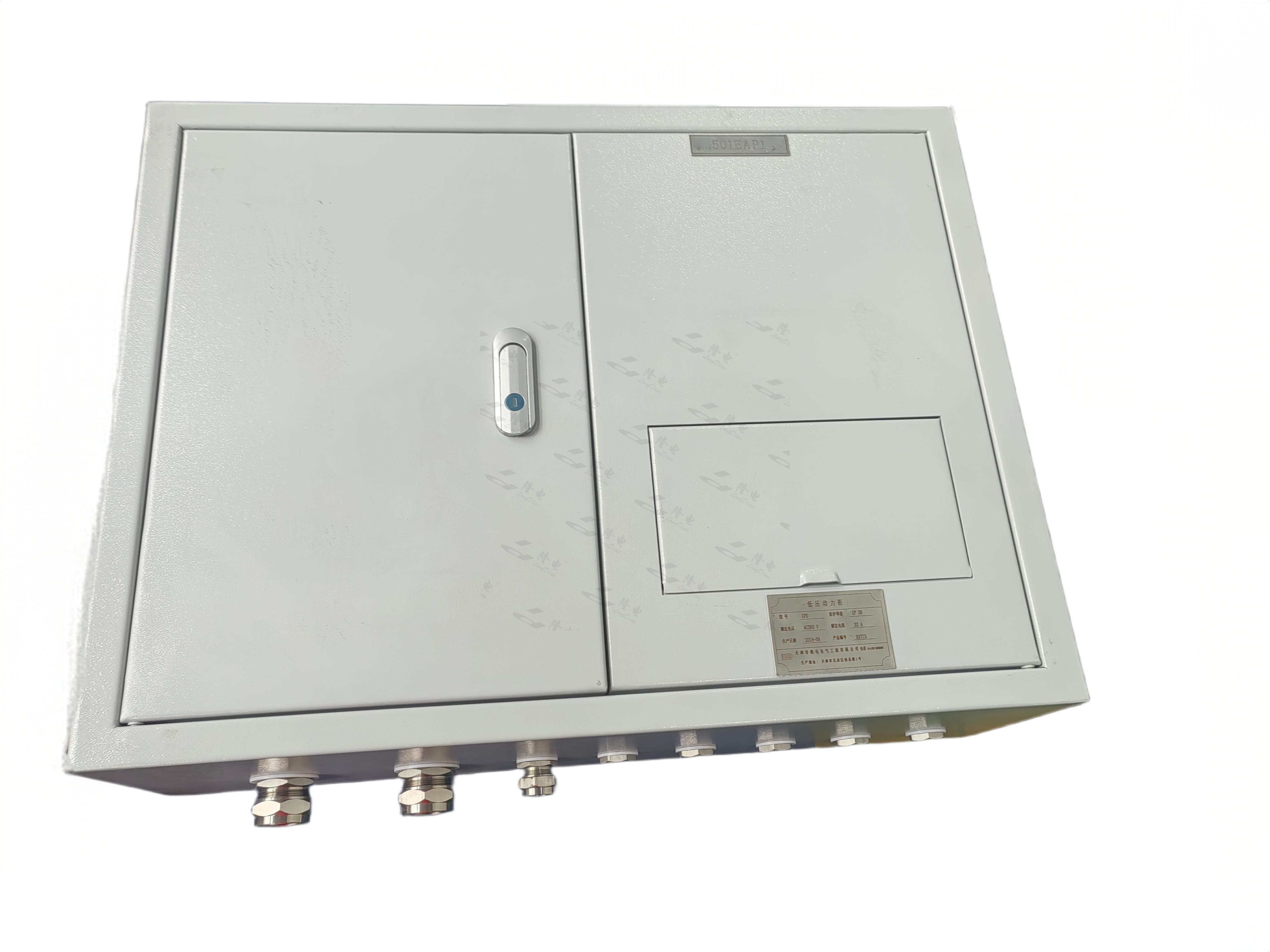

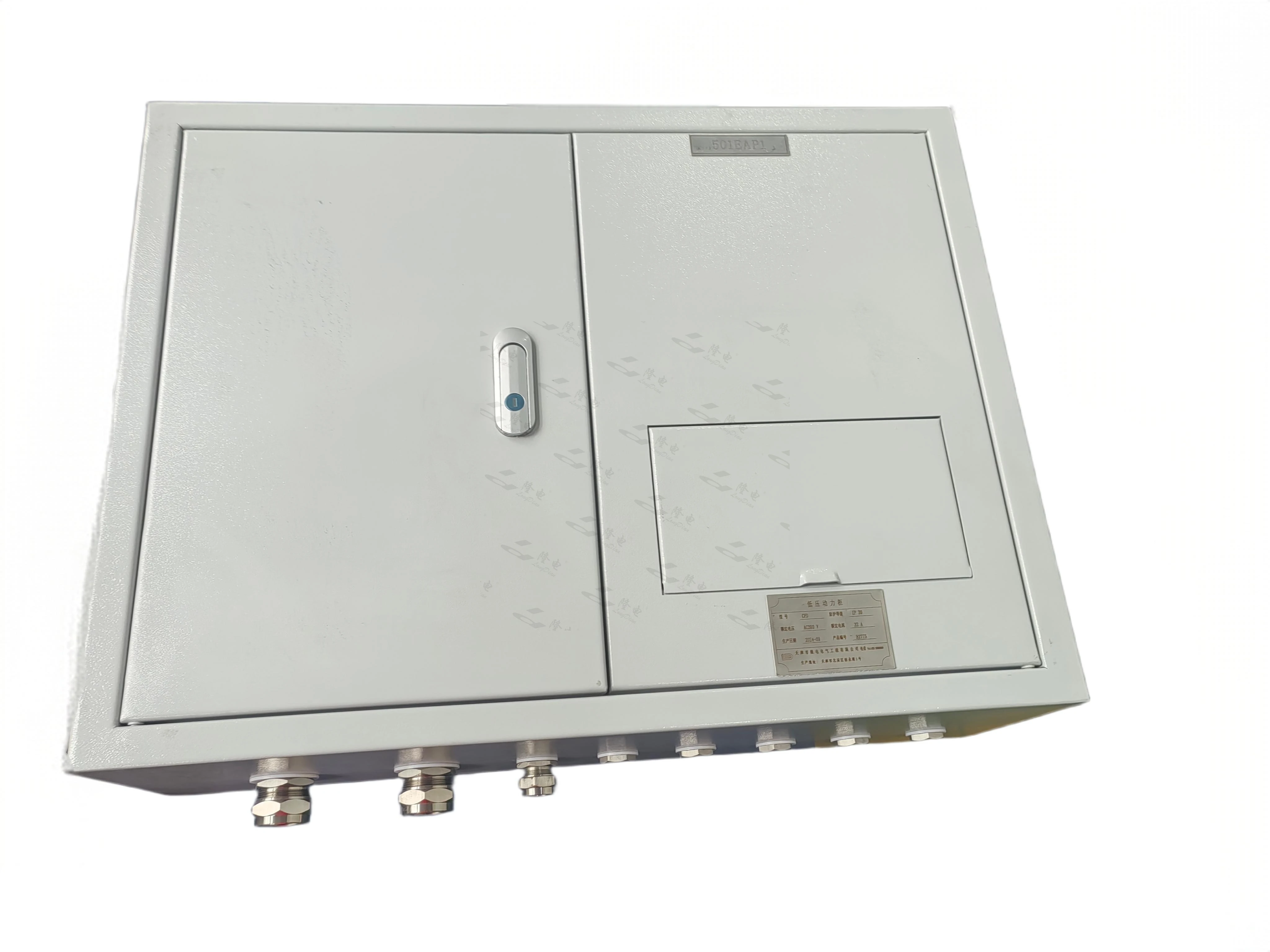

A-08-1 PXTF AC Low-Voltage Power Cabinet
The PXTF series is an indoor power distribution and control cabinet designed for AC terminal power systems with a rated frequency of 50 Hz and rated operational voltage of 220 V / 380 V. It supports a main busbar rated current range of 10 A to 250 A, with a rated short-time withstand current of 6 kA. The enclosure is rated IP30, with the internal operating zone rated IP20, and is available in powder-coated carbon steel or stainless steel. The distribution and control configuration is fully customizable, with optional components including molded case circuit breakers (MCCBs), isolating switches, miniature circuit breakers (MCBs), contactors, thermal overload relays, sockets, PLCs, and fuses from various manufacturers. The cabinet features an aesthetically pleasing and robust design suitable for a wide range of applications.
